Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
TI-TCWH7
58058
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2020 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
20l
Advertisement
Related Manuals for Titanium TI-TCWH7
Summary of Contents for Titanium TI-TCWH7
- Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. TI-TCWH7 58058 Visit our website at: http://www.harborfreight.com email our technical support at: productsupport@harborfreight.com...
-
Page 2: Table Of Contents
table of contents Safety ............2 Maintenance and Servicing ......9 Specifications ..........4 Parts List and Diagram ......11 Operation ............ 6 Warranty ............ 12 WarninG SyMBOLS anD DeFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. - Page 3 13. this helmet provides protection for intended WarninG purposes only. There are certain applications for which this helmet was designed. Do not modify this helmet and do not use this helmet for a purpose for which it was not intended: a.
-
Page 4: Specifications

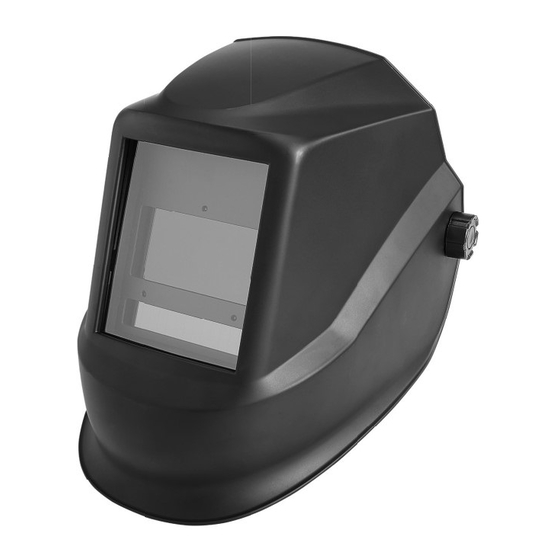

Specifications Description Auto-Darkening Welding Helmet Power Source Solar powered cell with battery assistance (replaceable 3V CR2450 lithium battery) Operating Temperature 14° to 149° F Resting Shade Shade # 3 Shade Range 5 to 9 – 9 to 13 variable UV/IR Protection Up to DIN 15 at all times Lens Type ANSI Z87.1-2020 compliant... - Page 5 Shade Guide chart Guide for Shade Numbers Shade numbers are given as a guide only and may be varied to suit individual needs. MiniMUM SUGGeSteD arc cUrrent prOceSS eLectrODe SiZe prOtectiVe SHaDe nO. (amperes) SHaDe (comfort) Less than 3/32" (2.4 m m) Less than 60 —...
-
Page 6: Operation
Operating instructions read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Function The Auto-Darkening Welding Helmet is designed to protect the eyes and face from sparks, splatter, and harmful radiation under normal welding conditions. - Page 7 controls Mode Selection Display Level Mode Selection Option Indicator Selection Figure B: controls Mode Selection and Shade number 1. Use Set Switch to choose the Shade option. 4. To switch between Cut and Grind mode, press the Mode switch. 2. Press Mode Switch to choose between Shade 5-9 or Shade 9-13.
- Page 8 adjusting Headband Adjust the Headband so that the Helmet is seated 2. Adjust the Head Size by using the Head Size securely on your head as low as possible and close Adjustment Knob. Size should be adjusted so to your face using the following procedure: that the Front Lens Cover is aligned with your eyes and the Helmet fits firmly on your head.
-
Page 9: Maintenance And Servicing
Maintenance tO preVent SeriOUS inJUry FrOM tOOL FaiLUre: Do not use damaged equipment. if damage or abnormal operation occurs, have the problem corrected before further use. BeFOre eacH USe, inspect the general condition of the tool. check for loose hardware, misalignment or binding of moving parts, cracked or broken parts, damaged electrical wiring, and any other condition that may affect its safe operation. - Page 10 Filter Lens replacement 1. Remove the Lens Frame from the Helmet Shell. 3. Remove any protective film from both sides of the new Lens. 2. Remove the Auto-Darkening Filter 4. Install new Filter Lens into the Lens Holder from the Lens Frame. and replace Lens Holder into Shell.
-
Page 11: Parts List And Diagram
parts List and Diagram pLeaSe reaD tHe FOLLOWinG careFULLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. -
Page 12: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
Need help?
Do you have a question about the TI-TCWH7 and is the answer not in the manual?
Questions and answers
Does this helmet automatically shut off when not in use, I do not see any on/off switch. I let it set for a couple of hours and it still showed that it was on. please advise on how to turn it off without removing the battery. TI-TCWH7
The Titanium TI-TCWH7 helmet has a fully automatic power ON/OFF feature, so it automatically shuts off when not in use.
