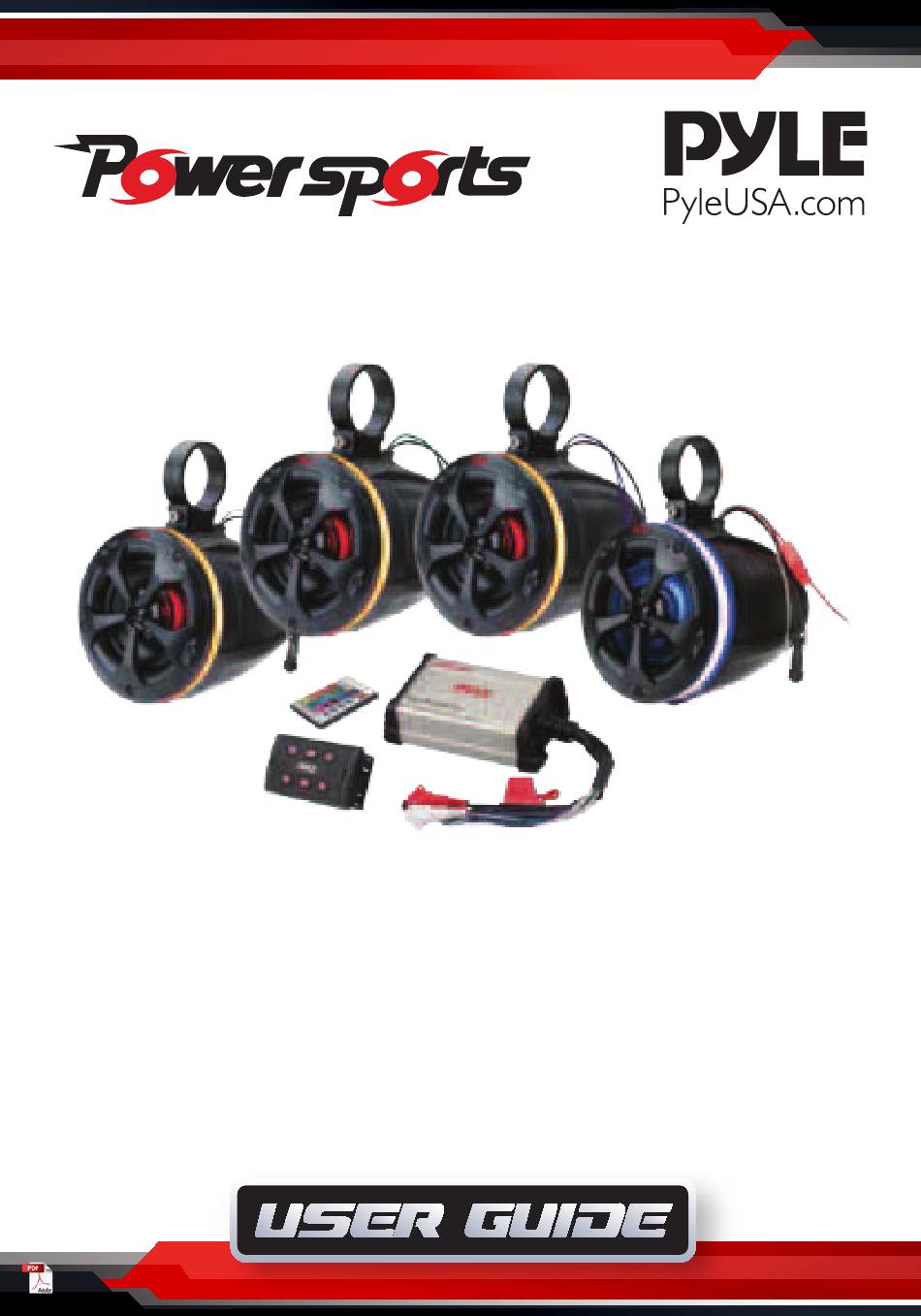

- Page 1 PLUTV49BTR 4’’ Waterproof Rated Off-Road Speakers 800 Watt Compact PowerSport Vehicle Speaker System for ATV, UTV, 4x4, Jeep with RGB Lights and Remote Control (2 Pair)
-
Page 2: Wiring Instructions
PRECAUTIONS • This unit is designed for negative ground 12-14.50 Volts (DC) operation only. • Use speakers with an impedance of 4 Ohms • Avoid installing the unit where: • It would be subject to high temperatures, such as from direct sunlight or hot air from the heater. -
Page 3: Speaker Connections
REMOTE TURN-ON CONNECTION The amplifier is turned on by applying +12V to the remote turn-on terminal (REM). The wire lead to this terminal should be connected to the "Auto-Antenna" lead from the vehicle/or boat stereo resources which will provide the +12V only when the stereo resources is turned on. -
Page 4: Power Supply
+ 12V = POWER SUPPLY Connect the BATT terminal to the positive pole of the battery with a lead cable and add a fuse into the power cable in a distance of not more than 30 cm from the battery. The lead cable’s diameter should be at least 4 mm’ for a length of 3m and 6mm”... -
Page 5: Fuse Replacement
NOTES ON THE POWER SUPPLY • Connect the +12V power input lead only after all other leads have been connected. • Be sure to connect the ground wire of the unit securely to a metal part of the vehicle/or boat. •... - Page 6 No Sound: • Speaker cable or speaker plug are not connected correctly. • The plus and minus wires of the speaker cable have contact, thus eliminate the short circuit. If you use, pay attention only 4 ohm load speaker is allowed. No 2 ohm or less impedance speaker connection is allowed.
- Page 7 • If there are humming noises, use thicker ground cables or add further ground cables to the chassis. • To reduce contact resistance and bad and loose contacts, please solder the cable ends or use multi core cable ends, spade terminals or others. Gold Plated spade terminal are free of corrosion and have the lowest contact resistance.
-
Page 8: Remote Control Functions
Remote Control Functions • 16 static colors for choice with 8 kind of brightness which can adjust up and down. • 3 colors flash, 4 colors strobe, 7 colors fade, 7 colors smooth, all modes can adjust the brightness and speed. •... -
Page 9: Volume Down
Auto Reconnection a. When the device is out of BT range, BT will be disconnected automatically, the light turns blue while blinking. b. BT will automatically reconnect when detected in range again in 10 minutes. c. Disconnected BT after 10 minutes, you need to process BT connection steps (above) to reconnect BT again. -
Page 10: Wire Diagram
WIRE DIAGRAM Line out-L Line out-R AUX Input Remote Out (Blue) ACC Remote In (Red) Fuse: 5A +YELLOW -BLACK DC12V(-) DC12V(+) Grounded to Wire Color Description Recommended wiring metal chassis Yellow Battery (+), 12dc with fuse (parts are not included) Black Battery (-), Ground White... - Page 11 PLUTV49BTR WIRE DIAGRAM 200mm 200mm 200mm 200mm 4000mm 4000mm 350mm 2nd RGB Slave 2nd RGB Slave 4000mm 4000mm 200mm 200mm 4000mm 4000mm 2000mm 2000mm 3rd RGB Slave 3rd RGB Slave Universal Bluetooth Remote Controller 200mm 200mm USB: 1500mm USB: 1500mm 4th RGB Slave 4th RGB Slave Line out: 150mm...
- Page 12 DC12V(+) Recommended wiring Recommended wiring with fuse (parts are not included) with fuse (parts are not included) Grounded to metal DC12V(-) Grounded to metal chassis, or directly to negative chassis, or directly to negative polarity of battery. polarity of battery. 2000mm 2000mm +12V...
- Page 13 Features: • Pro Audio Power Sports Speakers with RGB Lights • Pro Audio Power Sports Amplifier System Kit • Universal Mount BT Control Unit • 4-Channel Marine Audio Amplifier • Marine Grade Rugged Construction • Waterproof Rated & Weather-Resistant Connectors •...
- Page 14 Marine Amplifier: • Amplifier Type: 4-Ch. Audio Component • Power Output: 1500 Watt MAX • 4 x 45 Watts RMS @ 4 Ohm • 4 x 150 Watts MAX @ 4 Ohm • Marine Grade IP-65 Rating • T.H.D: 0.1% •...
-
Page 15: What's In The Box
What’s in the Box: • (1) Wireless BT Control Unit • (1) 3.5 mm Auto Connection Cable • (4) 4'' -inch Off-Road Speakers • Compact 4 Channel Marine Amp • (4) 2 Meters Speaker Wire • (4) 5.9’’ x 0.7’’ x 0.2’’ -inches Rubber Pads •... - Page 16 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
