Audio Design ESX VN630W Owner's Manual

15,7 cm (6.2”) double-din touchscreen naviceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VN630W
15,7 CM (6.2") DOUBLE-DIN
TOUCHSCREEN NAVICEIVER
VN630D
15,7 CM (6.2") DOUBLE-DIN
TOUCHSCREEN NAVICEIVER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESX VN630W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audio Design ESX VN630W

Summary of Contents for Audio Design ESX VN630W

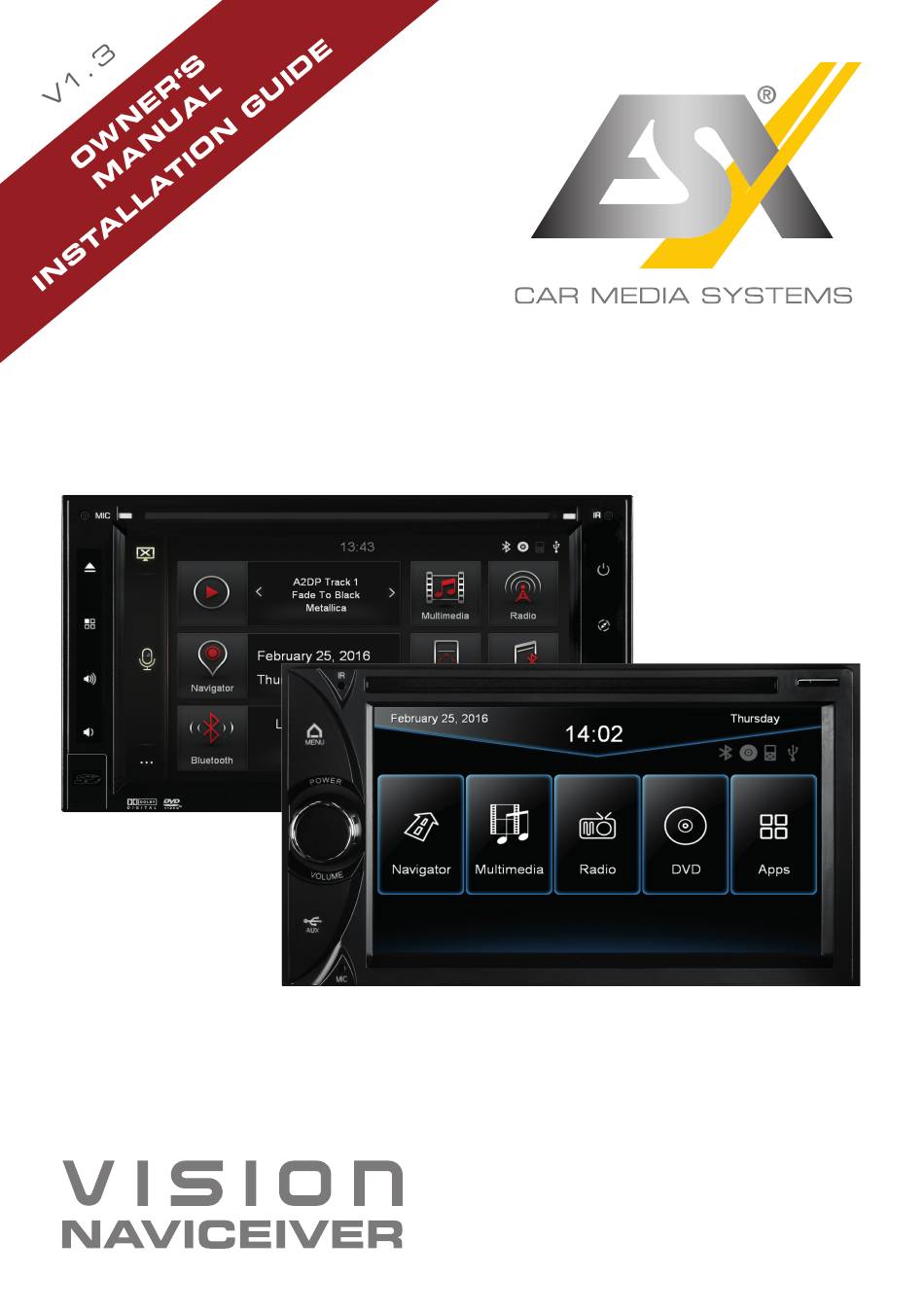

  • Page 1 VN630W 15,7 CM (6.2”) DOUBLE-DIN TOUCHSCREEN NAVICEIVER VN630D 15,7 CM (6.2”) DOUBLE-DIN TOUCHSCREEN NAVICEIVER...
  • Page 2 INTRODUCTION Always follow the instructions in this manual before using the device. Please keep this manual easily accessible in the vehicle for future reference. Features • iGo Primo, 3D Navisoftware on 8GB SD card, 46 countries including Turkey with Points of Interests display and search function, 3D building views, TTS voice output, warnings, over 25 system and prompt languag- es.

  • Page 3: Table Of Contents

    INDEX Scope of delivery .............................4 Safety Information ...........................6 Basic functions ............................8 Operating elements ..........................8 Main menu ............................10 Navigation ............................11 Multimedia player ..........................12 Radio ..............................14 DVD (DVD/CD player) ..........................17 Applications ............................18 – Bluetooth™ ............................19 – LinkPod .............................21 – AV/TV ..............................23 – A2DP ..............................24 –...

  • Page 4: Scope Of Delivery

    SCOPE OF DELIVERY Item Figure Quantity Main device Stylus MicroSD 8GB incl. Navigations Software Remote Control G71-POW0422 System Connector on ISO M6241 System Connector on open cables G71-AUD0205 Audio / Video / AV Inputs G71-MNV0012 Audio Output with Remote Turn-On G71-MIC0008 External BT-Microphone G71-CCD0072...
  • Page 5 SCOPE OF DELIVERY Item Figure Quantity G71-MNV0011 Audio / Video Outputs VN630D: G71-USB0107 VN630W: USB Port G71-WHE0083 Var. System Connections GPS Antenna Double DIN Mounting Frame Double DIN Radio Decoration Panel Unlock Device Clamps...

  • Page 6: Safety Information

    SAFETY INFORMATION • In general, the assembly and installation of the device must be performed by a trained and technically skilled specialists, as the installation and connection of the device requires complex knowledge. • This device is only suitable for the operation in a vehicle with an on-board voltage of 12 volts, negative ground.
  • Page 7 SAFETY INFORMATION • The device supports only DVD/CD standard disk size of diameter with 12 cm. Do not attempt to insert disks with a different size or any other object into the disk slot. Be sure to load only one disk at the same time. •...

  • Page 8: Basic Functions

    BASIC FUNCTIONS OPERATING ELEMENTS VN630W Internal Bluetooth™ microphone Opens navigation system. Slot for CD/DVD disks (Ø 12 cm). Turns volume up Infrared sensor for the remote control Starts media playback from USB Eject the inserted CD/DVD. Turns volume down Press briefly: Mute Press briefly: Opens voice control Press and hold: Opens Bluetooth™...
  • Page 9 BASIC FUNCTIONS OPERATING ELEMENTS VN630D Infrared sensor for the remote control Behind the cover (open to the left), the reset button, the 3,5 mm AUX- and front USB input Slot for CD/DVD disks (Ø 12 cm). are located MicroSD card slot Internal Bluetooth™...

  • Page 10: Main Menu

    BASIC FUNCTIONS MAIN MENU After power on, the device starts with the main menu. By pressing the „ “ button (VN630W) or „Menu “ (VN630D) on the device, you can always get to the main menu too. Depending on the selected design theme (Skin), the current date and time will be displayed here. The four function icons are (depending on the skin) is highlighted in white and thus activated when the corresponding function is in use, such as „Bluetooth connection“, „CD / DVD in the drive“, „iPod con- nection“...

  • Page 11: Navigation

    BASIC FUNCTIONS NAVIGATION Open the navigation application by tapping „Navigator“ in the main menu or by pressing the „ “ (only VN630W) button on the device. Please refer to the separate manual for the navigation software. The device provides the ability to use any navigation software (Windows CE 6.0 compatible). Patch the naviga- tion software (on MicroSD card) with the device as follows: Tap on „Option“.

  • Page 12: Multimedia Player

    BASIC FUNCTIONS MULTIMEDIA PLAYER By tapping „Multimedia“ in the main menu or by pressing the „ “ button on the device (only VN630W), the source selection USB or SD for audio and video playback opens. Refer to page 17 for CD Audio playback.
  • Page 13 BASIC FUNCTIONS FOLDER PLAYBACK Tap the folder icon in the multimedia menu at the bottom left (See page 9, # 9) and the currently played folder Is displayed. You can now scroll through the list (move the list down / up with your finger, or scroll the page side by side with the arrows).

  • Page 14: Radio

    BASIC FUNCTIONS RADIO Open the radio application by tapping „Radio“ in the main menu . Tap here to enter the main menu without inter- RDS information of the current station. rupting the radio playback. With the arrows you can quick-start the search Current time.
  • Page 15 BASIC FUNCTIONS Settings and station presets Tap on the „gear“ icon to open the settings and then: „Rename Station“ to rename the current radio station. „Delete Station“ to delete the current radio station from the presets. „Delete All Stations“ to delete all radio stations from the pre- sets.
  • Page 16 BASIC FUNCTIONS RDS functions This device supports RDS (Radio Data System) in the frequency range 87.5 - 107.9 MHz FM. The follow- ing RDS functions are only available if they are supported by the selected radio station. AF (Alternative Frequency) The AF function enables the automatic switching of the receiv- ing frequency when leaving the reception range of a transmitter.

  • Page 17: Dvd (Dvd/Cd Player)

    BASIC FUNCTIONS (DVD/CD-Player) The DVD player supports the following formats: DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD-R/RW, MP3. Open the DVD application by tapping „DVD“ in the main menu. Tap during DVD playback on any spot on the display to open the DVD menu. When you playback a CD or MP3-CD, the user interface is different.

  • Page 18: Applications

    BASIC FUNCTIONS APPS Open the applications menu by tapping on „Apps“ in the main menu. The device offers a variety of applications that can be used as described below. Some of these func- tions require the appropriate accessories. Tap here to switch off the display. To switch on Tap here to open the VirtualDisk menu.

  • Page 19: Bluetooth

    BASIC FUNCTIONS BLUETOOTH™ Open the Bluetooth™ application by tapping „Bluetooth“ in the applications menu or by press- ing the „ “ (only VN630W) button on the device. PAIRING At first pair the devices, if necessary refer to the manual of your mobile phone.
  • Page 20 BASIC FUNCTIONS CONTACTS AND CALL HISTORY Once your mobile phone has been connected via Bluetooth to the device, the synchronization of your contacts and call history starts automatically. Tap on „Contacts“. Tap a name, and then tap the green handset to start a call.
  • Page 21 BASIC FUNCTIONS Tap on „Dialled“ to display the already trans- To synchronize your contacts and call history acted phone calls. tap on „Sync. Now“. KEYPAD Tap on „Keypad“ to enter phone numbers manually. Then enter the desired number and then tap the green phone icon to start dialing.

  • Page 22: Linkpod

    BASIC FUNCTIONS LinkPod (optional) Connect your iPod™ or iPhone™ via USB with the ESX device. When the iPod™ icon is highlighted in white (top next to the time display), the connection is active. The battery charging function is carried out when the unit is turned on.

  • Page 23: Av/Tv

    BASIC FUNCTIONS AV/TV (optional) The AV/TV menu offers the possibility to playback a audio or source. Please refer for operation, installation and functionality to the instruction manual of the connected device. Note: AV is not available when the external DAB receiver „VNA- TM-DAB“...

  • Page 24: A2Dp

    BASIC FUNCTIONS A2DP (optional) Once a Bluetooth device is (mobile phone, computer, tablet) coupled via Bluetooth, which works with the streaming A2DP standard, there is the possibility, to playback audio stream over the ESX device. Connect this device as described on page 15 and select a music source A2DP under Apps.

  • Page 25: Audio

    BASIC FUNCTIONS Audio You can open the audio settings in the main menu by tapping on „Apps“ and „Audio“ or by pressing the right rotary control (except while DVD/TV playback) on the device. Tap on one of the control bars to change the sound adjust- ment.
  • Page 26 BASIC FUNCTIONS Tap on one of the control bars to change the equalizer preset. Tap on „Advance“ to open the advanced audio settings. On the left under „Channel Pre-Volume“ you can set the indi- vidual volume for each application. Just tap on the arrow icons to change the value upward or downward.
  • Page 27 BASIC FUNCTIONS Scroll the right field down to see all settings under „MISC“. Under the section „Loudness“ you can set the bass/treble boost from 0 - 20dB regardless of the equalizer settings. Note: This can lead to high distortion for the speakers. Under „Subwoofer“...

  • Page 28: Files

    BASIC FUNCTIONS Files With the file manager, it is possible to manage and open com- puter specific file formats. The system supports the following file formats: Photo: BMP, JPEG, GIF, PNG Video: MPEG (*.mpg, *.mpeg), AVI, RM (*.rm. *.rmvb), WMV, MP4 (*.mp4, *.mov), MKV (*.mkv) Audio: MP3, WMA, WAV, FLAC, AAC, Monkey Audio (*.ape) Tap once to highlight a particular file.

  • Page 29: Virtual Disk

    BASIC FUNCTIONS Once you have open an image file, you can start a slideshow of all the pictures stored in the directory. Tap on the image and the playback options are displayed. Tap on „Info“ to view the memory information of each storage locations.
  • Page 30 BASIC FUNCTIONS Note: When using multiple USB sticks, the stick with the desired RIPs must have been always connected first! If you can not access the RIPs, remove all USB sticks and connect the appropriate stick via USB. If you con- nect a USB Stick with contained CD RIPs while is Virtual Disk opened, they will not appear immediately.

  • Page 31: E-Link

    BASIC FUNCTIONS E-Link (optional, only for Android devices) Note: Please ensure that for this function a permanent Bluetooth™ connection for the E-Link mode audio signal is required. Please refer to the section Bluetooth™ on page 15. Start „E-Link“ under „Apps“ and follow the onscreen instruc- tions.

  • Page 32: Quick Charge

    BASIC FUNCTIONS Under „Choose Application“ you can select the desired appli- cation. By tapping on the transparent „>“ arrow on the bottom left, a further window opens in the lower third of the screen. There you find more options such as „Back“, „Home“, „Set- tings“...
  • Page 33 BASIC FUNCTIONS Tap on „Enable Quick Charge“ to activate the quick charge function. To disable the feature again, tap on „Disable Quick Charge“ at the same place position. Please note that the USB data function is deactivated when the USB connection is used for the quick charging. The ESX device provides in „Quick Charge“...
  • Page 34 BASIC FUNCTIONS Date/Time Tap on „Date/Time“. Select the desired time zone. Set the current date. Set the current time. Tap on the checkbox right to set on daylight Tap on „Apply“. saving time. Tap on the checkbox left to set the time for- mat to 12-hours (AM / PM).
  • Page 35 BASIC FUNCTIONS Display Tap on „Display“. Set the desired brightness level for the dis- play (only with vehicle headlights on). The check box „CCD Camera“, enables the With the check box „Pause Media Whilst Re- optional rear view camera function. As soon verse“, the media playback will be paused as reverse gear is engaged, the transmission when the reverse gear is engaged.
  • Page 36 BASIC FUNCTIONS Key illumination of the device (only in night driving mode) Tap on „Display“. Set the key Illumination brightness by mov- ing the status bar to a desired position. Note: This is only possible when the light of the vehicle is switched on. Under „LED Backlight Color“...
  • Page 37 BASIC FUNCTIONS Under „Voice Volume“ you can adjust the If „Play Bluetooth Status Voice“ is activated, volume of the speech output (0-10). an audible confirmation of the Bluetooth™ connection is issued whenever you connect The unit will inform you after the activation of or disconnect a paired Bluetooth™...
  • Page 38 BASIC FUNCTIONS Operating System Under „System“ you find information about the system. Shell: Version number of the user interface Version number of the operating system Check under www.esxnavi.de if an operating system update is available or ask your retail dealer. Then follow the installation instructions that come with the update.

  • Page 39: Custom Settings

    CUSTOM SETTINGS Menu assignment You have the possibility to arrange the main menu or apps menu to your liking. To change the position of a control panel, press and hold for 5 seconds the regarding panel in the main or apps menu until the dashed lines are visible.

  • Page 40: Wallpaper

    CUSTOM SETTINGS Wallpaper You have the possibility to customize the background image to your liking. First, copy the desired wallpaper file to the microSD card or on a USB stick. Tap on „Apps“. Tap on „Option“. Tap at „Wallpaper“ on „Browse“ Select a file by double click.

  • Page 41: Bootlogo

    CUSTOM SETTINGS Bootlogo You have the possibility to customize the bootlogo (startup logo) to your liking. Please refer to the fol- lowing instructions. Create an image file which has 800 x 480 pixels in size is and has a minimum resolution of 72 dpi. Save this as „LOGO.BMP“...

  • Page 42: Additional Functions

    ADVANCED OPERATIONS INFRARED REMOTE The included remote control allows you to control some basic functions on the device. Point directly with the front of the remote control to the screen of the device. The distance should not be more than 3 meters. If you use the remote control for the first time, you have to remove the safety foil in the battery compartment on the back.

  • Page 43: Multifunction Steering Wheel

    ADVANCED OPERATIONS MULTI-FUNCTION STEERING WHEEL TEACHING FUNCTION With the „wheel“ function, you can teach an analog steering wheel remote control. Please note that CANBUS controlled steering wheel remote controls are not compatible. Tap on „wheel“ (Main Menu -> Option) to open the menu of teaching function.

  • Page 44: Troubleshooting

    TROUBLESHOOTING If the following troubleshooting tips do not solve the problem and the malfunction persists, please contact an authorized repair or installation service. Do not open the device or attempt to repair it by yourself. This may cause serious damages to the electronic components of the device and in your vehicle or may void the war- ranty of the device.
  • Page 45 TROUBLESHOOTING Problems Causes Remedy CD/DVD playback The DVD menu can not be opened. The disc does not support menus or is Insert another disc. plagiarism. The picture quality during playback is Brightness, contrast and color saturation Check the DVD player settings and correct insufficient.
  • Page 46 TROUBLESHOOTING Problems Causes Remedy Navigation The navigation application will not start. The software is not compatible with the Check the compatibility of software with device. Windows CE 6, or get yourself a compatible version. The software was not installed on the Check the settings under Apps - Options device properly.
  • Page 47 TROUBLESHOOTING Problems Causes Remedy Bluetooth/Phone No connection or pairing of the devices. Bluetooth function of the phone is not Enable Bluetooth function in the phone enabled. settings. Bluetooth enabled but the phone is not Enable „visible“ in the phone settings. visible.

  • Page 48: Installation

    INSTALLATION NOTES Important Notes For safety reasons, leave the installation to skilled professionals. Consult your car audio dealer. This guide is an installation aid for a proper installation of the device. Please read the following instructions prior installation: This device can only be used with a 12 V/DC power supply with negative ground. Follow under all circumstance the regulations of the vehicle manufacturer and do not make any modifi- cations on the vehicle, which could interfere the driving safety.
  • Page 49 INSTALLATION NOTES Dashboard installation Dashboard Connect all required connections (5-14) with the Main Device Double DIN Mounting Frame Main Device Double DIN Radio Decoration Panel Bend the appropriate tabs to hold the mounting frame firmly in place. Recommended accessories: VNA-630-F In some cases a smaller and more shallower mounting frame is required.

  • Page 50: Interconnection

    INTERCONNECTION Important note: Usually this devices requires a double-DIN installation slot and standard ISO power/speaker terminals. Check before connecting the correct assignment of constant plus (ISO chamber A4), ignition plus (ISO chamber A7) and ground (ISO chamber A8), even with on existing ISO connections! Use appropriate vehicle-specific adapters from the accessories trade if necessary.
  • Page 51 INTERCONNECTION Assignment of the System Connector on ISO ISO CONNECTOR OPEN CABLES PIN COLOR FUNCTION COLOR FUNCTION Gelb can-high (needs additional accessory) yellow battery +12V Gelb/Schwarz can-low (needs additional accessory) blue ant.cont. 12V output (max. 100ma) Grün input for reverse signal orange illumination Pink...
  • Page 52 INTERCONNECTION Assignment of the Accessory Connectors Audio / Video / AV Inputs G71-AUD0205 Name Connector/Color Function AV1-L-IN RCA white AV Audio left in AV/TV menu AV1-R-IN RCA red AV Audio right in AV/TV menu AV1-V-IN RCA yellow AV Video in AV/TV menu AV2/TV-L-IN RCA white AV2 Audio left in AV/TV menu...
  • Page 53 INTERCONNECTION Camera Connections G71-CCD0072 Name Connector/Color Function CCD-CVBS-IN RCA yellow Video signal input from the rear camera FRONT-CCD-IN RCA yellow Video signal input from the front camera REVERSE IN blue The ESX device switches to the „CCD CVBS IN“ input as soon as „REVERSE IN“...

  • Page 54: Installation Hints

    INSTALLATION HINTS GPS Antenna: The GPS (14) antenna must be mounted horizontally in front on the dashboard (ensure a clear view to the sky). A metalized windscreen allows no reception. If a factory GPS antenna with the same connector type (Fakra) is already available, it can be used.
  • Page 55 INSTALLATION HINTS Handbrake connection: The handbrake signal needs to be connected with the included cable (5 or 6, BRAKE IN). The signal must be connected to ground with the handbrake closed. Please contact for a correct and safe in- stallation your automotive service center! Accor- dance to legal regulations the device must only playback a DVD or video may on the main screen only with the handbrake closed.

  • Page 56: General Notes

    GENERAL INFORMATION Care and Maintenance This device is equipped with high precision and sensitive technique and should always be treated with caution. Please note the following tips to avoid endangering the warranty and extend the life of the appliance. • Children under 12 should not operate the device. Keep the device and all accessories away from small children.
  • Page 57 In general, the assembly and installation of the device should be made by a trained and technically skilled specialists. If you have any problems with operating the device, contact your specialist dealer or the Audio Design Service Department under Tel. +49 7253 - 94 65 95 or by E-Mail to navi@esxaudio.de.
  • Page 58 NOTES...
  • Page 59 NOTES...
  • Page 60 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de ©2017 All Rights Reserved...
