Summary of Contents for ALTUS AFL710W

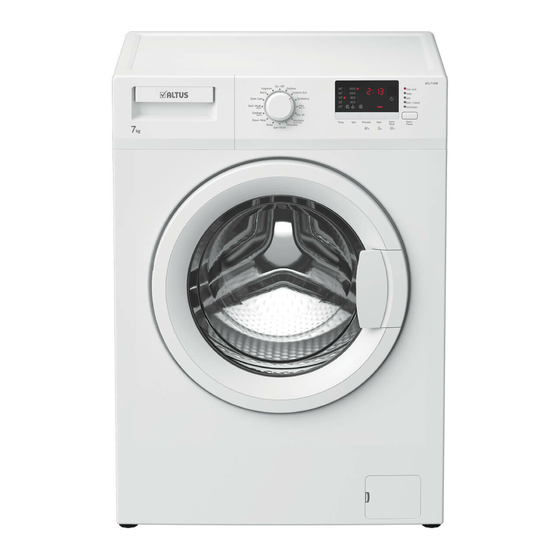

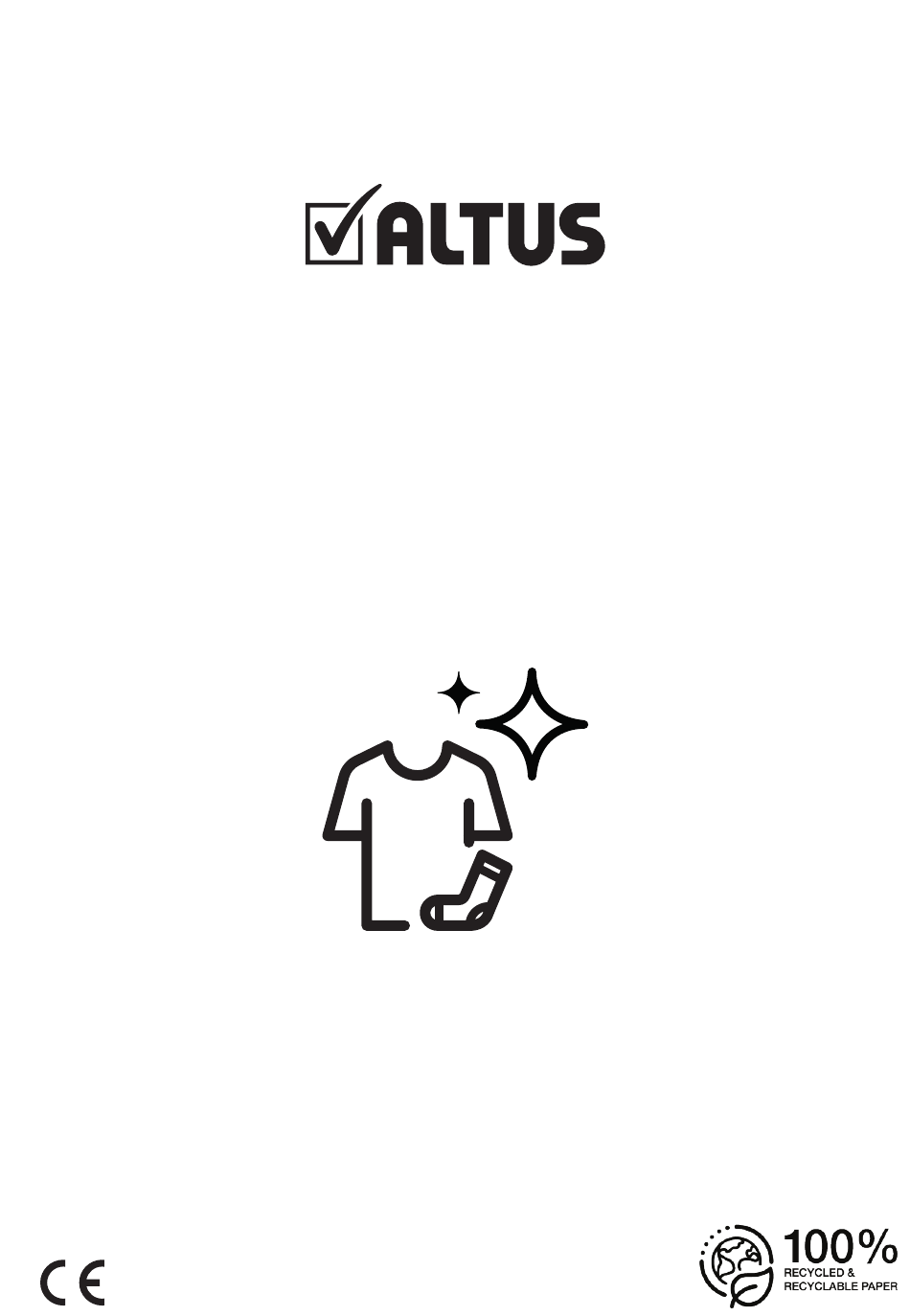

- Page 1 Washing Machine User Manual AFL710W Document Number: 2820529907_EN/ 04-03-22.(11:29)
-
Page 2: General Safety Instructions
1 General safety instructions • Do not force open the locked loading door. The door will This section includes security open immediately after the instructions which may help prevent washing cycle has ended. If the the injuries and material damage risks. door does not open, apply the All kinds of warranties shall be invalid if solutions provided for “Loading... -
Page 3: Children's Safety
1.3 Children’s safety CAUTION! • Do not forget to close the CAUTION! loading door when leaving the • This product can be used room where the product is by children at and above 8 located. years old and by persons •... -
Page 4: Important Instructions For Environment
This product has been manufactured with high DANGER quality parts and materials which can be reused and are suitable for recycling. Do not dispose • Do not wash the product by of the waste product with normal domestic spraying or pouring water onto and other wastes at the end of its service life. -
Page 5: Technical Specifications
4 Technical specifications Supplier name or trademark ALTUS Model name AFL710W Rated capacity (kg) Maximum spin speed (rpm) 1200 Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz) -
Page 6: Installation
4.1 Installation 4.1.2 Removing packaging reinforcement Tilt the machine INFORMATION backwards to remove the • Your washing machine automatically packaging reinforcement. detects the amount of laundry placed Remove the packaging inside when selecting a program. reinforcement by pulling • While installing the product, before the the ribbon. -
Page 7: Connecting The Drain Hose To The Drain
INFORMATION • It is also recommended to attach a pressure reducing valve if you experience overflow from the detergent dispenser during water fill between 3.5 to 10 bars (0.35 to 1 MPa). CAUTION! • Models with a single water inlet should not be connected to the hot water tap. -
Page 8: Electrical Connection
1 Loosen the lock nuts on the feet by hand. INFORMATION 2 Adjust the feet until the product stands in a stable and balanced way. • Use an anti-limescale suitable for the washing machines. 3. Tighten all lock nuts by hand again. •... -
Page 9: Loading The Laundry
4.2.6 Using detergent and softener • Laundry that are subjected to materials such as flour, lime dust, milk powder, etc. intensely must be shaken off before placing into the INFORMATION machine. Such dusts and powders on the • When using detergent, softener, starch, fabric laundry may build up on the inner parts of dye, bleacher and decolorant, descaling the machine in time and can cause damage. - Page 10 • Please review the program descriptions part • When you want to use liquid detergent, for suggested program for different textiles. press on the point shown to rotate the apparatus. The part that falls off will function • All recommendations about detergents are as a barrier for the liquid detergent.
-
Page 11: Tips For Efficient Washing
• Do not use bleaching agent and detergent • Oxygen-based decolorant can be used with by mixing them. Use just a little amount the detergent; however, if it is not at the (approx. 50 ml) of bleaching agent and same consistence, first put detergent in the rinse the clothes very well as it causes skin compartment number “2”... -
Page 12: Operating The Product
4.3 Operating the product 1 - Programme Selection Knob (Uppermost position On / Off) 4.3.1 Control panel 2 - Display 3 - End Time Adjustment Button 4 - Programme Follow-up Indicator 5 - Start/Pause Button 6 - Auxiliary Function Button 3 7 - Auxiliary Function Button 2 8 - Auxiliary Function Button 1 9 - Spin Speed Adjustment Button... -
Page 13: Main Programmes
• : Selectable • Synthetics * : Automatically selected, cannot be cancelled. You can use this programme to wash t-shirts, syntetic/cotton mix fabrics etc. Programme ** : Energy Label Programme (AS/NZS 2040) duration is notably shorter and efficient ***: If the maximum spin speed of the machine washing performance is ensured. - Page 14 Delicates • • Stain Care You can use this programme to wash delicate Your washing machine has a special stain laundry such as cotton/synthetic mix knitted programme ensuring that different types of clothes or socks. Washing movements in this stains are removed in the most efficient way. programme are more delicate.
- Page 15 4.3.7 Special programmes can use rinse hold function to keep your laundry in the final rinsing water in order to For specific applications, select any of the prevent them from getting wrinkled when following programmes. there is no water in the machine. Press Start/ •...
-
Page 16: Functions/Programmes Selected By Pressing The Function Buttons For 3 Seconds
• Fast+ INFORMATION When this function is selected, durations of relevant programmes get shorter by 50%. • If the Programme Selection knob is turned Thanks to the optimised washing steps, when the Child Lock is enabled, "Con" high mechanic activity and optimum water appears on the display. - Page 17 Cancelling the delayed end function the function by turning the programme selection knob, the programme follow-up light will remain on If you want to cancel the delayed end time or go off depending on the selected programme. countdown and start the programme immediately: If you do not cancel the function by pressing the 1.
-
Page 18: Loading Door Lock
4.3.14 Loading door lock • Remove the loading door emergency There is a locking system on the loading door of handle behind the filter cover with a tool. the machine that prevents opening of the loading • Open the loading door by pulling the loading door in cases when the water level is unsuitable. -
Page 19: Maintenance And Cleaning
4.4 Maintenance and cleaning 4.3.16 Cancelling the programme To cancel the programme, turn the Programme Service life of product extends and frequently Selection knob to select another programme. experienced problems will be reduced if it is Previous programme will be cancelled. End/ cleaned at regular intervals. -
Page 20: Cleaning The Body And Control Panel
4.4.5 Draining remaining water INFORMATION and cleaning the pump filter The filter system in your machine prevents • Foreign metal substances will cause solid items such as buttons, coins and fabric rust stains in the drum. Clean the fibres clogging the pump impeller during stains on the drum surface by using discharge of washing water. -
Page 21: Troubleshooting
5 Troubleshooting 3 Follow the below procedures in order to drain water. Program does not start after closing the door. • Start / Pause / Cancel button was not pressed. >>>*Press The product does not have an emergency the Start / Pause / Cancel button. water drain hose, in order to drain the water: •... - Page 22 Machine directly discharges the water it takes in. Machine does not switch to spinning step. (*) • Draining hose might not be at adequate height. • There might be unbalanced load in the machine. >>>Connect the water draining hose as described in the >>>Automatic unbalanced load detection system might operation manual.
- Page 23 Colour of the clothes faded. (**) • There is a problem with the detergent drawer valves. >>>Call the Authorised Service Agent. • Excessive laundry was loaded in. >>>Do not load the • Detergent might be mixed with the softener. >>>Do not machine in excess.
