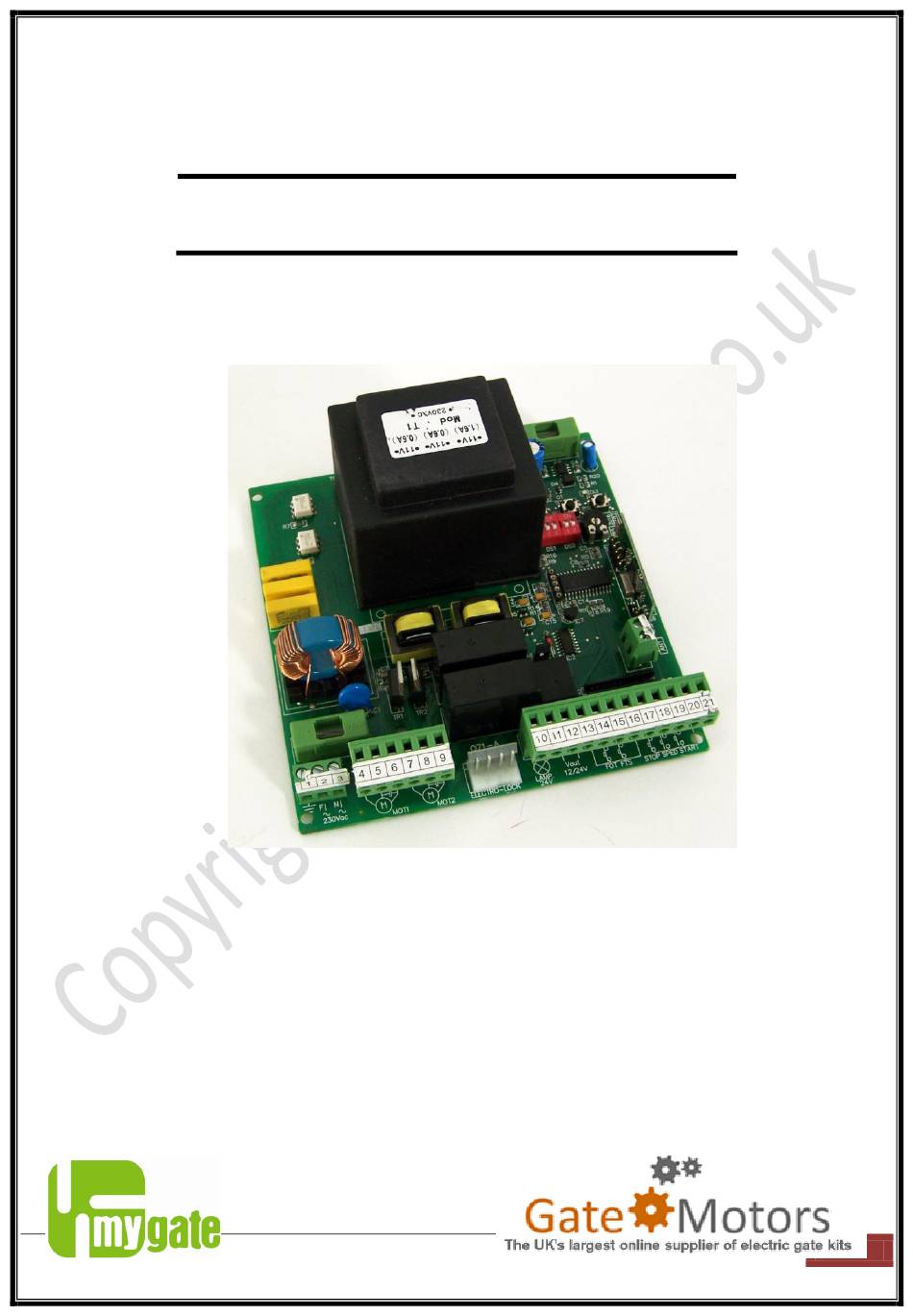

Q71A 230V Control Board
Swing Gate – Double Leaf
TECHNICAL FEATURES
Control Panel Dimensions
Control Panel Weight
On-Board Transformer
Flashing light Power Supply
Accessory Output Power Supply
Obstacle Detection Level
Programming Procedure
Deceleration Time
Pause Time
The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18
Instruction Guide
-
135 x 140 x 60mm
-
1Kg
30VA 230/0 – 12 /24Vac
-
-
24Vdc, MAX 20W
12Vdc – 24Vdc, MAX 3W
-
-
Automatic
-
Streamline
-
Adjustable
-
Adjustable
1
Advertisement
Table of Contents
Summary of Contents for MyGate Q71A
- Page 1 Flashing light Power Supply 24Vdc, MAX 20W 12Vdc – 24Vdc, MAX 3W Accessory Output Power Supply Obstacle Detection Level Automatic Programming Procedure Streamline Deceleration Time Adjustable Pause Time Adjustable The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18...
-
Page 2: Table Of Contents
Appendix: A ............................21 Q71A connection map – terminals 1 to 21 ................... 21 Appendix: D ............................22 Q71A control board – FAQ’S ....................... 22 Comments & Feedback ........................... 26 The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 3: Q71A Control Board Layout
Q71A control board layout Map of Q71A Q71A legend The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 4: Pre-Installation Checks
Pre-installation checks Thank you for choosing Gate Motors MyGate product for your gate automation needs. This instruction booklet accompanies every swing gate automation model that uses the Q71A control board. This control board tells the motors what to do and how to behave. The control board has memory chips onboard which store the key-fob transmitting codes and the parameters the motors will be working to. -
Page 5: Linking Essential Terminals
“thinks” you have pressed a STOP button and, of course, will halt all operations – regardless to any command you may give it. Be sure to tighten the terminals screws to ensure good contact is made. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 6: Connecting The Motors To The Control Board
If you do not have this guide to hand, below is a re-cap of connections to the control board based on the model and which side of the gate is to open first (LEFT HAND / RIGHT HAND) Connecting the motors to the control board MyAster MyHook The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 7: Connecting The Capacitors To The Control Board
“BUZZ” without movement to the mechanical arm. Connection illustrated right: Having attached the motor(s), we can now introduce the photocells to the control board. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 8: Photocells
Photocells The MyGate photocells are essential for safe use of your gate automation system. These are units that are comprised of a transmitter and receiver. The photocell transmitter projects an Infrared confined beam in a straight line and is intercepted by the photocell receiver. The receiver is not a mirrored unit as it absorbs the Infrared beam. -
Page 9: Photocell Wiring
/ pedestrian moves through the closing gates and breaks the Infrared beam – the gates will immediately stop and reverse to the full open position at great speed. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 10: To Use In Closing Cycle
Use 1 core wire to connect 4th terminal (looking from left to right) on photocell Receiver Unit (RX) to Terminal 16 IMPORTANT: Please place a link between terminals 14 and 15 The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... - Page 11 We can now introduce power to the control board so we can enable the programming of the key-fobs and the programming of the gate automation opening and closing settings. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18...
-
Page 12: Connecting Power To The Control Board
If an emergency stop button is not fitted, a link must be placed between terminals 18 + 21 Now we look to program the remote control key-fob(s) to the control board. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 13: Programming The Remote Control / Key-Fob
Deleting existing remote controls / key-fobs from the control board a) Press and hold the P1 button, the DL1 light will come on. Keep the button pressed until the DL1 light goes off. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 14: Changing The Code The Key-Fob Transmits
Once this has been completed you must program the key-fob to the control board so it can recognise the new code generated. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 15: Remote Control Receiver
If you find the range your radio receiver is having trouble with the interception of your key-fobs transmitting frequency and code, a MyGate Extended Aerial can be fitted to your receiver unit. Extended Aerial – (optional accessory) -
Page 16: Selecting The Operating Mode
If a START command is given while the gate is closing, the gate STOPS and REVERSES in about 1.5 seconds. To select this operating mode place the DS1 dip-switches as shown right: 1=OFF 2=ON 3=OFF The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 17: Programming The Gates Open & Closing Cycles
(opens the gate). This is normal programming operation and is critical to the continued operation of the gates as the control board is determining its start position by pushing your gate leaf against your centre gate stop. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 18: Setting The Pause Time
Obstacle Detection The Q71A features built-in obstacle detection during opening and closing cycles. This feature is present during the whole gates operation and cannot be turned off. The control board automatically adjusts the detection sensibility according to the force required to the motor to physically move the gate. The obstacle detection operates by measuring the force required to move the weight of the gate and detects resistance if the gate becomes obstructed. - Page 19 The Obstacle Detection feature on this control board is completely self-learning. Please remember that it is essential after completing the installation programming process to run a complete open and close cycle before general use. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18...
- Page 20 The opening & closing cycles have been programmed The opening & closing cycle has been tested The Obstacle detection level / setting has been tested Your installation is now complete! The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18...
-
Page 21: Q71A Connection Map - Terminals 1 To 21
Map showing connections for: Motor 1 & Motor 2 (Included with Kit) Safety Photocells (Included with Kit) Electro-Lock & MEL unit (Optional Accessory) Flashing light (Optional Accessory) Extended Aerial (Optional Accessory) The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... -
Page 22: Q71A Control Board - Faq's
LED is alit when you are pressing the button. If the light is not seen or is faintly illuminated, please change the battery. Remove the small screw on the reverse side of the key-fob and remove the key- fob cover, this will show the battery compartment. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18... - Page 23 In order for these devices to work with the MyKey key-fob remotes, each device will need an additional radio receiver. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18...
- Page 24 & N/C - Normally Closed) and for switching volt free contact equipment (labeled as C – Common, N/O - Normally Open). To connect the digital keypad to the Q71A control board for opening the gate by entering your pin code:...
- Page 25 Following practical maintenance will ensure continued uninterrupted automation service. The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18...
-
Page 26: Comments & Feedback
Trading address: GateMotors UK, Unit 16c, Chalwyn Industrial Estate, St. Clements Road, Poole, Dorset. BH12 4PE. GateMotors is the trading name of Screwjack Limited - registered office at 21 Oxford Road, Bournemouth, Dorset. BH8 8ET. Registered # is 4287804, VAT #:785 3450 06 The MyGate Q71A Control Board Installation Manual : Printed 06/11/2012 14:18...
