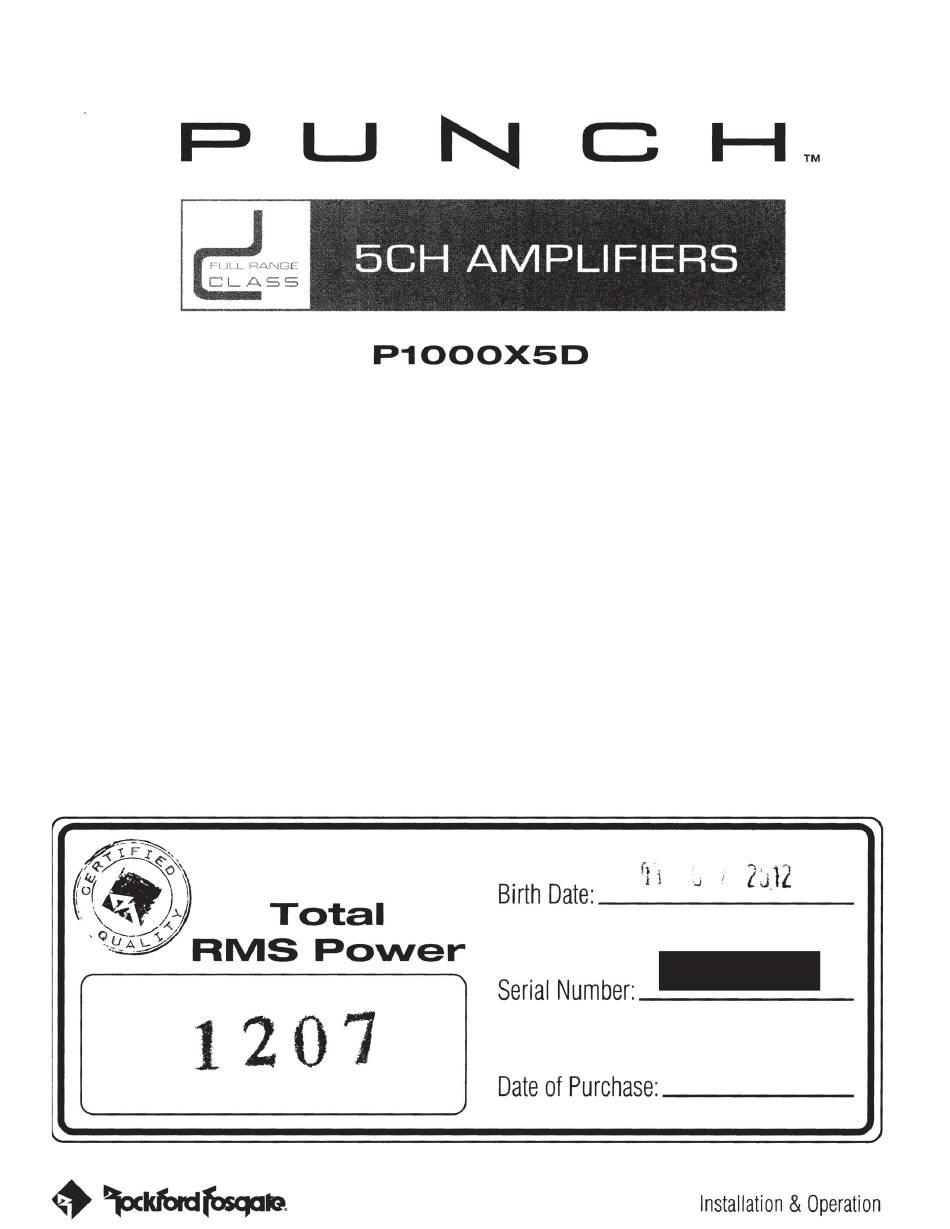

LJ
N
P1000XSD
Birth
Date:
__ 'l_
.
1
_
.
. . ~
_
·
_
2 _·
:
;_
J
Z _ _
1201
Date of Purchase: _ _ _ _ _ _
Installation
&
Operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUNCH P1000XSD and is the answer not in the manual?

Questions and answers

Summary of Contents for Rockford Fosgate PUNCH P1000XSD

  • Page 2 20 Limited Warranty Information ©2011 Rockford Corporation. All Rights Reversed. ROCKFORD FOSGATE, PUNCH, and associated logos where applicable are registered trademarks of Rockford Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications subject to change without notice.
  • Page 3 Dimensions (LxWxH) 11.9” x 8.1” x 2.2” (30.2cm x 22.6cm x 5.6cm) CEA 2006 Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier’s output power ratings are REAL POWER numbers, not inflated marketing ratings.
  • Page 4: Speaker Terminals

    Gain Control The input gain control is preset to match the output of most source units. Crossover Switch Variable Crossover Selectable switch for High-Pass (HP) or All Pass (AP) Is a built-in 12dB/octave Butterworth filter with a crossover point variable from 50Hz to 500Hz. Power/Protect LED Power LED illuminates red when the unit is turned on.
  • Page 5: Infrasonic Filter

    Punch EQ A Gyrator based Punch EQ that eliminates frequency shift with boost. This works along with the crossover switch on the amplifier. When set to Low- Pass (LP) operation, this control is a narrow band adjustment variable from 0dB to +18dB @ 45Hz. Infrasonic Filter A fixed 20Hz 24dB/octave filter designed to prevent frequencies below the audio range from being applied to the subwoofer from the amplifier.
  • Page 6: Installation Considerations

    Authorized signal or power loss. Rockford Fosgate Dealer for installation. 6. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when...
  • Page 7 Before installation, disconnect the battery neg- 8. Connect from source signal by plugging the RCA cables into the input ative (-) terminal to prevent damage to the unit, jacks at the amplifier. fire and/or possible injury. NOTE: All “ACTIVE” inputs must have RCA jacks connected. Switch in 2CH.
  • Page 8: Channel Stereo

    5-Channel Stereo illus.-2.1...
  • Page 9 3-Channel (2ch Mono & 1ch Stereo) *bridged illus.-2.2...
  • Page 10 Adjusting Gain Switch in FRONT. position,“ACTIVE” - Front channel inputs only for sub output. Switch in SUB position,“ACTIVE” - Sub inputs for sub output. 1. Turn amplifier gains to minimum (counter-clockwise). NOTE: When connecting to the 5-Channel inputs, be sure to route front, 2.
  • Page 11: Troubleshooting

    Troubleshooting Step 5. Check Amplifier if you experience excess Engine Noise. NOTE: If you are having problems after installation follow the Trouble- 1. Route all signal carrying wires (RCA, Speaker cables) away from shooting procedures below. power and ground wires. Step 1.
  • Page 12: Length Of Warranty

    What is Covered This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distribu- tor and not by Rockford Corporation.
  • Page 13 Installation assistance availible at: www.rockfordfosgate.com/rftech R O C K F O R D F O S G A T E . C O M...
