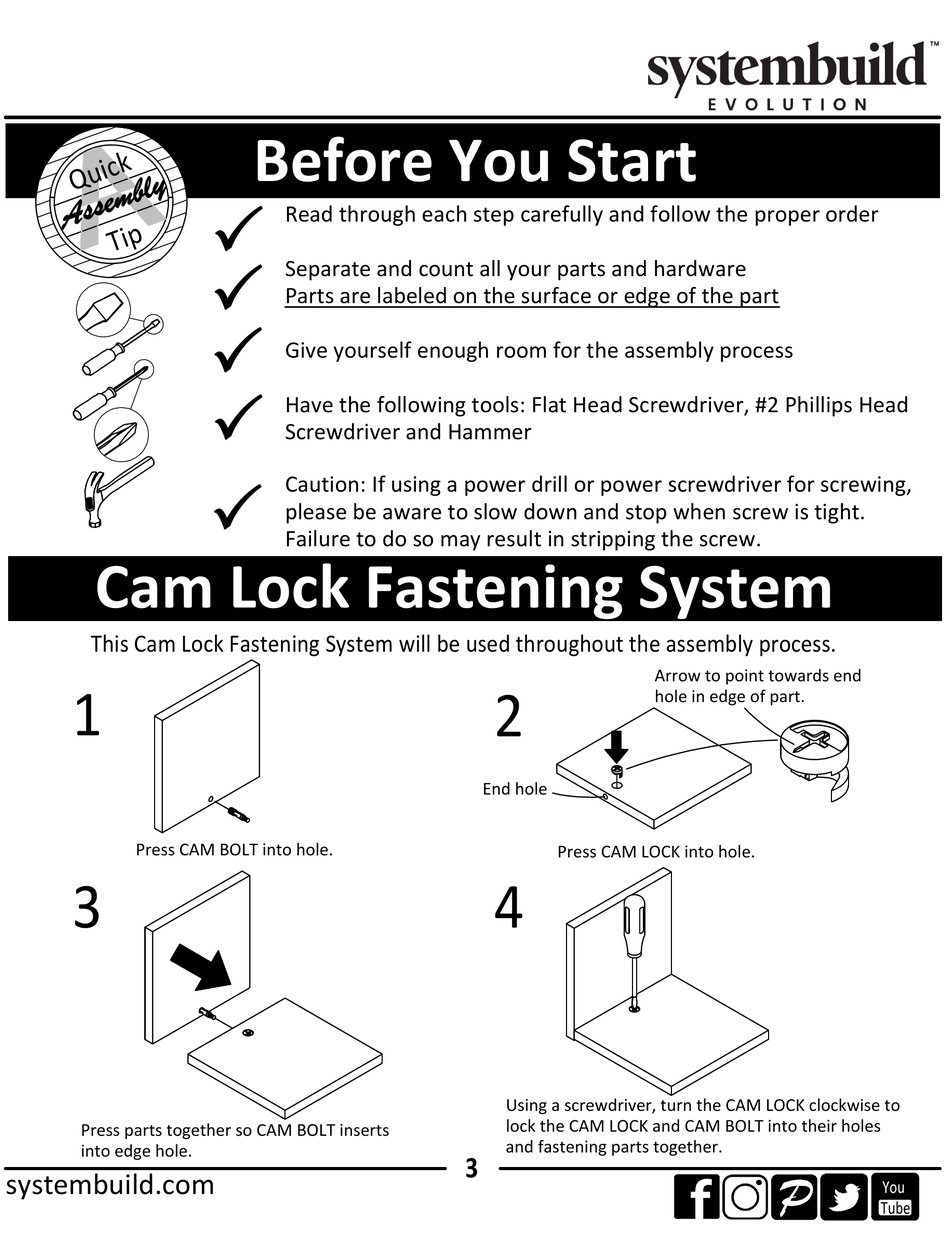

Before You Start - System Build 8798015COM Assembly Instructions Manual

Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
1
Press CAM BOLT into hole.
3
Press parts together so CAM BOLT inserts
into edge hole.
systembuild.com
Before You Start

Read through each step carefully and follow the proper order
Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
2
End hole
Press CAM LOCK into hole.
4
Using a screwdriver, turn the CAM LOCK clockwise to
lock the CAM LOCK and CAM BOLT into their holes
and fastening parts together.
3
Arrow to point towards end
hole in edge of part.
