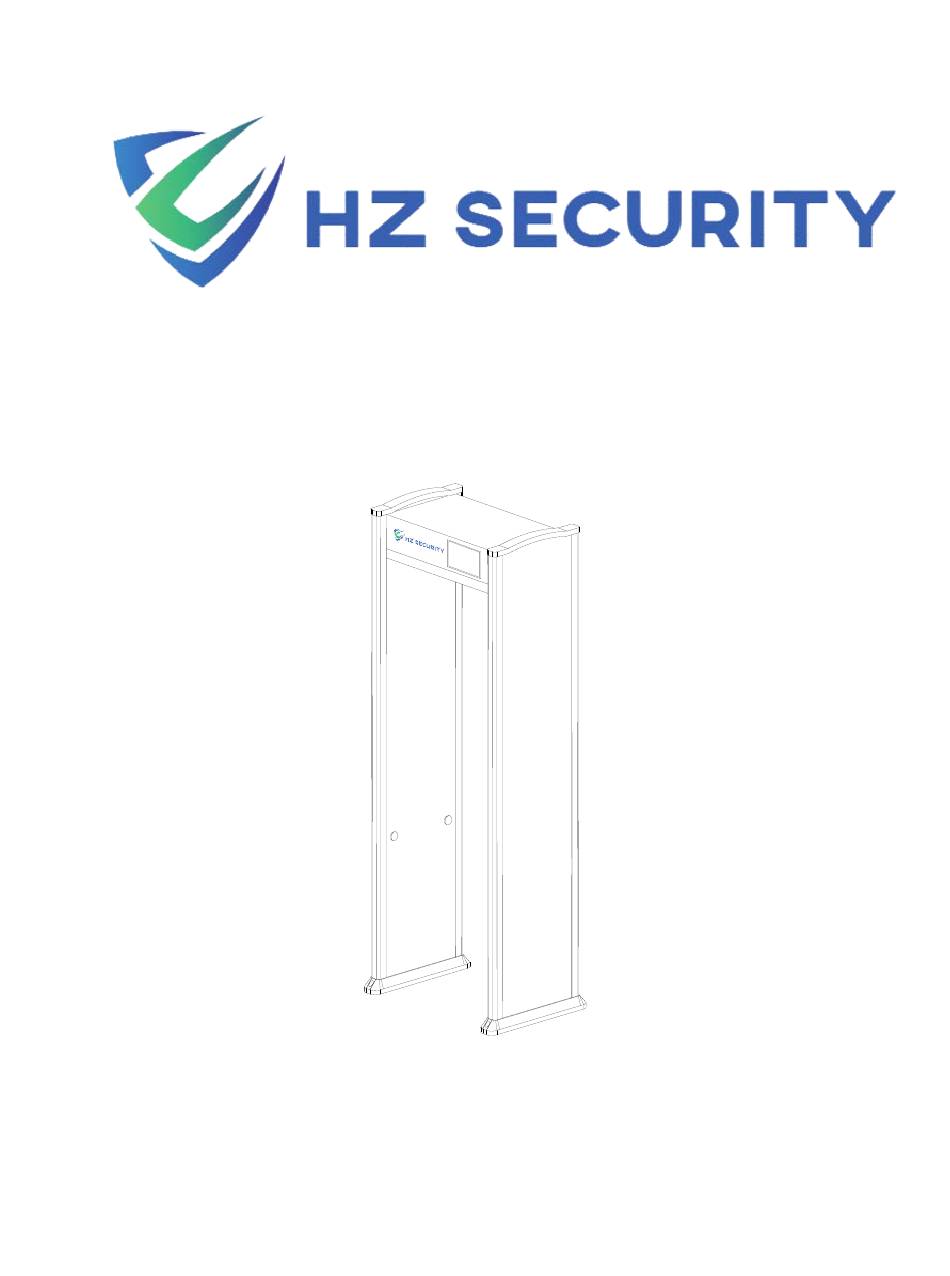

Walk Through Metal Detector

User Manual

HZ-WT-ADV-24

Hangzhou Weiqi Electronic Co., Ltd. Corporate Headquarters & Manufacturing: Building #2, LinDing Road #1191, Jianggan

District, Hangzhou, China 310022

Table of Contents

Need help?

Do you have a question about the HZ-WT-ADV-24 and is the answer not in the manual?

Questions and answers

Summary of Contents for HZ Security HZ-WT-ADV-24

Page 1 Walk Through Metal Detector User Manual HZ-WT-ADV-24 Hangzhou Weiqi Electronic Co., Ltd. Corporate Headquarters & Manufacturing: Building #2, LinDing Road #1191, Jianggan District, Hangzhou, China 310022...
Page 2: Table Of Contents
Model Number HZ-WT-ADV-24 User Guide ABLE OF ONTENTS General and Regulatory Information ....................3 Product Description ........................6 Features ............................7 Environmental ..........................7 Other Specifications ........................7 Operating Modes .......................... 8 Terminology ..........................8 Principles of Operation and Design Criteria ................10 Site preparation ..........................
Page 3 Model Number HZ-WT-ADV-24 User Guide More Menu Settings ........................25 Display Brightness ........................25 Signal Outputs ..........................26 Software Version ......................... 26 Application Type ......................... 26 Maintenance and resolution of problems ..................27 Appendix ............................29 Page | 2 ©2021 Hangzhou Weiqi Electronic Co., Ltd. All rights reserved.
Page 4: General And Regulatory Information
！ Notes: Thank you for purchasing this HZ Security walk-through metal detector. The following important material is intended to advise you how to install and operate this product safely and correctly. Please read it carefully make sure you understand these points before you move on to other parts of the manual.
Page 5 Model Number HZ-WT-ADV-24 User Guide 1. This product is intended for indoor use only. If it is necessary to install the product outdoors, it should be protected by a rain shed or other facilities to prevent exposure to rain and excessive sunlight.
Page 6 Model Number HZ-WT-ADV-24 User Guide This equipment has been tested and found to comply with the limits for a class B digital device, under part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used by the instructions, may cause harmful interference to radio communications.
Page 7: Product Description
Model Number HZ-WT-ADV-24 User Guide RODUCT ESCRIPTION Figure 1 The MD-WT-A24 Walk through metal detector (Figure 1) employs advanced detection technology, specially designed for the detection of metal and alloy objects hidden near a human body. Delivering high reliability, high applicability, high sensitivity detection with self-adaptive sensitivity adjustment, wide detection range and strong resistance to interference, capable of active service around the clock, able to sound an alarm as needed, screening large numbers of people efficiently to world-class standards.
Page 8: Features
Model Number HZ-WT-ADV-24 User Guide situations designed to prevent the entry of dangerous metal objects, such as at airports, customs, prisons, exhibition halls, sporting events, etc. If installed outdoors, the walkthrough metal detector should be protected from rain and direct sunlight.
Page 9: Operating Modes
Model Number HZ-WT-ADV-24 User Guide PERATING ODES ORMAL PERATION The detector will indicate when it is ready to screen the next person and will automatically signal an alarm along with location guidance information for any metal detected. TANDBY When the detector is idle over 10 minutes (time can be set from 1 to 99 minutes), it will change to standby status.
Page 10 Model Number HZ-WT-ADV-24 User Guide Alarm Rate The percentage of the number of alarms caused by metal objects compared to the total number of persons passing through the WTMD. Alarm rates are affected by the discrimination ability of the WTMD. For example, if discrimination is weak, some alarms may be caused by harmless metal objects, and in turn, alarm rates will be higher.
Page 11: Principles Of Operation And Design Criteria
Model Number HZ-WT-ADV-24 User Guide RINCIPLES OF PERATION AND ESIGN RITERIA This walkthrough metal detector operates on electromagnetic, magnetic pulse technologies. Electronic components will sample or process the current the receptor receives. Metal objects are detected when the signal exceeds the alarm threshold.
Page 12 Model Number HZ-WT-ADV-24 User Guide Small Metallic Objects The minimum distance from small metallic objects shall be at least 4 inches (10cm) away from the WTMD in order to detect large metal items. This will have little effect on the sensitivity but could make the WTMD more susceptible to false alarms.
Page 13: Installation Considerations
Model Number HZ-WT-ADV-24 User Guide 2.0 I NSTALLATION ONSIDERATIONS OMPONENTS OF THE YSTEM Figure 2 ⅠThe Main control unit includes the data acquisition and control board, touch panel LCD display, magnetic and IR transmission, detection circuitry and power supply. It is the core module of the system.
Page 14: Parallel Operation
Model Number HZ-WT-ADV-24 User Guide The search to locate metal objects detected by the WTMD should not interfere with the normal operation of the WTMD; Arrange the manual checking of hand-held luggage items to avoid false alarms; If X-Ray machines are not used, you should manually check luggage.
Page 15: Assembling The Unit
Model Number HZ-WT-ADV-24 User Guide Parallel operation of two metal detectors Install the detectors as shown in Figure 4 To achieve the minimum spacing when in parallel operation, put the two receive panels (Rx) or the transmit panel (Tx) as close as possible.
Page 16 Model Number HZ-WT-ADV-24 User Guide Arrange the left and right panels as shown below and open the main chassis package box Figure 6 Remove the main chassis from the box and lay the main chassis and panels as shown Figure 7 Figure 8 Assemble the panels to the main chassis.
Page 17: Site Selection Considerations
Model Number HZ-WT-ADV-24 User Guide Figure 9 Figure 10 Figure 11 Use the key to open the main control unit cover, insert the left and right connectors into the side panels, then connect the power supply plug into one of the side panels. Note: the external power supply cable must be plugged into the base of that side panel where the power supply plug was connected.
Page 18: Controls, Indicators, And Settings
Model Number HZ-WT-ADV-24 User Guide 3.0 C ONTROLS NDICATORS ETTINGS OUCH CREEN ISPLAY Figure 12 There are several operating buttons for navigating the screen menus: Figure 13 Up and Down Increase or decrease the value of the selected option Left and Right...
Page 19: Remote Control Unit
Model Number HZ-WT-ADV-24 User Guide EMOTE ONTROL Figure 14 The handheld remote control can also be used to navigate the menus and change settings without touching the control panel itself. The red button turns the system on and off. Up and Down...
Page 20: Programming And Adjusting Settings
Model Number HZ-WT-ADV-24 User Guide Figure 15 At the bottom of the standby screen (Figure 16), the green bar is an indication of interference intensity. This may be changed by adjusting the sensitivity in the programming screens. Figure 16 4.0 P...
Page 21: Sensitivity Adjustment
Model Number HZ-WT-ADV-24 User Guide ENSITIVITY DJUSTMENT 1000 [0~999]. ENSITIVITY IS ADJUSTABLE TO LEVELS ELECT ENSITIVITY AND PRESS NTER Figure 18 Zone and Grade ARE THE TWO ENSITIVITY MODE CHOICES Figure 19 The Grade screen IS USED TO SET THE OVERALL...
Page 23: Frequency Adjustment
Model Number HZ-WT-ADV-24 User Guide REQUENCY DJUSTMENT (Figure 23) may be HE OPERATING FREQUENCY ADJUSTMENT made as per site requirements. Use the left and right buttons to select Automatic or Manual adjustment of the frequency. Press the Enter button to enter into the desired sub-menu;...
Page 24: Date/Time Setting
Model Number HZ-WT-ADV-24 User Guide ETTING There are three parameters (Figure 27) which control the alarm sound: tone, volume, and duration. Use the left and right buttons to select an item, then use the up and down buttons to set the value. Press the Enter button to save the settings and return to the previous menu.
Page 25: Language Setting
Model Number HZ-WT-ADV-24 User Guide ANGUAGE ETTING In the Language setting interface (Figure 30), set the display language. Use up and down or left and right button to select the language. Press the Enter button to save the settings and return to the previous menu.
Page 26: Query Results
Model Number HZ-WT-ADV-24 User Guide UERY ESULTS Press the Enter button to select the Alarm Query Data screen (Figure 33); the column labeled Data displays the alarm zone location and strength; when a result is selected/highlighted, and the alarm LED indicator lights will be on, as they were when the original alarm was triggered.
Page 27: Signal Outputs
Model Number HZ-WT-ADV-24 User Guide IGNAL UTPUTS In the Signal output interface (Figure 37), choose whether alarms will be triggered or not. In the example shown, if there is an alarm, there will be an output signal since “Alarm ON” is selected. Use the left and right buttons to select.
Page 28: Maintenance And Resolution Of Problems
Model Number HZ-WT-ADV-24 User Guide 7.0 M AINTENANCE AND RESOLUTION OF PROBLEMS Note: 1. To detect a metal object the size of a coin, factory setting of the overall sensitivity is High, and the zone sensitivity set to 975 will be ok.
Page 29 Model Number HZ-WT-ADV-24 User Guide Replace the infrared Check the surrounding environment There’s an component or try to change the frequencies. alarm when no Change the When the sunlight hits directly on people are installation location the infrared component, it may also...
