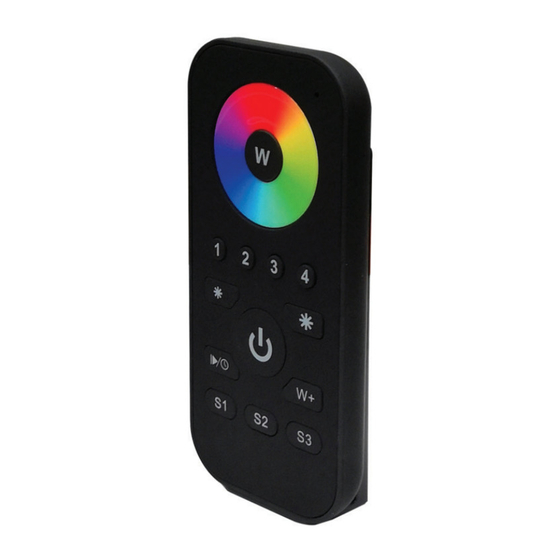

LU4Z-28WI19
RF RGBW REMOTE CONTROLLER
Features
-
Control 4 zones of RF receivers separately.
-
High sensitive & high stable, fast & precise color control.
-
RGBW color controller
-
Compatible with all universal series RF receivers
-
1 receiver can be paired by max 8 different remote controls.
Product Specification
Installation
LU4Z-28WI19
Receiver Wiring Diagram
Power Supply
4.5V(3xAAA battery)
Operation Frequency
869.5/916.5/434MHz
www.lumo.ae
55
Dimension(mm)
120 x 55 x 17
Remarks
RF Signal
Advertisement
Summary of Contents for Lumos LU4Z-28WI19
- Page 1 LU4Z-28WI19 RF RGBW REMOTE CONTROLLER Features Control 4 zones of RF receivers separately. High sensitive & high stable, fast & precise color control. RGBW color controller Compatible with all universal series RF receivers 1 receiver can be paired by max 8 different remote controls.
-
Page 2: Function Introduction
LU4Z-28WI19 Important: Read All Instructions Prior to Installation Function introduction Indicator: indicate the state of remote control White channel: the 4th channel Click to turn on/off,Press and hold Color wheel down to increase/decrease light intensity of W channel Zone numbers:Click to choose... - Page 3 LU4Z-28WI19 Product Data • Control 4 zones of RF receivers separately. Output RF signal • RGBW color controller Operation Frequency • High sensitive & high stable, fast & precise color control. 869.5/916.5/434MHz • Compatible with all universal series RF receivers Power Supply 4.5V(3xAAA battery)
- Page 4 LU4Z-28WI19 Save color/scene/mode Step 3:Touch the color wheel or click the other buttons to select the scene you like Step 2:Choose and click one or multiple paired zone numbers(e.g. zone 4) Step 1:Click ON/OFF button to activate the remote Step 4:Press and hold any scene buttons of S1-S3(e.g. S3) , LED lights connected with the RF receiver flicker once means the color/scene was saved successfully.
- Page 5 LU4Z-28WI19 Built-in 10 color changing modes are as follows: ode 1: Any two colors of RGB mix fade-in & fade-out Mode 2: RGB three colors mix fade-in & fade-out Mode 3: RGB three colors mix fade-out & fade-in Mode 4: RGB flash Mode 5: RGB three colors fade-in &...
