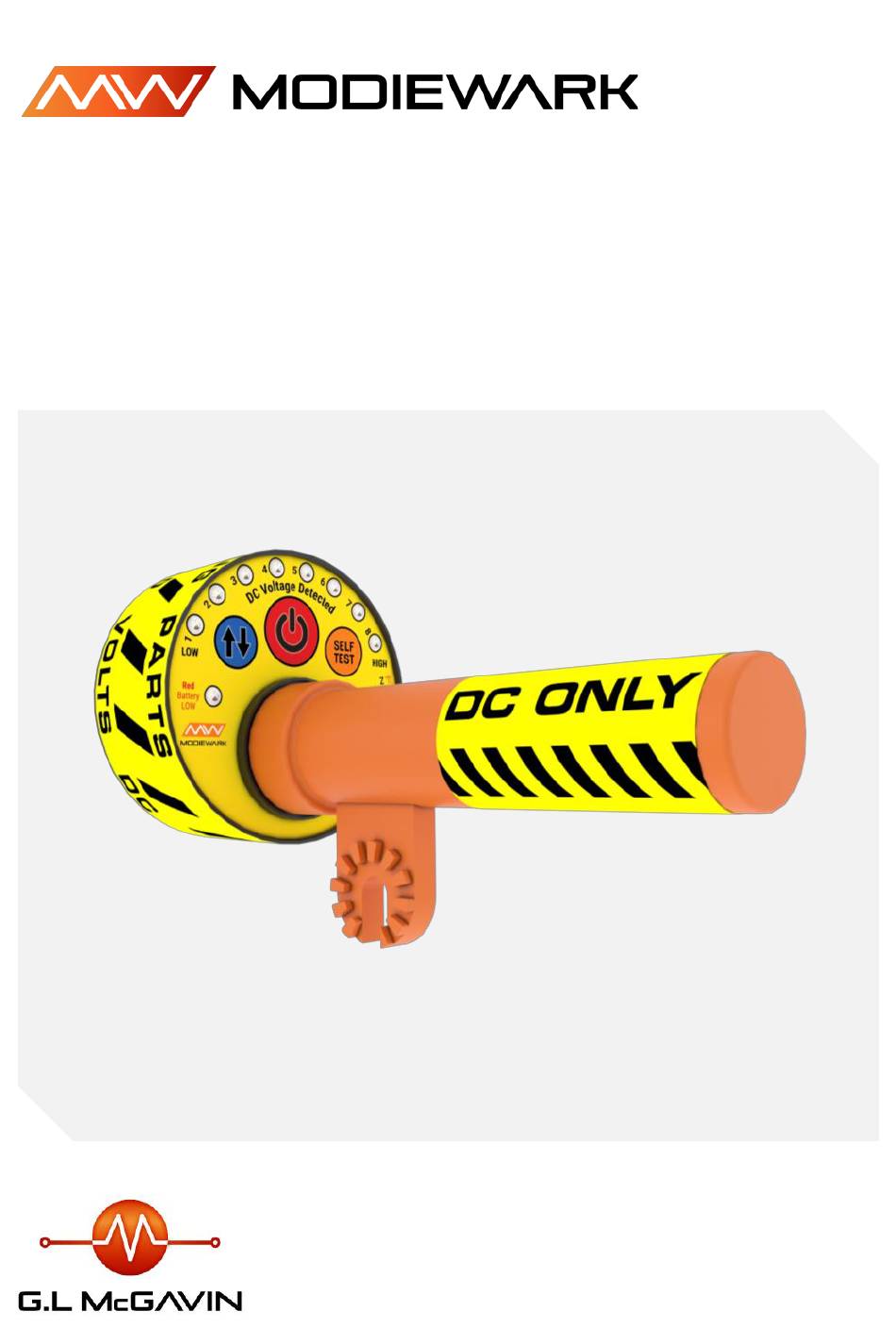

- Page 1 FIRE & RESCUE DC50 Non-Contact DC Voltage Tester PATENT PENDING Operation Manual...
- Page 2 Warning High voltage testing should only be carried out by trained personnel. Do not hold this instrument in your hand when testing uninsulated voltages above 300VDC. Fiberglass Operating sticks must be used. -------------- This device is for indication only and should only be used by trained personnel on the safe operations of the device.
- Page 3 Touchpad...
- Page 4 Fire and Rescue DC50 and AC30 Tester Kit...
-
Page 5: Unit Operations
Unit Operations Get close enough to the emergency without touching the power source. Attached the indicator to an electrical stick REQUIRED. Please see your training requirements, for safety and personal protection. Turn on the device, press the Power Button. A single LED will illuminate Press the green ON/Self-Test Button. -
Page 6: How To Test
How to test Rub the foam lid of the case with your hand to build up static electricity (the more you rub the higher the voltage charge will be) 2000 volts + can be generated. Turn the indicator on and approach the lid, the Indicator will light up as you approach the lid of the case. - Page 7 Approach a known live conductor. As the indicator moves into an electric field the indicators LEDS from 1 to 8 will illuminate and an audio alarm will sound. When all of the LEDS up to number 8 are indicated the audio alarm will be on constant.
- Page 8 Static Electricity 10 volts to 10,000+ volts The DC50 tester is designed to pick up an electric field emanating from an active DC source as low as 50v dc. Static electricity can be found on almost any surface. Static electricity is an imbalance of electric charges within or on the surface of a material.
- Page 9 How to combat static electricity Once a DC power source is terminated in a plastic insulted cable, but not earthed (grounded), a static charge remains present on the insulation, this will slowly dissipate over time. The DC50 indicator will read this static residue left behind and over time the indicator sensitivity lights will stop indicating.
- Page 10 This document is developed from general principles and it may not be suitable for all conditions and localities contemplated by it. This document may be used only on the condition that GL McGavin Pty Ltd disclaims all liability.
- Page 11 DC Specifications Size 225mm Long Charge Time 2 x batteries 7 Hours Voltage sensing 50 to VDC range Light source 8 high intensity Leds Sound source 90 db piezo buzzer Operating -20 to 65 C deg temperature Water IEC IP6X (Safe when exposed to heavy rain). Resistance Weight 750 g...
- Page 12 DC Voltage Detector Safety Information The Fire and Rescue DC50 Tester was designed as a DC Proximity device to eliminate the dangers of touch testing and earthing. It should be used by trained and qualified personnel only. When testing DC circuits always use caution and strictly adhere to proper safety practices.
-
Page 13: Typical Uses
Overview The Fire and Rescue DC50 is a non-contact DC voltage tester that alerts users when they approach an electrified source. Its advanced notification system is designed to warn the user of the presence of voltage and current within a proximate area. - Page 14 WARNINGS DC50 only detects DC Voltage. Every energized DC conductor is surrounded by an electric field. As you move closer to the conductor, the electric field will become stronger. Lower voltages have a weaker field strength and will have a shorter warning distance. Electric fields that have a stronger field strength, will have a greater warning distance.
- Page 15 Limited Warranty and Limitation of Liability Effective November 1, 2017, this warranty applies to all products manufactured and sold by G.L McGavin PTY.LTD. (the “Products”). NOTICE: READ THIS LIMITATION OF WARRANTY AND LIABILITY BEFORE BUYING OR USING THE PRODUCTS CONTAINED HEREIN. It is impossible to eliminate all risks associated with the use of the Products.
- Page 17 Upon notice of your claim, G.L.McGavin will provide a return authorization number and further instructions on how to return the product for service. You must follow G.L.McGavin’s instruction. You are responsible for all Product removal, handling, re-installation, and shipping (both to and from G.L McGavin.).
- Page 18 SHALL INCLUDE, BUT IS NOT LIMITED TO, LOST PROFITS OR REVENUE, LOSS OF USE OF THE PRODUCTS, COST OF SUBSTITUTE PRODUCTS, FACILITIES OR SERVICES, OR DOWNTIME. 10. IN NO EVENT SHALL GL MCGAVIN. HAVE ANY LIABILITY FOR ANY THIRD- PARTY PRODUCTS OR ASSOCIATED HARDWARE, OR CUSTOMER-OWNED SYSTEMS, EQUIPMENT OR SOFTWARE.
- Page 19 Problem Solution lights and Ground the cap and rotar.Turn the device off and back on, buzzer are activated decrease the sensitivity level down, the indicator is picking up when the device is an eclectic field, remember the field can also be a static first turned on charge.
- Page 20 Ensure the operation manual has been read and understood. The indicator is designed to be used as a visual and audible alarm device for the protection of the operator. Contact GL McGavin E: sales@dn.eng.com.au Ph: 02 4952 6304 Phone Int: +61 2 4952 6304...
