Summary of Contents for ViSAGE LED HANDY CON 101

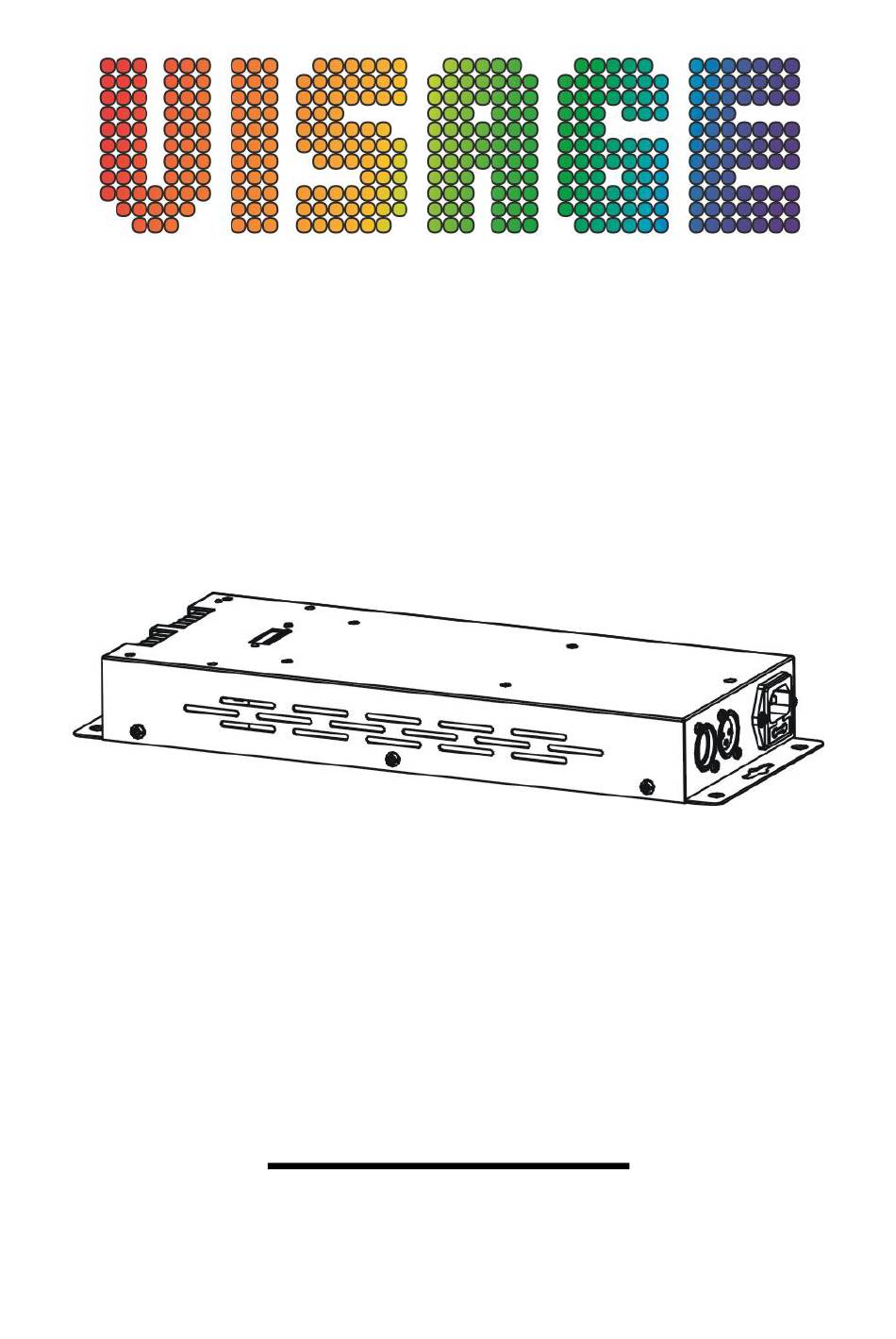

- Page 1 LED HANDY CON 101 LED-HC101 User Manual Please read the instructions carefully before use...
-
Page 2: Table Of Contents
LED-HC 101 TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. Function 4. Installation 5. DMX512 Address setting 6. How to control the fixture 7. DMX 512 Connection 8. Troubleshooting 9. Fixture Cleaning... - Page 3 LED-HC 101 1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and WARNING maintenance. Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. ...
-
Page 4: Technical Specifications
LED-HC 101 2.Technical Specifications A compact LED controller for all kinds of DC 24V passive RGB Fixtures. Come with switch power supply inside Built-in programs under Master/Slave mode triggered by music. 4 different ways of DMX addressing ... -
Page 5: Installation
LED-HC 101 5. DIP SWITCH: used to set the start address of the unit or choose functions 6. AUTO DMX ADDRESS: used to set start address automatically. 7. LED-WD CONNECTOR: used to receive the signal of LED-WD only 8. SIGNAL OUTPUT: output signal and power for light 4. - Page 6 LED-HC 101 C. Remote DMX address setting by CA-T DMX TESTER D. Remote DMX address setting by universal DMX controller If you use the function B, C or D to set the DMX start address, the fixtures of the chain all DIP switch MUST be set to OFF. ...
- Page 7 LED-HC 101 address setting will be effect at once. Every time you turn the fixture on, it will be ready to receive DMX signal or run the built-in programs. C. Remote DMX address setting by CA-T DMX TESTER The fixture can be set the DMX address remotely by CA-T DMX TESTER. Please refer to the CA-T user manual to set the DMX address to the fixture.
-
Page 8: How To Control The Fixture
LED-HC 101 We will set the DMX start address of a unit to 106: Connect the unit to the DMX-controller as described above and make sure all is switched on. Set all DMX-channels on the controller to zero (000). ... - Page 9 LED-HC 101 If you use a controller with 5 pins DMX connector, you need to use a 5 to 3 pin adapter. The fixture uses four channels. Please refer to the following diagram to use your controller to activate the fixture. C.
-
Page 10: Dmx512 Connection
LED-HC 101 instant show. The first fixture it’s DMX input cable will have nothing connect it, and the other fixtures will be set in slave mode automatically. Their DMX input cables connect the last fixture DMX output cable (daisy chain). Any fixture can act as a Master or as a Slave 7. -
Page 11: Troubleshooting
LED-HC 101 down the system. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of the units’ power is disconnected. Each lighting unit needs to have an address set to receive the data sent by the controller. -
Page 12: Fixture Cleaning
LED-HC 101 1. Make sure the fixture does not receive DMX signal. 2. Check microphone to see if it is good by tapping the microphone. 9. Fixture Cleaning The cleaning of internal must be carried out periodically. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt. - Page 13 LED-HC 101...
