Item no. GE53121T
A. Functions
1.
An ideal device to control you appliance on/off automatically or timer setting by one push button.
2.
The transmitter and receiver use a fixed code system, no pairing required.
3.

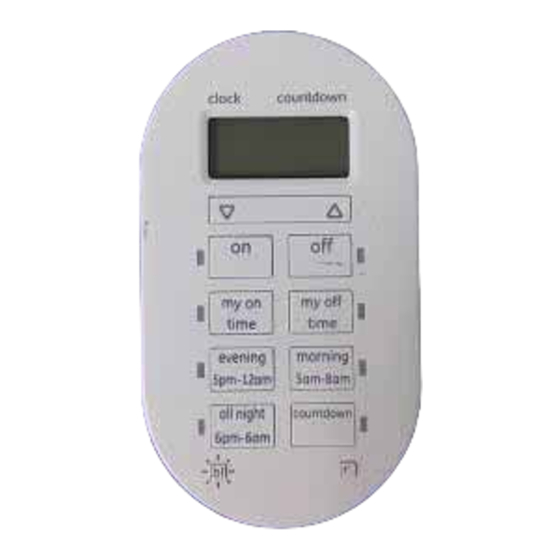

Remote control transmitter is with a blue backlight LCD for showing current time and function
mode.
4.
Each function button has a LED indicator showing the program status whenever the LCD light is
on.
B. Diagram
Button
Function
1. press
my on/my off time setting
2. press and hold to adjust continuously
1. If no program set, press ON to switch on the receiver outletat once
on
2. If timing program is set, press ON to switch on the receiver until it reaches
the programmed OFF time. LED indicatornext to the
1. If no program set, press OFF to switch off the receiver outlet at once
off
2. If timing program is set, press OFF to switch off the receiver outlet until it
reaches the programmed ON time. LED indicatornext to the
1. Press to select MY ON time, time display flashes
my on time
2. Press
3. Press one more time tocancel program setting
1. Press to select MY OFF time, time display flashes
my off time
2. Press
3. Press one more time to cancel program setting
Press to select Evening function (receiver stays on from 5pm to 12am), press
evening
again to cancel program setting
Press to select Morning function (receiver stay on from 5am to 8am), press
morning
again to cancel program setting
Press to select All Night function (receiver stay on from 6pm to 6am), press
all night
again to cancel program setting
1. Press to select Countdown function, time display flashes
countdown
2. Press
again to cancel program setting
Press to turn on LCD backlight. Press again to turn off backlight. Backlight
bl
automatically turns off after 5 seconds without pressing any button
Reset button, press to clear all clock and programs settings
r
Instruction Manual
Remote Control Transmitter
/
to adjust time by minute, for real time, countdown and
/
button to set MY ON time
/
button to set the MY OFF time
/
button to set the countdown time (default time is 1hour) Press
on
button is on.
off
button is on
