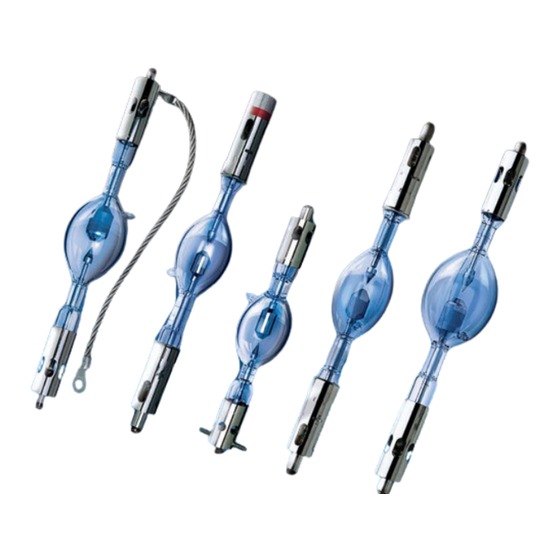

High performance short arc Xenon lamp solutions
At the heart of Christie's CP Series Digital Cinema projector line
are Christie's CDXL high performance short-arc Xenon lamps.
These lamps have been optimized for use with the CP Series
Digital Cinema projectors. With increased brightness in the same
form factor as standard cinema grade lamps, CDXL lamps provide
higher output and brightness in a more cost-efficient package.
Xenon Lamp Listing
To get a true representation of color in any professional
environment, you need a truly remarkable light source. Christie's
Xenon Arc Lamps offer stable color temperature, a wide range
of power levels and excellent color rendition. Christie lamps are
backed by the best warranty in the industry.
Advertisement
Table of Contents
Summary of Contents for Christie High Performance Xenon Lamp CDXL
- Page 1 High performance short arc Xenon lamp solutions At the heart of Christie’s CP Series Digital Cinema projector line are Christie’s CDXL high performance short-arc Xenon lamps. These lamps have been optimized for use with the CP Series Digital Cinema projectors. With increased brightness in the same form factor as standard cinema grade lamps, CDXL lamps provide higher output and brightness in a more cost-efficient package.
- Page 2 H I G H P E R F O R M A N C E Warner Bros. Movie World, Australia’s only world-class movie studio theme park opened in the Fall of ‘05 with an all new, cutting-edge attraction starring Shrek ®...
- Page 4 X E N O N S H O R T - A R C WAVELENGTH DIAGRAM Ultraviolet Radiation Visible Radiation 375mm Xenon Short Arc Lamps Engineered for superior performance in all cinema applications. Spectral distribution diagram Luminous intensity distribution curve Construction of a Xenon short arc lamp L A M P...
-
Page 5: Also Available
Christie’s digital cinema projectors light up screens around the world The Christie CP Series Digital Cinema projectors, powered by CDXL Xenon short arc lamps, set new levels of performance for Digital Cinema technology. Choices in brightness levels and power levels offer flexibility for a variety of screen sizes in existing theater infrastructure. The use of a CDXL lamp is guaranteed against defect while operating in any Christie CP Series Digital Cinema projector. -
Page 6: Operational Information
C D X L S P E C I F I C A T I O N S CDXL-20 (003-000598-02) Improved performance • Cost-efficient • Purpose built for cinema applications • OPERATIONAL INFORMATION Lamp Avg life Warranty CDXL-20 3500 0-1200 – 100% 1201-2400 –... - Page 7 Improved performance • Cost-efficient • Purpose built for cinema applications • OPERATIONAL INFORMATION Lamp Avg life Warranty CDXL-45 1000 0-500 – 100% 501-900 – Pro-rated Improved performance • Cost-efficient • Purpose built for cinema applications • OPERATIONAL INFORMATION Lamp Avg life Warranty CDXL-60 0-300 –...
- Page 8 C X L L A M P L I S T Christie understands the cinema industry. We know our customers personally. With no margin for error, the show must always go on - and our CXL Short-Arc Xenon lamps are integral to that promise. Christie brings over 75 years of experience, knowledge and value to your cinema business.
- Page 9 CXL short-arc Xenon lamps for cinema projection Hoyts Cinema, Australia...
- Page 10 C X L S P E C I F I C A T I O N S Rated input power Rated current Operating current range 30 - 45 Rated voltage Cold arc gap Overall lamp length Lamp length between connector faces Lamp length from rear connector face to arc center...
- Page 11 2500 2500 2500 3000 3000 70 - 95 60 - 85 70 - 100 80 - 110 60 - 110 M14XP1.5 M14XP1.5 Anode Anode Anode 3000 4000 4000 4200 4500 60 - 100 100 - 140 80 - 150 100 - 150 100 - 160 174.5 M14XP1.5...
-
Page 12: C R O S S R E F E R E N C E
M A N U F A C T U R E R ’ S Christie Xenolite Lamps (Model numbers subject to change without notice) WATTAGE MODEL NO. 1000 CXL-10 1000 CXL-10S 1000 CXL-10SC 1600 CXL-16S 1600 CXL-16SC 2000 CXL-20 2000 CXL-20R 2000 CXL-20SC... - Page 13 Champion Xenolite Bulb Warranty MODEL CXL FULL CREDIT HRS -10S, -10SC, -16S, -16SC 0 - 1000 -10, -20, -20R, -20SC 0 - 1200 -30, -30R, -30SC 0 - 750 -25, -25SC 0 - 750 -40, -40SC, -45 0 - 600 -50SC 0 - 500 -60, -60SC...
-
Page 14: Important Operation Notes
S A F E T Y I N F O R M A T I O N Warning Do not operate the lamp in close proximity to paper, cloth or other combustible material, nor cover it with such materials, even immediately after it is turned off. -
Page 15: Installation
Caution Handling • When the lamp is soiled with fingerprints by touching glass envelope with bare hand or dust, clean it with alcohol-soaked cloth. Otherwise it could cause burst or short lamp life. • Do not subject the lamp to vibration or shock, since it is a glass product. Otherwise it could burst or shorten lamp life. - Page 16 For the most current specification information, please visit Copyright 2008 Christie Digital Systems, Inc. All rights reserved. All brand names and product names are trademarks, registered trademarks or tradenames of their respective holders. Canadian manufacturing facility is ISO 9001 and 14001 certified. Performance specifications are typical.
