Terminal Module
FA-TH16YRA20SL
Thank you for purchasing the FA Goods product.
Before using the product, please read this User's Manual and the relevant manuals
carefully to ensure correct use.
Before using this product, please read this User's Manual and the relevant manuals carefully and
handle the product properly with full attention to safety.
The precautions presented in this manual are concerned with this product only. For programmable
controller system safety precautions, refer to the user's manual of the programmable controller used.
In this manual, the safety precautions are classified into two levels: "
"
CAUTION".
WARNING
CAUTION
Under some circumstances, failure to observe the precautions given under "
to serious consequences.
Always follow the precautions of both levels because they are important for personal and system
safety.
SAFETY PRECAUTIONS
(Always read these precautions prior to use.)
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in minor or moderate injury, or
property damage.
User's Manual
1
WARNING" and
CAUTION" may lead
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for MITSUBISHI ELECTRIC ENGINEERING FA Goods FA-TH16YRA20SL

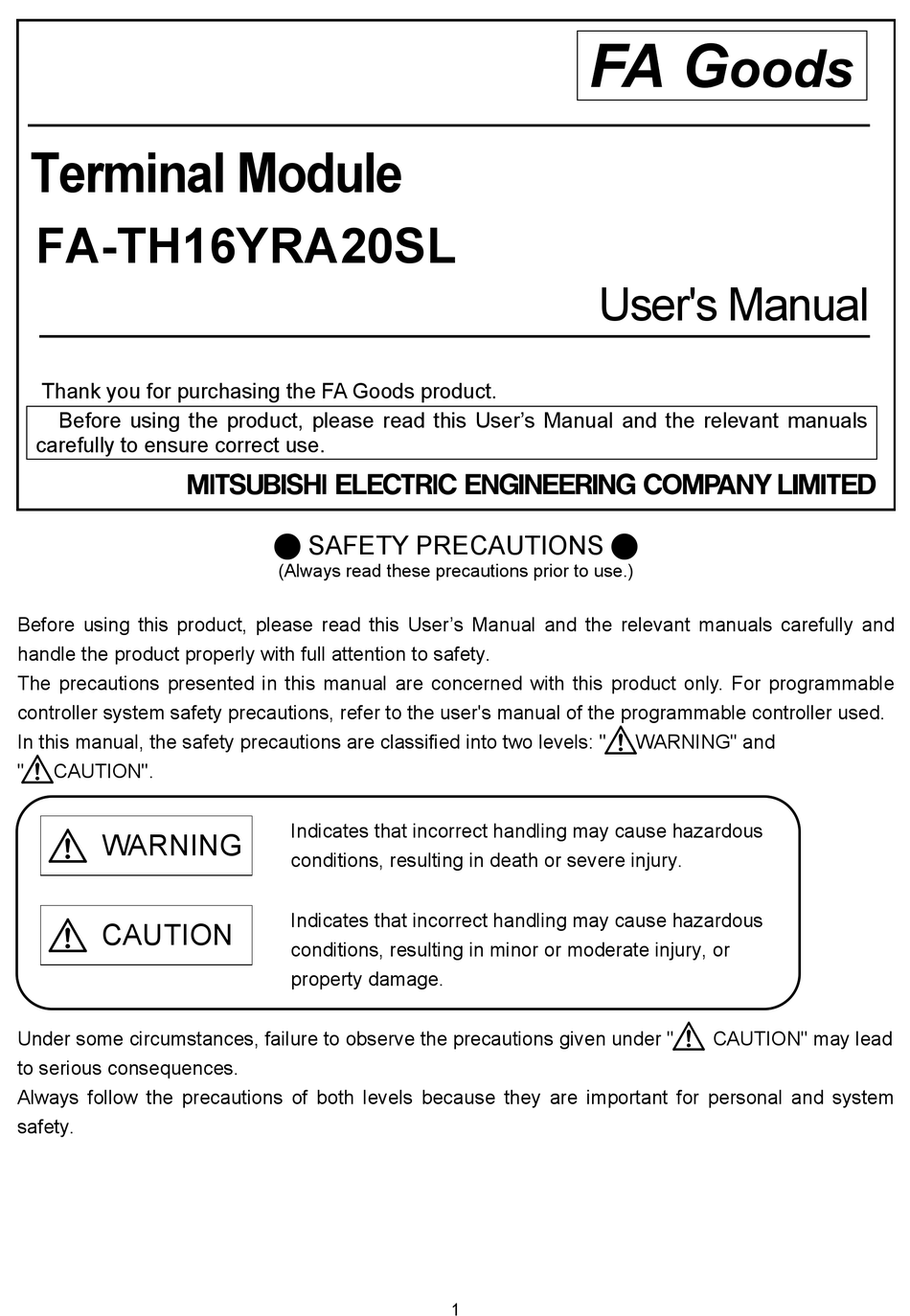

- Page 1 Terminal Module FA-TH16YRA20SL User's Manual Thank you for purchasing the FA Goods product. Before using the product, please read this User’s Manual and the relevant manuals carefully to ensure correct use. SAFETY PRECAUTIONS (Always read these precautions prior to use.) Before using this product, please read this User’s Manual and the relevant manuals carefully and handle the product properly with full attention to safety.
- Page 2 [Design Precautions] WARNING Configure safety circuits external to the product to ensure that the entire system operates safely even when a fault occurs in the external power supply or the product. Failure to do so may result in an accident due to an incorrect output or malfunction.
- Page 3 [Installation Precautions] WARNING Be sure to shut off the external power supply for the system in all phases before installation. Failure to do so may result in an electric shock. [Installation Precautions] CAUTION Use the product in an environment that meets the general specifications described in this User’s Manual. Failure to do so may result in an electric shock, fire, malfunction, or the product damage or deterioration.
- Page 4 [Wiring Precautions] CAUTION Use applicable solderless terminals and tighten them within the specified torque range. If any spade solderless terminal is used, it may be disconnected when the terminal screw comes loose, resulting in failure. Check the rated voltage and terminal layout, and then wire the product correctly. Connecting a power supply with a different voltage rating or incorrect wiring may cause a fire or failure.
- Page 5 [Startup and Maintenance Precautions] WARNING Do not touch any terminal while power is on. Doing so can cause an electric shock or malfunction. Be sure to shut off the external power supply for the system in all phases before cleaning the product or retightening the terminal screws, the mounting screws of the connector, or the fixing screws of the product.
-
Page 6: Emc And Low Voltage Directives
EMC and Low Voltage Directives Compliance with the EMC Directive, which is one of the EU Directives, has been mandatory for the products sold in European countries since 1996. Additionally, compliance with the Low Voltage Directive, another EU Directive, has also been mandatory since 1997. To prove the compliance with the EMC Directive and the Low Voltage Directive, manufactures must issue an EC Declaration of Conformity and the products must bear a CE marking. - Page 7 This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual. © 2015 MITSUBISHI ELECTRIC ENGINEERING COMPANY LIMITED...
-
Page 8: General Specifications
1．INTRODUCTION This User’s Manual describes the specifications and others of the terminal module used in combination with Mitsubishi Electric Corporation DC output modules. 2．GENERAL SPECIFICATIONS Item Specifications Operating ambient 0 to 55°C temperature Storage ambient -25 to 75°C temperature Operating ambient 5 to 95% RH, no condensation humidity Storage ambient... -
Page 9: Performance Specifications
3．PERFORMANCE SPECIFICATIONS 3-1. Module specifications Model name FA-TH16YRA20SL Item Number of I/O points I/O device numbers 16 points, Y0 to YF Insulation type Relay (* 4) Rated switching voltage/current Voltage: 24 VDC, 200 VAC (50/60Hz), Current: 2A/1 contact (resistance load, COSø=1) Max. -
Page 10: External Dimensions
4．CONNECTED TARGET MODEL / PLC MODULE，CONNECTION CABLE PLC Module Model (Note 5) Connection Cable Model Module Model RY41NT2P（Note 2） FA-CBL**FM2V(Note 1) FA-CBL**FM2LV(Note 1) RY42NT2P（Note 2） MELSEC iQ-R Series connector type FA-CBL**FM2V(Note 1) RH42C4NT2P Output side FA-CBL**FM2LV(Note 1) FA-CBLM20 MELSEC-Q Series QY40P FA-CBLYM20 terminal block type... - Page 11 6．MODULE MOUNTING ORIENTATION Horizontal mounting Vertical mounting Plane mounting...
-
Page 12: Installation Method
7．INSTALLATION METHOD 7-1．Connection to the terminal block type PLC module 7-1-1．When a connection cable with terminal block is used Install the terminal block securely to the PLC module with mounting. Programmable controller module QY40P Connection cable FA-CBL＊＊TMV20 Insert the connector fully to connect it securely. - Page 13 7-1-2．When cable with loose wires is used Wire the cable securely to the terminal block of PLC module. Programmable controller module QY40P Connection cable FA-CBL＊＊M20 FA-CBL＊＊YM20 Insert the connector fully to connect it securely.
- Page 14 7-2．Connection to the connector type PLC module 7-2-1．When 40P connector cable is used Install the connector securely to the PLC module with mounting screws. Programmable controller module QY41P or others Connection cable FA-CBL＊＊FM2V FA-CBL＊＊FM2LV FA-CBL＊＊FM2H FA-CBL＊＊FM2LH Insert the connector fully Insert the connector fully to connect it securely.
- Page 15 7-2-2．When 20P connector cable is used CC-Link/LT remote I/O, CL2Y16-TP1M1V Insert the connector fully to Connection cable connect it securely. FA-CBL＊＊MMH20...
-
Page 16: External Connection Example
8．EXTERNAL CONNECTION EXAMPLE 9．HOW TO DISMOUNT AND SET THE DEVICE REMOVE... -
Page 17: Applicable Solderless Terminals
10．APPLICABLE SOLDERLESS TERMINALS ● Solderless terminal dimensions [Unit: mm] Round non-insulated Round insulated solderless terminal solderless terminal Y non-insulated Y insulated solderless terminal solderless terminal ● Terminal block shape [Unit: mm]... - Page 18 11．PRECAUTIONS For wiring to the terminal block, refer to the manual of the connected programmable controller module, published by Mitsubishi Electric Corporation. 12．COVERAGE OF WARRANTY If any fault or defect (hereinafter referred to as “failure”) attributable to us occurs within the terms of the product warranty, we shall replace the product free of charge via your local sales office.
-
Page 19: For Your Safety
FOR YOUR SAFETY This product has been manufactured as a general-purpose product for general industry applications, etc. The product is not designed or manufactured to be used in equipment or systems in situations that can affect or endanger human life. ...
Need help?
Do you have a question about the FA Goods FA-TH16YRA20SL and is the answer not in the manual?
Questions and answers
