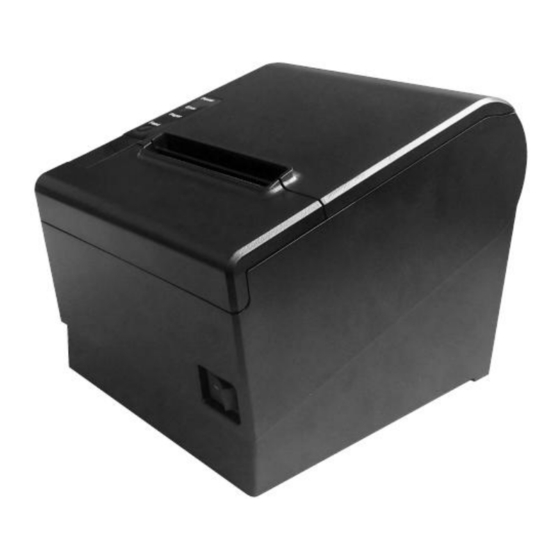

POS80 Thermal Printer
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POS80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ERS POS80

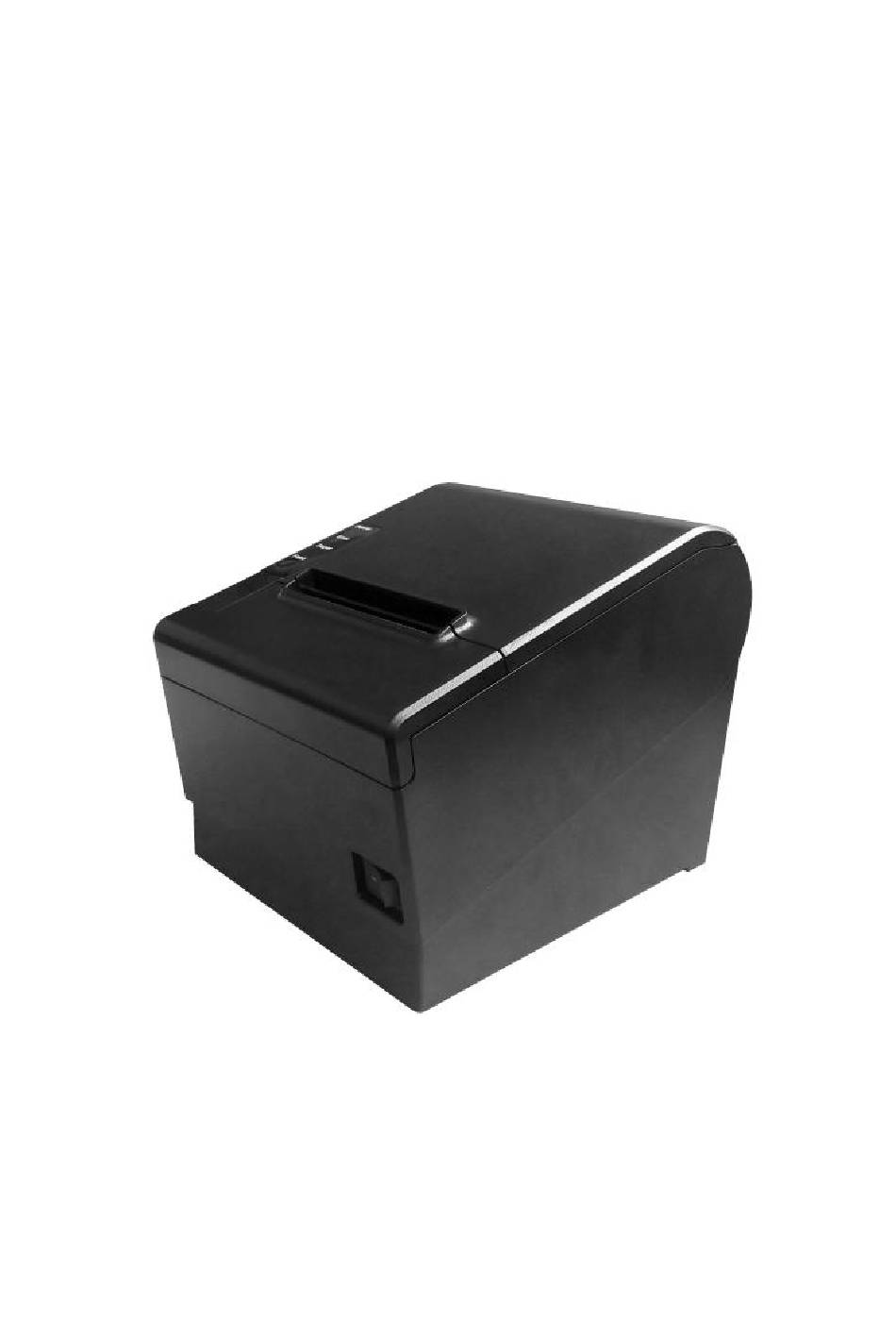

  • Page 1 POS80 Thermal Printer User’s Manual...

  • Page 2: Table Of Contents

    POS80 Thermal POS printer User’s manual Catalogue 1.1 Brief introduction............................2 1.2 Main features ..............................2 2 specification ................................3 2.1 Specification ..............................3 2.2 Printing material requirements ........................5 2.2.1 Paper parameters ..........................5 2.2.2 Mark paper parameters ........................5 2.2.3 Paper using attention ..........................5 2.3 Printing and paper cutting position .......................6 2.3.1 Printing position ..........................6...

  • Page 3: Brief Introduction

    1 Introduction 1.1 Brief introduction POS80 is a thermal POS printer with auto-cutter. It has good printing quality, high printing speed and high stability, which is widely used in POS system, food service industry and many other fields. POS80 connects other devices via parallel, serial or USB port. It offers drivers for WINDOWS and LINUX operating systems.

  • Page 4: Specification

    POS80 Thermal POS printer User’s manual 2 Specification 2.1 Specification Item Parameter Printing method Thermal printing Resolution 203DPI,8 dots/mm Printing width 72mm(576 dots) Printing parameter Printing speed About 250 mm/s Standard: cash drawer /USB interface Interfaces Optional: serial/parallel/Ethernet ports Optional Wireless Communication: Wi-Fi or Bluetooth...
  • Page 5 POS80 Thermal POS printer User’s manual CP857[Turkish] WCP1250[Central Europe] CP775 WCP1254[Turkish] WCP1255[Hebrew] WCP1256[Arabic] WCP1258[Vietnam] ISO-8859-2[Latin 2] ISO-8859-3[Latin 3] ISO-8859-4[Baltic] ISO-8859-5[Cyrillic] ISO-8859-6[Arabic] ISO-8859-7[Greek] ISO-8859-8[Hebrew] ISO-8859-9[Turkish] ISO-8859-15 [Latin 3] Thai2 CP856 Supports different density dots and images printings Supports grating bitmap printing...

  • Page 6: Printing Material Requirements

    POS80 Thermal POS printer User’s manual 2.2 Printing material requirements 2.2.1 Paper parameters 1) Paper type: thermal receipt paper/thermal black mark paper 2) Paper width:80±0.5 mm 3) Paper roll diameter: 80 mm (Max.) 4) Paper thickness:0.065 ~ 0.10mm 2.2.2 Mark paper parameters Black mark imprint position is on the front side of the receipt when using mark paper.

  • Page 7: Printing And Paper Cutting Position

    POS80 Thermal POS printer User’s manual 2.3 Printing and paper cutting position 2.3.1 Printing position L1-Paper storehouse’s width: 82±0.5mm L2-Effective printing width: 80mm L3-Distance between print head to paper storehouse’s left edge (fixed width): 3±0.3mm L4-Distance between print head to paper storehouse’s right edge (fixed width): 3±0.3mm L5-Left margin: Default is 4mm L6-Printing area width: it is set by commands (refer to programming manual).

  • Page 8: Appearance And Components

    POS80 Thermal POS printer User’s manual 3 Appearance and components 3.1 Appearance and components...

  • Page 9: Indicator And Buzzer Instruction

    POS80 Thermal POS printer User’s manual Function instruction of components 1）Power switch Press “O” side to power off, press “I” side to power on. 2）Power indicator(green) The indicator is on when power on, and it is off when power off.

  • Page 10: Printer Installation

    POS80 Thermal POS printer User’s manual 4 Printer installation 4.1 Open the package Please make sure everything is in good status when you open the package. Otherwise, please contact to distributor in time. 4.2 Requirements of installation position Put the printer on a stably place.

  • Page 11: Paper Roll Loading

    POS80 Thermal POS printer User’s manual 4.6 Paper roll loading 4.6.1 Printing paper type confirmation You can load paper roll to print after connecting power adapter and communication cables. Please make sure the printing paper type before printing. The default paper type is continuous thermal receipt paper.
  • Page 12 POS80 Thermal POS printer User’s manual Warning: Please make sure the paper roll in tense status, if not, it maybe cause paper jam or other problems. 5) The status after paper loading...

  • Page 13: Set Dip Switch

    POS80 Thermal POS printer User’s manual 4.7 DIP switch setting DIP switch Switch Function Default Cutter Forbidden Enable Buzzer Enable Forbidden Printing density Dark Light Multi-byte encoding Single-byte encoding multi-byte encoding Max. number of Printing characters in each line Cash drawer...
  • Page 14 POS80 Thermal POS printer User’s manual 5. Click “Configure Interface” link in the left side, then enter the modified target IP and click “save” button to save setting. Click “Reboot” button to reset printer if you want the setting to take effect.

  • Page 15: Interface Pin Definition

    POS80 Thermal POS printer User’s manual 5 Interface pin definitions The printer has a cash drawer driver interface and many kinds of communication interfaces: parallel, serial (RS-232), USB and Ethernet ports. USB port and cash drawer interfaces are standard interfaces, and it has Ethernet, serial and parallel ports as optional.

  • Page 16: Power Interface Pin Definition（Mpc-3-001B

    POS80 Thermal POS printer User’s manual 5.3 Power interface pin definition（MPC-3-001B） 1）Pin definition Pin number Signal name +24V SHELL 5.4 Cash drawer interface pin definition（RJ11-6P6C） 1）Electrical specification Driver voltage: DC24V Driver current: Max. 0.8A (within 510ms) Cash drawer status tests signal: “L” = 0～0.5 V ; “H” = 3～5 V 2) Cash drawer interface socket uses RJ-11 6P type connector;...

  • Page 17: Serial Port Pin Definition（Db9F

    POS80 Thermal POS printer User’s manual 5.5 Serial port pin definition（DB9F） Printer serial port is compatible with RS-232, the interface socket is DB9 female socket. User can check interface setting status via printing setting self-test page. Printer default serial interface is set as: baud rate 19200bps, 8 bit data bits, no parity,1 bit stop bit, and the handshakes method is DTR/DSR。...

  • Page 18: Faults Handling

    POS80 Thermal POS printer User’s manual 6 Faults handling Please refer to the methods as below when printer can’t work normally. Please contact your supplier directly if it still can’t work normally. 6.1 Printer does not work Problems Probably reasons Solutions The Power indicator is not light.

  • Page 19: Problems When Cutting Paper

    POS80 Thermal POS printer User’s manual 6.4 Problems when cutting paper Problems Probably reasons Solutions Cutter is worn or cannot cut Change cutter paper completely Cutter blocked or cutter Turbine and worm are worn Change turbine and worm does not returned back.
