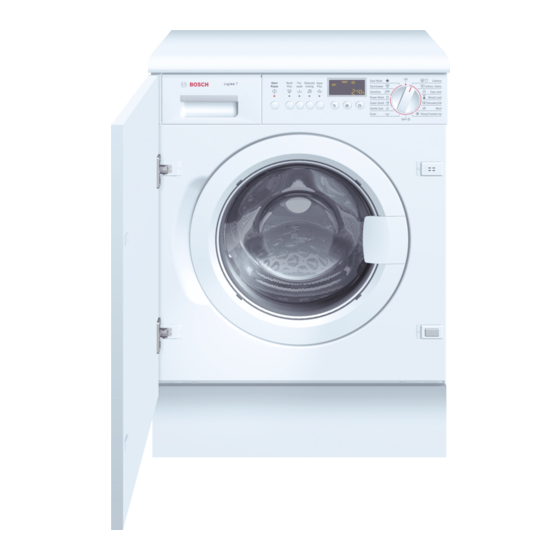

Bosch WIS28440GB Installation And Assembly Instructions

Safety instructions Scope of delivery
– The washing machine is heavy - take care when lifting.
Aqua Stop Aqua Secure
– Caution: frozen hoses can crack/burst. Do not install the washing machine outdoors or in
areas exposed to frost.
– The washing machine could be damaged. Do not lift the appliance by protruding
components (e.g. the washing machine door).
– In addition to the instructions provided in this document, special regulations from the
relevant water and electric utility companies may apply.
– If in doubt, have a technician connect the appliance.
– The worktop must have no openings in the area around the washing machine.
– Route hoses and cables in such a way that there is no risk of tripping.
Environmentally-friendly disposal
or
– Dispose of packaging in an environmentally friendly manner.
– This appliance is labelled in accordance with European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment - WEEE.
The directive provides an EU-wide framework for the return and recycling of used
appliances.
Covers
with hose clip
Installation surface
– The machine must be stable so that it does not move around.
– The surface on which it is installed must be firm and level.
Hose clamp
– Soft floors/floor coverings are not suitable.
for securing the water drain
Installation using slider sheets
hose -> Page 5
Slide sheets make it easier to slide the
washing machine into the installation recess.
Parts for assembly -> Page 8 - 13
Order using spare part no. 66 1827
Before sliding in the machine, dampen the slide sheets with a
mixture of water and detergent. Do not use any fat and/or oil.
Installation under a high-level worktop
-> Appliance dimensions, Page 3
– Adjustment strips: order no. WZ 20470, WMZ 20470, Z 7090X0
– Height adjustment kit: order no. WZ 20440, WMZ 20440, Z 7060X0
Installation on a pedestal
The front feet of the washing machine must be secured with holding brackets.
Order no. WMZ 2200, WX 975600, CZ 110600, Z 7080X0
Installation on a wood joist floor
– If possible, place the washing machine in a corner.
– Screw a water-resistant wooden plate (min. 30 mm thick) to the floor.
In doing so, take into account the height of the kitchen worktop.
– The feet of the washing machine must be secured with holding brackets.
* Order no. WMZ 2200, WX 975600, CZ 110600, Z 7080X0
1
Appliance dimensions
Moisture inside the drum
depending on model depending on model
is due to final testing.
Standard
Mains cable
Water outlet 54.4 cm
59.8 cm
Water inlet
82 cm
87 cm 87 cm
81.8 cm
5.5 cm
15 cm
1.5 cm
approx. 75 kg
Hose and cable lengths
Elbow depending on model
for securing the
water outlet hose Left-hand connection or Right-hand connection
130 cm
130 cm
~ ~
Spanner
(depending on model)
140 cm 100 cm
~
~
90 cm 140 cm
~ ~
* Standard and Aqua Secure models min. 60 cm - max. 100 cm
Aqua-Stop model 0 -max. 100 cm
Note: Using hose clips limits the possible hose lengths.
Available from specialist retailers/the after-sales service:
– Extension for Aqua Stop and cold water inlet hose (approx. 2.50 m).
Order no. WMZ2380, WZ10130, CZ11350, Z7070X0
Useful tools
– Spirit level for levelling
– Screwdriver
– Drill
2
Removing the transport safety devices Water connection
– Before using the appliance for the first time, the 4 transport safety – Risk of electric shock. Do not immerse the Aqua-Stop safety device in water
devices must be completely removed and kept safe. (contains an electric valve).
– If you need to transport the appliance at a later date, always refit the – To prevent leaks or water damage, observe the instructions in this section.
transport safety devices to prevent damage to the machine. – Caution: only operate the washing machine using cold drinking water.
–> Page 6.
– Do not connect to the mixer tap of an unpressurised hot-water boiler.
– Keep the screws and sleeves in a safe place. – Do not use a used inlet hose. Only use the inlet hose supplied or one which was
purchased from an authorised specialist retailer.
1. Take the hoses (depending on model) out of the holders and the elbow.
87 cm
– If in doubt, have a technician connect the appliance.
Remove the elbow.
Water inlet
Water inlet hose:
Caution: do not kink, squash, modify or cut through
(otherwise its strength is no longer guaranteed).
5 cm
Optimum water pressure in the supply network: 100-1000 kPa (1-10 bar)
2. Unscrew and remove the bolts from all 4 transport safety devices. – Water flows at a rate of at least 8 l/min when the tap is turned on.
– If the water pressure is higher than this, a pressure reducing valve must be installed.
1. Connect the water inlet hose to the tap.
Only tighten the screw connections by hand.
3. Take the mains cable out of the holder. Remove the sleeves.
2. Open the water tap carefully, checking the leak
tightness of the connection points.
Caution: the screw connection is under mains water
pressure.
4. Insert the covers. Secure tightly by pressing on the snap-in hook. Insert the hose clip.
Water outlet
Water outlet hose:
Caution: do not kink or pull lengthways.
Height difference between the installation surface and the drain:
– for Aqua Secure and Standard models: min. 60 cm - max. 100 cm
– for Aqua Stop model: 0 - max. 100 cm
Drainage into a siphon:
Caution: the connection point must be secured with the hose clamp
provided, Ø 24-40 mm.
Levelling
5. Secure the hoses in the hose clips.
Intense noise, vibrations and "wandering" may be the result of incorrect levelling.
All four appliance feet must be firmly on the ground.
The washing machine must not wobble.
Check the levelness of the washing machine with a spirit level and adjust if necessary.
The washing machine must not rest against the side panels of the installation recess.
The lock nuts of the front appliance feet must be screwed tightly against the housing.
3 4
Electrical connection
depending on model
The washing machine must only be connected to an alternating current via a properly
installed earthed socket.
The mains voltage must correspond to the voltage specifications on the washing machine.
-> Page 7; Technical data.
Connected load and required fuse -> Page 7; Technical data.
Make sure that:
– the mains plug fits the socket,
– the cable cross-section is adequate,
– the earthing system is properly installed.
The mains cable may only be replaced by a qualified electrician (if required).
Replacement mains cables are available from customer services.
Do not use multiple plugs/couplings and/or extension leads.
If a residual current circuit breaker is used, only use a type which displays this symbol: ‚.
Only this symbol guarantees compliance with the currently applicable regulations.
Model: Aqua Stop Standard Mains plug:
Aqua Secure – do not plug in to/pull out of the socket with damp hands.
3/4" – when removing the plug from the socket, pull the plug body only, not the cable.
– never pull the plug out during operation.
min.
Transportation, e.g. when moving house
max. max. 10 mm
90° 90°
3/4" 1.
Before transporting the washing machine:
min.
10 mm
1. Turn off the tap.
2. Reduce the water pressure in the inlet hose Instruction manual; filter in water inlet.
3. Drain residual water −> Instruction manual; drain pump.
4. Disconnect the washing machine from the power supply.
5. Disconnect the hoses.
2. Install the transport safety devices:
1. Remove the
covers.
2. Insert all 4 sleeves.
Clamp the mains cable to the holders. Insert and
tighten the screws.
After transportation, the transport safety devices must be removed. −> Page 4.
To prevent unused detergent from flowing straight into the drain during the next wash:
Pour 1 litre of water into compartment II and start the Empty programme.
5
Technical data
Weight 75 - 84 kg depending on model
Mains connection Nominal voltage 220-240 V, 50 Hz
Nominal current 10 A
Nominal power 2,300 W
Water pressure 100-1000 kPa (1-10 bar)
Test programme in accordance with the currently valid European
Standard 60456
After-sales service
If you cannot rectify a fault yourself Instruction manual: What do to if ..., Page 12/13,
please contact our after-sales service. We can always find a suitable remedy, so that a
technician is not called out unnecessarily.
The contact details for your nearest after-sales service can be found here or in the After-sales
service directory (depending on the model).
Please give the after-sales service the product number (E no.) and the production number
(FD) of the appliance.
This information can be found:
on the inside* of the washing
machine door and on the back
panel of the appliance
Product number Production number
You can rely on the competence of the manufacturer. Please contact us.
This way, you can ensure the repair is carried out by trained service technicians who are
equipped with genuine spare parts.
Aqua-Stop warranty
only for appliances with Aqua-Stop
In addition to warranty claims against the vendor from the purchase agreement
and in addition to our appliance warranty, we will pay damages under the following
conditions:
1. If a fault in our Aqua-Stop system causes water damage, we will reimburse
damages caused to private customers.
2. The liability warranty is valid for the service life of the appliance.
3. A warranty claim is only valid on condition that the appliance fitted with Aqua Stop
k
has been correctly installed and connected according to our instructions. This
condition includes the correct fitting of an Aqua Stop extension (genuine
j accessory).
Our warranty goes not cover defective power cables or fittings between the
Aqua-Stop connection and the tap.
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor
secured afterwards by turning off the tap.
The tap only needs to be turned off if you are away from home for a long period,
e.g. for several weeks' holiday.
Manufacturer (see instruction manual)
6 7
