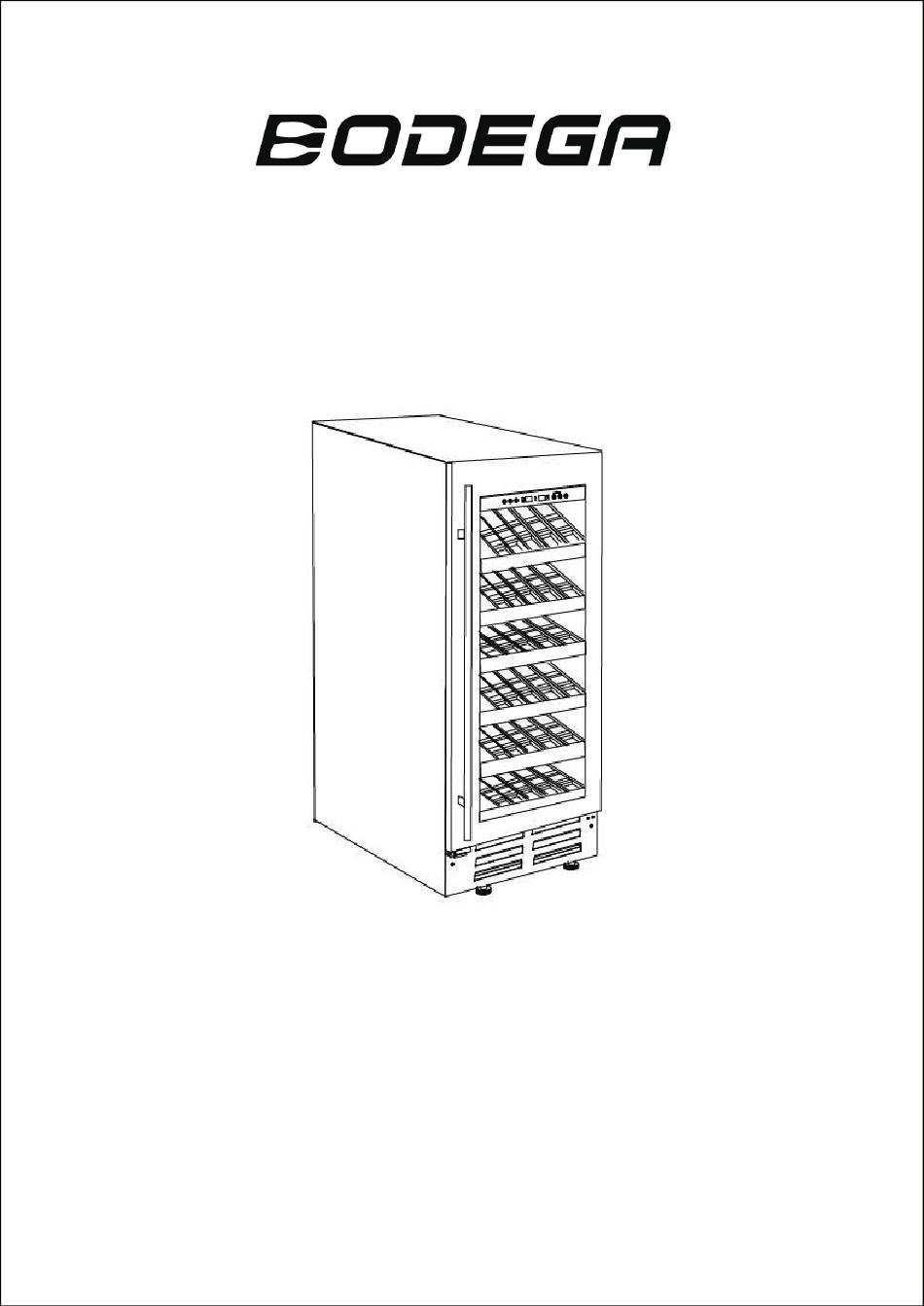

INSTRUCTION MANUAL
WINE CELLAR
MODEL: JC-85A / JC-145A
This manual contains important information including safety and installation
instructions of the appliances. Please read it carefully before use and follow all
safety information & instructions. It is recommended to keep this manual for easy
reference so that you can be familiar with the operation of the appliance.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the JC-145A and is the answer not in the manual?

Questions and answers

Ed urbina
February 17, 2025

It won’t turn on, checked plug, breaker

0
1 comments:
Mr. Anderson
May 14, 2025

If the BODEGA JC-145A does not turn on after checking the plug and breaker, the appliance might be turned off.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for BODEGA JC-145A

Summary of Contents for BODEGA JC-145A

  • Page 1 INSTRUCTION MANUAL WINE CELLAR MODEL: JC-85A / JC-145A This manual contains important information including safety and installation instructions of the appliances. Please read it carefully before use and follow all safety information & instructions. It is recommended to keep this manual for easy...

  • Page 2: Table Of Contents

    CONTENTS WARNING----------------------------------------------------------------------------------------------------------2 IMPORTANT SAFETY INSTRUCTIONS-------------------------------------------------------------------3 UNPACKING AND INSTALL THE DOOR HANDLE ----------------------------------------------------4 INSTALLATION INSTRUCTIONS----------------------------------------------------------------------------4 TEMPERATURE SETTING------------------------------------------------------------------------------------7 CARE & MAINTENANCE---------------------------------------------------------------------------------------12 TROUBLESHOOTING GUIDE--------------------------------------------------------------------------------12 WARRANTY -------------------------------------------------------------------------------------------------------14 WARNING To prevent damaging the door gasket, make sure to have the door all the way  opened when pulling shelves out of the rail compartment.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury when using your appliance, follow WARNING these basic precautions: Read all instructions before using the Wine cellar.  DANGER or WARNING: Risk of child entrapment.  Child entrapment and suffocation are not problems of the past. Junked or abandoned ...

  • Page 4: Unpacking And Install The Door Handle

    UNPACKING AND INSTALL THE DOOR HANDLE Remove the exterior and interior packing materials. Install the door handle provided with the appliance by following these steps: Step 1 －Remove the gasket at the inner side of the door to expose the two screw holes. Step 2 －Install the handle tightly with the screws G a s k e t and washers provided.
  • Page 5 ﹢16℃ / 60.8℉ to﹢38℃ / 100.4℉ Tropical ﹢16℃ / 60.8℉ to﹢43℃ / 109.4℉ Description of product model Model Description JC-58A 19 bottles single zone wine cellar JC-85A 31bottles single zone wine cellar JC-145A 52 bottles single zone wine cellar The standard bottles as below:...

  • Page 7: Temperature Setting

    WINE STORAGE ● To prevent damaging the door gasket, make sure to have the door opened fully all the way before pulling the shelves out. ● Please store wine in sealed bottles. ● Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or odours forming.
  • Page 8  the contrary the temperature will decrease 1ºC/1℉ if you push the “-” button once. Model Temperature range JC-58A/JC-85A/JC-145A The temperature setting can be adjusted from 5℃/41℉ to 20℃ /68℉. The temperature preset at the factory is 12℃/53.6℉.  Attention If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restart the unit.
  • Page 9 Figure A Figure B BUILT-UNDER SERIES (Built under a kitchen table top) Remark: The above picture is for reference only. Please refer to the actual product.
  • Page 10  Installation specifications for built-in purposes JC-58A JC-85A...
  • Page 11 JC145A LOCK & UNLOCK THE DOOR (FOR OPTION) Lock is an optional function. If your Wine Cellar has such function, a key should be attached inside the packing of this Manual. Insert the key into the lock and turn it counter-clockwise to unlock the door. To lock it, please follow the reversed operation.

  • Page 12: Care & Maintenance

    CARE & MAINTENANCE Clean your Wine Cellar  Turn off the power, unplug the appliance, and remove all items including shelves and rack. Wash the inside surfaces with a warm water and mild solution. Wash the shelves with a mild detergent solution. Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
  • Page 13 Wine Cellar is not cold enough Check the temperature control setting. External environment may require a higher setting. The door is opened too often. The door is not closed completely. The door gasket does not seal properly. Turns on and off frequently The room temperature is hotter than normal.

  • Page 14: Warranty

    WARRANTY Thank you for choosing BODEGA product. We sincerely hope that you are satisfied with it. The manufacturer's warranty covers the product for a period of 12 months from the date of purchase against manufacturing faults. All warranties are automatically kept track of in our system, so there is no need to register your product.

This manual is also suitable for:

Jc-85aJc-58a
