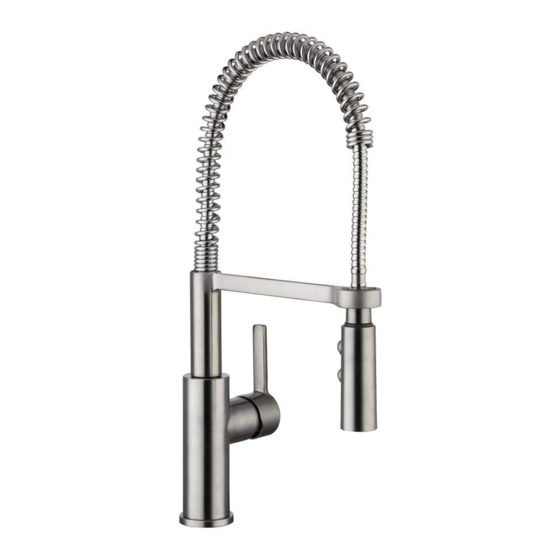

Single-handle kitchen faucet
Table of Contents

Advertisement

Available languages

Available languages

INSTALLATION AND CARE GUIDE
SINGLE-HANDLE KITCHEN FAUCET
Before returning to the store, call Glacier Bay Customer Service
We appreciate the trust and con dence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
THD
Questions, problems, missing parts?
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
THANK YOU
Model#
HD67858-0008D2
HD67858-0001
HD67858-0073
SKU#
1004957815
305764874
305764876
10/2019 REV.01

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD67858-0008D2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Glacier bay HD67858-0008D2

  • Page 1 HOMEDEPOT.COM/GLACIERBAY THANK YOU We appreciate the trust and con dence you have placed in Glacier Bay through the purchase of this kitchen faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
  • Page 2: Table Of Contents

    Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
  • Page 3: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Faucet assembly FastMount™ Escutcheon Gasket HOMEDEPOT.COM/GLACIERBAY Please contact 1-855-HD-GLACIER for further assistance.
  • Page 4: Installation

    Installation Installing the faucet assembly CAUTION: Always shut off the water supply before removing an existing faucet or replacing any part of a faucet. Open the faucet handle to relieve water pressure and ensure that the water is completely shut off. □...
  • Page 5 Installation (continued) Making the water supply Securing the faucet assembly connections □ From underneath the sink, secure the faucet NOTE: The hot side inlet tube is indicated by a label. Avoid assembly to the sink with the FastMount™ twisting wires together or placing the wires close to each system (B).
  • Page 6: Operation

    Operation Flushing and checking for leaks IMPORTANT: After installation is completed, turn on the hot and cold water supplies. Check for leaks. □ Pull the hose assembly out of the spout and remove the spray head by unscrewing it from the hose in a counterclockwise direction.
  • Page 7: Troubleshooting

    Troubleshooting NOTE: Refer to the service parts section in this manual for a detailed drawing showing the location of the parts listed below. Problem Possible Cause Solution □ There are leaks The bonnet nut has come loose and the Tighten the bonnet nut. Clean underneath the handle.
  • Page 8: Service Parts

    Service Parts Faucet ID tags can be found on the hot water inlet Part Description Part Number Spray head RP38399* Inverter RP70378 Escutcheon RP80667* Gasket RP80722 Cartridge & Screw RP20095 Bonnet nut RP70548 RP80132* Handle assembly RP13624* FastMount™ RP56096 *Specify Finish Many replacement cartridges, aerators, and drain assemblies can be purchased at your local The Home Depot store or online at HOMEDEPOT.COM...
  • Page 9 Questions, problems, missing parts? Before returning to the store, call Glacier Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-GLACIER (1-855-434-5224) HOMEDEPOT.COM/GLACIERBAY Retain this manual for future use.
  • Page 10 HOMEDEPOT.COM/GLACIERBAY GRACIAS Agradecemos la con anza que has depositado en Glacier Bay al comprar este grifo para cocina. Nos esforzamos por crear continuamente productos de calidad diseñados para mejorar su hogar. Visítanos en Internet para ver nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar. ¡Gracias por...
  • Page 11: Información Importante

    GARANTÍA DE POR VIDA LIMITADA Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador consumidor original de estar libres de defectos en materiales o mano de obra.
  • Page 12: Contenido Del Paquete

    Pre-instalación (continuación) CONTENIDO DEL PAQUETE Pieza Descripción Cantidad Ensamblaje del grifo FastMount™ Placa protectora Junta HOMEDEPOT.COM/GLACIERBAY Para obtener asistencia, llama al 1-855-HD-GLACIER.
  • Page 13: Instalación

    Instalación Cómo instalar el ensamblaje del grifo PRECAUCIÓN: Cierra siempre el suministro de agua antes de retirar un grifo existente o reemplazar alguna parte del mismo. Abre la llave del grifo para liberar la presión de agua y asegúrate de que el suministro de agua esté completamente cerrado. □...
  • Page 14 Instalación (continuación) Cómo fijar el ensamblaje del Cómo hacer las conexiones grifo del suministro de agua □ Desde abajo del lavamanos, asegura el conjunto NOTA: El tubo de entrada del agua caliente se identi ca del grifo a aquel con la sistema FastMount™ (B). con una etiqueta.
  • Page 15: Funcionamiento

    Funcionamiento Cómo purgar las tuberías y comprobar que no haya fugas IMPORTANTE: Luego de terminar la instalación, abre los suministros de agua caliente y fría. Revisa si hay ltraciones. □ Retira del caño el ensamblaje de la manguera y retira el cabezal del rociador desenroscándolo de la manguera en el sentido contrario a las manecillas del reloj.
  • Page 16: Solución De Problemas

    Solución de problemas NOTA: Consulta la sección de piezas de repuesto de este manual para ver un dibujo detallado que muestra la ubicación de las piezas enumeradas a continuación. Problema Posible causa Solución □ Hay ltraciones debajo La tuerca ciega se a ojó y el aro tórico Aprieta la tuerca ciega.
  • Page 17: Piezas De Repuesto

    Piezas de repuesto Las etiquetas de identi cación de la mezcladora pueden encontrarse en la entrada de agua caliente. Pieza Descripción Número de pieza Cabezal del rociador RP38399* Invertidor RP70378 Placa protectora RP80667* Junta RP80722 Cartucho y Tornillo RP20095 Tuerca del bonete RP70548 Tapa RP80132*...
  • Page 18 ¿Problemas, preguntas o piezas faltantes? Antes de regresar a la tienda, llama al servicio al cliente de Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los sábados entre 9 a.m. y 6 p.m.(hora estándar del Este) 1-855-HD-GLACIER (1-855-434-5224) HOMEDEPOT.COM/GLACIERBAY...
