LLCDI1802

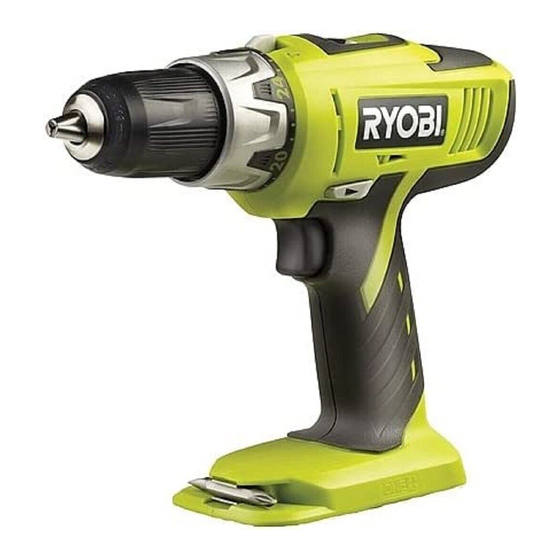

18 VOLT COMPACT HAMMER DRILL DRIVER
OWNER'S OPERATING MANUAL
ORIGINAL INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LLCDI1802 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi LLCDI1802

Summary of Contents for Ryobi LLCDI1802

  • Page 1 LLCDI1802 18 VOLT COMPACT HAMMER DRILL DRIVER OWNER’S OPERATING MANUAL ORIGINAL INSTRUCTIONS...
  • Page 2 DESCRIPTION 1. Keyless chuck 17. High speed 2. Torque adjustment ring 18. Drive mode 3. Quick mode selector 19. Drill mode 4. Two-speed gear train 20. Hammer mode 5. Rotation selector (forward/reverse/center lock) 21. To increase torque 6. Bit storage 22.
  • Page 3 Fig. 4 Fig. 2 Fig. 3 Fig. 5...
  • Page 5 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.

  • Page 6: Intended Use

    English Safety, performance, and dependability have been given conditions. Water entering a power tool will increase top priority in the design of your compact hammer drill the risk of electric shock. driver. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

  • Page 7: Residual Risks

    English designed. SERVICE Do not use the power tool if the switch does not Have your power tool serviced by a qualified repair turn it on and off. Any power tool that can not be person using only identical replacement parts. controlled with the switch is dangerous and must be This will ensure that the safety of the power tool is repaired.

  • Page 8: Risk Reduction

    OPERATION WARNING SPECIFICATIONS Do not allow familiarity with products to make you 18 Volt compact hammer drill driver careless. Remember that a careless fraction of a Model LLCDI1802 Voltage 18 V Chuck 2-13 mm WARNING Switch Variable speed...
  • Page 9 English BATTERY PROTECTION FEATURES VARIABLE SPEED RYOBI 18 V lithium-ion batteries are designed with The variable speed switch trigger delivers higher speed features that protect the lithium-ion cells and maximize and torque with increased trigger pressure and lower battery life. Under some operating conditions, these speed with decreased trigger pressure.
  • Page 10 English The proper setting depends on the type of material and the WARNING size of screw you are using. Do not hold the chuck with one hand and use the power BIT STORAGE of the drill to tighten the chuck jaws on the drill bit. The chuck body could slip in your hand, or your hand could slip and come in contact with the rotating drill bit.

  • Page 11: Environmental Protection

    MAINTENANCE Ukrainian mark of conformity WARNING Please read the instructions carefully When servicing, use only original RYOBI replacement before starting the machine. parts. Use of any other parts may create a hazard or cause product damage. Waste electrical products should not be disposed of with household waste.

  • Page 12: Vibration Level

    English 1. APPLICATION 2. SPEED 3. MODE 1/LOW DRILL MODE (TORQUE ADJUSTMENT NOT ACTIVE) 2/HIGH 1/LOW DRIVE MODE 2/HIGH HAMMER MODE 1/LOW (TORQUE ADJUSTMENT NOT ACTIVE) 2/HIGH VIBRATION LEVEL WARNING The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another.
  • Page 13 & springs, etc. 4. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation.
  • Page 14 AUTHORISED SERVICE CENTRES ACD PLANT LTD LS27 7TH Web: www.powertech-industrial.co.uk 145 Southbank Road Phone: 0113 2718494 Coundon Email: info@cdpowertools.co.uk RYCKO Technical Services LTD Coventry, West Midlands Web : www.cdpowertools.co.uk 104 Green Lane CV6 1FG St Albans, Herts C J Sinclair Limited AL3 6EX Phone: 02476 594348 Phone: 08458 678790...

  • Page 15: Declaration Of Conformity

    Max-Eyth-Straße 10, 71364 Winnenden, Germany Herewith we declare that the product 18 volt compact hammer drill driver Brand: RYOBI Model number: LLCDI1802 Serial number range: 44404703000001 - 44404703999999 is in conformity with the following European Directives and harmonised standards 2006/42/EC, 2014/30/EU, 2011/65/EU,...
  • Page 16 Techtronic Industries GmbH Max-Eyth-Straße 10, 71364 Winnenden, Germany 961152257-03...
