Trigon Electronics Telalarm HS-2 Installation And Operating Instructions Manual

Handsfree emergency autodial telephone

Advertisement

Quick Links

Telalarm HS-2
®
Handsfree Emergency Autodial Telephone
INSTALLATION
and
OPERATIONAL INSTRUCTIONS
(Firmware revision #020700 Rev. A HF2XTRA)
with 10 number rollover
255 Glider Circle • Corona, CA 92880
(800) 842-7444 • Info@trigonelectronics.com
www.TrigonElectronics.com
March 22, 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Telalarm HS-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trigon Electronics Telalarm HS-2

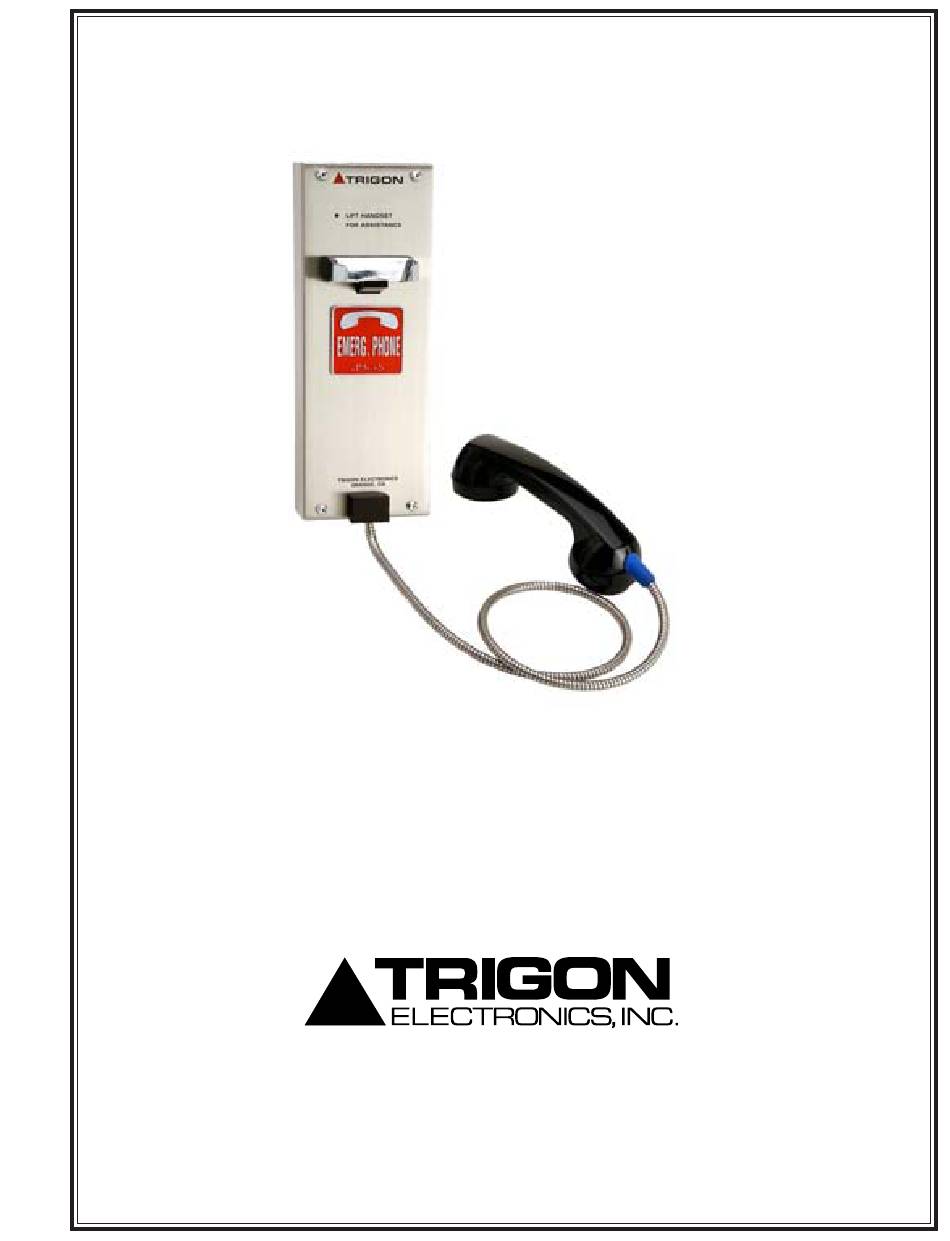

  • Page 1 Telalarm HS-2 ® Handsfree Emergency Autodial Telephone INSTALLATION OPERATIONAL INSTRUCTIONS (Firmware revision #020700 Rev. A HF2XTRA) with 10 number rollover 255 Glider Circle • Corona, CA 92880 (800) 842-7444 • Info@trigonelectronics.com www.TrigonElectronics.com March 22, 2004...
  • Page 2: Table Of Contents

    HS-2 TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION ..................PRODUCT OVERVIEW ................MOUNTING ....................WIRING ..................... WIRING DIAGRAM ................PROGRAMMING Entering Program Mode ................Setting Operational Modes ..............Entering Autodialed Telephone Numbers ..........Verifying Autodialed Telephone Number ..........
  • Page 3: Introduction

    PRODUCT OVERVIEW PRODUCT OVERVIEW PRODUCT OVERVIEW PRODUCT OVERVIEW PRODUCT OVERVIEW The Telalarm HS-2 is a multi-number emergency auto dialer. Upon pressing the button, the HS-2 dials a Power Cabling - Shielded or Twisted, programmed telephone number. If the number dialed...
  • Page 4: Mounting

    HS-2 MOUNTING MOUNTING MOUNTING MOUNTING MOUNTING Arrangements must be made with the local telephone 3.62" company for installation of a standard voice-grade .52" telephone line (touch-tone or rotary) as close to the unit mounting location as possible. The telephone company may require the following information.
  • Page 5: Wiring Diagram

    HS-2 WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM RS-232 Printer Busy MICROPROCESSOR CARD READER MICROPHONE (HF-2) MEMORY SPEAKER (HF-2) Microphone AUDIO Sensitivity MOUTH Adjustment SPEAKER PRIMARY RELAY EARPHONE VOLUME 5 Amp MAX EARTH GROUND TELEPHONE LINE INPUT Telephone line cabling POWER Voice Grade 24 to 48V...
  • Page 6: Programming

    HS-2 PROGRAMMING INFORMATION PROGRAMMING INFORMATION PROGRAMMING INFORMATION PROGRAMMING INFORMATION PROGRAMMING INFORMATION General Programming Information Fourth Auto dial Number (12 digit max) The "Initial Setup" for the HS-2 has been programmed __ __ __ __ __ __ __ __ __ __ __ __ at the factory.
  • Page 7: Setting The Site Id Number

    HS-2 PROGRAMMING, Cont. PROGRAMMING, Cont. PROGRAMMING, Cont. PROGRAMMING, Cont. PROGRAMMING, Cont. 5. If desired, exit Program Mode by pressing '#' (E) Setting the Site ID Number: (wait for two second tone). This number identifies the unit upon request from a 6.
  • Page 8: Operation

    HS-2 OPERATION OPERATION OPERATION OPERATION OPERATION EMERGENCY MODE When a CALL button is pressed, the HS-2 activates the primary relay for the duration of the call, pulses the secondary and alarm shunt relays for one second, dials a pre-programmed phone number, and monitors the line for the following signals: Busy Signal: The HS-2 will hang up and redial the number after approximately three (3) busy...
  • Page 9: Trouble Shooting Guide

    HS-2 TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE NO DIAL TONE LOSES MEMORY 1. Check input power at unit. Should be 12 VAC. 1. Electrical noise on power line. Install EMI/RFI filter. 2.
  • Page 10: General

    HS-2 CONDENSED GUIDE TO USE and PROGRAMMING CONDENSED GUIDE TO USE and PROGRAMMING CONDENSED GUIDE TO USE and PROGRAMMING CONDENSED GUIDE TO USE and PROGRAMMING CONDENSED GUIDE TO USE and PROGRAMMING General Data between [ ] is a mandatory program key stroke sequence. Data between { } is to be supplied by the programmer. Unit responses are shown between ( ).
  • Page 11: Kit Wiring Diagram

    HS-2 HF-2 KIT Wiring Black - Speaker Red - Speaker Yellow - Telco White - Call Btn Yellow - Telco White - Call Btn Blue - Ground Brown - 12VAC Brown - 12VAC Black - LED Violet - Relay(primary) Red - LED Violet - Relay(primary) Green - Mic Orange - Relay(secodary)
