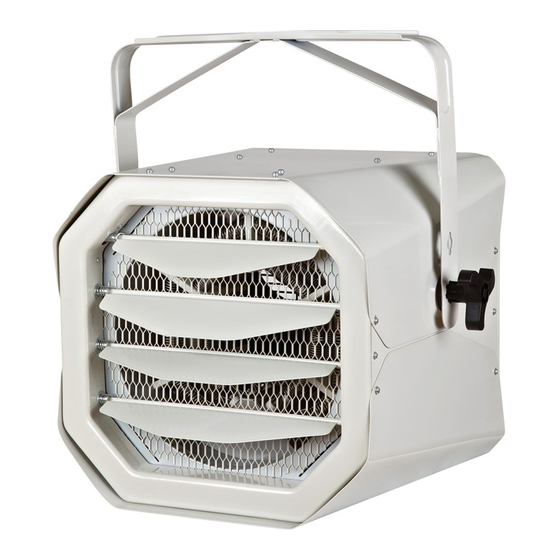

PRO-FUSION PH-9100WS Owner's Manual

10,000w heavy duty heater, 10000w 240v 60hz, 7500w 208v 60hz

Hide thumbs

Table Of Contents

10,000W HEAVY DUTY HEATER

OWNER'S MANUAL

Model No.: PH-9100WS

10000W 240V 60Hz

7500W 208V 60Hz

IMPORTANT INSTRUCTIONS

READ & SAVE

PET OWNERS WARNING:

The health of some small pets including birds are extremely sensitive to the fumes

produced during the first-time use of many appliances. These fumes are not harmful

to humans but we recommended that you do not use your heater around birds and

small pets during its initial use until the manufacturing corrosion coatings burn off.

Technical support: 1-866-206-0888

Service email:

info@mecanair.net

Table of Contents

Need help?

Do you have a question about the PH-9100WS and is the answer not in the manual?

Questions and answers

Summary of Contents for PRO-FUSION PH-9100WS

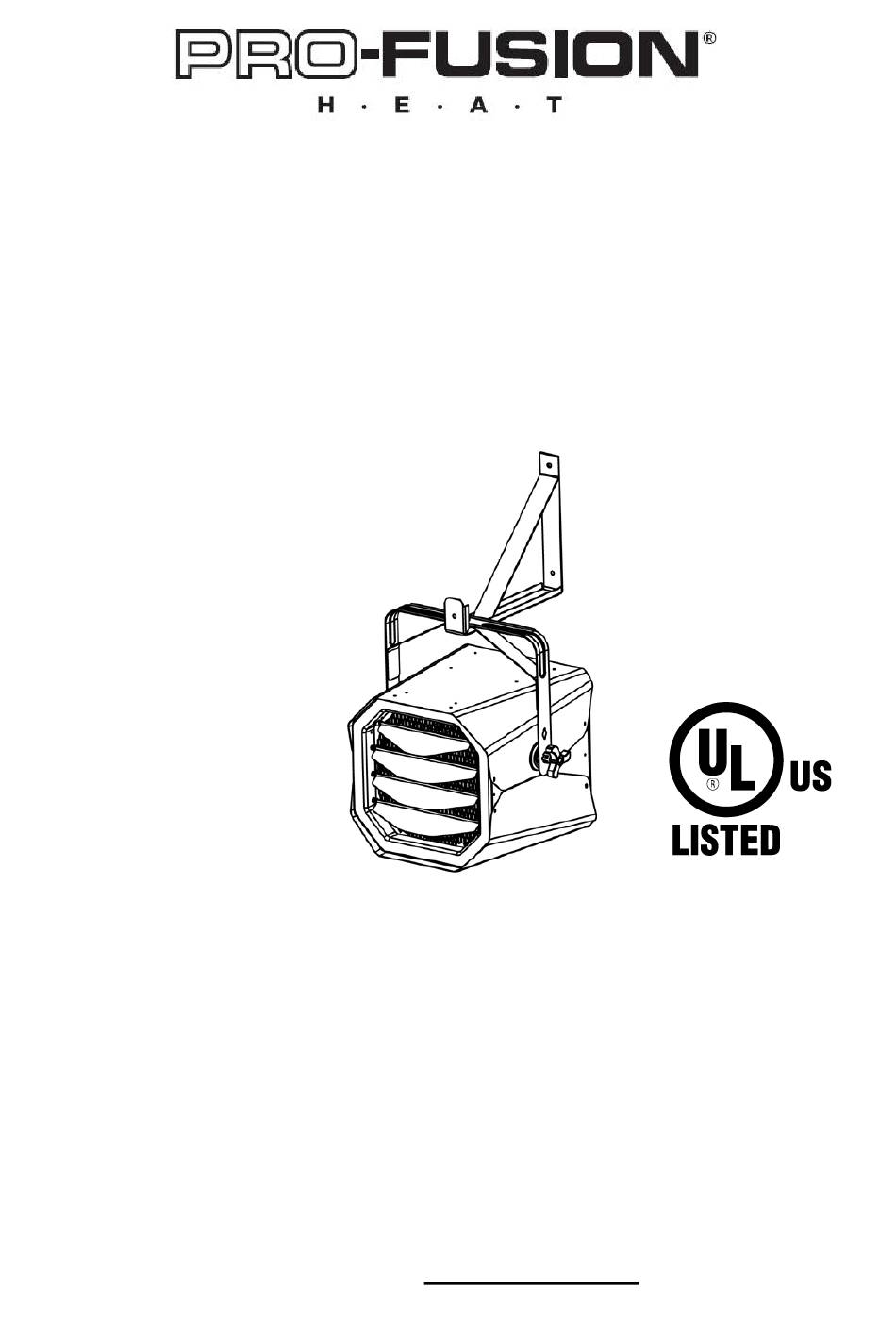

Page 1 10,000W HEAVY DUTY HEATER OWNER’S MANUAL Model No.: PH-9100WS 10000W 240V 60Hz 7500W 208V 60Hz IMPORTANT INSTRUCTIONS READ & SAVE PET OWNERS WARNING: The health of some small pets including birds are extremely sensitive to the fumes produced during the first-time use of many appliances. These fumes are not harmful to humans but we recommended that you do not use your heater around birds and small pets during its initial use until the manufacturing corrosion coatings burn off.
Page 2 TABLE OF CONTENTS Important Instructions……………………………………… Specifications and Wiring Diagram………………………. 4 Parts of the heater ……………………….………………… 4-5 Installing Instructions……………………….……………… Operating Instructions……………………….…………..Maintenance and Cleaning………………………………. Troubleshooting…………………………………………….
Page 3 IMPORTANT INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER NOTE: There may be a trace of smoke or odor when unit is first operated. Don’t be alarmed. This indicates that a drop of oil fell on the heating coil during the manufacturing process.
Page 4 SPECIFICATIONS 10,000W HEAVY DUTY HEATER Model : PH-9100WS Voltage : 1-Phase 208 / 240 V Watts: 7500 / 10000 W Frequency: 60 Hz Recommended Heating Capacity: 1.25 watts / ft³ (0.03m³) Wiring diagram: PH-9100WN PARTS OF THE HEATER...
Page 5 Wall Mount Bracket Ceiling Bracket C. Upper Housing D. Louver for air direction Tilt adjustable knob Down Housing G. Front Exhaust Grill H. ON/OFF Switch INSTALLATION INSTRUCTIONS WARNING: All wiring must be installed by a certified electrician according to the electrical safety. The ceiling heater must be grounded in accordance with all national and local building codes.
Page 6 7. Attach the mounting bracket to the wall and secure with mounting screws. 8. Loose the tilt adjustment knobs, remove the cart. 9. Align the Hang Bracket to the knob screw holes. 10. Re-insert the knob and tighten. 11. Hook the unit to the mounting bracket and let the unit hang from the mounting bracket. 12.
Page 7 17. And after making the connections, arrange the pigtail leads of unit and power supply wires in the wiring compartment. 18. Replace the wiring cover and lock in place with the screw. 19. Consult NEC code for other types of approved electrical wire splices & wire connectors. OPERATING INSTRUCTIONS WARNING - The heater must be properly installed before it is used.
Page 8 TROUBLESHOOTING If your heater fails to operate, please follow these procedures: This heater is intended to be a ceiling-mounted heater. It has a thermal cut-off protection. If the thermal cut-off protection trips, then, switch off the power. Switch off the circuit breaker.The unit should reset automatically after 10 minutes.
