Summary of Contents for Honic HN-SB200F

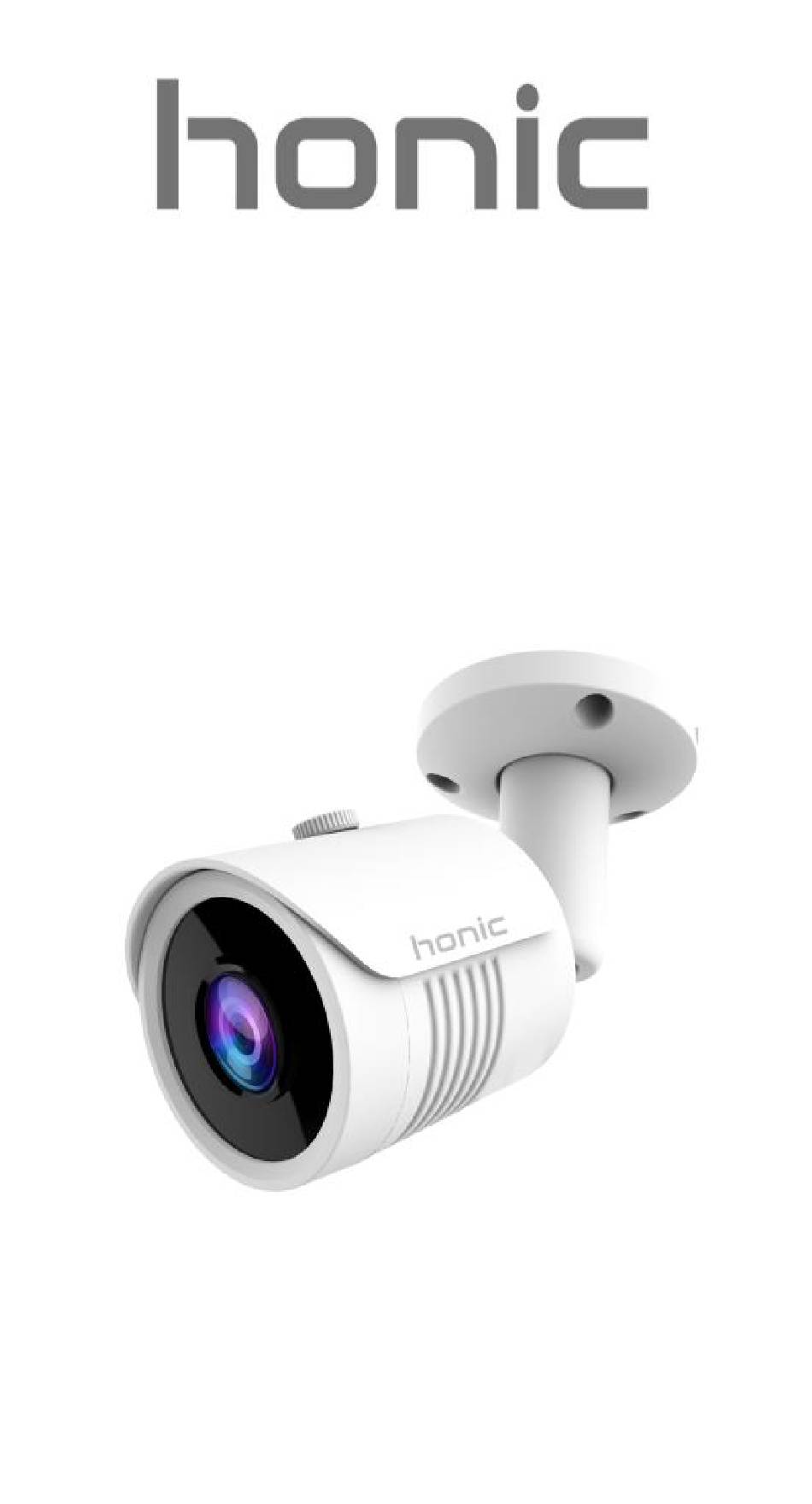

- Page 1 USER MANUAL HN-SB200F 1080P AHD/HDCVI/TVI/960H Hybrid Weatherproof Camera Customer Service: service@honictech.com Tech Support: support@honictech.com WhatsApp: +86 18028341866...
-
Page 2: Important Notes
Important Notes If there is ANY QUESTION of the camera, please contact us, EACH camera has been tested before shipping. 1. Power supply, coaxial video cable and DVR are NOT INCLUDED but REQUIRED. 2. Default mode: 1080P AHD video format. 3. -
Page 3: Product Description
Product Description The HN-SB200F is a high-definition camera designed around a 1/2.7" Color 2.0 megapixel CMOS image sensor, 14µ x 20pcs IR LEDs providing infrared capability up to 65 feet, and a 3.6mm lens with wide angle field of view of 90 degrees. Please read this user manual carefully to ensure proper use of the product. - Page 4 Package includes 1x bullet camera 3x mounting screws and screw anchors 1x user manual 1x drill template 1x Allen wrench Mechanical Inspection Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose.
- Page 5 mild detergent. Never use strong or abrasive detergents. (vi) A 12V DC 1A or 2A power supply must be used. AC power cannot be applied. AC power will damage the camera and void warranty. Power supply output voltage, current, voltage polarity and operating temperature must match requirement of this equipment.
- Page 6 Setup OSD Menu Press the OSD joystick to start the OSD menu in any video output mode, OSD menu will show on monitor: MAIN MENU DAY-NIGHT IMAGE ENHANCE VIDEO SETTING LANGUAGE FUNC RESET SAVE-EXIT EXIT...
- Page 7 OSD Functions and Options MAIN MENU BRIGHTNESS GLOBE CENTRE EXPOSURE RETURN RGAIN MODE BGAIN Gray World (Not Valid) RETURN AUTO Day/Night Switch Sensitivity DAY- MODE COLOR NIGHT MONO (B/W) RETURN CONTRAST AUTO/MANUAL SHARPNESS AUTO/MANUAL IMAGE SATURATE AUTO/MANUAL ENHANC 3DNR AUTO/MANUAL D-WDR CLOSE/OPEN RETURN...
- Page 8 APPLY&REBOOT VIDEO RETURN SETTING ENGLISH, CHINESE, KOREAN, RUSSIAN, etc LANGUA PRIVACY & MOTION (PLEASE CHECK BELOW) FUNC RESET SAVE-EXIT EXIT (Back Light Compensation): In images where a bright light source is behind the subject of interest, the subject would normally appear in silhouette. BLC allows the camera to adjust the exposure of the entire image to properly expose the subject in the foreground.
- Page 9 AUTO: Provide color image at daytime and black and white image at nighttime automatically by AGC level. GAIN DAY/NIGHT: Sensitivity from low to high. GAIN NIGHT/DAY: Sensitivity from low to high. Color: Provide color image both at daytime and nighttime. MONO=B/W: Provide black and white image both at daytime and nighttime.
- Page 10 clearer. This type of filter is sometimes confused by motion, resulting in blur trails. Standard: CVBS: PAL and NTSC, its NTSC in USA. FHD modes: Choose 1080P 30 for NTSC system; its NTSC in default. Digital WDR (D-WDR) is a software-based D-WDR: technique that optimizes image quality by adjusting the gamma (γ) value to enhance dark areas.
-
Page 11: Specifications
Specifications Model No. HN-SB200F Video Output Mode AHD/CVI/TVI/CVBS Camera Image Sensor 1/2.7" CMOS Image Sensor Image Resolution 1080P / 960H Effective Pixels 1920*1080 in HD mode TV System PAL/NTSC Electronic Shutter Auto S/N Ratio ≥50dB Scanning System Progressive Scan Lens Focus Length 3.6mm... -
Page 12: Troubleshooting
DWDR OSD Support (HD Mode Only) General Housing Metal, IP66 Bracket IR Cut Filter Operation Temperature 14F ~ 122F RH95% Max Storage Temperature -4F ~ 140F RH95% Max Power Source DC12V±10%, 700mA Dimension 157(W) x 70(H) x 66(D)mm Weight 450g Stated maximum IR range is based on ideal conditions in typical outdoor environment. - Page 13 (iii) Ensure your power supply is providing the correct voltage and current. (iv) Ensure switch the camera video output mode to correspond your DVR video type. (v) Ensure your AHD DVR is 1080P or 1080N, CVI and TVI DVR is 1080P. c.
-
Page 14: Frequently Asked Questions
Camera Dimensions (mm) Frequently Asked Questions Q: What else do I need to make it work? This camera can output 1080P AHD, 1080P CVI, 1080P TVI and 960H signals, so you need: 1. One of 1080P(N) AHD DVR, 1080P CVI DVR, 1080P TVI DVR or 960H analog DVR. - Page 15 Q: Will the OSD switch stay in same mode if camera is powered off, or do you have to reset mode each time you power it back up? A: It will stay in the same output mode, do not need to reset each time.
-
Page 16: Warranty And Customer Service
60 days of purchase to receive a FULL REFUND for any reason. 24-Month Warranty for Quality-Related Issues Honic warrants this product against defects in workmanship and material for a period of 2 years from its original purchase date.
