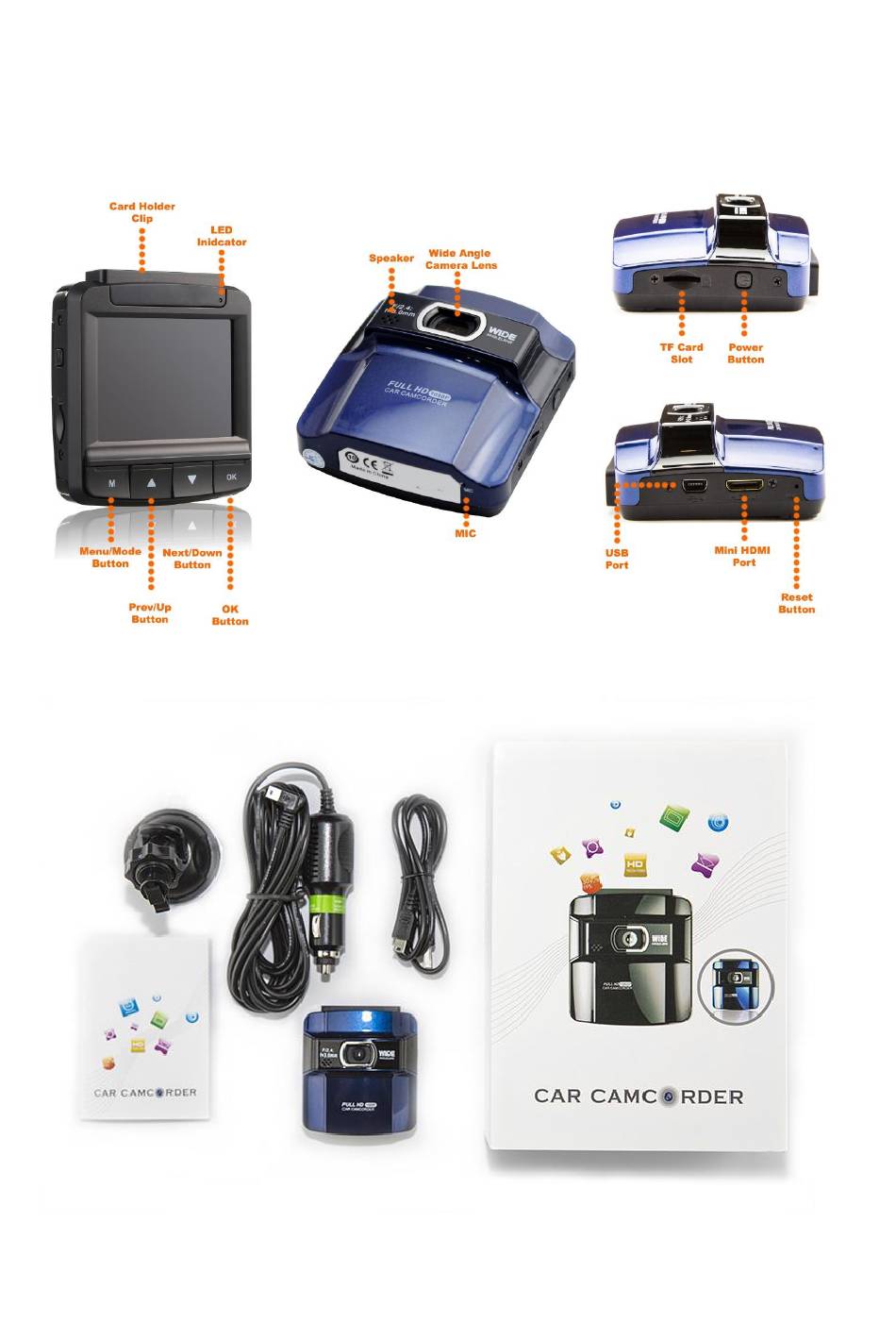

Page 1 EG650 – Quick Start Guide What’s in the package?
Page 2 Initial set up: The device uses a TF (Micro SD) memory card, maximum size allowed is 32GB. *Make sure the memory card is empty first time use. Insert the Memory Card into the card slot: If you have a USB power socket, connect the device to a USB Power Socket to power up the device.
Page 3 * When the device is connected to USB charging cable or Cigarette Lighter, the camera will switched on automatically, and will start recording if the memory card is inserted. * Please press OK button to stop the recording. Basic Configuration – when device is powered on, press menu button to enter the configuration menu.
Page 4 Operation: Connect the cigarette light charger into the cigarette lighter slot. Connect the charging cable to the camera. Turn on the Ignition, cigarette lighter start to supply power (you can see camera car charger red indicator will lights up.) Camera will turn on automatically and will start recording in default, unless you have disable this...
Page 5 When your switch off the ignition, cigarette lighter will stop supplying power, the device will detect this and automatically stop the recording and switch itself off. Operation quick tips: While recording, you can press OK button to stop recording, and ...
Page 6 From Video/Standby Mode (when you start the device) Press and hold the Menu button will switch to Photo/Camera mode, this mode allow you to take still photos. Under this mode, press the OK button to take still photos. You can press the up and down button to zoom in and zoom out.
Page 7 LED Indicator: Solid red indicates power source is connected, and the device is charging the temporary battery, when the temporary battery is fully charged, the red indicator will be turned off. Solid blue indicates the device is switch on. Flashing blue indicates the device is in recording mode.
Page 8 Frequency: This option allows you to change the display frequency “50Hz/60Hz" Exposure: This option allows you to set the exposure White Balance: This option allows you to select the white balance. Format: This option allows you to format the TF card Default Setting: This option allows you to go back to default setting Image Rotation: This option allow you to rotate the recording image.
