GP PowerBank FP10M Instruction Manual

Instruction Manual

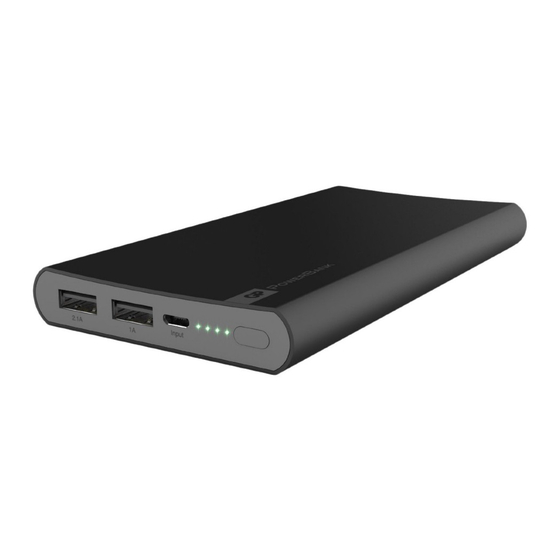

PowerBank
*
Fig.2
USB
Port
Micro USB Input Port
#
* USB power adaptor is not included in packaging.
Output 1 : for iPhone / Android phones / iPad
Output 2 : for iPhone / Android phones / Galaxy Tab
Supports:
Smartphones Tablet PCs Mobile Phones

Specifications

Input
Output
Dimension
Weight (Power Pack only)
Operating Temperature
Battery Type
Recharging Time
^ The above recharging time may vary under different operating conditions. Longer charging
time might be needed in the first charge.

LED indication

During recharging, the LED displayed on the front side of the PowerBank will light up.
Checking the battery status:
Battery Strength LED Indicator
Good Four LED on
Good to average Three LED on
Average Two LED on
Weak One LED on
Very weak LED blinking
No power
FP10M
Micro USB Charging Cable
( Input/Output )
Fig.4
Fig.3
MP3 Players Gaming Devices Camcorders Digital Cameras
5V DC 2A
OUT 1 : 5V DC 2.1A
OUT 2 : 5V DC 1A
(Total:3.1A)
148(L) x 75.5(W) x 15(H) mm
285g
5°C ~ 40°C
Li-Polymer battery 3.7V 10000mAh
8 hours(approx.)^
Remarks
No need for recharging
-
-
-
Need to be recharged
Need to be recharged
No LED
immediately
GB

Product Features

• High capacity PowerBank with built-in 10000mAh lithium-polymer battery,
perfect for smartphone and tablet PCs.
• Able to charge iPad / Galaxy Tab directly
• Convenient to recharge via USB power port from computer in use
power adaptor*
• 2A speedy recharging
• Fast charging with 2.1A
• Total 3.1A dual USB outputs for simultaneous charging of two devices
• Intelligent automatic power modulation switch for various input voltage
tailor-made for travelling use
• Safety protection
- Over / under temperature protection
- Over charging/ discharging protection
- Overload protection
- Short circuit protection
• Innovative plano-concave design fit for different curved-back and flat-back
devices
• Matt aluminium casing
• LED indicator to show battery level
Read the instruction manual thoroughly before use.
Keep the manual for future reference.

Operating Instructions:

Recharging the PowerBank

1. Plug the micro USB port of the provided USB charging cable into the input port
of the PowerBank. Connect the other end of the cable to a computer
in use or USB power adaptor* (1A or up) (Fig.2) to AC power outlet. It is
recommended to use the USB cable provided by GP for recharging.
2. The LED indicator will be on to show the charging status.
3. All LED will be on once recharging is completed.
4. Disconnect the USB cable after recharging.

Charging Other Electronic Devices

1. Plug the provided USB charging cable into the USB output port of the fully
recharged PowerBank. Connect the other end of the cable to the electronic
device. Using the original USB cable provided by the electronic device is also
accepted.(Fig. 3)
2. Dual USB output for simultaneous charging of two devices.(Fig. 4)
3. Charging starts in 3 seconds otherwise unplug and reconnect.
4. Refer to the electronic device to check the charging status if necessary.
5. Unplug after charging and the PowerBank will turn off automatically.
6. Press the front button to check the battery level shown by the LED
indicator.(Table 1)
Caution
1. Press the front button of the PowerBank to check the battery level before use
if it has not been used for quite a while.
2. The red LED light will be on and flash fast when the PowerBank is an
abnormal condition. In this case, unplug the charging cable and for at least 1
minute, press the front button of the PowerBank and place it at room
temperature for the return to normal operation.
3. It is normal that the casing gets warm during charging and the PowerBank will
gradually cool down to room temperature after use or fully recharged.
4. Do not use the PowerBank at any application environment which is enclosed,
extremely humid or hot, or close to an oven and open flame, or under direct
sunlight to prevent overheating. GP does not accept any warranty or return for
any damage to the battery or the internal components.
5. This appliance is no intended for use by young children or infirm persons
unless they have been adequately supervised by a responsible person to
ensure that they can use the appliance safety. Young children should be
supervised to ensure that they do not play with the appliance.
6. Do not wet, burn, modify, disassemble, open, drop, crush, puncture or ruin the
(Table 1)
PowerBank casing and the internal battery. GP does not accept any warranty
or return for any damage to the battery or the internal components.
7. Do not throw or shake the PowerBank.
8. Keep away from the A/C main source.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undersired operation.
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging your health and well-being.
1
or by USB
#
(Fig. 1)
#
▲
