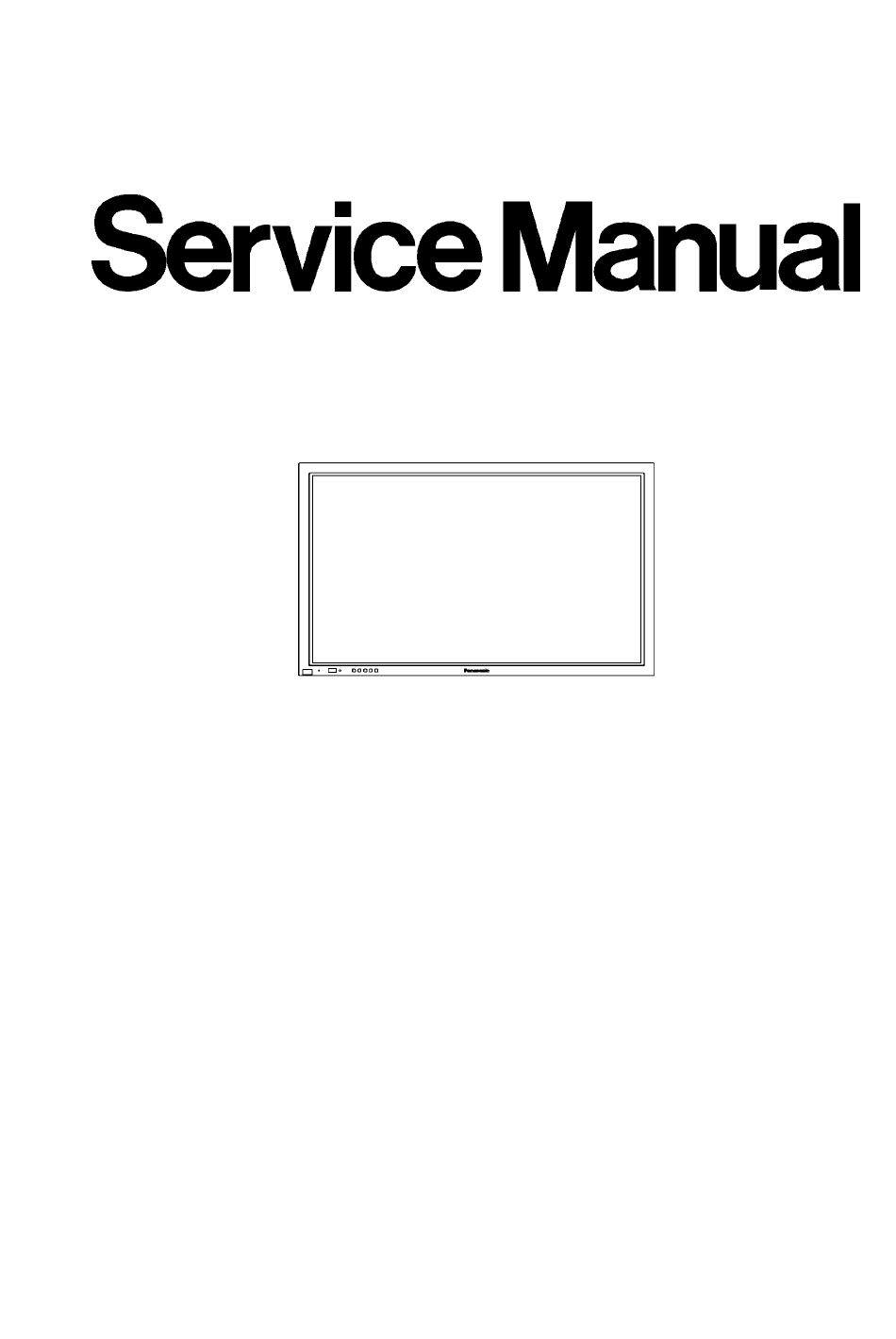

TH-42PW6EX / TH-42PW6BX / TH-42PWD6EX / TH-
SPECIFICATIONS
Power Source:
AC120V 50/60Hz (UY version)
AC220-240V 50/60Hz
(Except UY version model)
Power Consumption: 265 W
Save off 1.5 W, Save on 0.6 W (stand-by
condition)
(UY version)
Save off 1.8 W, Save on 0.8 W (stand-by
condition)
(Except UY version model)
0.4 W (Power off condition)
(UY version model)
0.6 W (Power off condition)
(Except UY version model)
Plasma Display panel: Drive method AC type
16:9 aspect ratio
Contrast Ratio
4000:1
Screen size:
818 mm (W) × 461 mm (H)
939 mm (diagonal) (37 inch)
920 mm (W) × 518 mm (H)
1,056 mm (diagonal) (42 inch)
No. of pixels
ORDER NO. ITD0306012C0
42PWD6BX / TH-42PWD6UY
Specifications
1
D10 Canada: B07
Wide Plasma Display
GP6D Chassis

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH-42PW6BX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic TH-42PW6BX

Summary of Contents for Panasonic TH-42PW6BX

  • Page 1 ORDER NO. ITD0306012C0 D10 Canada: B07 Wide Plasma Display TH-42PW6EX / TH-42PW6BX / TH-42PWD6EX / TH- 42PWD6BX / TH-42PWD6UY GP6D Chassis SPECIFICATIONS Specifications Power Source: AC120V 50/60Hz (UY version) AC220-240V 50/60Hz (Except UY version model) Power Consumption: 265 W Save off 1.5 W, Save on 0.6 W (stand-by...
  • Page 2 408,960 (852 (W) × 480 (H)) [2,556 × 480 dots] Operating condition: 34 °F - 104 °F (0 °C - 40 °C) Temperature Humidity 20 % - 80 % Horizontal scanning frequency 15.6 - 110kHz Vertical scanning frequency 48 - 120Hz Connection terminals: Video in 1.0 Vp-p (75-ohm)
  • Page 3 2. Safety Precautions 2.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
  • Page 4 jumpered AC plug and each exposed metallic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to thechassis, the reading should be between 1M and 5.2M . / When the exposed metal does not have a return path to the chassis, the reading must be Figure 1...
  • Page 5 components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistorsand semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD). 1.
  • Page 6 together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient todamage an ES device). 4. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
  • Page 7 Suggested Pb free solder There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also beused. 5. PCB Structure sheet of GP6D chassis...
  • Page 8 Board Name Function Remarks Digital Signal Processor Slot Interface & SYNC processor Audio out, DC-DC converter Sustain Out Scan out Sustain connection (Upper) Sustain connection (Lower) Data Drive (Lower Right) Data Drive (Lower Left) Speaker terminal Power switch Sustain connection (Upper) Sustain connection (Lower) Front SW.
  • Page 9 7. Location of Lead Wiring...
  • Page 10 8. Adjustment Procedure 8.1. +B Set-up...
  • Page 11 8.1.1. Item / Preparation 1. Input a Grey scale signal. 2. Set the picture controls: - Picture mode: Normal White balance: Normal 8.1.2. Adjustments Adjust and confirm indicated test point for the specified voltage. Adjust Name Volume Voltage Test Remarks Point Vsus R605...
  • Page 12 8.2.2. Adjustments Adjust driver section voltages referring the panel data on the panel data label. Name Test Voltage Volume Remarks Point Vsus TPVSUS 170V ± 1V R605 (P) (SS) TPVBK 155V ± 5V R6443 (SC) (SC) TPVE 158V ± 1V R6774 (SS) (SS)
  • Page 13 8.4. P.C.B. (Printed Circuit Board) exchange 8.4.1. Caution 1. To remove P.C.B. , wait 1 minute after power was off for discharge from electrolysis capacitors. 8.4.2. Quick adjustment after P.C.B. exchange...
  • Page 14 P.C.B. Name Test Point Voltage Volume Remarks P Board Vsus TPVSUS (SS) 170V ± 1V R605 (P) TPVDA (SS) 67V ± 1V R590 (P) SC Board TPVBK (SC) 155V ± 5V R6443 (SC) TPVAD (SC) -90V ± 1V R6477 (SC) Vset TPVSET (SC) 218V ±...
  • Page 15 9. Service mode 9.1. CAT (computer Aided Test) mode To exit the CAT mode , access the ID mode and switch off the main power. 9.1.1. IIC mode...
  • Page 16 Select the IIC mode by Up/Down button on the remote control at the front page of CAT mode then press the Action button on the remote control. Subject and item are mentioned on page 14. To exit the IIC mode, press the R button on the remote control. 9.1.2.
  • Page 17 To exit the SD mode, press the R button on the remote control. 9.2. IIC mode structure (following items value is sample data.) 10. Alignment...
  • Page 18 10.1. Pedestal setting (C) Note: OSD is the difference between UY model and Except UY model. / Picture: Normal (Except UY)/ Standard (UY model) / White balance (Except UY)/Color Temp (UY model) 10.2. Pedestal setting (B) Note: OSD is the difference between UY model and Except UY model. / Picture: Normal (Except UY)/ Standard (UY model) / White balance (Except UY)/Color Temp (UY model) 10.3.
  • Page 19 11.1.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinkes of the Power LED on the front panel of the unit.
  • Page 20 3. Remarks Above Fan function is operated during the fans are installed. 11.2. No Power [First check point] There are following 3 states of No Power indication by power LED. 1. No lit 2. Green is lit then turns red blinking a few seconds later. 3.
  • Page 21 11.4. Local screen failure Plasma display may have local area failure on the screen. Fig - 1 is the possible defect P.C.B. for each local area. Fig - 1 12. Option Setting Hidden Option Menu for GP6D series GP6D chassis series have special function and operation setting facility called Option Menu. This...
  • Page 22 Option Menu is useful for special function required customers. This should be set at the installation stage. The end user could not set or change these becauseof hidden On screen menu. Option menus default setting Contents Off-timer function Enable Off-timer operation Enable/Disable. On Screen display Enable/Disable to display input mode indication after power on and no signal indication.
  • Page 23 13. Conductor Views 13.1. PF-Board 13.2. P-Board 13.3. HX-Board 13.4. HY-Board 13.5. J-Board 13.6. D-Board 13.7. C1-Board 13.8. C2-Board 13.9. SC-Board 13.10. SU and SD-Board 13.11. SS, SS2 and SS3-Board 13.12. Z-Board 13.13. V1, S1 and H3-Board 14. Block and Schematic Diagrams 14.1.
  • Page 24 14.8. HX-Board Schematic Diagram 14.9. HY-Board Block Diagram 14.10. HY-Board (1 of 2) Schematic Diagram 14.11. HY-Board (2 of 2) Schematic Diagram 14.12. J-Board Block Diagram 14.13. J-Board (1 of 4) Schematic Diagram 14.14. J-Board (2 of 4) Schematic Diagram 14.15.
  • Page 25 14.33. SC-Board (1 of 2) Schematic Diagram 14.34. SC-Board (2 of 2) Schematic Diagram 14.35. SU-Board Block Diagram 14.36. SU-Board Schematic Diagram 14.37. SD-Board Block Diagram 14.38. SD-Board Schematic Diagram 14.39. SS, S1, SS2 and SS3-Board Block Diagram 14.40. SS, S1, SS2 and SS3-Board Schematic Diagram 14.41.
  • Page 26 16. Mechanical Replacement Parts List...
  • Page 27 NOISE FILTER J0KG00000054 NOISE FILTER K2AH3H000021 AC INLET K2CG3DH00025 AC CORD TH-42PWD6UY K2CN3DH00004 AC CORD TH-42PW6EX, TH-42PWD6EX K2CT3DH00013 AC CORD TH-42PW6BX, TH-42PWD6BX MD42S06A1J PLASMA DISPLAY PANEL TBMA008 PANASONIC BADGE TH-42PWD6BX/EX/UY TBMA118 PANASONIC BADGE TH-42PW6BX/EX TBXA28202A POWER BUTTON TH-42PWD6BX/EX/UY TBXA28214 POWER BUTTON...
  • Page 28 CORE HOLDER TPCA95901A BOTTOM CARTON TPCB34107 CARTON BOX TH-42PWD6EX TPCB34108 CARTON BOX TH-42PWD6BX TPCB34114 CARTON BOX TH-42PW6EX TPCB34115 CARTON BOX TH-42PW6BX TPCB40401 CARTON BOX TH-42PWD6UY TPCB48401 CARTON BOX TPD169487 JOINT TPDA0510-1 CUSHION(UPPER RIGHT) TPDA0511-1 CUSHION(UPPER LEFT) TPDA0512 CUSHION(UPPER CENTER) TPDA0513...
  • Page 29 INSTRUCTION BOOK(ENGLISH) TH-42PWD6BX TSXL139 CABLE TSXL222 FFC LEAD(C-C) TSXL231 CABLE TSXL278 FFC LEAD(FPC)(D-C1/2) TTEA0128 ESCUTCHEON TH-42PWD6BX/EX/UY TTEA0129 ESCUTCHEON TH-42PW6BX/EX TTUA0675 REAR COVER TH-42PWD6UY TTUA0676 REAR COVER TH-42PW6BX/EX,TH- 42PWD6BX/EX TXFMX020MMS PLATE(FRONT UPPER/UPPER) TXFMX030MMS PLATE(FRONT BOTTOM/BOTTOM) TXFMX040MMS PLATE(FRONT GALAS/R/L) TXFMZ010QBS STAND POOL BRACKET...
  • Page 30 17.2. Electrical Replacement List...
  • Page 31 Ref. No. Part No. Part Name & Description Remarks F902 K5D312BK0012 FUSE F900.901 K5Y802B00001 FUSE K1MN50B00026 50P CONNECTOR K1MN20B00043 CONNECTOR K1MN50B00026 50P CONNECTOR K1MN20B00043 CONNECTOR K1KA11A00102 11P CONNECTOR K1KA08A00232 8P CONNECTOR C403-05 ECKDAE472ZE C 4700PF, Z, C406 ECA2WHG100 E 10UF, 450V C407 ECJ2XB1H104K C 0.1UF, K, 50V...
  • Page 32 C561,62 ECJ3VC1H472J C 4700PF, J, 50V...
  • Page 33 Ref. No. Part No. Part Name & Description Remarks C563 ECKDNA102KB C 1000PF, Z, C564 ECKD3A101KBP C 100PF, K, 1KV C565 EETHC2C821B E 820UF, 160V C566 ECKD3D102KBP C 1000PF, K, 2KV C567,68 ECJ3VC1H472J C 4700PF, J, 50V C569 ECKD3A101KBP C 100PF, K, 1KV C570 ECKD3A471KBP C 470PF, K, 1KV...
  • Page 34 Ref. No. Part No. Part Name & Description Remarks C925 ECA1HHG100 E 10UF, 50V C951 EEVHB1C470 E 47UF, 16V C952 ECJ1VF1H103Z C 0.01UF, Z, 50V C953-58 EEVHB1C470 E 47UF, 16V C959,60 ECJ1XF1C104Z C 0.1UF, Z, 16V C961 ECJ1VF1H103Z C 0.01UF, Z, 50V C962-64 ECJ1XF1C104Z C 0.1UF, Z, 16V...
  • Page 35 Ref. No. Part No. Part Name & Description Remarks C2459 ECJ3VB1C104K C 0.10UF, K, 16V C2460 ECJ2XB1H473K C 0.047UF, K, 50V C2461 ECJ2XC1H102J C 1000PF, J, 50V C2463 ECJ2XB1H473K C 0.047UF, K, 50V C2466,67 ECJ3VB1C104K C 0.10UF, K, 16V C2480 ECJ2VF1C105Z C 1UF, Z, 16V C2484...
  • Page 36 Ref. No. Part No. Part Name & Description Remarks C3105 EEVHB0G221 E 220UF, 4V (HY) C3106 ECJ1XB1C104K C 0.1UF, Z, 16V (HY) C3106 TCUY1C225KBM C 2.2UF, 16V F1K1C225A026 (J) C3107 ECJ1XB1C104K C 0.1UF, Z, 16V (HY) C3107 ECJ1XF1C104Z C 0.1UF, Z, 16V C3108 ECJ1XB1C104K C 0.1UF, Z, 16V...
  • Page 37 Ref. No. Part No. Part Name & Description Remarks C3153 ECJ1XC1H101J C 100PF, J, 50V C3154 ECJ1XB1C104K C 0.1UF, Z, 16V C3156 ECJ1XB0J105K C 1UF, K, 16V C3157 ECJ3XB0J106M C 10UF, M,6.3V C3158 ECJ1XB1C104K C 0.1UF, Z, 16V C3159 EEVHB0G221 E 220UF, 4V C3160,61 ECJ1XB1C104K...
  • Page 38 Ref. No. Part No. Part Name & Description Remarks C3313 ECJ1VF1A105Z C 1UF, Z, 10V C3315 ECJ1XB1C104K C 0.1UF, Z, 16V C3316 ECJ2VF1C105Z C 1UF, Z, 16V C3317 ECJ1VF1A105Z C 1UF, Z, 10V C3318-21 ECJ1XB1C104K C 0.1UF, Z, 16V C3322,23 EEVHB0G221 E 220UF, 4V C3324...
  • Page 39 Ref. No. Part No. Part Name & Description Remarks C6468 TCUY1C105ZFN C 1UF, 16V F1J1C1050006 C6469 EEUFC1E221 E 220UF, 25V C6470 ECA1HM221 E 220UF, 50V C6471 TCUY1C105ZFN C 1UF, 16V F1J1C1050006 C6472 ECJ2XB1H103K C 0.01UF, K, 50V C6473 TCUY1C105ZFN C 1UF, 16V F1J1C1050006 C6474 ECJ2XB1H103K...
  • Page 40 Ref. No. Part No. Part Name & Description Remarks C6645 ECJ3YB1E105K C 1UF, K, 25V C6646 F2A1V121A085 E 120UF, 35V C6647 TCUY1C105ZFN C 1UF, 16V F1J1C1050006 C6650 ECQE2224KF P 0.22UF, K,250V C6651,52 ECJ2XB1H103K C 0.01UF, K, 50V C6655,56 EEUFC1A101 E 100UF, 10V C6660-63 ECJ3XK2J102K C 1000PF, K,630V...
  • Page 41 Ref. No. Part No. Part Name & Description Remarks C7210 TCUY1C105ZFN C 1UF, 16V F1J1C1050006 C7211 F1K2A1040004 C 0.1UF, 100V C7213 F1K2A1040004 C 0.1UF, 100V C7217 F1K2A1040004 C 0.1UF, 100V C7219 F1K2A1040004 C 0.1UF, 100V C7235 TCUY1C105ZFN C 1UF, 16V F1J1C1050006 C7236 ECJ3XB0J106M...
  • Page 42 Ref. No. Part No. Part Name & Description Remarks C9027 ECJ1XF1C104Z C 0.1UF, Z, 16V C9028 ECJ3XB0J106M C 10UF, M,6.3V C9029 ECJ1XF1C104Z C 0.1UF, Z, 16V C9030,31 ECJ3XB0J106M C 10UF, M,6.3V C9032,33 ECJ1XF1C104Z C 0.1UF, Z, 16V C9034,35 ECJ1XB1C104K C 0.1UF, Z, 16V C9036,37 ECJ3XB0J106M C 10UF, M,6.3V...
  • Page 43 Ref. No. Part No. Part Name & Description Remarks C9156 ECJ3XB0J106M C 10UF, M,6.3V C9157-60 ECJ1XF1C104Z C 0.1UF, Z, 16V C9161 ECJ1XB1C104K C 0.1UF, Z, 16V C9162 ECJ3XB0J106M C 10UF, M,6.3V C9163-70 ECJ1XF1C104Z C 0.1UF, Z, 16V C9172-74 ECJ1XF1C104Z C 0.1UF, Z, 16V C9175 ECJ3XB0J106M C 10UF, M,6.3V...
  • Page 44 Ref. No. Part No. Part Name & Description Remarks C9612 ECJ1XF1C104Z C 0.1UF, Z, 16V C9613 ECJ1VF1H103Z C 0.01UF, Z, 50V C9615-25 ECJ1XF1C104Z C 0.1UF, Z, 16V C9629-41 ECJ1XF1C104Z C 0.1UF, Z, 16V C9700,01 ECJ1XF1C104Z C 0.1UF, Z, 16V C9702 EEVHB1C470 E 47UF, 16V C9703...
  • Page 45 Ref. No. Part No. Part Name & Description Remarks CB1-B7 K1MN80B00004 80P CONNECTOR K1KA40A00140 40P CONNECTOR K1KA12A00227 12 PIN PH (2.0MM) K1KA31A00003 31P CONNECTOR K1KA21A00007 21P CONNECTOR K1KA12A00254 12P CONNECTOR K1KA07A00189 7P CONNECTOR K1KA20A00180 20P CONNECTOR K1KA08A00293 8P CONNECTOR K1KA09A00077 9P CONNECTOR D31,32 K1MN50B00026...
  • Page 46 D590 MA152K DIODE MA3X152K...
  • Page 47 Ref. No. Part No. Part Name & Description Remarks D592,93 D1FL20UF4063 DIODE B0HCMM000001 D594 MA3056M ZENER DIODE MAZ30560M D595 MA152K DIODE MA3X152K D596 MA3051M ZENER DIODE MAZ30510M D650 D1FL20UF4063 DIODE B0HCMM000001 D652 D1FL20UF4063 DIODE B0HCMM000001 D654 MA3056M ZENER DIODE MAZ30560M D660 B0HFRJ000012 DIODE...
  • Page 48 Ref. No. Part No. Part Name & Description Remarks D6468 MA111 DIODE MA2J111 D6469 TLP181 PHOTO COUPLER B3PBA0000081 D6470 MA111 DIODE MA2J111 D6473 MA111 DIODE MA2J111 D6474 TLP181 PHOTO COUPLER B3PBA0000081 D6475 MA111 DIODE MA2J111 D6476 D1FL40F4063 DIODE B0ECHP000001 D6477 MA111 DIODE MA2J111...
  • Page 49 Ref. No. Part No. Part Name & Description Remarks D6636 MA111 DIODE MA2J111 D6637 D1FL40F4063 DIODE B0ECHP000001 D6640 D1FL40F4063 DIODE B0ECHP000001 D6641,42 M1FS4 DIODE D6645-47 D1FL40F4063 DIODE B0ECHP000001 D6711,12 M1FS4 DIODE D6715 D1FL40F4063 DIODE B0ECHP000001 D6720-22 SF20LC30F10 DIODE D6724 SF20LC30F10 DIODE D6729 B0HBSM000031...
  • Page 50 Ref. No. Part No. Part Name & Description Remarks IC402 AN1431T LINEAR IC IC403 AN7705F LINEAR IC IC451 C0DABZG00001 IC551 C5HABZZ00115 IC552 C5HABZZ00080 IC553,54 AN1431T LINEAR IC IC555 C0DAAHG00007 IC557,58 AN1431T LINEAR IC IC801 C0DAAHG00008 IC802 C0DAAHG00007 IC803 C0DBALH00002 IC901 MIP2E4DMY1TV IC902 AN1431T...
  • Page 51 Ref. No. Part No. Part Name & Description Remarks IC6491 AN1431M LINEAR IC IC6501,02 TC74HC14AF C0JBAB000155 IC6510 AN78L05M LINEAR IC IC6511 C0ZBZ0000736 IC6512 AN78L05M LINEAR IC IC6521 C0ZBZ0000736 IC6541,42 C0ZBZ0000736 IC6581 NJM2903M INTEGRATED CIRCUIT C0BBBA000019 IC6601-03 C0ZBZ0000138 IC6604 AN1431M LINEAR IC IC6605,06 C0JBAZ000005 IC6607...
  • Page 52 Ref. No. Part No. Part Name & Description Remarks IC9601 C0JBAZ001604 IC9602 C0JBAZ000855 IC9603,04 C0JBAZ001604 IC9605 C1ZBZ0002329 IC9606 C0EBE0000066 IC9608 C0ZBZ0000764 IC9701 MN102L230 IC9702 C3EBJC000038 IC9703 C0JBAZ001604 IC9704 HM538123BJ8Z C3HAHC000006 IC9705 TVRJ951 C3FBLD000026 IC9706 C0JBAZ000855 IC9707 C0JBAE000283 IC9708 S-24C16AFJ INTEGRATED CIRCUIT C3EBGC000018 IC9709 TVRJ950...
  • Page 54 Ref. No. Part No. Part Name & Description Remarks L904 G0A100GA0013 CHOKE COIL L905 ELF17N011A LINE FILTER L906 EXCELDR35C BEAD CHOKE L951-60 ELKE103FA NOISE FILTER L1001 ELJPA100KB CHIP INDUCTOR L2306 ELJPA100KB CHIP INDUCTOR L2330,31 TAL10RP221LB INDUCTION COIL G0ZZ00001909 L3001 ELJPA100KB CHIP INDUCTOR L3001 TLK20LFA223M...
  • Page 55 L6719-23 TSKA158 BEAD CORE G0ZZ00001935...
  • Page 56 Ref. No. Part No. Part Name & Description Remarks L6726,27 TSKA158 BEAD CORE G0ZZ00001935 L6736,37 TSKA158 BEAD CORE G0ZZ00001935 L6744,45 TSKA158 BEAD CORE G0ZZ00001935 L6747 J0JJC0000021 CHIP INDUCTOR L6750 TSKA158 BEAD CORE G0ZZ00001935 L7106 ELKE103FA NOISE FILTER L7207-09 ELKE103FA NOISE FILTER L8001-07 ELJPA100KB CHIP INDUCTOR...
  • Page 57 Ref. No. Part No. Part Name & Description Remarks Q2406 2SD601A TRANSISTOR 2SD0601A Q2408 2SD601A TRANSISTOR 2SD0601A Q2410 2SD601A TRANSISTOR 2SD0601A Q3001 2SB709A TRANSISTOR 2SB0709A Q3002-05 2SD601A TRANSISTOR 2SD0601A Q3007 2SB709A TRANSISTOR 2SB0709A Q3023 2SD601A TRANSISTOR 2SD0601A Q3051,52 2SD601A TRANSISTOR 2SD0601A Q3101 2SB709A...
  • Page 58 Ref. No. Part No. Part Name & Description Remarks Q6554 2SD2185 TRANSISTOR Q6555 B1DFES000001 TRANSISTOR Q6581 2SD601A TRANSISTOR 2SD0601A Q6601,02 2SK3559000SQ TRANSISTOR Q6603,04 2SK620 2SK0620 Q6605,06 2SK3559000SQ TRANSISTOR Q6611 2SD2185 TRANSISTOR Q6612 2SB1073001TV TRANSISTOR Q6613 2SD2185 TRANSISTOR Q6614 2SB1073001TV TRANSISTOR Q6621 2SK3637000VE TRANSISTOR...
  • Page 59 R410 ERJ6GEYJ6R8 M 6.8 OHM,J,1/10W...
  • Page 60 Ref. No. Part No. Part Name & Description Remarks R411 ERDS1FJ561 C 560 OHM, J,1/2W R412 ERDS1FJ221 C 220 OHM, J,1/2W R413 ERJ6GEYJ102 M 1KOHM,J,1/10W R414 ERJ6GEYJ473 M 47KOHM,J,1/10W R415 ERJ6ENF3901 M 3.9KOHM, 1/10W R416 ERJ6ENF2551 M2.55KOHM, 1/10W R417 ERJ6GEYJ104 M 100KOHM,J,1/10W R418 ERJ6GEY0R00...
  • Page 61 Ref. No. Part No. Part Name & Description Remarks R550 ERX1FJSR56D M0.56 OHM, J, 1W R551 ERG2FJS104D M 100KOHM, J, 2W R552 ER0S2CKF1053 M 105KOHM, F,1/4W EROS2CKF1053 R553 ERG2FJS104D M 100KOHM, J, 2W R554 ER0S2CKF1053 M 105KOHM, F,1/4W EROS2CKF1053 R555 ERJ6ENF2491 M2.49KOHM, 1/10W R556...
  • Page 62 Ref. No. Part No. Part Name & Description Remarks R620 ERJ6GEYJ680 M 68 OHM,J,1/10W R623 ERJ6GEYJ103 M 10KOHM,J,1/10W R625,26 ERJ6GEYJ103 M 10KOHM,J,1/10W R627 ERJ6GEYJ473 M 47KOHM,J,1/10W R628 ERDS1FJ470 C 47 OHM, J,1/2W R630 ERJ6GEYJ472 M 4.7KOHM,J,1/10W R631 ERJ6GEYJ104 M 100KOHM,J,1/10W R635 ERJ6ENF2551 M2.55KOHM, 1/10W...
  • Page 63 R2321 ERJ6GEY0R00 M 0 OHM, 1/10W...
  • Page 64 Ref. No. Part No. Part Name & Description Remarks R2324,25 ERJ6GEYJ561 M 560 OHM,J,1/10W R2331 ERJ6GEY0R00 M 0 OHM, 1/10W R2332 ERJ6GEYJ182 M 1.8KOHM,J,1/10W R2333 ERJ6GEYJ471 M 470 OHM,J,1/10W R2341 ERJ6GEYJ103 M 10KOHM,J,1/10W R2343 ERJ6GEYJ103 M 10KOHM,J,1/10W R2346 ERJ6GEYJ123 M 12KOHM,J,1/10W R2347 ERJ6GEYJ473 M 47KOHM,J,1/10W...
  • Page 65 Ref. No. Part No. Part Name & Description Remarks R3002 ERJ6ENF75R0 M 75 OHM, 1/10W (HY) R3003 ERJ3GEYJ103 M 10KOHM,J,1/16W (HY) R3003 ERJ3GEYJ473 M 47KOHM,J,1/16W R3004 ERJ3GEYJ101 M 100 OHM,J,1/16W D0GB101JA002 R3005 ERJ6ENF75R0 M 75 OHM, 1/10W (HY) R3005 ERJ6GEYJ472 M 4.7KOHM,J,1/10W R3006 ERJ3GEYJ103...
  • Page 66 Ref. No. Part No. Part Name & Description Remarks R3046 ERJ3EKF1000 M 100 OHM, 1/16W (HY) R3046 ERJ3GEYJ103 M 10KOHM,J,1/16W R3047 ERJ3GEYJ102 M 1KOHM,J,1/16W (HY) R3047 ERJ3GEYJ103 M 10KOHM,J,1/16W R3048 ERJ3GEYJ334 M 330KOHM,J,1/16W D0GB334JA002 (J) R3048 TAJAAH0101JV M 100 OHM,J,1/16W D0GB101JA006 (HY) R3049 ERJ3GEYJ102...
  • Page 67 Ref. No. Part No. Part Name & Description Remarks R3105 ERJ6ENF1800 M 180 OHM, 1/10W R3106 ERJ3GEYJ103 M 10KOHM,J,1/16W (HY) R3106 ERJ6ENF1800 M 180 OHM, 1/10W R3107 ERJ3GEYJ330 M 33 OHM,J,1/16W (HY) R3107 TSK1032 CHIP INDUCTOR J0JCC0000100 (J) R3108 ERJ3GEY0R00 M 0 OHM, 1/16W (HY) R3108...
  • Page 68 Ref. No. Part No. Part Name & Description Remarks R3159 ERJ6GEY0R00 M 0 OHM, 1/10W R3160 ERJ3EKF2701 M 2.7KOHM, 1/16W (HY) R3160 ERJ3GEYJ562 M 5.6KOHM,J,1/16W R3161 ERJ3EKF2701 M 2.7KOHM, 1/16W (HY) R3161 ERJ3GEYJ562 M 5.6KOHM,J,1/16W R3162,63 ERJ3EKF2701 M 2.7KOHM, 1/16W R3164-67 ERJ3GEY0R00 M 0 OHM, 1/16W...
  • Page 69 Ref. No. Part No. Part Name & Description Remarks R3317 ERJ3GEYJ102 M 1KOHM,J,1/16W R3334 ERJ3GEY0R00 M 0 OHM, 1/16W R3337,38 ERJ3GEYJ220 M 22 OHM,J,1/16W R3400 ERJ6GEYJ103 M 10KOHM,J,1/10W R3401 ERJ3EKF2701 M 2.7KOHM, 1/16W R3402 ERJ3EKF1801 M 1.8KOHM, 1/16W R3403 ERJ3EKF2701 M 2.7KOHM, 1/16W R3404 ERJ3EKF1801...
  • Page 70 Ref. No. Part No. Part Name & Description Remarks R3778 ERJ6GEYJ473 M 47KOHM,J,1/10W R3780 ERJ6GEYJ101 M 100 OHM,J,1/10W R3781-84 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W R3785 ERJ6GEYJ101 M 100 OHM,J,1/10W R3786-89 ERJ3GEYJ472 M 4.7KOHM,J,1/16W R6401-08 ERJ6GEYJ221 M 220 OHM,J,1/10W R6409 ERJ6GEYJ224 M 220KOHM,J,1/10W R6410,11 ERJ6GEYJ104 M 100KOHM,J,1/10W...
  • Page 71 Ref. No. Part No. Part Name & Description Remarks R6485,86 ERJ6GEYJ103 M 10KOHM,J,1/10W R6487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W R6488 ERJ6GEYJ103 M 10KOHM,J,1/10W R6489 ERJ6GEYJ222 M 2.2KOHM,J,1/10W R6491 ERJ6GEYJ104 M 100KOHM,J,1/10W R6492,93 ERJ6ENF2203 M 220KOHM, 1/10W R6495,96 ERJ12YJ1R0 M 1 OHM, J,1/2W R6497 ERJ6GEYJ103 M 10KOHM,J,1/10W...
  • Page 72 Ref. No. Part No. Part Name & Description Remarks R6584 ERJ6GEYJ223 M 22KOHM,J,1/10W R6585 ERJ6GEYJ102 M 1KOHM,J,1/10W R6586 ERJ6GEYJ103 M 10KOHM,J,1/10W R6587 ERJ6GEYJ152 M 1.5KOHM,J,1/10W R6588,89 ERJ6GEYJ103 M 10KOHM,J,1/10W R6590 ERJ6GEYJ222 M 2.2KOHM,J,1/10W R6591 ERJ6GEYJ152 M 1.5KOHM,J,1/10W R6592,93 ERJ6GEYJ224 M 220KOHM,J,1/10W R6594 ERJ6GEYJ104 M 100KOHM,J,1/10W...
  • Page 73 Ref. No. Part No. Part Name & Description Remarks R6682-85 ERJ3GEYJ471 M 470 OHM,J,1/16W R6686-89 ERJ3GEYJ473 M 47KOHM,J,1/16W R6690,91 ERJ3GEYJ471 M 470 OHM,J,1/16W R6692,93 ERJ3GEYJ473 M 47KOHM,J,1/16W R6694,95 ERJ3GEYJ471 M 470 OHM,J,1/16W R6697,98 ERJ3GEYJ473 M 47KOHM,J,1/16W R6701 ERJ6GEYJ104 M 100KOHM,J,1/10W R6702 ERD25V0T M OHM, 1/10W...
  • Page 74 Ref. No. Part No. Part Name & Description Remarks R7130 ERJ3GEY0R00 M 0 OHM, 1/16W R7132 ERJ3GEY0R00 M 0 OHM, 1/16W R7136 ERJ14YJ220 M 22 OHM, J,1/4W R7142-59 TAJAAH0470JV M 47 OHM,J,1/16W D0GB470JA006 R7161 ERJ6GEY0R00 M 0 OHM, 1/10W R7162-65 ERJ3GEY0R00 M 0 OHM, 1/16W R7166-69...
  • Page 75 Ref. No. Part No. Part Name & Description Remarks R8089 ERJ3GEYJ102 M 1KOHM,J,1/16W R8091 ERJ3GEYJ102 M 1KOHM,J,1/16W R8093,94 ERJ6GEYJ101 M 100 OHM,J,1/10W R8095,96 ERJ6GEY0R00 M 0 OHM, 1/10W R8097-00 ERJ3GEYJ103 M 10KOHM,J,1/16W R8101,02 TSK1032 CHIP INDUCTOR J0JCC0000100 R9001 EXB38V470J RESISTOR ARRAY R9002,03 ERJ3GEY0R00 M 0 OHM, 1/16W...
  • Page 76 Ref. No. Part No. Part Name & Description Remarks R9151-55 EXB2HVR000 RESISTOR ARRAY R9157 EXB2HVR000 RESISTOR ARRAY R9167,68 ERJ3GEYJ103 M 10KOHM,J,1/16W R9171,72 ERJ3GEYJ103 M 10KOHM,J,1/16W R9176 TAJAAH0101JV M 100 OHM,J,1/16W D0GB101JA006 R9177 ERJ3GEYJ220 M 22 OHM,J,1/16W R9178,79 ERJ3GEY0R00 M 0 OHM, 1/16W R9180 ERJ3GEYJ100 M 10 OHM,J,1/16W...
  • Page 77 Ref. No. Part No. Part Name & Description Remarks R9371 ERJ3GEY0R00 M 0 OHM, 1/16W R9373 ERJ3GEY0R00 M 0 OHM, 1/16W R9376 TAJAAH0470JV M 47 OHM,J,1/16W D0GB470JA006 R9380 EXB38V151J RESISTOR ARRAY R9411 ERJ3GEYJ472 M 4.7KOHM,J,1/16W R9413 ERJ3GEYJ331 M 330 OHM,J,1/16W R9414,15 ERJ3GEYJ472 M 4.7KOHM,J,1/16W...
  • Page 78 Ref. No. Part No. Part Name & Description Remarks R9618 ERJ3GEYJ223 M 22KOHM,J,1/16W R9620,21 ERJ3GEYJ103 M 10KOHM,J,1/16W R9622,23 ERJ3GEY0R00 M 0 OHM, 1/16W R9624 TAJAAH0101JV M 100 OHM,J,1/16W D0GB101JA006 R9625 ERJ3GEYJ561 M 560 OHM,J,1/16W R9627-29 ERJ3GEY0R00 M 0 OHM, 1/16W R9631-35 ERJ3GEY0R00 M 0 OHM, 1/16W...
  • Page 79 Ref. No. Part No. Part Name & Description Remarks R9755,56 ERJ3GEYJ272 M 2.7KOHM,J,1/16W R9757 ERJ3GEYJ560 M 56 OHM,J,1/16W R9758 ERJ3GEYJ103 M 10KOHM,J,1/16W R9759 ERJ3GEYJ560 M 56 OHM,J,1/16W R9760 ERJ3GEY0R00 M 0 OHM, 1/16W R9761 ERJ3GEYJ102 M 1KOHM,J,1/16W R9762 EXB38V103J RESISTOR ARRAY R9763 ERJ3GEYJ103 M 10KOHM,J,1/16W...
  • Page 80 Ref. No. Part No. Part Name & Description Remarks R9839,40 TAJAAH0101JV M 100 OHM,J,1/16W D0GB101JA006 R9841,42 ERJ3GEYJ560 M 56 OHM,J,1/16W R9843,44 ERJ3GEYJ103 M 10KOHM,J,1/16W R9846,47 ERJ3GEYJ103 M 10KOHM,J,1/16W R9848 EXB38V103J RESISTOR ARRAY R9849,50 TAJAAH0101JV M 100 OHM,J,1/16W D0GB101JA006 R9851 ERJ3GEYJ223 M 22KOHM,J,1/16W R9852,53 ERJ3GEYJ103...
  • Page 81 Ref. No. Part No. Part Name & Description Remarks R9930 ERJ3GEYJ102 M 1KOHM,J,1/16W R9931 ERJ3GEYJ103 M 10KOHM,J,1/16W R9932 ERJ3GEYJ102 M 1KOHM,J,1/16W R9933 ERJ3GEYJ331 M 330 OHM,J,1/16W R9934 ERJ3GEYJ103 M 10KOHM,J,1/16W R9935,36 ERJ3GEYJ562 M 5.6KOHM,J,1/16W R9937 ERJ3GEYJ331 M 330 OHM,J,1/16W R9938 ERJ3GEYJ103 M 10KOHM,J,1/16W R9939...
  • Page 82 Ref. No. Part No. Part Name & Description Remarks TNPA2869 CIRCUIT BOARD C1 TNPA2870 CIRCUIT BOARD C2 TNPA2825 CIRCUIT BOARD D TNPA2841 CIRCUIT BOARD P TXNSC10QBS CIRCUIT BOARD SC TXNSS10QBS CIRCUIT BOARD SS TNPA2868 CIRCUIT BOARD S1 TXNV110QBS CIRCUIT BOARD V1 S061 TSE4GD0001 POWER SWITCH...
  • Page 83 Ref. No. Part No. Part Name & Description Remarks TJS3A9650 4P CONNECTOR K1KA04A00194 K1KA03A00172 3P CONNECTOR K1KA20A00180 20P CONNECTOR ZA001 K4ZZ01000121 EARTH LUG ZA002 K4ZZ01000121 EARTH LUG ZA003 K4ZZ01000121 EARTH LUG ZA008 K4ZZ01000121 EARTH LUG 18. Schematic Diagram for printing with A4 19.
  • Page 84 SC-BOARD TXNSC10QBS (2/2) D6492 Q6491 B0ECHP000001 2SC1473AEA R6492 220k Q6492 R6493 R6491 R6594 2SC1473AEA 220k 100k 100k C6469 220u R6621 IC6491 R6618 R6497 R6595 Q6461 C6620 154k C6466 2.2k AN1431M-E1 5.23k R6610 C6467 T6461 B1BBCJ000003 Q6462 C6492 100k 0.01u 0.1u SU-BOARD AB_FCLD ETS13TB139AP...
  • Page 85 SD-BOARD TNPA2958 DOWN TPSD2 TPSD1 AD_26 AD_38 AC_90 AC_102 AB_154 AB_166 AA_218 AA_230 AD_25 AD_39 AC_89 AC_103 AB_153 AB_167 AA_217 AA_231 AD_24 AD_40 AC_88 AC_104 AB_152 AB_168 AA_216 AA_232 AD_23 AD_41 AC_87 AC_105 AB_151 AB_169 AA_215 AA_233 OUT42 OUT24 OUT42 OUT24 OUT42 OUT24...
  • Page 86 SS45 S1-BOARD SS48 SS2-BOARD SS47 TNPA2868 TNPA2872 SS-BOARD TXNSS10QBS SS34 STB_PS POWER SWITCH S061 PUSH K0F162B00002 *SS41 P-BOARD TPVSUS SS11 (P11) R6702 175V 175V VSUS L6702 C6701 C6702 C6703 C6704 VSUS G0ZZ00002183 200V 200V 200V 200V Q6701 150V 150u 150u 150u 150u R6711...
  • Page 87 SU-BOARD TNPA2957 TPSU1 TPSU2 AD_26 AD_38 AC_74 AC_86 AB_138 AB_150 AA_202 AA_214 AD_25 AD_39 AC_73 AC_87 AB_137 AB_151 AA_201 AA_215 AD_24 AD_40 AC_72 AC_88 AB_136 AB_152 AA_200 AA_216 AD_23 AD_41 AC_71 AC_89 AB_135 AB_153 AA_199 AA_217 OUT42 OUT24 OUT42 OUT24 OUT42 OUT24 OUT42...
  • Page 88 AVR 9V Z-BOARD TNPA2815 (1/2) IC2304 C0CBAHG00005 JS2301 C2313 L2306 ELJPA100KF C2314 D2316 ZA003 B0JCME000025 K4ZZ01000121 C2484 0.01u R2481 Q2408 2SD0601A0L L AMP R2438 C2442 R2473 1.8k R2472 R2453 R2480 4.7k C2441 C2433 R2456 C2436 0.039u 4.7u C2429 R2462 C2431 R2452 C2434 0.01u...
  • Page 89 Z-BOARD TNPA2815 (2/2) AVR 9V IC801 C0DAAHG00008 IC2301 C1BA00000278 R805 C808 R806 0.01u AUDIO AMP L801 P-BOARD G1C101ZA0037 (P5) J-BOARD R2351 C2362 C802 C805 (J8) DIG12V 470u 1000u 470u 9V/0.5A LIPPLE FILTER SW GND D802 SLOT9V DIG12V R2353 B0JCME000025 AMP STB SW SW GND Q2330 AVR 5V...
  • Page 90 14 Block and Schematic Diagrams 14.1. Schematic Diagram Notes Important Safety Notice Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacture's specified parts. Notes: 1. Resistor All resistors are cabon 1/4W resistor, unless marked as follows: Unit of resistance is OHM [ ] (K=1,000, M=1,000,000).
  • Page 91 Remarks: 1. The Power Circuit contains a circuit area which uses a separate power supply to isolate the earth connection. The circuit is defined by HOT and COLD indications in the schematic diagram. Take the follwing precautions. All circuits, except the Power Circuit, are cold. Precautions a.
