Summary of Contents for SHUOYING WDV5300

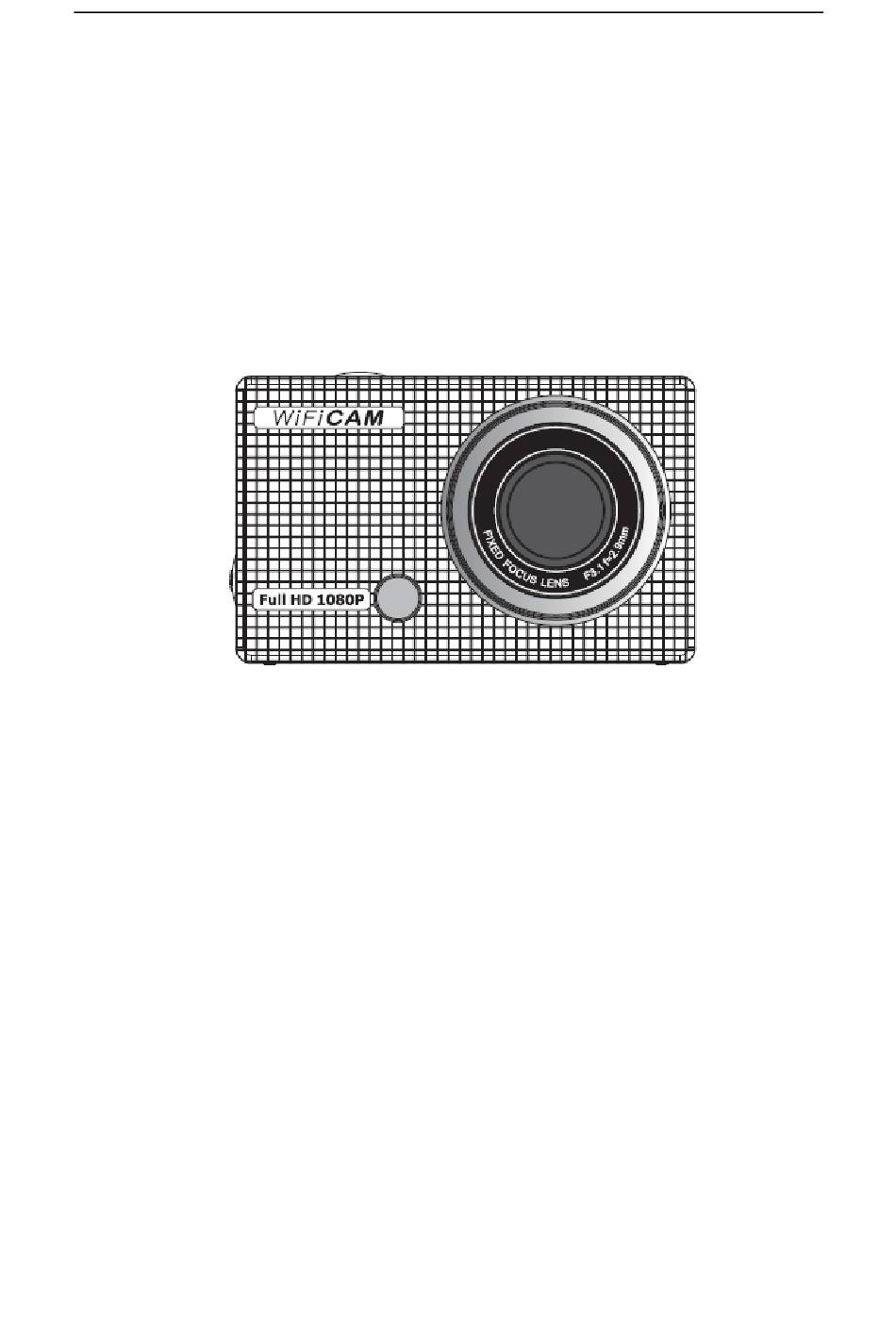

- Page 1 USER MANAUAL Product name：Wifi Camera Model：WDV5300 Rating：5V 500mA Operating Manual...
- Page 2 Appearance 1. Shutter button 2. LCD display 3. Power/Mode button 4. Lens 5. WIFI switch and status indicator (red) 6. Microphone 7. Work indicator 8. Micro USB port 9. TF card slot 10. Reset button...
- Page 3 LCD display of the camera The LCD displays the following status and settings: 1. Camera mode 2. Video recording mode (default) 3. WIFI icon (display when enabled) 4. TF card icon (display when loaded) 5. Resolution icon: In photo taking mode, HI stands for 8M ( ), and in 3264x2448 video recording mode, it stands for FHD (...
- Page 4 Note: the above icons may vary according to the status of the camera. Camera mode flow chart: Under HI video recording mode, press the Power button to switch to LO， and under LO video recording mode, press the Power button to switch to HILO. Video preview mode Video 720P(30 fps) Video 720P (60 fps)
- Page 5 Use your WIFI DV: 1. Insert a micro SD or micro SDHC card, as shown in the following picture. High speed card at least Class 4 is recommended; if using 0.5s delay function or recording video in professional mode, the card of Class 10 is required. ！...
- Page 6 displays “ON” and a beep can be heard from buzzer. Turn off: press and hold the button for 3 seconds, LCD displays “OFF” and a beep can be heard from buzzer. Note: The camera will turn off automatically if it is left unused for 5 minutes. 4.
- Page 7 Stands for 0 hour and 00 Recording time minute Display when a TF card is inserted, TF card icon and otherwise no display Battery level Battery is full The camera is in Mute mode, no Beep will be heard when pressing the Mute icon buttons.
- Page 8 To record a video, check whether the camera is under Video mode. If the icon is not displayed on the screen, press button repeatedly until it appears. Start recording: Press and release the button, the icon and [:] displayed in LCD will flash. At same time the red indicator will flash too, meaning the recording is in process.
- Page 9 Taking a photo Press and release the button, a beep will be heard and the red indicator will flash, meaning a photo is taken. Enable/disable wifi The wifi is disabled by default. Press the wifi button on the side of the camera to enable it. When starting connecting to wifi network, the indicator will flash, and when a wifi network is connected, the indicator will remain on, and the wifi icon will display on LCD (WIFI will be automatically...
- Page 10 button again to exit Mute mode. Buzzer is enabled by default When Mute mode is enabled, the Mute icon will display on LCD APP (support Android and iOS) Before using 1 How to install an APP: 1.1 Scan the QR code printed on the packaging to acquire SYMAGIX App;...
- Page 11 LCD; 3. Enable wifi on Android mobile phone or MID and search for wireless AP signal SY5300_wifi, then connect the camera to it until the system displays “Connected successfully”; When SY5300_ Wifi is connected, find the icon the App list of the Android mobile phone or MID and click to open it.
- Page 12 4 Switch between Video and Photo mode 5 WIFI connection status Note: 1 A TF card must be inserted if you need to take a photo, record a video, or download photo on the terminal; 2 The WIFI indicator will remain on when the terminal is connected to camera.
- Page 13 mobile phone or iPad and start operating the camera. The operation interface on terminal is shown in the figure: 1 Self shooting (time delay auto shooting) setting 2 Image operation (such as downloading or deleting) 3 Shutter icon to take a photo to record a video 4 Switch between Video and Photo mode 5 Photo resolution setting Note:...
- Page 14 accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
- Page 15 Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
