Page 3: Instructions

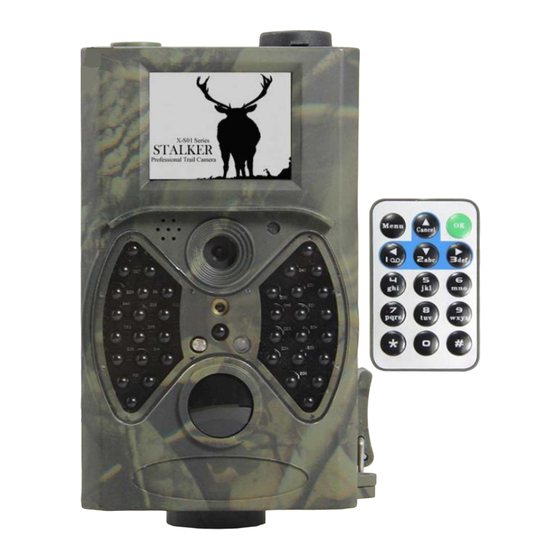

1. Instructions 1.1 General Description STALKER X-S01 Professional trail camera is a surveillance camera that works automatically. It can be triggered at once by any movement of animal (or human) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 12M pixels) or records 1080p video clips (WVGA or QVGA). -
Page 4: Navigating
All manuals and user guides at all-guides.com 1.4.1 Navigating Press UP or DOWN to select or highlight the menu item, while pressing LEFT or RIGHT to select the option of each item and press OK to make the selection. 1.4.2 Characters Press the punctuation “*”... -
Page 5: Supported Format
All manuals and user guides at all-guides.com 1.6 Supported Format Item Format Photo Video File Format FAT32 Here are some important notes. You don’t need to be concerned about the file system format of the camera unless you have problems with reading the SD-card by any other equipment. -
Page 6: Cautions
All manuals and user guides at all-guides.com 2. Cautions The working voltage of the camera is 6.0V. The camera is powered by four or eight AA batteries. Unlock the write-protect before inserting the SD-card. Insert the SD-card when the power switch is in “OFF” position before testing the camera. -
Page 7: Power Supply
All manuals and user guides at all-guides.com 3.1 Power Supply To supply power for the STALKER X-S01 Professional trail camera, four or eight AA size batteries are needed. Open the bottom cover. Confirm that the power switch is at the OFF (Right) position, pull out the battery compartment and load the fully charged batteries into the compartment accordingly to the polarities sign shown below. -
Page 8: Enter Into The Test Mode
All manuals and user guides at all-guides.com 3.4.1 Custom Settings Press the MENU switch to enter into menu setting. The camera can be configured manually to customize the camera settings which display on the camera or external TV monitor. The detailed operations will be described in the “Advanced Operations” chapter. -
Page 9: Settings Menu
All manuals and user guides at all-guides.com 1. OFF mode: Power switch is at OFF position (Right). 2. ON mode: Power switch is at ON position (Left). 3. TEST mode: Power switch is at TEST position (Middle). In the above three modes, the OFF mode is the specified safe mode when replacing the SD-card or batteries and transporting the camera. -
Page 10: System Settings
All manuals and user guides at all-guides.com VIDEO Photo Mode Video Photo&Video 1080P 720P Resolution WVGA QVGA Video Length Voice 4.1.3 System Setting SYSTEM Date/Time Set Date/Time Distance Set Distance Language Set Language Timer Set working time Internal Memory Format SD Card NTSC TV MODE... -
Page 11: General Settings
All manuals and user guides at all-guides.com Setting Default Items Mode Camera Camera, Video, Camera & Video Resolution (Camera) 12M,8M,5M Delay 5 Seconds 5-30 Seconds,1-30 Minute Multi Single Single,3,6,9 Pictures 100,200,400 Resolution (Video) 1080P 1080P,720P,WVGA,QVGA Video Length 10s,30s,60s,90s YY/MM/DD,MM/DD/YY,DD/MM/YY Date/Time Same as last time Adjust Distance... -
Page 12: Set Video Size
All manuals and user guides at all-guides.com c) Press RIGHT to select 12M Pixel d) Press DOWN the select switch to save the current setting, then press menu to return to the info display. Press MENU to cancel setting and return to the info display. 4.1.9 Set Video Size This parameter also has four values: 1080P, WVGA, QVGA. -
Page 13: Set Video Sound
Press MENU to cancel settings and return to the info display. 4.1.16 Set Timer This parameter defines a certain time lapse in a day when STALKER X-S01 Professional trail camera can be triggered. In the rest of the time the device is shut off. -
Page 14: Delete Photo Or Video
All manuals and user guides at all-guides.com screen of the camera, TV monitor or Image viewer with TV-in connector. c) Press LEFT to start playing the video when viewing d) Press LEFT again to stop playing the video. e) Press UP to view the previous picture (or video) and DOWN for the next. f) Press DOWN the select switch to return to THE info display. -
Page 15: Appendixⅰ: Technical Specifications
All manuals and user guides at all-guides.com AppendixⅠ: Technical Specifications Image Sensor Type(True 12 Mega Pixels Color CMOS Megapixels) Memory SD Card 8MB~32GB Lens F=3.1; FOV=60 ° Size 145mm * 80mm * 55 mm IR Filter: Full Automatic IR Filter TFT Display Screen: 2.0 inch PIR Sensitivity... -
Page 16: Appendixⅱ: Parts List
All manuals and user guides at all-guides.com AppendixⅡ: Parts List Part Name Quantity STALKER X-S01 Trail Camera Wireless Controller USB Cable TV Cable Mounting Strap (Python Lock) Adjuster...
