INSTRUCTION MANUAL

CHIPPER SHREDDER

FBT400

CAUTION: READ THE INSTRUCTION MANUAL BEFORE USE THE TOOL

ORIGINAL INSTRUCTIONS

FEIDER

ZI du casque, 32 impasse Aristide Bergès, 31270 Cugnaux, FRANCE

Table of Contents

Need help?

Do you have a question about the FBT400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Feider Machines FBT400

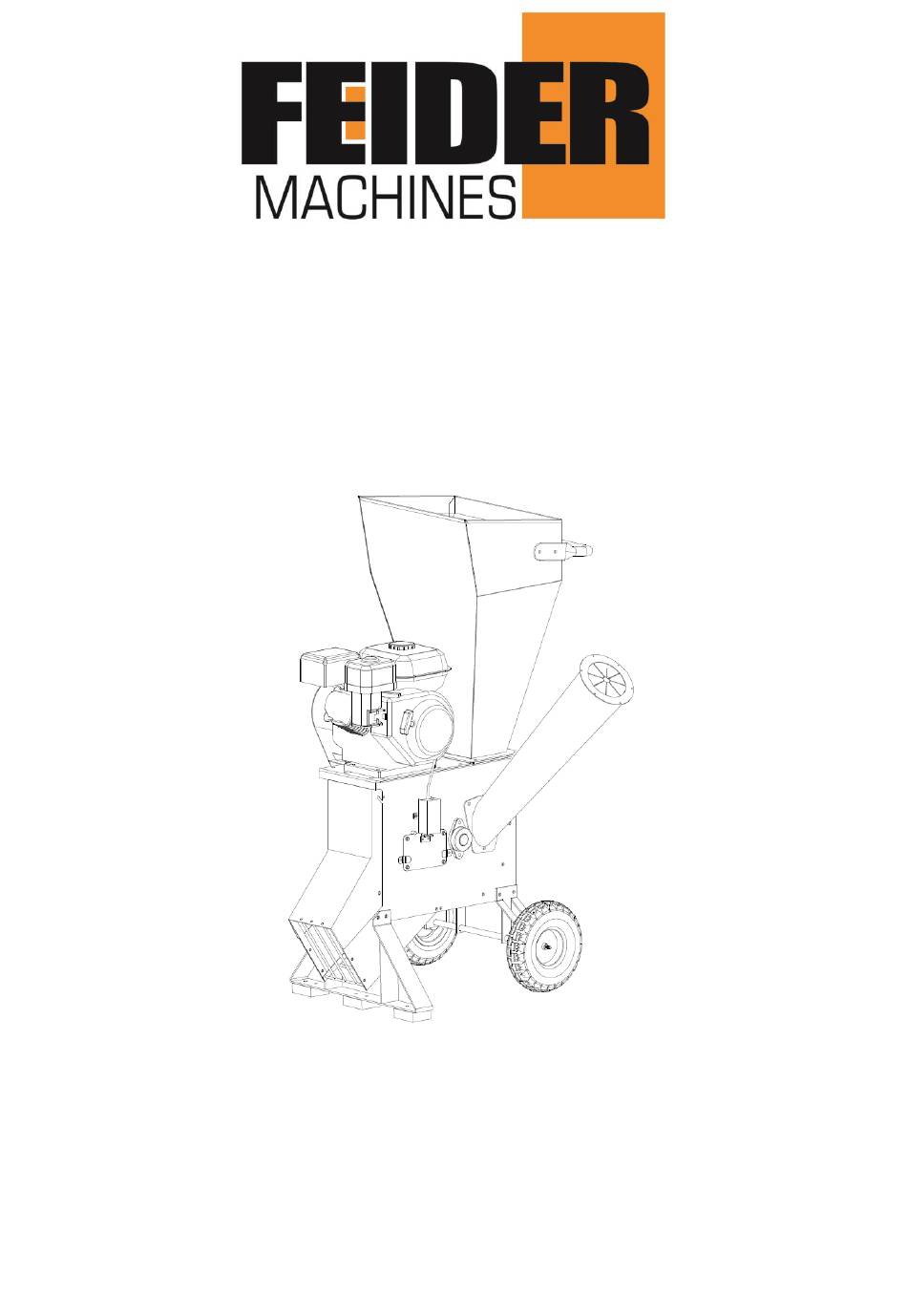

Page 1 INSTRUCTION MANUAL CHIPPER SHREDDER FBT400 CAUTION: READ THE INSTRUCTION MANUAL BEFORE USE THE TOOL ORIGINAL INSTRUCTIONS FEIDER ZI du casque, 32 impasse Aristide Bergès, 31270 Cugnaux, FRANCE...
Page 2 Identification Machine Identification (Pic.1) Pic.1 A. Hopper B. Motor C. Chip Outlet D. Chipper Funnel E. Choke F. Fuel Cock G. ON/OFF Switch H. Throttle Fuel Tank Cap J. Air Cleaner K. Exhaust L. Pull Start Handle Pic.1 Chipper/Shredder Identification...
Page 3: Section 1: Safety
SECTION 1: SAFETY IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Safe operating practices Training Become familiar with the owner's manual before attempting to operate this equipment. Preparation 1) Do not allow children to operate this equipment; 2) Do not operate this equipment in the vicinity of bystanders; 3) Do not run engine powered machines in an enclosed area since the exhaust from an engine contains carbon monoxide, which is colourless, odourless, and tasteless;...
Page 4 Operation 1) Before starting the machine, look into the feeding chamber to make certain that it is empty; 2) Keep your face and body away from the feed intake opening; 3) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part;...
Page 5: Safety Instructions For Machinery
Additional safety instructions for units with bagging attachments a) shut-off the power unit before attaching or removing the bag. The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages.
Page 6 10. DO NOT USE IN DANGEROUS ENVIRONMENTS. DO NOT use machinery in damp, wet locations, or where any flammable or noxious fumes may exist. 11. KEEP WORK AREA CLEAN AND WELL LIT. Clutter and dark shadows may cause accidents. 12. TURN OFF THE MACHINE BEFORE REPAIRING THE TOOL. 13.
Page 7 27. JAMS AND CLOGGING: Turn the chipper/shredder OFF, allow all moving parts to come to a complete stop, and disconnect the spark plug wire before attempting to free a jam or clog. 28. FEEDING MATERIAL: Hold branches and brush loosely, and allow the chipper/shredder to draw the material in.
Page 8: Section 2: Set Up
Keep bystanders away Danger - Rotating blades. Keep hands and feet out of openings while machine is running Wear eye and ear protection Do not use as a step SECTION 2: SET UP Set Up Safety This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine! Site Considerations...
Page 9 Consider the length of the material to be processed through the machine and make sure that there is enough height above the chipper/shredder to accommodate the material. Make sure the unit is located close to the area where the chips are going to be used to reduce carrying.
Page 10 Pic.3 Installing the handle Place the funnel over the studs in the side of the chipper/shredder and secure it with flat washer (Ø8, 3pcs), spring washer (Ø8, 3pcs) and locknut (M8, 3pcs). (See Pic.4) Pic.4 Funnel installation Before operating, fill the motor with oil and gas according to the instructions. This chipper/shredder does not have oil in the motor when shipped.
Page 11: Section 3: Operations
Add engine oil up to the upper level of the dipstick (Pic.6) (6.1). Filling the fuel tank The chipper/shredder is powered by a four-stroke engine, which uses unleaded gasoline fuel. Use a suitable funnel to transfer the fuel to the engines fuel tank, taking care not to spill any fuel or over fill the fuel tank.
Page 12 Chipping/Shredding Understand and follow all of the safety precautions listed in SECTION 1: SAFETY before operation. This chipper/shredder is intended for mulching garden and pruning waste such as green branches, twigs, brush, vines, and long grasses. DO NOT use this chipper/shredder for chipping construction debris, plastic, paper products, rope or twine, or any material that may contain metal.
Page 13 Turn the engine ON/OFF switch to the ON position (Pic.10) (10.1). Hold down the engine firmly with one hand on the frame. With the other hand grip the recoil starter cord handle and pull slowly until resistance is felt indicating that the recoil starter is engaged.
Page 14 When the engine has stopped and before storage, turns the fuel lever to the OFF position as shown in Pic.15 (15.1). To shred twigs, leaves, and brush: Slowly pour the material into the hopper. DO NOT try to stuff too much material in at one time or the machine will jam.
Page 15: Section 4: Maintenance
Pic.17 Chipping branches When finished chipping, turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the spark plug wire before moving the machine, emptying the bag, unclogging the inlets or outlets, filling the gas tank, or performing maintenance and repairs.
Page 16: Visual Inspection
Visual Inspection Before and after using the chipper/shredder, closely inspect the machine for loose parts and damage. Check the hopper, hopper guard, and funnel for cracks, holes, and loose bolts. ⚫ Check the box frame for cracks or damage. ⚫ Check the entire machine for loose bolts or screws.
Page 17: Replacing Blades
Air Filter After every 100 hours of running or every month, the air filter (Pic.19) (19.1) should be removed, examined for deterioration and cleaned. Clean the air filter thoroughly using environmentally friendly water based degreasing agent. Allow to dry fully then replace the air filter.
Page 18 Replace or tighten the V-belt if you notice the motor running and the chipper blades are not spinning. To perform this procedure: TURN OFF THE MACHINE, ALLOW ALL MOVING PARTS TO COME TO A COMPLETE STOP, AND DISCONNECT THE SPARK PLUG WIRE! Remove the V-belt cover as shown in Pic.22.
Page 19: Section 5: Service
SECTION 5: SERVICE Review the troubleshooting and procedures in this section to fix your machine if a problem develops. Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the spark plug wire before moving the machine, emptying the bag, unclogging the inlets or outlets, filling the gas tank, or performing maintenance and repairs.
Page 20: Section 6: Specification
SECTION 6: SPECIFICATION Motor power 11kW (15HP) Speed 3600/min CHIPPING CAPACITY Ø102mm Weight 105kg Sound pressure level at operator’s ear LpA=91.8dB(A) K=2,5 dB(A) Declared sound power level LwA=110dB(A) K=2,5 dB(A) The noise emission is measured according the requirements of the standards EN13683 Annex F.
Page 21: Declaration Of Conformity
FEIDER ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declare that this machine: CHIPPER SHREDDER Model: FBT400 Serial number: Is in conformity with the directive « machine » 2006/42/CE and to regulations transposing it Also in conformity with the following directives:...
