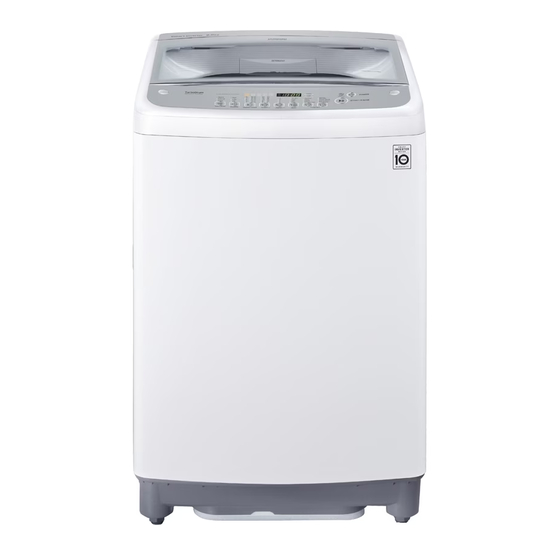

OWNER'S MANUAL
WASHING MACHINE
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
T1266NEFV / T1366NEHV2
MFL68781054
Rev.00_112521
Copyright © 2021 LG Electronics Inc. All Rights Reserved.
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG T1266NEFV
Summary of Contents for LG T1266NEFV
- Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH T1266NEFV / T1366NEHV2 www.lg.com MFL68781054 Rev.00_112521 Copyright © 2021 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
Preparing the Wash Load ................14 Adding Detergents, Softeners and Bleaches..........16 Control Panel ....................18 Programme Table ....................20 Extra Options and Functions ................22 SMART FUNCTIONS LG ThinQ Application ..................26 Smart Diagnosis ....................26 MAINTENANCE Cleaning after Every Wash ................27 Cleaning the Appliance Periodically ..............27 TROUBLESHOOTING... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk. - Page 4 • The inlet water pressure must be between 50 and 800 kPa. Maximum Capacity The maximum capacity in some cycles for dry clothes to be washed is: T1266NEFV T1366NEHV2 12 kg 13 kg Installation •...
- Page 5 SAFETY INSTRUCTIONS • Do not modify the power plug provided with the appliance. If it does not fit the power outlet, have a proper outlet installed by a qualified electrician. • This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
- Page 6 • Make sure that drainage is working properly. If water is not drained properly, your floor may get flooded. • If, during spinning, opening the door does not stop the drum within about 10 seconds, immediately discontinue operating the appliance and contact your dealer or LG Electronics service centre.
- Page 7 • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
-
Page 8: Installation Parts And Specifications
Accessories *1 The included accessories vary depending on the model you purchased. *2 This accessory is not included in the product, but you can purchase it from the LG service centre. Door Tempered Glass Detergent Dispenser Drawer Cold and Hot Water Inlet Hoses... - Page 9 INSTALLATION Model T1266NEFV / T1366NEHV2 Product Weight Approx. 39 kg Dimension(mm) D’ H’ 1310...
-
Page 10: Installation Place Requirements
Contact your local 2 cm 2 cm 10 cm authorised LG repairer. • The power plug must be plugged into an WARNING appropriate outlet socket that is installed and • This appliance must only be used for domestic... -
Page 11: Connecting The Water Inlet Hoses
INSTALLATION Connecting the Water Inlet Connecting the Hose to the Water Tap Hoses Connecting Screw-Type Hose to Tap with Thread Before connecting the water inlet hose to the water Screw the hose connector onto the water supply tap, check the hose fitting type and follow the tap. -
Page 12: Installing The Drain Hose
INSTALLATION Installing the Drain Hose Levelling the Appliance Before connecting the drain hose, check your drain Checking the Level hose model and follow the instructions for that model. Levelling the appliance prevents unnecessary noise and vibration. Check whether the appliance is Installing the Drain Hose with perfectly level after installation. - Page 13 INSTALLATION Assembling the Anti-Rat Cover You can insert the anti-rat cover according to the type to protect the appliance from the rat. Lay the anti-rat cover so that the word UP is visible. Stand at the back of the appliance and tilt it inward.
-
Page 14: Operation Operation Overview
OPERATION OPERATION Operation Overview End of cycle. • When the cycle is finished, a melody will sound. Immediately remove your clothing Using the Appliance from the appliance to reduce wrinkling. Before the first wash, select the Normal programme and add a half amount of detergent. NOTE Start the appliance without clothes. - Page 15 OPERATION Checking the Fabric Care Label cause irreparable damage to both your appliance and clothes. This will tell you about the fabric content of your clothes and how it should be washed. Symbols on the Care Labels Symbol Wash / Fabric type •...
-
Page 16: Adding Detergents, Softeners And Bleaches
OPERATION Adding Detergents, CAUTION Softeners and Bleaches • Using liquid detergent without diluting, or leaving laundry for a long time after pouring Detergent Dosage diluted liquid detergent into the drum might cause the clothes to be damaged, bleached, • Detergent should be selected according to fabric discoloured. - Page 17 OPERATION Adding Fabric Softeners • Option washing is not designed to be used with fabric softener dispenser. • Dilute fabric softener with water. Undiluted fabric softener may result in spots that look like oil stain. Adding Liquid Bleaches • Measure and add the recommended amount of fabric softener into the compartment marked with the symbol on the top tub.
-
Page 18: Control Panel
OPERATION Control Panel Control Panel Features POWER Button • Press this button to turn on or off the appliance. • The appliance automatically turns off once a certain time has passed after the wash has completed. START/PAUSE Button • Press this button to start or pause a wash cycle. •... - Page 19 OPERATION - If the display shows , then the time will be displayed after the load sensing has detected the -:-- laundry size. - The time shown is only an estimate. Several external factors (laundry size, room temperature, incoming water temperature, etc.) can affect the actual time. •...
-
Page 20: Programme Table
OPERATION Programme Table Washing Programme Wash programmes are designed for the best wash performance for different types of clothes. • Press the Program button to select the desired programme. • When you select a wash programme, the light for the corresponding wash programme will turn on. Normal Description Use this programme to wash normal laundry. - Page 21 OPERATION Duvet Description Use this programme to wash a blanket or bedclothes that have the hand wash sign on the care label. • Cashmere bedclothes, acrylic blanket, mixed spinning blanket, woollen blanket, infilling (polyester 101), and bed sheets might be damaged if they are allowed to float.
-
Page 22: Extra Options And Functions
OPERATION Quick Wash Description Use this programme to wash lightly soiled clothes for a short time. • This programme's recommended laundry amount is under 2 kg. Extra Clean Description Use this programme to increase rinsing performance. • This programme is recommended for underwear and baby clothes. •... - Page 23 OPERATION Spin • This function cannot be set for less than 3 hours. Use this option to change the spin strength. When • To cancel this function, press Delay button you press the START/PAUSE button after selecting repeatedly until the reservation is cancelled or this option, the remaining time is indicated on the press the POWER button to turn off and on display.
- Page 24 OPERATION • When this function is deactivated, a beeper will sound and the remaining time for the current cycle will reappear on the display.
- Page 25 OPERATION Manual Washing When you need a rinse and spin, spin only, rinse only or wash only cycle, these can be set manually. Rinse and Spin Spin only Rinse only Wash only Press the POWER button. Press the Rinse Press the Spin Press the Rinse Press the Wash button.
-
Page 26: Smart Functions
Using Audible Diagnosis to Diagnose Issues Follow the instructions below to use the audible diagnosis method. • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow... -
Page 27: Maintenance
MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. • Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They may damage the finish. - Page 28 MAINTENANCE • Turn off the water taps to the appliance if the NOTE appliance is to be left for any length of time (e.g. holiday), especially if there is no floor drain • For models without a lint filter, the lint is (gully) in the immediate vicinity.
- Page 29 MAINTENANCE your laundry items. Do not operate the Close the lid and then insert the lower part of appliance with the lint filters removed. the filter into the wash drum. Press the top of the filter until you hear a click sound. •...
-
Page 30: Troubleshooting
You can remedy most of the problems by yourself, consequently save time and money, since you do not need to call LG Electronics service centre. The following table should assist you by troubleshooting. - Page 31 TROUBLESHOOTING Symptoms Possible Cause & Solution Foreign objects, such as coins, pins, clips, etc.,are caught between the pulsator and the inner drum. FOREIGN OBJECTS ERROR • Turn off the appliance and then press the POWER button. Press the Spin button without selecting a cycle to drain and spin the laundry. When the spin is complete, remove the clothes and then find and remove any objects caught in the pulsator gap.
- Page 32 TROUBLESHOOTING Symptoms Possible Cause & Solution A motor error has occurred. DRAIN MOTOR ERROR • Unplug the appliance and call for service. is not an error. This prevents children from changing cycles or operating the appliance. CHILD LOCK FUNCTION • Turn off the Child Lock function in the control panel. Noises Symptoms Possible Cause &...
- Page 33 TROUBLESHOOTING Operation Symptoms Possible Cause & Solution Appliance will not Control panel has powered off due to inactivity. operate. • This is normal. Press the POWER button to turn on the appliance. Appliance is unplugged. • Make sure that the cord is plugged securely into a working outlet. Water supply is turned off.
- Page 34 TROUBLESHOOTING Symptoms Possible Cause & Solution Water leaking Water inlet hose connection is loose at tap or appliance. • Check hoses for leaks, cracks and splits. • Tighten hose connections. House drain pipes are clogged. • The appliance pumps out water very rapidly. Check for water backing up out of the drain pipe during drain.
- Page 35 TROUBLESHOOTING Performance Symptoms Possible Cause & Solution Poor stain removal Proper options are not selected. • Heavier soils and tougher stains may require extra cleaning power. Select the Soak option to boost the cleaning power of the selected cycle. Previously set stains. •...
