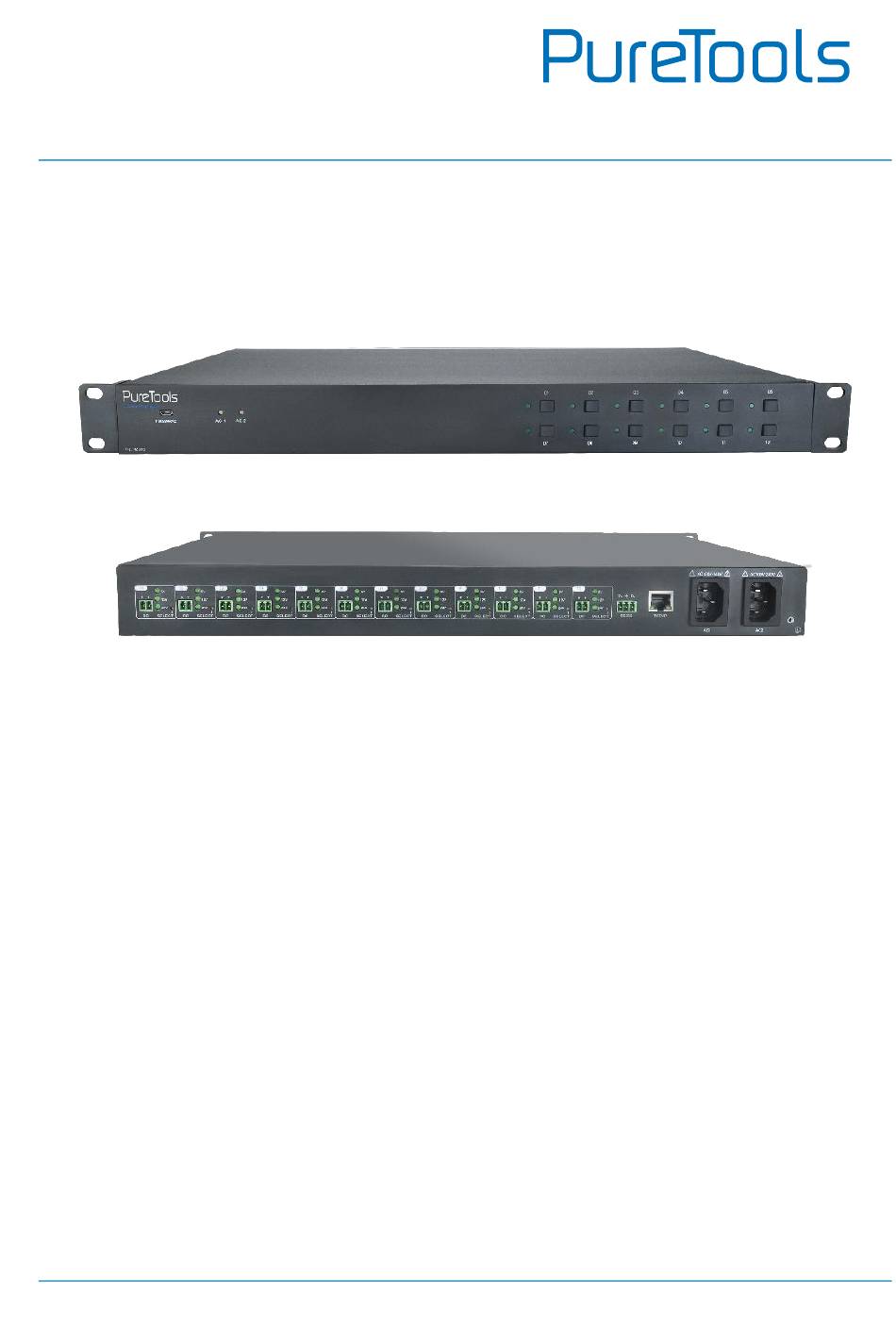

User Manual

PT-PSU12

User Manual

Power Manager 12 Port, 180W, Variable 5/12/24V

Model PT-PSU12

Designed in Germany

VersionV1.0

Table of Contents

Need help?

Do you have a question about the PT-PSU12 and is the answer not in the manual?

Questions and answers

Summary of Contents for PureTools PT-PSU12

Page 2 User Manual PT-PSU12 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
Page 3 PT-PSU12 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PSU12 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PSU12 complies with Directives 2014/30/EU and 2014/35/EU.
Page 4 User Manual PT-PSU12 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing  material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and ...
Page 5 User Manual PT-PSU12 IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions – All the safety and operating instructions should be read before this product is operated. 2) Keep these instructions – The safety and operating instructions should be retained for future reference.
Page 6 User Manual PT-PSU12 13) Unplug the apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is...
Page 7 User Manual PT-PSU12 21) WARNING：For the terminals marked with symbol of “ ” may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person or the used of ready-made leads or cords.
Page 8 User Manual PT-PSU12 - This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
Page 9: Table Of Contents
User Manual PT-PSU12 Contents 1. Introduction ..........................1 1.1 Introduction to PT-PSU12 ....................1 1.2 Feature ..........................1 1.3 Package List ........................2 2. Panel Description ........................3 2.1 Front Panel ......................... 3 2.2 Rear Panel .......................... 4 3. System Connection ........................6 3.1 Usage Precaution ......................
Page 10: Introduction
1. Introduction 1.1 Introduction to PT-PSU12 The PT-PSU12 is an integrated switching power manager designed for converting AC into DC power. It provide 2 input channels and 12 output channels, input voltage 100~240VAC, output 5/12/24VDC, the max power consumption of single channel is 15W.
Page 11: Package List
User Manual PT-PSU12 1.3 Package List 1 x PT-PSU12  2 x Mounting Ears & 6 x Screws  4 x Plastic Cushions  2 x Power Cords  12 x DC Power Cables (2-pin Phoenix Connector to DC) ...
Page 12: Panel Description
User Manual PT-PSU12 2. Panel Description 2.1 Front Panel Name Description FIRMWARE USB port for updating system firmware. ① Input AC source indicators. Green when the device is powered on and normal output.  AC1 & AC2 ② Red when there is no power to the device ...
Page 13: Rear Panel
User Manual PT-PSU12 2.2 Rear Panel AC100V 240V AC100V 240V RS232 TCP IP SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT Name Description 12 output channals. A. DC: 2-Pin phoenix connector, connect with the device needed to be powered.
Page 14 User Manual PT-PSU12 Name Description Ethernet port, connect with PC to control the product via ③ TCP/IP Web-based GUI. ④ AC1& AC2 2 AC input channels. Input voltage is AC100~240V. Note: Pictures shown in this manual are for reference only, different model and...
Page 15: System Connection
User Manual PT-PSU12 3. System Connection 3.1 Usage Precaution System should be installed in a clean environment, preferably at ambient  temperature or within given working temperature range (see page 22 for limits). All of the power switches, plugs, sockets and power cords should be insulated.
Page 16: Connection Procedure
User Manual PT-PSU12 3.3 Connection Procedure Step1. Connect the devices needed to be powered to the DC ports on rear panel. Step2. Connect the PC to the RS232 port on rear panel. Step3. Connect the PC to the TCP/IP port on the rear panel.
Page 17: System Operation
User Manual PT-PSU12 4. System Operation 4.1 Button Control Switch on/off output channel:  Press the button 01~12 on front panel to switch on/off the corresponding output channel. Lock/unlock output channel:  Long-press the button 01~12 for 3 seconds or more on front panel to lock/unlock the corresponding channel, and then the corresponding LED will flash 3 times.
Page 18: Rs232 Control
User Manual PT-PSU12 4.2 RS232 Control Connect a PC to the RS232 port on the rear panel, and then install the RS232 control software on the PC, the product can be controlled by sending RS232 commands via the RS232 control software.
Page 19 User Manual PT-PSU12 The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area.
Page 20: Rs232 Command
User Manual PT-PSU12 RS232 Command 4.2.2 Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Function Feedback Example All@. Switch on all output channels. All Open. All$. Switch off all output channels.
Page 21 User Manual PT-PSU12 Command Function Feedback Example If Group x has no data, the feedback information: F[x] no data. If Group x has data, the feedback information: Recall From F[x]. Out 01 02 03 04 05 Invoke the on-off status of Group x. x Recall[x].
Page 22 User Manual PT-PSU12 Command Function Feedback Example %9964. Query the IP address. IP XXX.XXX.X.XXX Change IP address/Subnet ChangeIP Mask/Gateway, For example: ChangeIP XXX.XXX.X.XXX 192.168.0.178/255.255.255.0/0.0.0.0; 01 02 03 04 05 06 07 08 09 10 11 12 State S S S S S S S S S...
Page 23 User Manual PT-PSU12 Command Function Feedback Example Modify product name. FA XX XX XX XX The command has 18 bytes in total, XX XX XX XX XX and 16 bytes are effective. The digit 0 is used for padding. XX XX XX XX XX...
Page 24: Gui Control
User Manual PT-PSU12 4.3 GUI Control In addition to control the product via front panel button and RS232 communication software. This product can be controlled via web-based GUI. It allows users to interact with the product through graphical icons and visual indicators.
Page 25 User Manual PT-PSU12 2) Type 192.168.0.178 in your browser, it will enter the log-in interface shown as below:...
Page 26: Control Menu
User Manual PT-PSU12 Control Menu 4.3.1 Type user name: user and password: user (default setting) on the log-in interface, and then click Login to enter Control menu shown as below: Select the ON/OFF to switch on/off the output channel. ...
Page 27: Voltage Setting Menu
User Manual PT-PSU12 Voltage Setting Menu 4.3.2 Click Voltage Setting on the top of page to enter voltage setting menu shown as below: In this interface, you can select 5V, 12V, or 24V for each output channel.
Page 28: Network Menu
User Manual PT-PSU12 Network Menu 4.3.3 Click Network on the top of page to enter network setting menu shown as below: In this interface, dynamic or static IP mode can be selected. Under static IP mode, IP address and subnet mask, gateway can be set and make sure the IP addresses are...
Page 29: Password Menu
User Manual PT-PSU12 Password Menu 4.3.4 Click Password on the top of page to enter password menu shown as below: In this interface, the password can be modified as you need.
Page 30: Gui Update
User Manual PT-PSU12 GUI Update 4.3.5 Web-based GUI for the Scaler Switcher supports online update in http://192.168.0.178:100. Type the username and password (the same as the GUI log-in settings, modified password will be available only after rebooting) to log in the configuration interface.
Page 31: Specification
User Manual PT-PSU12 5. Specification Input & Output Input Port AC1 & AC2 Input Voltage 100~240VAC 50~60Hz Output Port Total 12 DC port (2-Pin phoenix connectors) Output Voltage 5V, 12V or 24V can be selectable. 5V: 4.75~5.25V Output Voltage Range 12V: 11.4~12.6V...
Page 32: Panel Drawing
User Manual PT-PSU12 6. Panel Drawing 437 mm AC100V 240V AC100V 240V RS232 TCP IP SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT...
Page 33: Troubleshooting & Maintenance
User Manual PT-PSU12 7. Troubleshooting & Maintenance Problems Causes Solutions Power supply protect function will start when Please reduce loads. over loaded. After selecting output Switch on the output voltage, the output No output voltage channel via front panel channel will switch off button.
Page 34: After-Sales Service
User Manual PT-PSU12 8. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail).
Page 35 User Manual PT-PSU12...
Page 36 User Manual PT-PSU12 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
