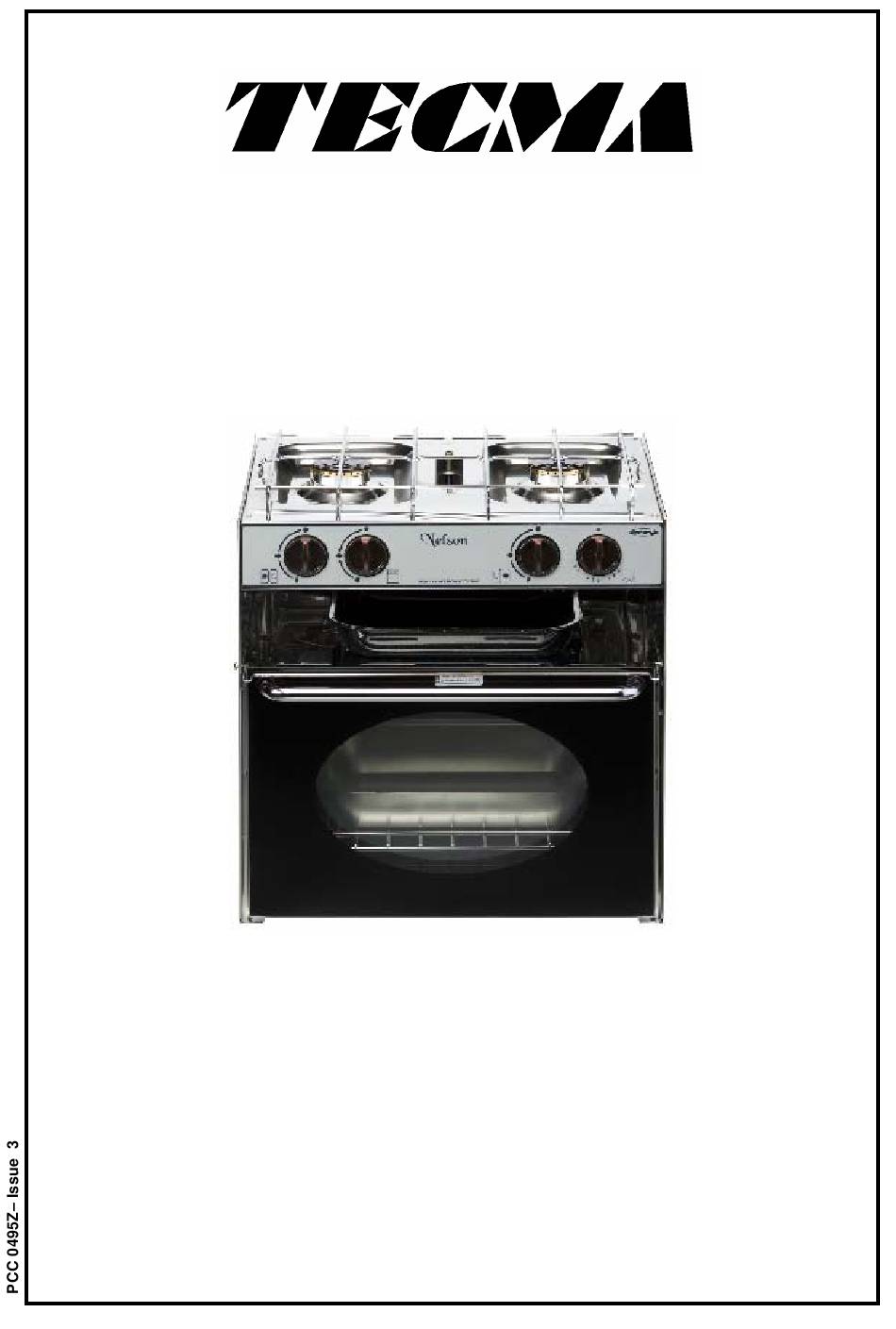

MARINE COOKER
MODEL: NELSON
S~
1500Z
OH
FOR USE WITH PROPANE GAS
USER AND INSTALLATION INSTRUCTIONS
WARNING
•
This appliance must be installed by an authorised person.
•
Only use this appliance in a well ventilated area.
•
Read the instructions before use.
FOR USE IN AUSTRALIA
THETFORD AUSTRALIA PTY LTD
41 LARA WAY CAMPBELLFIELD VIC
TEL: 03 9358 0700
FAX: 03 9357 7060
Advertisement
Summary of Contents for Tecma NELSON
- Page 1 MARINE COOKER MODEL: NELSON 1500Z FOR USE WITH PROPANE GAS USER AND INSTALLATION INSTRUCTIONS WARNING • This appliance must be installed by an authorised person. • Only use this appliance in a well ventilated area. • Read the instructions before use.
- Page 5 INTRODUCTION In your own interest of safety, gas appliances should be installed by competent persons. Failure to install the appliance correctly could invalidate any warranty or liability claims. This appliance shall be installed in accordance with the manufacturers installation instructions, local gas fitting regulations, municipal building codes, AG5601 and any other relevant statutory regulations.
-
Page 6: Installation
INSTALLATION This cooker is designed for use in a marine environment and can be used as either a free- standing appliance or can be mounted on built in gimbals. Used in its free-standing state, the appliance must be placed on a firm, flat and stable structure and secured as shown in Fig. - Page 7 INSTALLATION If the flame on either the top burners or the grill show a tendency to lift, it is probable that the line pressure is too great. Should there be excessive yellow tips (resulting in sooting) then it is probable that the line pressure is too low and, in either case, the burners should not be used until the line pressure has been checked.
- Page 8 USER'S INSTRUCTIONS Each burner is controlled individually and is monitored by a flame failure sensing device, if for any reason the flame goes out, the gas supply to the burner will shut off. Using the Hob To light the burner, depress and turn the knob anti-clockwise to the full rate position, apply a light to the burner or press the ignition button if fitted.
- Page 9 USER INSTRUCTIONS Using the Oven – cont’d 6. To turn off: Turn the control knob until the dot on the control knob is aligned with the dot on the control panel. 7. Flame Failure Device (FFD): The oven burner is fitted with a flame sensing probe which will automatically cut off the gas supply in the event of the flame going out.
-
Page 10: Do's And Don'ts
USER INSTRUCTIONS Cooking Guide The baking tray and roasting tin provided are the largest that should be used in this size oven. Larger items may well affect the circulation and heat distribution. Best results will be obtained by following the shelf position in this guide For best results preheat for 10 - 15 minutes. - Page 11 USER INSTRUCTIONS Leaks If a smell of gas becomes apparent, the supply should be turned off at the cylinder IMMEDIATELY. • Extinguish naked lights including cigarettes and pipes. • Do not operate electrical switches. • Open all doors and windows to disperse any gas escape. •...
