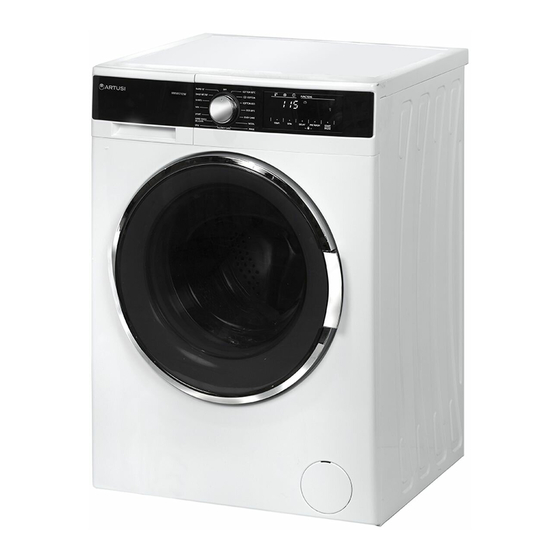

Artusi AWM1712W Operation Manual
  1. Manuals
  2. Brands
  3. Artusi Manuals
  4. Washer
  5. AWM1712W
  6. Operation manual

Artusi AWM1712W Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AP PL I ANC ES
FO R L I VI NG
AWM1712W
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWM1712W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Artusi AWM1712W

Summary of Contents for Artusi AWM1712W

  • Page 1 AP PL I ANC ES FO R L I VI NG AWM1712W OPERATION MANUAL...
  • Page 2 ARTUSI Family. This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.
  • Page 3 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...

  • Page 4: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1 General Safety Warnings ....................2 1.2 During Use ........................6 1.3 Packaging and Environment...................7 1.4 Savings Information ......................7 2. TECHNICAL SPECIFICATIONS ..................8 2.1 General Appearance.......................8 2.2 Technical Specifications ....................8 3. INSTALLATION .........................9 3.1 Removing the Transit Bolts.....................9 3.2 Adjusting the Feet / Adjusting Adjustable Stays..............9 3.3 Electrical Connection ......................9 3.4 Water Inlet Hose Connection ..................10...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS Operating voltage / frequency (V/Hz) (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2200 Maximum washing capacity (dry laundry) (kg) • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.

  • Page 6: General Safety Warnings

    NOTE: For a softcopy of this user manual, please contact the following address: “washingmachine@ standardtest. info”. In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door. Read this user manual carefully. Your machine is for domestic use only.
  • Page 7 water supply if the Washing Machine is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washing Machine. • Some water may be left in your Washing Machine as a result of quality checks during production.
  • Page 8 • Install your machine in a location that can be fully ventilated and preferably has constant air circulation. Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries. RISK OF BURNS Do not touch the drain hose or any discharged water while your Washing Machine is running.
  • Page 9 secured. Make sure the plug in your sink does not block the plug hole. Danger of Fire • Do not store inflammable liquids near your machine. • The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine.

  • Page 10: During Use

    and cleaning materials are consumed or come into contact with the skin and eyes. Keep cleaning materials out of the reach of children. 1.2 During Use • Keep pets away from your machine. • Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed.

  • Page 11: Savings Information

    sources of damage. • Please do not throw away this user manual; keep it for future reference and pass it onto the next owner. NOTE: Specifications for the machine may vary depending on the product purchased. Replacement of drive belt, only by authorized service. Only original spare belt: 42006396 Optibelt 6 EPJ 1236 1.3 Packaging and Environment...

  • Page 12: Packaging And Environment

    CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

  • Page 13: Technical Specifications

    2. TECHNICAL SPECIFICATIONS 2.2 Technical Specifications Operating voltage / (220-240) frequency V~/50Hz (V/Hz) Total current Maximum: Water 1 Mpa pressure Minimum : (Mpa) 0. 1 Mpa Total power 2200 Maximum dry laundry capacity (kg) Spinning revolution 1200 (rev / min) Programme number 2.1 General Appearance...

  • Page 14: Installation

    3. INSTALLATION 3.2 Adjusting the Feet / Adjusting Adjustable Stays 3.1 Removing the Transit Bolts 1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface.

  • Page 15: Water Inlet Hose Connection

    • Your Washing Machine requires a 220- or double water inlet connection (hot 240V, 50Hz mains supply. and cold) depending on the machine specifications. The white capped hose • The mains cord of your washing should be connected to cold water inlet machine is equipped with an earthed and red capped hose to the hot water plug.

  • Page 16: Water Discharge Connection

    must only be connected to your water supply using the supplied new fill hose. Old hoses must not be reused. 4.1 Detergent Drawer 3.5 Water Discharge Connection • Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment.

  • Page 17: Sections

    the machine purchased. 4.2 Sections 4.3 Program Dial Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside • To select the desired programme, turn your machine. (*) the programme dial either clockwise or anti-clockwise until the marker on the Fabric conditioner, starch, detergent...

  • Page 18: Using Your Washing Machine

    the current stage of the programme you are pockets; if so, remove them. running on your machine ( prewash/ CAUTION: wash, rinsing, spinning). Any malfunctions which occur due to foreign materials The display panel shows “End” when the damaging your machine are not covered by selected programme is complete.

  • Page 19: Adding Detergent To The Machine

    • Open the door of your machine. and the rest in compartment II. • Spread your laundry evenly in the • Use detergents produced for automatic machine. washing machines. Follow the NOTE: manufacturer’s instructions on the Take care not to exceed amount of detergent to use.

  • Page 20: Half-Load Detection System

    1. Temperature Selection 5.6 Half-Load Detection System Your machine features a half-load detection system. If you put less than half the maximum Temp. load of laundry into your machine it will automatically set the half-load function, regardless of the programme you selected. This means that the selected programme will take less time to complete and will use less water and energy.
  • Page 21 To adjust the spin speed between the maximum spin speed and the cancel spinning option (--), press the Spin speed button until the desired speed is displayed. 4. Anti- Allergic(*) If you have skipped the spin speed you want to set, keep pressing the spin speed adjustment button until the desired spin speed is displayed again.
  • Page 22 the main washing programme takes place. When using this function, put detergent in (*) Model Dependant front washing compartment of the detergent drawer. 9. Start/Pause Button To select this function, press the Pre-wash button when the symbol is displayed. 7. Extra Rinse(*) Start-Pause Auxiliary function...

  • Page 23: Cancelling The Programme

    5.8 Cancelling the Programme To cancel a running programme at any time: 1. Turn the programme dial to the “STOP” position. 2. Your machine will stop the washing operation and the programme will be cancelled. 3. Turn the programme dial to any other programme to drain the machine.

  • Page 24: Programme Table

    6. PROGRAMME TABLE Programme Laundry type / Descriptions Very dirty, cotton and flax textiles. (Underwear, linen, COTTON 90° 90° tablecloth, towel (maximum 3.5 kg), bedclothes, etc.) Dirty cotton and flax textiles. (Underwear, linen, Pre-Wash Cotton 60° 1&2 tablecloth, towel (maximum 3,5 kg), bedclothes, etc.) COTTON ECO Dirty cotton and flax textiles.

  • Page 25: Cleaning And Maintenance

    7. CLEANING AND 7.2 Water Inlet Filters Water inlet filters prevent dirt and foreign MAINTENANCE materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 7.1 Warning sufficient water, although your water supply is on and the tap is open.

  • Page 26: Pump Filter

    7.3 Pump Filter meet the holes on the front panel side. 6. Close the filter cover. WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance. (*) Specifications may vary depending on the machine purchased.

  • Page 27: Flush Stopper / Body / Drum

    8. FLUSH STOPPER / BODY / DRUM 1. Flush stopper Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 2.

  • Page 28: Troubleshooting

    9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. • Turn off the water supply.

  • Page 29: Automatic Fault Warnings And What To Do

    FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height.

  • Page 30: Describing The Energy Label And Saving Energy

    11. DESCRIBING THE ENERGY Use programmes of shorter duration for lightly soiled laundry and daily washes. LABEL AND SAVING ENERGY Carry out cleaning and maintenance at regular intervals. 1. Brand 2. Model 3. Energy Class 4. Energy Consumption 5. Noise Value While Washing 6.
  • Page 31 O ce: 2. What is not Covered by the Warranty. 48-50 Moore Street, Leichhardt N.S.W 2040 The Warranty does not apply if an artusi product Post: is defective by a factor other than a defect arising Locked Bag 3000, Annandale, N.S.W 2038...
  • Page 32 Last Name: First Name: Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 694 583) 01032014...
  • Page 34 Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of ARTUSI and are not authorised to bind ARTUSI by any express or implied undertaking or representation.
