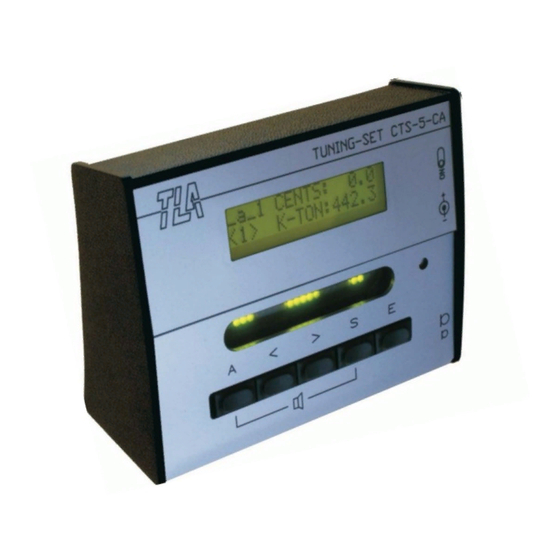

- Page 1 Tuning-Set CTS-5-CA Manual V1.40...
- Page 2 Tuning-Set CTS-5-CA LC-display Strobo-display Inbuilt condenser microphone Good/bad indicator On/off slide switch Socket for net adapter Socket for external microphone Sensitivity slide switch...
- Page 4 DIAGRAM FOR MEMORY MODE TUNING SET CTS-5-CA >6< MEMORY -> INDICATION: < > " go ahead by tapping S + A ! " < > S SELECT STRETCHING OR TEMP:HIST < > S SET PITCH a-1 < > S SELECT NOTE <...
- Page 6 CTS-5-CA NOTE INDICATION ------------ g# - 5 --------- c - 5 --------- c - 4 --------- c - 3 --------- c - 2 --------- a - 1 (PITCH) --------- c - 1 --------- B --------- ---- Bb --------- A ---- G#...
-
Page 7: Table Of Contents
Manual for Tuning Set CTS-5-CA Contents: Initial Operations ..........................2 Power ............................2 Battery change ........................2 1.1.1 Switching on the Tuning Set...................... 3 Selection of language for operator guidance ................3 Introduction to the diagram for modes of operation ..............3 Erasing all inputs ......................... -
Page 8: Initial Operations
1 Initial Operations Congratulations on the purchase of your Tuning Set CTS-5. It will make the tuning of all kinds of musical instruments much easier. Part 1 of these operating instructions contains general information about the Tuning Set. Part 2 gives examples on how to learn the most important functions, and part 3 is for those of you who want to know all about this Tuning Set. -
Page 9: Switching On The Tuning Set
1.2 Switching on the Tuning Set. Switch on the Tuning Set with the slide switch on the right side of the Tuning Set. For approx. one second you see the program version, and then the following >1< STIMMEN -> indication: Should one of the next two indications appear, please go to the next paragraph. -
Page 10: Erasing All Inputs
Don't try to memorize the key sequences in the examples. Try to understand the operation of the Tuning Set by tracing the example steps on the diagram. Note the arrow in the lower, right hand corner of the LC-Display: When this arrow appears, the keys ">" and "<"are <1>... -
Page 11: Sensivity Adjustment Of The Built In Microphone Amplifier
1.7 Sensivity adjustment of the built in microphone amplifier You may reduce the sensitivity of the built-in microphone amplifier with the slide switch located on the right side below of the Tuning Set. You may need this especially for the low tones of a piano. -
Page 12: Audible Tone On/Off
Again depressing key "A" switches off the AUTOMATIC MODE. 2.1.2 Audible tone on/off Activate tone: When you keep the ”S“ key pressed and tap “A”, you will hear the tone at the currently desired frequency. Release both keys. Deactivate tone: Keep “S“ key pressed and tap “A” again. Increase volume: While keeping “S”... -
Page 13: Measuring The Concert Pitch Of An Instrument
2.3 Measuring the concert pitch of an instrument Enter, like in the above example, into the pitch mode. Display for instance: a-1 <>PITCH <2> PITCH:440.0 Tap key "A". a-1 <>PITCH <2A> PITCH:440.0 When you now strike the tone a1 on your instrument, the standard pitch program of the device starts to adjust Automatic on to the played tone. - Page 14 The four built-in stretchings are the result of trials, during which various pianos were tuned by ear, and subsequently measured. The stretching most suitable for your requirement must be tried by you first, considering that the weak and middle stretching is more suitable for pianos with large measure (concert grand piano).
-
Page 15: Presetting Of Historical Tempereaments
2.6 Presetting of historical tempereaments Friends of historical instruments can use TUNING SET CTS-5-CA for 70 different historical temperaments. The last one may be programmed by yourself (see memory mode). In the following example the instrument is tuned to "WERCKMEISTER III": Switch on the device: >1<... - Page 16 You can still leave the memory mode without changing the memory, by tapping key "<" or ">". You can leave the memory mode at any time, by pressing keys "S" and "E" simultaneously. This is herein after referred to as ("S+E"). Go ahead by pressing key "S"...
-
Page 17: Operating Scheme For Memory Mode
necessary (see chapter 3.4). If you still try to select "a" the note will be skipped and "a = reference" is indicated. To store the cents of a temperament, operate in the same way as to store a stretching. 2.7.1 Operating scheme for memory mode >6<... -
Page 18: For All Those Who Wish To Learn More About Tuning Set
3 For all those who wish to learn more about Tuning Set … 3.1 The equal temperament The Equal Temperament is the most frequently used temperament, it is the basic tuning of CTS-5. The following example shows its mathematical theory. Given that standard pitch a' is 440.0 Hertz, then oscillations of the chromatic semi-tone steps are calculated as follows: bb' = 440,00 Hz * 12 2 466,16 Hz... -
Page 19: The "Cent"-Values Of The Historical Temperaments
3.4 The "cent"-values of the historical temperaments See table at the end of this manual. 3.4.1 The "cent"- relation function All temperament tables in the Tuning Set (including the self stored one) are calculated so that the cent deviation of the tone "a" is zero. We may say that "a" is the "cent relation tone". Sometimes other cent relation tones will be required. -
Page 20: The Adjustment Of "Cent Relation Function" And Transposer
3.4.3 The adjustment of "cent relation function" and transposer WERCKMEISTER-III Use mode 4 "TEMP. HIST" for this. First select a >4< NUMMER temperament. The display will be similar to the following: Press keys "S" and "E" briefly and simultaneously. Select the CENT REF.: >4<... -
Page 21: The Pianyzer - How To Make An Individual Piano Tuning
3.6 The PIANYZER - how to make an individual piano tuning Using the „Pianyzer“ (Piano Analyzer) you get more beautiful piano tunings. Here the stretching of the instrument will be optimized individually. The stretching can be created in two ways. 1. - Page 22 “tune” PIANYZER STRETCH mode. Then it goes on, as described in Section 2.5 <1> TUNE of the manual for CTS-5-CA. Note: Within the “ANAYZER”- procedure, you can back step by holding “S” button while tapping “E” button.
-
Page 23: How To Produce A Piano Stretching By Entering Of Support Values (Piano Editor)
<1> TUNE <1> TUNE mode. Then it goes on, as described in Section 2.5 of the manual for CTS-5-CA. Note: Within the “EDITOR”- procedure, you can back step by holding “S” button while tapping “E” button. 3.6.3 Sample diagram of an piano stretching generated by the PIANYZER... -
Page 25: Control Scheme For Using The Pianyzer
3.6.4 Control scheme for using the PIANYZER <7> PIANYZER Editor Selection <> Analyzer select highest two string select highest two string note <> (A ... a) note <> (A ... a) select highest one string select highest one string note <> (E-1 ... D) note <>... -
Page 26: Special Settings
In the same way that a language can be selected, it is possible to change some other attributes of the set, so that you can optimize the CTS-5-CA for your application. The settings will be permanently stored, even if the device is switched off. Operate as follows: Switch off the device. -
Page 27: Technical Data Tuning Set Cts-5-C
4 Technical data Tuning Set CTS-5-C Tuning Range: 8 octaves Via fundamental tone g#-5 (110 to 6644,9 Hz) ( 55 to 103,8 Hz) 2nd harmonic G#-1 ( 27,5 to 51,9 Hz) 4th harmonic Tuning Deviaton Display: 1. electronic strobo display for fine tuning; 2. - Page 29 Cent-values of the historical temperaments 1 EQUAL TEMPERAMENT 2 AMMERBACH_1_Lpz_ -4,2 -0,1 -2,2 3 AMMERBACH_2_Lpz_ -2,1 -8,2 -2,0 -4,1 8,1 -10,2 4 ANONYMUS_(Pyth.) -9,8 -17,6 -5,9 -35,2 -2,0 9,8 -19,6 -7,8 -15,6 -3,9 -33,2 5 BACH/BARNES_1/6_ -2,0 -2,0 6 BACH/KELLNER_1/6 -1,0 -1,5 -2,5...
