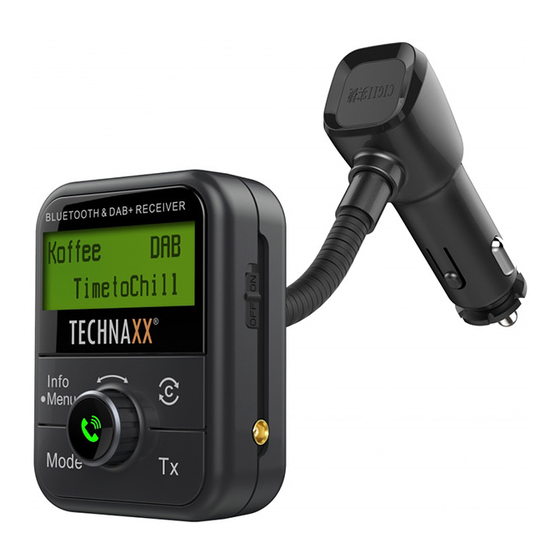

FMT2000BT DAB+ Transmitter
The manufacturer Technaxx Deutschland GmbH & Co.KG hereby declares that this device,
to which this user manual belongs, complies with the essential requirements of the
standards referred to the Directive RED 2014/53/EU. The Declaration of Conformity you
find here: www.technaxx.de/ (in bar at the bottom "Konformitätserklärung"). Before using
the device the first time, read the user manual carefully.
Turn OFF nearby Bluetooth devices to avoid signal interference!
Service phone No. for technical support: 01805 012643 (14 cent/minute from German
fixed-line and 42 cent/minute from mobile networks). Free Email: support@technaxx.de
Features
4-in-1 Function: DAB+ receiver, portable DAB+ radio/MP3 player, Bluetooth Car Kit, FM
transmitter Wireless transfer for DAB+/DAB radio frequencies Portable FM unit is
usable as DAB+ radio & MP3 player Bluetooth function for streaming music from mobile
phones to the vehicle's radio Handsfree function via Bluetooth RDS function (Radio
Data System), traffic/music/general information on the display 2.1A output supports
charging of almost all Smartphones and other mobile devices AUX jack for stereo sound
via AUX–IN of your vehicle Line–IN function supports other external devices Supports
music playing from MicroSD card Built-in 800mAh rechargable battery (charging the
battery directly: put the FM unit to the charging dock in the car Flexible goose neck easy
to adjust the angle of the devices Easy handling and installation
Technical specifications
Power Input
Bluetooth
Bluetooth
Bluetooth / FM
Frequency range
FM frequency range
Transmitter charging output
LCD display
Input / Output connectors
Earphone impedance
Storage
Power supply
Charging time
Playing time
Playing time (portable use)
Aantenna connection
Weight / Dimensions FM unit
Weight / Dimensions holder
Package Contents
®
Technaxx
12V–24V (cigarette lighter socket of a vehicle)
Modul Actions 4.2 with max. ~3m distance
Transmitting frequency 2.4GHz
Radiated output power max. 1mW / 50mW
DAB+/DAB Band III 174-240MHz
87.6–107.9MHz
5V/2.1A
3.84 x 1.44cm (1.61")
AUX-IN / AUX-OUT 3.5mm
32 Ω
MicroSD card up to 32GB
Built-in rechargable 800mAh lithium battery 3.7V
~2 hours
~10 hours (medium volume)
~7 hours
MCX
57g / (L) 5.0 x (W) 2.5 x (H) 6.5cm
59g / (L) 11.5cm; flexible.goose neck 4cm
FMT2000BT DAB+ Transmitter, Micro USB cable,
Audio cable, Antenna, Earphone, User Manual
* User Manual
Advertisement
Table of Contents
Related Manuals for Technaxx FMT2000BT
Summary of Contents for Technaxx FMT2000BT

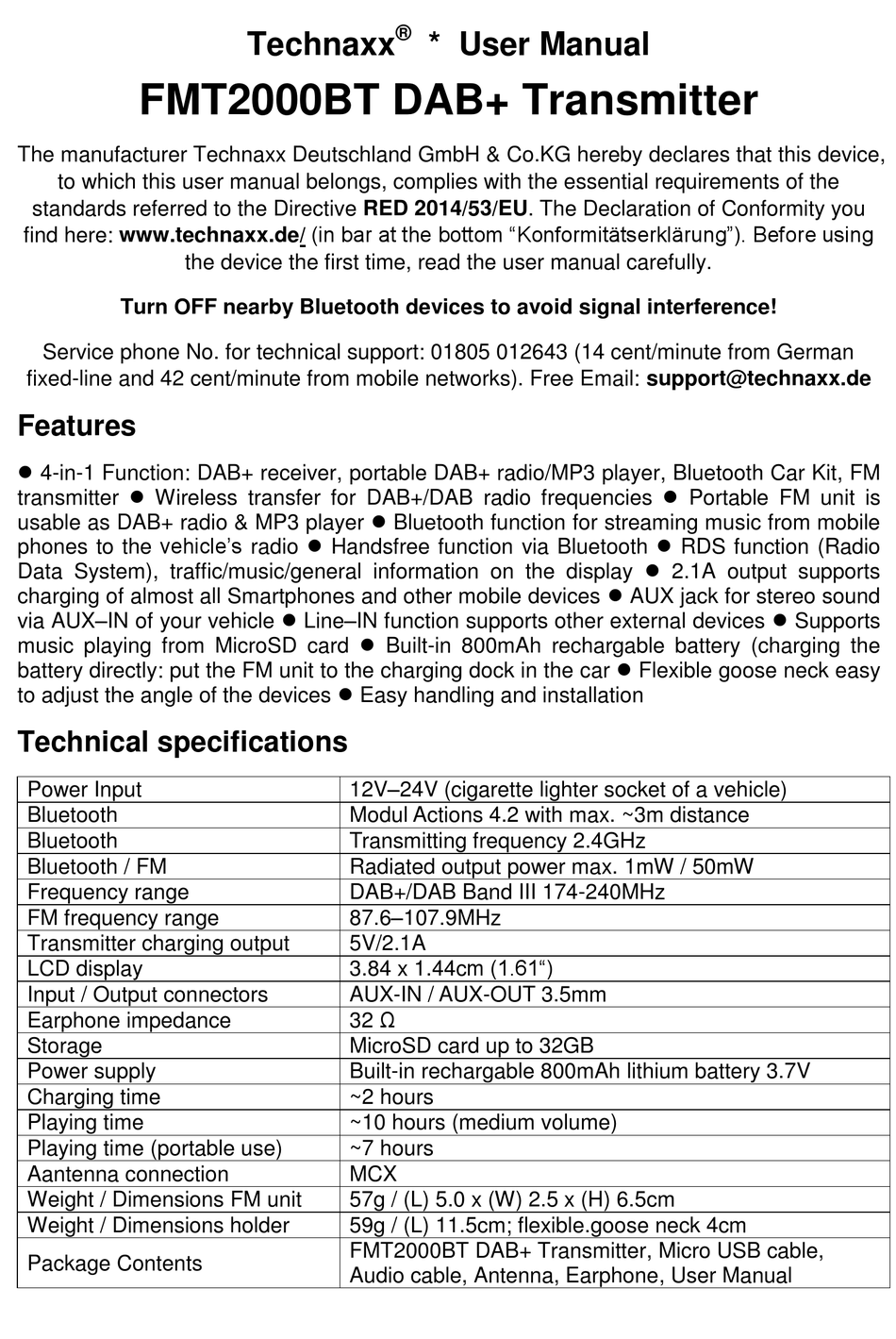

- Page 1 * User Manual FMT2000BT DAB+ Transmitter The manufacturer Technaxx Deutschland GmbH & Co.KG hereby declares that this device, to which this user manual belongs, complies with the essential requirements of the standards referred to the Directive RED 2014/53/EU. The Declaration of Conformity you find here: www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”).
- Page 2 Charging (there are 2 ways) (1) Charging the battery of the FM unit: In the car put the FM unit into the docking station (look for correct placement of the contacts, it easily clicks into the docking station of the holder by a magnet). Insert the power supply plug into the cigarette lighter socket of a vehicle.
- Page 3 Buttons of the panel (FM unit) Press to Play/Pause under music mode, confirm the selected sub-menu or pick up/hang off the Spin Button phone calls when get phone calls Control Rotate clockwise or anticlockwise to go forwards or backwards to a music title. Info: Under DAB mode, short press this button to see the DAB+ radio Info / Menu info: DAB+ Channel name, Channels, Format, Bit rate, type, date, SNR...
- Page 4 Mounting This devices contain two parts: The docking station (fixed on the holder) and FM unit (you can remove from the docking station easily). When you put the FM unit into the Docking Station the device will be charged. Then it becomes a In-Car DAB+ receiver.
- Page 5 Bluetooth function, then search new device. When the mobile phone detects this unit, which is named "FMT2000BT DAB+", then press this name to connect. 3. After successful connection the screen of the mobile phone and the FMT2000BT DAB+ will display "connected". Now can stream the music from the mobile phone.
- Page 6 Cleaning: Protect the device from contamination and pollution (use a clean drapery). Avoid using rough, coarse-grained materials or solvents/aggressive cleaner. Wipe cleaned device accurately. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany...
