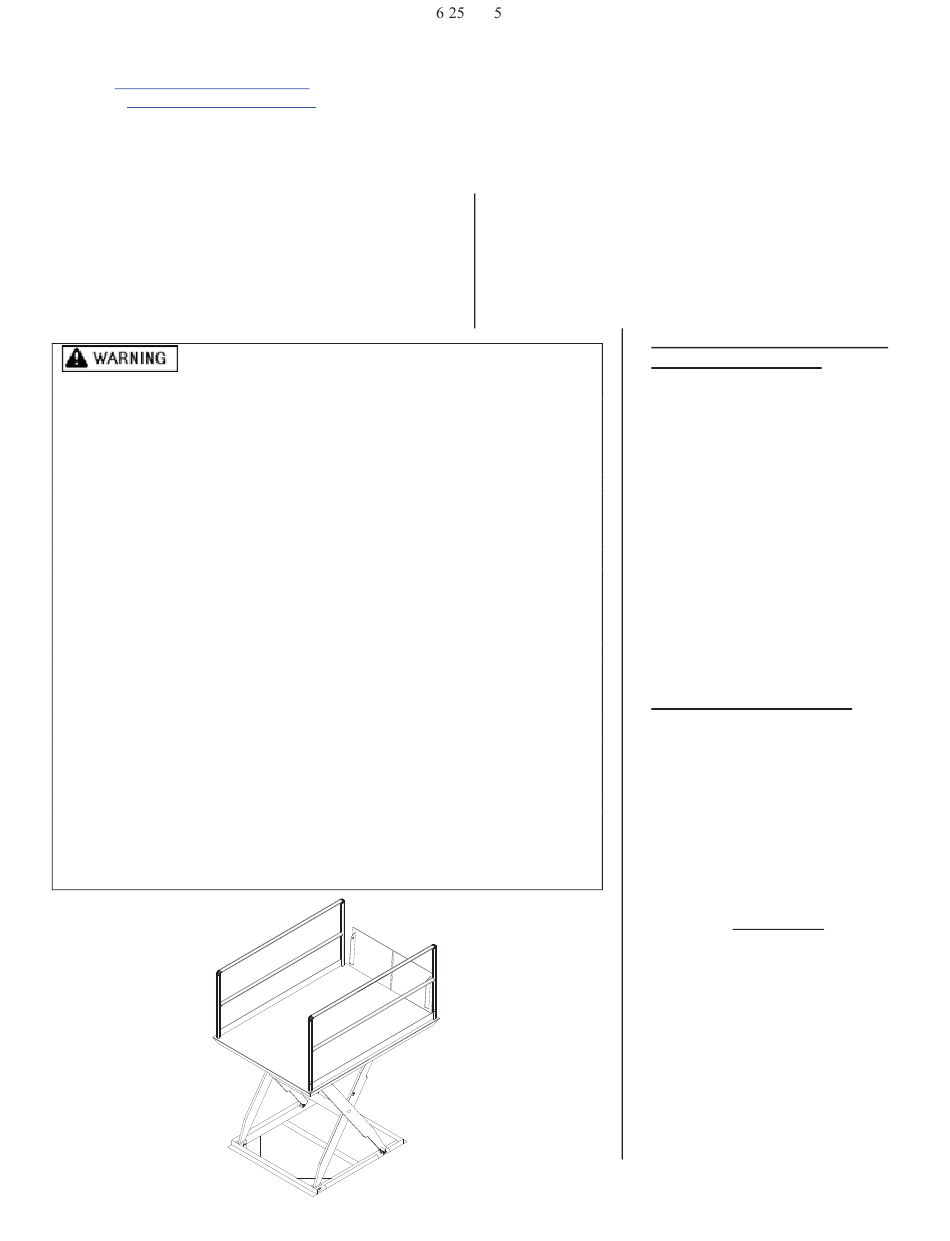

Beacon BWL-100 Operation & Maintenance Manual

Beacon Industries, Inc.
12300 Old Tesson Rd., St. Louis, MO 63128
Ph: 314-487-7600 · Fax: 314-487-0100
E-mail: sales@beacontechnology.com
Website : www.beacontechnology.com
M BWL-100
ODEL
Pre-installation Instructions ............................................ 2
Installation Instructions ................................................... 3
Routine Maintenance & Safety Checks .......................... 4
Operation Instructions ..................................................... 5
Structural Expl View & BOM ....................................... 6
Power Unit's Operation .................................................. 7
Motor & Transformer Connections ................................ 8
Material handling is inherently dangerous. To reduce
the likelihood of operator and bystander injury:
Each person who might operate, use, or maintain this device must
o
Read and understand this manual in its entirety before operating,
using or performing maintenance on the scissor dock.
DO NOT work on this device unless it is fully lowered and unloaded
o
and maintenance props are in place.
Ensure that all safety and warning labels stay in place and are
o
legible. See the labels page in this manual.
The scissor dock's frame must be securely anchored in concrete.
o
See the installation instructions.
Do not use the lift if any damage or unusual noise is observed.
o
Always watch the platform and any load on it carefully when the lift
o
is in operation.
Do not exceed a travel rate of two feet per second when moving
o
across the platform.
The platform's load ratings must be observed at all times. See the
o
operation instructions.
Do no modify the lift without the express, written authorization of
o
Beacon. Unauthorized modifications might make the scissor
lift unsafe to use.
DO NOT attempt to repair this scissor lift or perform maintenance on
o
it unless you are trained and authorized to do so.
Do not use brake fluid or jack oils in the hydraulic system. If oil is
o
needed, use an anti-wear hydraulic oil with a viscosity grade of
150 SUS at 100°F, (ISO 32 cSt @ 40°C), or Dexron transmission fluid.
Use only replacement parts either supplied or approved by the
o
manufacturer.
Beacon Industries, Inc.
/ /201
O
PERATION
M
AINTENANCE
M
ANUAL
Electrical Diagrams ..................................................... 9-10
Power Unit Expl Parts Drawing & BOM .................... 11
Manifold Expl View & BOM, Hydraulic Diagram ..... 12
Power Unit Expl View & BOM .................................. 13
Troubleshooting ............................................. 14
Safety Label Identification .......................................... 15
Warranty ..................................................... 16
Manual, BWL-100.doc
&
WHEN ORDERING
:
REPLACEMENT PARTS
We take pride in using quality
parts on the equipment we
manufacture. We are
responsible for equipment
problems resulting from the use
of unapproved replacement
parts.
To order replacement
spare parts for this equipment,
contact the factory.
In any communication with
the factory please be prepared
to provide the machine's serial
number, which is indicated on
the machine dataplate.
R
ECEIVING INSTRUCTIONS
Every unit is thoroughly
tested and inspected prior to
shipment. However,
possible that the unit could
incur damage during transit.
Inspect the unit closely when
it arrives. If you see evidence
of damage or rough handling to
either the packaging or to the
product when it is
unloaded, immediately make a
note of it on the Bill Of Lading!
It is important that
remove the product's packaging
upon its arrival to ensure that
there is no concealed damage
or to enable a timely claim with
the carrier for freight damage.
Also, verify that the product
and its specifications are as
ordered.
not
or
it is
being
you
