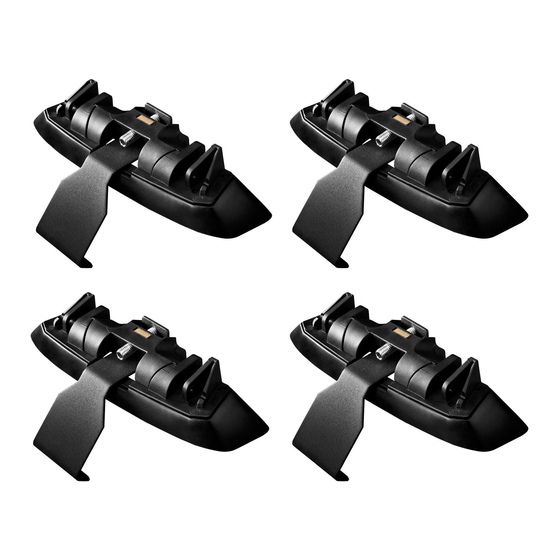

- Page 1 K135W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4C...
- Page 2 Fitting Kit K135W MAX kgs (lbs) Honda Civic , 5dr Hatch 00-05 75 kgs (165 lbs) 75 kgs (165 lbs) Civic , 5dr Hatch 00-06 75 kgs (165 lbs) 75 kgs (165 lbs) Civic , 5dr Hatch Jan 01-Jun 06...
-
Page 3: First Time Installation
Fitting Kit K135W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K135W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K135W Remove locking screw. Apply protective strip as shown. Trim if required. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 338A B = 339A...
- Page 6 Fitting Kit K135W Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K135W Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps directly to edge of roof under the...
- Page 8 Fitting Kit K135W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle.
- Page 9 Fitting Kit K135W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K135W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz...
- Page 12 Fitting Kit K135W Civic, 5dr Hatch 00-05 (EU) -200mm 500mm -7 -7/8ths" 19 11/16ths" Civic, 5dr Hatch 00-06 (ZA) -200mm 500mm -7 -7/8ths" 19 11/16ths" Civic, 5dr Hatch Jan 01-Jun 06 (AU) -200mm 500mm -7 -7/8ths" 19 11/16ths" Civic, 5dr Hatch Jan 01-Jun 06 (NZ)
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Fitting Kit K135W Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
