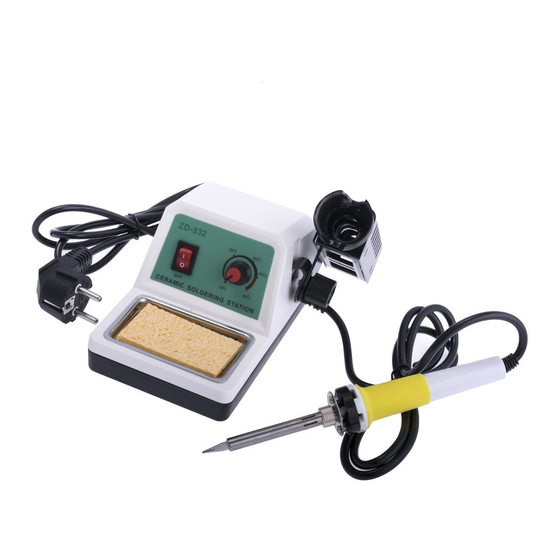

Zhongdi ZD-932 Quick Start Manual

Temperature Controlled Soldering Station
Model：ZD-932

1. Features

• Perfect for board level assembly and repair.
• Temperature sensor incorporated into the heating element.
• Rotary temperature setting.
• Slim but heat resistant silicon handle.
• The base, soldering iron, cable, built-in stand and sponge holder are included.
• Temperature range is 150-450'C.

2. Technical Specifications

Voltage: 110-130V 60Hz
220-240V 50Hz
Power: 40W
Temperature: 150-450˚C

3. Operation

3.1 Place the soldering iron in the holder and connect the plug to the receptacle on the station and turn clockwise to
tighten the plug nut.
3.2 Check that the available power supply corresponds to the voltage specifications for the soldering station and the
power switch is in the OFF position.
3.3 Connect the mains plug to a socket and turn on the soldering station by using the power switch
(I=ON/0=OFF). When turned on, the power switch is lit.
3.4 Regulate the desired temperature of the soldering iron with the adjusting knob.

4. Safety

4.1 The manufacturer assumes no liability for uses other than those described in the operating instructions or for
unauthorized alterations.
4.2 The operating instructions and cautions should be read carefully and kept in an easily visible location near the
soldering station. Non-compliance to the cautions can result in accidents, injury or other health risks.
4.3 The power cord should only be plugged in to approved power sockets or adapters.
4.4 The temperature of the soldering tip can reach as high as 450℃（842℉） when powered up.
Since mishandling may lead to fire, be sure to comply with the following safety precautions:
