RE202 Honeywell-Compatible Pencil Door / Window

Features

• Senses opening or separation. Narrow mounting locations.
• ½ width of competitive products. Great for casements!
• Magnet and Internal reed switch operation.
• Magnet can mount beside or over sensor housing.
• Strong, reliable RF signal.
• 8-10 year battery life on 2-AAA batteries.

Key Instructions

• Battery "+" faces towards white "+" on circuit board.
• Install batteries: rear batt – tail in first, front battery – nose in first.
• Board goes in and out of housing without batteries (not with).
• Reed switch is at the top of the housing, near the push button hole.
• Reed switch = Loop 2
• (Inserting battery will send a Loop 4 Tamper, but Sensor does not
actually have a tamper)
• Enrolling:
Place Panel in RF Learning mode.
Input Type = RF
Lynx *56 "E I" mode:
To enroll any particular loop: cause the loop to fault...
restore... (panel should beep to indicate ID capture)...
fault... restore... [panel will confirm enrollment].
Vista *56 "10 INPUT S/N: L" mode:
Transmit two open/close sequences (using magnet).
Press * (to check for duplicate serial/loop number).
Press * (to continue to confirmation screen).
Press * if you wish to skip confirmation; or "Yes" and
activate the loop to confirm.
RE202_Honeywell-Compat_Pencil_DWS_Instructions.doc
www.ResolutionProducts.com
Page 1 of 3 28-Jul-11

Operation

• Magnetic reed switch:
Alarm, when...
... magnet is pulled away from reed switch.
• Supervisories, every hour.

Specifications

Magnet trip distance: 0.75 inch nominal
Mounting hardware: # 4 or #6 screws
Replacement Battery: 2 AAA Alkaline
Temperature Range: 0F to 120F
Housing dimensions: 4 x 0.6 x 0.9 inches.
Specifications subject to change without notice.

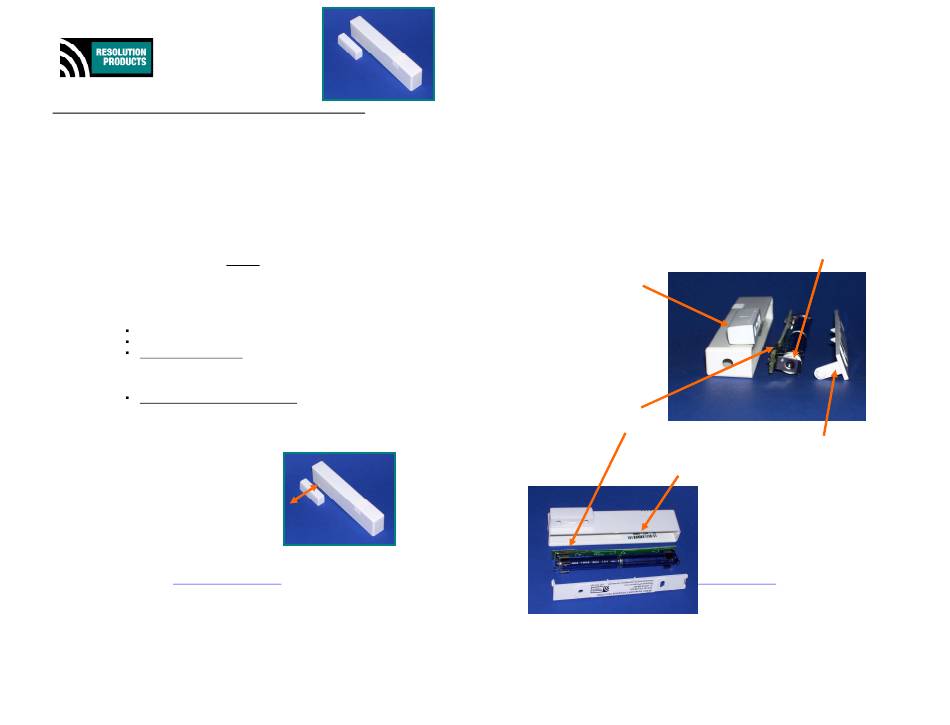

Internal Picture

Magnet
position
Reed
Switch
ID Barcode
