CHAMBER
VACUUM SEALER
Operation Manual
Page 2
SCELLEUSE SOUS
VIDE À CHAMBRE
Manuel d'utilisation
Page 12
SELLADORA
AL VACÍO CON
CÁMARA
Manual de Uso
Página 22
READ BEFORE USE.
LIRE AVANT UTILISATION.
LEA ANTES DE USAR.
Le invitamos a leer cuidadosamente este
instructivo antes de usar su aparato.
Good Thinking
For more
FOR COMMERCIAL USE ONLY

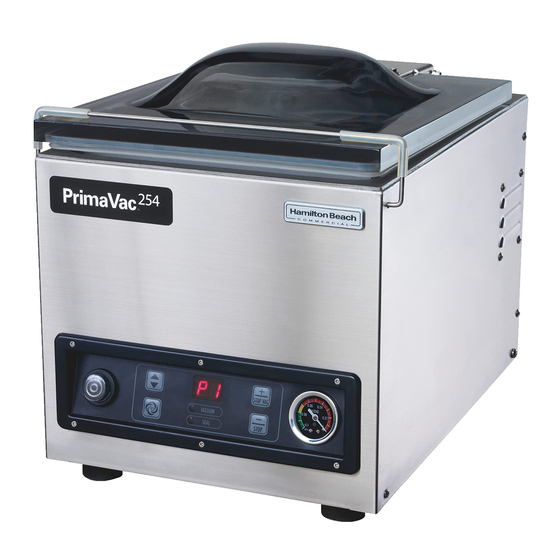

HVC254 – 10" Chamber Vacuum Sealer
HVC305 – 12" Chamber Vacuum Sealer
visit www.hamiltonbeachcommercial.com
®
840284300
9/17
Advertisement
Table of Contents
Related Manuals for Hamilton Beach Commercial HVC254
Summary of Contents for Hamilton Beach Commercial HVC254
- Page 1 LIRE AVANT UTILISATION. LEA ANTES DE USAR. Le invitamos a leer cuidadosamente este instructivo antes de usar su aparato. FOR COMMERCIAL USE ONLY HVC254 – 10" Chamber Vacuum Sealer HVC305 – 12" Chamber Vacuum Sealer 840284300 9/17 Good Thinking For more visit www.hamiltonbeachcommercial.com...
-
Page 2: Important Safety Instructions
Vacuum Sealer Safety IMPORTANT: This operation manual should be reviewed with all equipment operators as part of your operator training program. IMPORTANT SAFETY INSTRUCTIONS WARNING – When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: Read all instructions. -
Page 3: Technical Services
Parts and Features Seal Pad Seals chamber Creates counterpressure Lid Gasket during vacuum on sealing bar. process. Vacuum Chamber Contents are placed into chamber with opening of vacuum-sealing pouch positioned over seal bar. Seal Bar Seals vacuum- sealing pouch. BACK OF UNIT Lid Retainer Holds lid closed when... -
Page 4: Control Panel
Control Panel DISPLAY Shows active function during program cycle or +/STOP VAC set value when During cycle, stops idle. Counts vacuum process down time and continues to ON (I)/OFF ( ) FUNCTION SELECT remaining for sealing process. each step in the Turns the unit Selects vacuum or Increases... - Page 5 6. Replace oil cap and back panel. Oil Fill Capacity Model (fl. oz.) (ml) HVC254 HVC305 11.2 Oil Preheating Program The machine has a preprogrammed function that heats up and conditions the oil in the pump to ensure maximum performance and durability. It heats up the oil and separates impurities from the oil, prolonging the life of the pump.
-
Page 6: Operation
Operation 1. Plug into outlet. 2. Press ON (I)/OFF ( ) button to turn on unit. 3. If unit has not been used in the last 24 hours, run preheating program (see above). 4. Place food in a vacuum-sealing pouch. Place pouch into chamber with open end positioned over sealing bar. - Page 7 Changing Preset Vacuum and Sealing Times Factory Default for All 10 Programs (P0 to P9) Vacuum time: 30 seconds. Can be adjusted from 10 to 60 seconds. Seal time: 2 seconds. Can be adjusted from 0.0 to 3.0 seconds. Changing Vacuum and Seal Time 1.
- Page 8 Change the Soft Air and Cooling Times Cooling Time (F.1) Your vacuum-sealing machine is equipped with a COOLING TIME feature that allows for sealing bar to cool off while setting a secure seal on the vacuum-seal pouch. It can be adjusted from factory setting of 3.0 seconds up to 9.9 seconds, allowing enough time to set seal in thicker pouches.
- Page 9 Reset Functions to Factory Setting In standby mode, display shows “oo.” Press and hold +/STOP VAC and –/STOP buttons at same time for 5 seconds until display shows “a.1.” All parameters will be reset to the factory setting. PROGRAM VACUUMING HEAT SEALING SOFT AIR COOLING...
-
Page 10: Troubleshooting Guide
Troubleshooting Guide Control panel does not illuminate. • Unit is not connected to an electrical outlet. Plug into outlet. • Circuit breaker is tripped. Reset circuit breaker. Unit is on but is not functioning once the lid is closed. • Lid microswitch needs to be adjusted. Contact Technical Services. •... -
Page 11: Maintenance
Maintenance Inspect vacuum sealer and its various parts and replace as follows: Weekly • Check oil by looking at the oil inspection window. • Check seal pad under lid for wear. • Check lid gasket and lid. • Check seal bar for wear. Every 6 Months •... - Page 12 Modelos: Tipos: Características Eléctricas: HVC254 XV03 120 V ~ 60 Hz 3.2 A HVC305 XV04 120 V ~ 60 Hz 5 A Los modelos incluídos en el instructivo de Uso y Cuidado pueden ir seguidos o no por un sufijo correspondiente a una o varias letras del alfabeto y sus combinaciones, separadas o no por un espacio, coma, diagonal, o guión.
