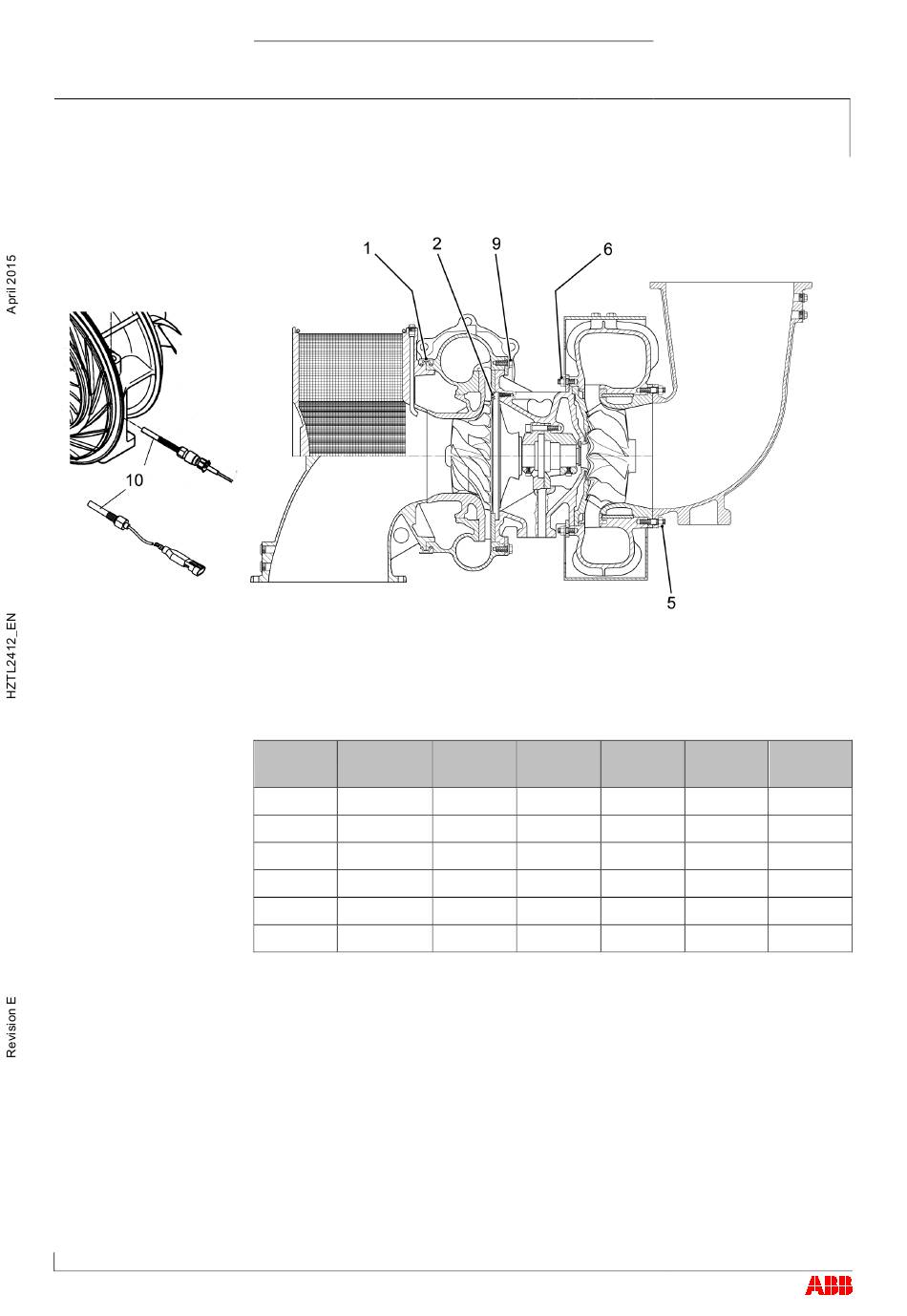

Tightening torques [Nm]
© Copyright 2015 ABB. All rights reserved.
Disassembly and assembly

Table of tightening torques

Table of tightening torques
The following tightening torques must be used for the specified screw
connections:
Item Part
number
1 72020
2 42008
5 52433
6 51007
9 72011
10 86505
Operation Manual / TPS44-F.. - TPS61-F..
8
8.6
TPS44 TPS48 TPS52
60 60
6 10
20 20
25 25
35 35
15 15
Page 111
TPS57 TPS61
60 60 60
10 20 20
40 65 65
45 75 75
70 105 105
15 15 15
