Summary of Contents for KVM RMD-17W-D2

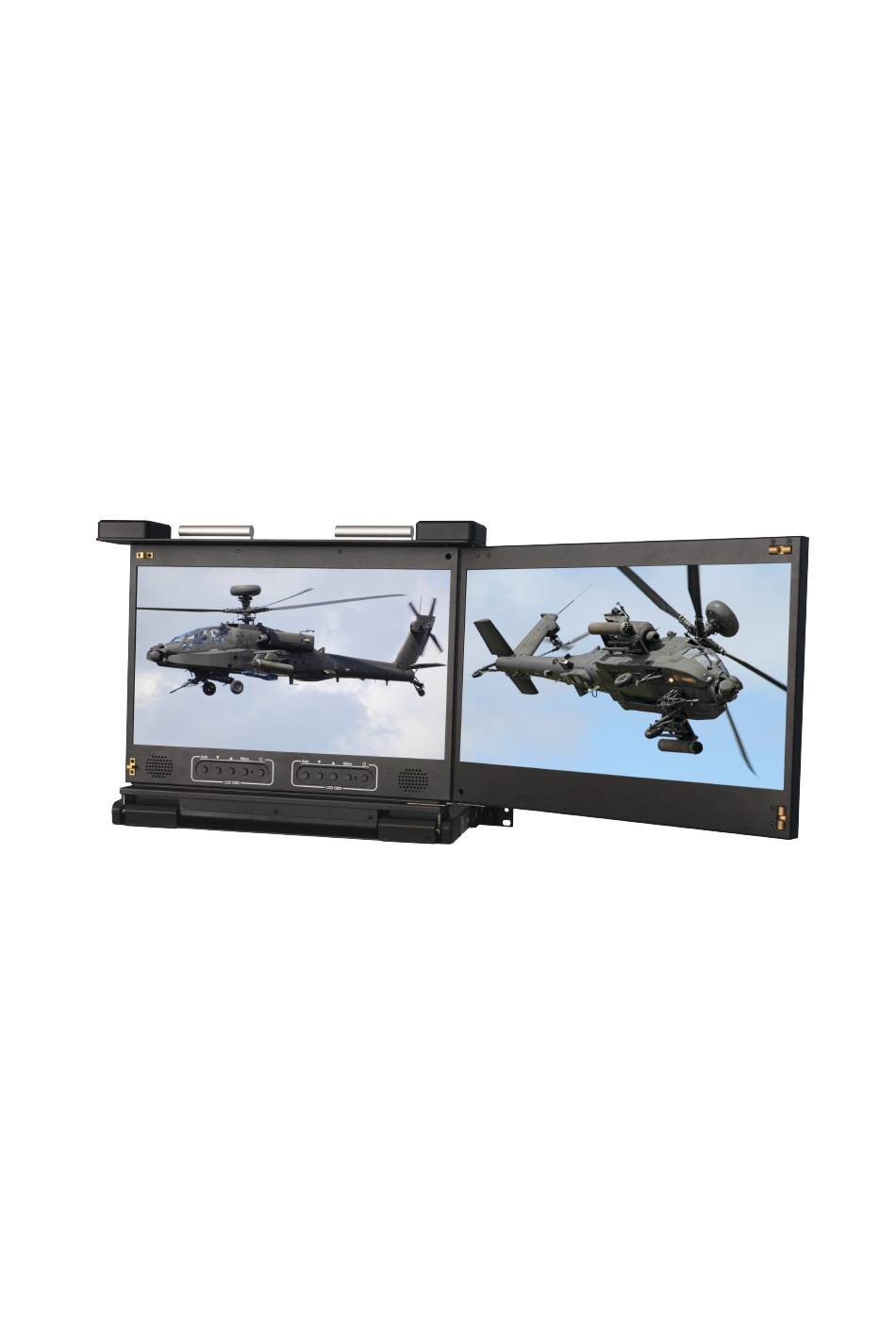

- Page 1 Rack Mount Dual LCD Display Drawer RMD-17W-D2 - 1 -...
- Page 2 This manual, covering various aspects of the equipment such as installation and setup, which will help you make full use of this LCD Drawer. Please read this manual carefully, install and operate the equipment according to the manual to avoid damage. Product package includes following items: 1 * Dual screen LCD drawer;...
-
Page 3: Table Of Contents
Table of Contents Introduction …………………………………………………………………………-4- 1.1Overview…………………………………………………………………...…. -4- 1.2 Functions & Features…………………………………… ……………...…..-4- 1.3 Hardware Requirement……………………………………………..….……-4- 1.3.1 Host Requirement………………………………………………..… -4- 1.3.2 Cables…………………………………………………………...….… -4- 1.4 Product Specifications………………………………………………..….…..-5- 1.5 LCD Specifications………………………………………………….…..……-5- 1.6 Front View………………………………………………………….…..……. -6- 1.7 Rear View……………………………………………………………..….…...-7- Installation……………………………………………………………………...……-8- 2.1 Rack Installation……………………………………………………………… -8- 2.2 Operation…....…………….………………………………….……... -
Page 4: Introduction
With screen extended function, people can be multi-tasking in different screens. Function & Features RMD-17W-D2 is 2U height, supported resolution up to 1920 x 1200, 75Hz. It can be installed into19 inch rack cabinet . No need to install additional software or hardware. 1.3 Hardware Requirement 1.3.1 Hosts Requirement:... -
Page 5: Product Specifications
1.4 Product Specifications Model RMD-17W-D2 Brightness 300cd/m2 Contrast 650:1 Angle of visibility 140°(H),120°(V) Color display 262K Video resolution native 1920 x 1080 (support up to 1920 x 1200) Local Control DVI-D 24 pin DVI-D female connector Terminal HD-15 female connector... -
Page 6: Front View
Front View Part Function Description Handle to adjust screen tilt; lock/release rail sliding LCD display Mounting bracket Install into rack cabinet LCD OSD button LCD button to control Screen Display position and image setting. - 6 -... -
Page 7: Rear View
Function Description AC Power port Standard IEC Type AC Inlet Power Switch Rock switch, turn on/off equipment main power. Audio port For audio function Connect to server or KVM. VGA port DVI port Connect to server or KVM. - 7 -... -
Page 8: Installation
Rear mounting bracket, screw M6 *4pcs rear mounting bracket, screw M6 * 4pcs Front View Step Step Front View ■ ■ Slide KVM into mounting bracket Screw M4 *2pcs at Point B ■ Screw M4 *4pcs at Point A - 8 -... -
Page 9: Operation
2.2 Operation Step Step ■ ■ Unlock handle C to release rail locker and slide out Lift up LCD panels ■ Use locker D to stable the rail Step Step Step ■ ■ Retractable tray could be pulled out when needed Hold Point F to open the right panel Step ■... -
Page 10: Standard Installation
2.2 Standard Installation Please follow the installation drawing and instructions below for standard installation: * Please Shutdown the Power of Equipment Needs to be Connected * Please Pay Attention to Earthing of Equipment The standard installation is completed, and LCD drawer can be powered on. Then power on connected hosts. -
Page 11: Lcd Osd Menu Setup
2.3 LCD OSD Menu Setup OSD Control buttons LCD OSD can establish and setup LCD display. Setup instructions of four buttons are as follows: Button Functions POWER Turn on or off the LCD Display Activate OSD menu, select a menu and press MENU key to confirm the MENU selection and enter the submenu. -
Page 12: Certificates
3 Certificates This product has been tested and is proved to meet requirements of Grade B electronic devices and specifications of Section 15 of FCC certification. Please observe following two conditions in operation that: (1) The equipment will not generate any harmful interruption. (2) If the equipment is interrupted, it may cause unnecessary operations.
