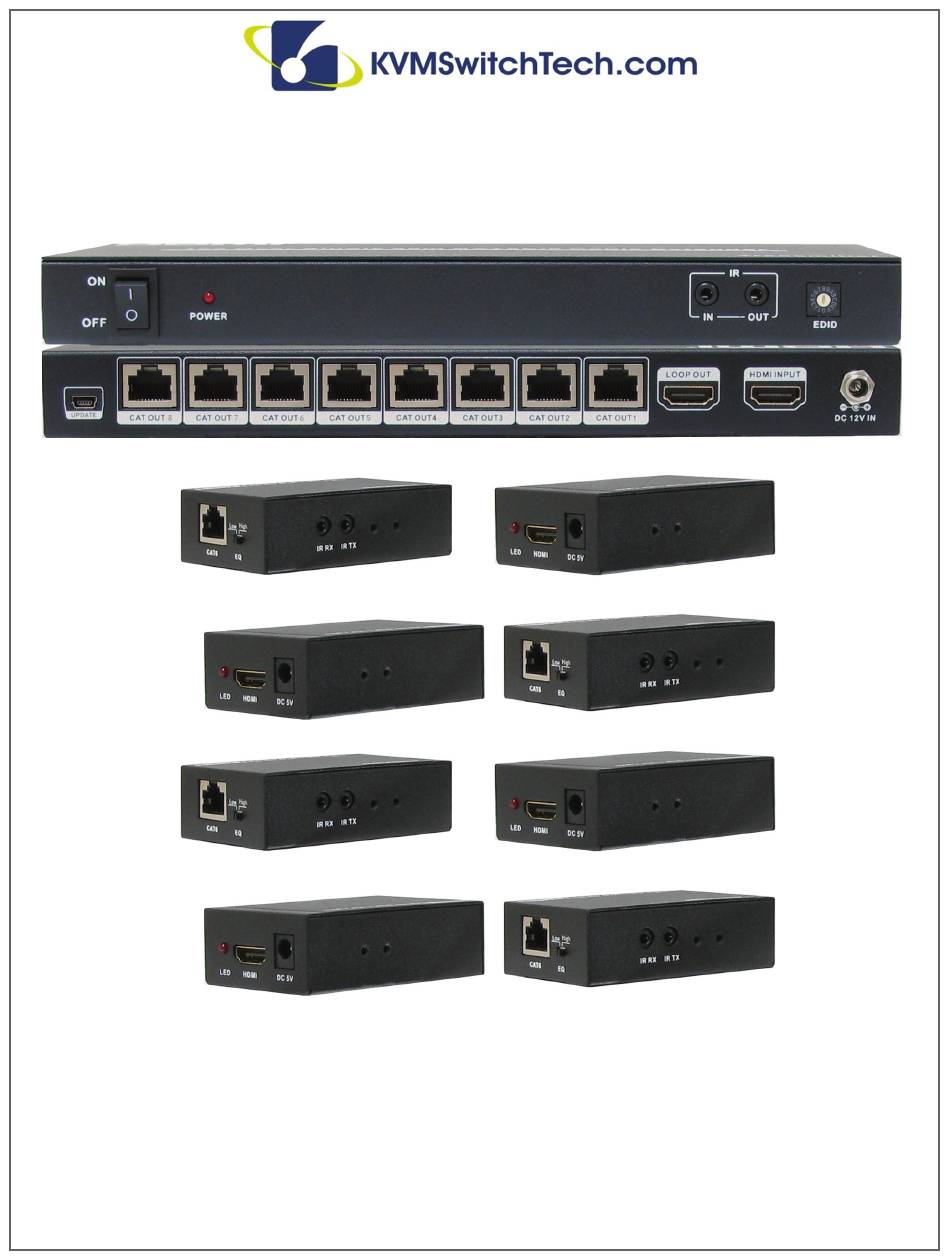

- Page 1 HDMI-CATSPB-8 HDMI 1x8 Splitter Over CAT5e/6 Extender INSTRUCTION MANUAL 118 W. Streetsboro Street, Ste. 125 | Hudson, OH 44236 | Toll Free: (866) 865-7737...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
INTRODUCTION The HDMI-CATSPB-8 Splitter is a product for splitting and DISCLAIMERS extending your HDMI signal over long distances to a compatible display. -
Page 4: Features
FEATURES & SPECIFICATIONS FEATURES • Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0 • Full HD support: 1080p@60Hz@24 bit/pixels • HDMI local loop out for HDMI input • Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio • Operates for TMDS clock frequencies up to 165MHz •... -
Page 5: Operation Controls And Functions
OPERATION CONTROLS AND FUNCTIONS SPLITTER POWER SWITCH: Power ON\OFF Switch. POWER LED: This red LED illuminate when the device is connected with power supply. IR IN: IR Control System over CAT5e/6 Cable IR Receiver. Source to SINK, plug Wideband IR Rx into this unit. IR OUT: IR Control System over CAT5e/6 Cable IR Transmitter. - Page 6 EDID DESCRIPTION TX EDID DESCRIPTION Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display.
- Page 7 CONNECT AND OPERATE APPLICATION EXAMPLE 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the Transmitting unit. 2. Connect a display such as an HDTV or HD Projector to the HDMI output on every receiving unit. 3.
-
Page 8: Application Example
APPLICATION EXAMPLE 1X8 SPLITTER... - Page 9 TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER KVM Switch Tech, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
