OPERATOR'S MANUAL
A Division of Snow Joe
®
, LLC
© 2021 by Snow Joe
®
, LLC
All rights reserved. Original instructions.

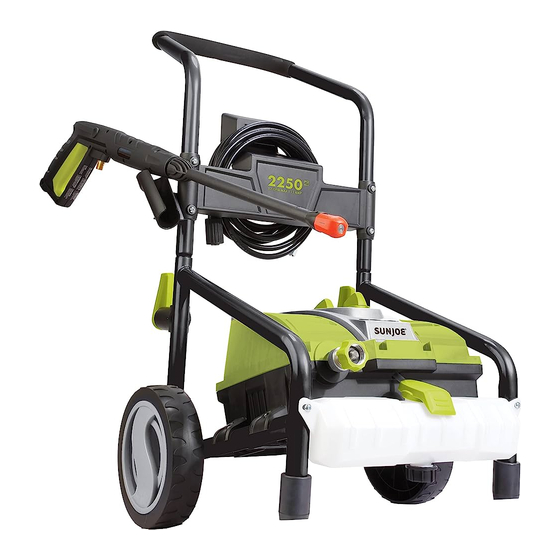

14.5A ELECTRIC PRESSURE WASHER
R
2250 PSI MAX PRESSURE
1.65 GPM MAX FLOW
Model SPX4003-ELT-RM
AT INITIAL DISCHARGE PER CSA INTERNAL PRESSURE TESTING
WITH NOZZLE OPEN AT MINIMUM PRESSURE
SAVE THESE INSTRUCTIONS
1
Form No. SJ-SPX4003-ELT-RM-880E-MR2-V1
EN
Advertisement
Table of Contents
Related Manuals for SNOWJOE SUNJOE SPX4003-ELT-RM
Summary of Contents for SNOWJOE SUNJOE SPX4003-ELT-RM
- Page 1 14.5A ELECTRIC PRESSURE WASHER 2250 PSI MAX PRESSURE AT INITIAL DISCHARGE PER CSA INTERNAL PRESSURE TESTING 1.65 GPM MAX FLOW WITH NOZZLE OPEN AT MINIMUM PRESSURE OPERATOR’S MANUAL Model SPX4003-ELT-RM A Division of Snow Joe ® , LLC Form No. SJ-SPX4003-ELT-RM-880E-MR2-V1 ©...
-
Page 2: General Safety
Snow Joe ® + Sun Joe ® customer service center at 1-866-SNOWJOE (1-866-766-9563). WARNING! When using the pressure washer, basic safety precautions should always be followed to reduce the WARNING! Do not use this appliance without reading risk of fire, electric shock, and personal injury. -
Page 3: Electrical Safety
® + Sun Joe ® dealer. Replacement 1-866-SNOWJOE (1-866-766-9563). parts for a double-insulated appliance must be identical • Keep the machine on a stable, flat surface during operation, to the parts they replace. A double-insulated appliance handling, transportation, and storage. Sudden overturn of is marked with the words “Double Insulation”... - Page 4 4. Use only extension cords that are intended for outdoor Table 1. Method of Securing Extension Cord use. These extension cords are identified by marking "Acceptable for use with outdoor appliance; store indoors Cord set Appliance cord while not in use". Use only extension cord having an electrical rating not less than the rating of the product.
-
Page 5: Product Description
Product Description Purpose • This high-pressure electric power washer is intended for residential use to clean vehicles, machines, buildings, facades, etc. Areas of Application • Never use the machine in potentially explosive areas under any circumstances! • The operating temperature must be between 32ºF (0ºC) and 104ºF (40ºC). -
Page 6: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, WARNING! Electrical shock hazard –... - Page 7 Know Your Electric Pressure Washer Read the owner’s manual and safety instructions carefully before operating the electric pressure washer. Compare the illustration below to the electric pressure washer in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
- Page 8 + Sun Joe ® customer service center at frame 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new electric High pressure pressure washer. The packaging is made of recyclable hose holder materials.
- Page 9 5 Slide the upper handle frame into lower handle then 6. Connect the high-pressure hose to the water outlet on the depress the small button at the end of the upper handle washer (Fig. 6). frame, push and insert into lower handle until it snaps securely into place (Figs.
- Page 10 9. Connect the garden hose adapter (female coupler) to 10. Attach garden hose to water supply (Fig. 11). the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose Fig. 11 adapter (Figs. 9 – 10). The garden hose must have an internal diameter of at least 13 mm (1/2 in.) and must be reinforced.
-
Page 11: Operation
12. Check that the electrical supply voltage and frequency (Volt/Hz) correspond to those specified on the pressure Fig. 15 washer rating plate. If the power supply is correct, you may now plug the pressure washer into the power outlet (Fig. 13). Fig. - Page 12 2. Engage the safety lock on the trigger handle. 2. Install the soap nozzle (black) on the spray wand (Fig. 17). 3. Pull back the brass Quick-Connect collar and insert the 3. Turn on the pressure washer. Pull the trigger to operate desired nozzle into the collar.
- Page 13 These chemicals will harm the unit and will damage the cleaning surface. Fig. 20 Shutting Down 1. Turn the switch to the STOP (0) position and unplug the power cord from the outlet. 2. Turn off the water source. 3. Hold the trigger to release water pressure. 4.
-
Page 14: Maintenance
SPX4003-ELT-RM electric pressure washer requires service or maintenance, please call the Snow Joe ® Sun Joe ® customer service center at 1-866-SNOWJOE (1-866- 766-9563). Model + Serial Numbers Fig. 23 When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. -
Page 15: Troubleshooting
• Pump seals worn out. • Please call the Snow Joe ® + Sun Joe ® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Machine stops • Fuse has blown. • Replace fuse. Switch off other machines using the same circuit. - Page 16 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe ® + Sun Joe ® to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe ® + Sun Joe ® customer service center at 1-866-SNOWJOE (1-866-766-9563).
- Page 17 To obtain a replacement part or product, please visit Some states do not allow exclusions of incidental or consequential snowjoe.com/help or email us at help@snowjoe.com for damages so the above exclusions may not apply in all states. This warranty may give you specific legal rights in your state.
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 sunjoe.com...
