PZD2410
LCD Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PZD2410 and is the answer not in the manual?

Questions and answers

Summary of Contents for Planer PZD2410

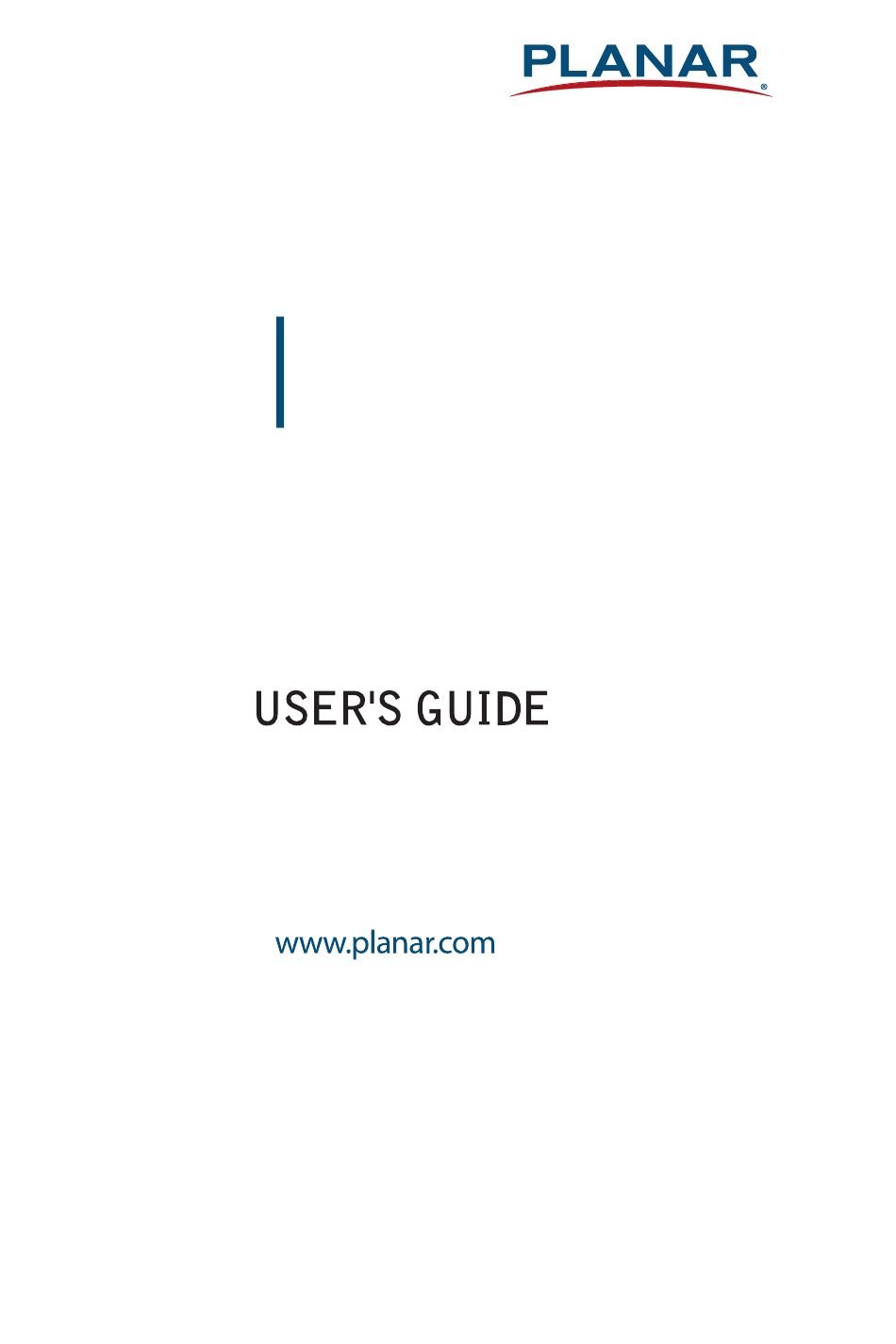

  • Page 1 PZD2410 LCD Monitor...
  • Page 3 The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced, translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
  • Page 4: Table Of Contents

    | TABLE OF CONTENTS FOR YOUR SAFETY .......................3 PRECAUTIONS .......................4 SPECIAL NOTES ON LCD MONITORS ..............6 BEFORE YOU OPERATE THE MONITOR ................7 FEATURES ........................7 PACKAGE LIST ........................8 INSTALLATION INSTRUCTIONS ................9 CONTROLS AND CONNECTORS ................10 ADJUSTING THE VIEWING ANGLE ..............12 OPERATING INSTRUCTIONS ..................
  • Page 5: For Your Safety

    | FOR YOUR SAFETY Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 6: Precautions

    Disposal of waste equipment by user in private household in the European Union This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
  • Page 7 • Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel. • To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min.
  • Page 8: Special Notes On Lcd Monitors

    SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. NOTES AND CLEANING • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
  • Page 9: Before You Operate The Monitor

    | BEFORE YOU OPERATE THE MONITOR FEATURES • 24” Wide Screen IPS Monitor • Recommened Resolution: 1920 x 1080 @ 60Hz • USB Type-C Docking Monitor • Type-C, HDMI and Displayport Inputs • Displayport Output • Daisychain via Displayport Output •...
  • Page 10: Package List

    PACKAGE LIST The product package should include the following items: PZD2410 LCD Monitor Stand base User's Guide Monitor Screws for Base Power cable HDMI cable DP cable Type-C cable...
  • Page 11: Installation Instructions

    INSTALLATION INSTRUCTIONS Attach the base organizer. Figure 1...
  • Page 12: Controls And Connectors

    CONTROLS AND CONNECTORS POWER CORD Power Source: 1. Make sure that the power cord is the correct type required in your area. 2. This monitor has an internal universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.) 3.
  • Page 13 Display resolution is 1920 x 1080 @ 60Hz. When "DP out" is in "Extend" state, the daisy chain of PZD2410 is in MST mode. USB is swtiched to USB 2.0 data rate. The combined data of all displays in the daisy chain cannot exceed the DisplayPort port limit of a single video source, nor can it exceed the capabilities of the graphics card (for the DisplayPort 1.2 port, the limit is 17.28 Gbit/s).
  • Page 14: Adjusting The Viewing Angle

    USB Connection Connect one end of a USB cable to a monitor and the other end to your computer. Note: To utilize the USB Type A ports, ensure your computer is connected to the Type C. To comply with International energy standards, the USB hub/ports of this display are disabled during Standby and Off modes.
  • Page 15: Operating Instructions

    | OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS The control buttons are located at the back of the monitor (See Figure 4). Press the power button to turn the monitor on or off. By changing these settings, the picture can be adjusted to your personal preferences. •...
  • Page 16: Front Panel Control

    FRONT PANEL CONTROL • Power Button: Press this button to switch ON/OFF monitor’s power. • Power Indicator: Blue — Power on mode. Orange —Power saving mode. • [1]: OSD / Exit: Activates OSD menu or exit selection. : Volume / Blue Light Reducer: •...
  • Page 17: How To Adjust A Setting

    HOW TO ADJUST A SETTING 1. Press the [1] button to activate the OSD window. 2. Press to navigate through the functions. Once the desired function is highlighted, press the [2] button to activate it. If the function selected has a sub-menu, press again to navigate through the sub-menu functions.
  • Page 18: Adjusting The Picture

    ADJUSTING THE PICTURE Main Menu Main Menu Description Item Icon Menu Item Luminance Contrast Adjusts contrast levels. Brightness Adjusts backlight levels. Eco Mode Picture Adjustment, Standard: Brightness = 90, Contrast = 50. Brightness, Contrast Adjustable Text: Brightness = 20, Contrast = 50. Brightness, Contrast Grayed.
  • Page 19 Main Menu Main Menu Description Item Icon Menu Item Color Warm Recall Warm Color Temperature . Temp. Normal Recall Normal Color Temperature . Cool Recall Cool Color Temperature . User Adjust R.G.B levels as desired. User-R:Red Gain from Digital-register. User-G:Green Gain from Digital-register. User-B:Blue Gain from Digital-register.
  • Page 20: Plug And Play

    PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol.
  • Page 21: Technical Support (Faq)

    TECHNICAL SUPPORT (FAQ) Problem & Question Possible Solution Power LED is not on * Check if the Power Switch is in the ON position. * Power Cord should be connected. No Plug & Play * Check if the PC system is Plug & Play compatible. * Check if the Video Card is Plug &...
  • Page 22: Error Message & Possible Solution

    ERROR MESSAGE & POSSIBLE SOLUTION NO SIGNAL: 1. Check that the signal-cable is properly connected, if the connector is loose, tighten the connector's screws. 2. Check the signal-cable's connection pins for damage. 3. Check to see if connected device supports Type C. INPUT NOT SUPPORT: Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.
  • Page 23: Appendix

    | APPENDIX SPECIFICATIONS LCD Panel Driving system TFT Color LCD Size 60.45 cm(23.8") Pixel pitch 0.2745 (H) x 0.2745 (V) mm Input Video Digital H-Frequency 30 – 85 kHz V-Frequency 48 - 76 Hz Display Colors 16.7 M Max. Resolution 1920 x 1080 @75Hz Plug &...
  • Page 24: Factory Preset Timing Table

    FACTORY PRESET TIMING TABLE Preset HDMI/Displayport Standard Resolution (Hz) HDMI 640×480@60 640×480@67 640×480@72 640×480@75 720x400@70H SVGA 800x600@56 SVGA 800x600@60 SVGA 800x600@72 SVGA 800x600@75 1024×768@60 1024×768@70 1024×768@75 SXGA 1280×800@60 SXGA 1280×1024@60 WXGA+ 1440×900@60 WXGA+ 1440×900@75 WSXGA+ 1680×1050@60 1280x720@60Hz 1600x900@60Hz 1920x1080@60Hz 1920x1080@75Hz(RB) Video Timing Resolution Standard Resolution (Hz)
  • Page 25: Connector Pin Assignment

    CONNECTOR PIN ASSIGNMENT 20 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PIN NO. DESCRIPTION ML_Lane 3 (n) ML_Lane 0 (p) ML_Lane 3 (p) CONFIG1 ML_Lane 2 (n) CONFIG2 AUX_CH(p) ML_Lane 2 (p) ML_Lane 1 (n) AUX_CH(n) Hot Plug Detect ML_Lane 1 (p) Return DP_PWR ML_Lane 0 (n)
  • Page 26 19 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PIN NO. DESCRIPTION TMDS Data 2+ TMDS Clock Shield TMDS Data 2 Shield TMDS Clock- TMDS Data 2- TMDS Data 1+ Reserved (N.C. on device) TMDS Data 1 Shield TMDS Data 1- TMDS Data 0+ DDC/CEC Ground TMDS Data 0 Shield...
  • Page 27 PIN No. Signal Assignment PIN No. Signal Assignment SSTXp1 SSRXp1 SSTXn1 SSRXn1 VBUS VBUS SBU2 SBU1 VBUS VBUS SSRXn2 SSTXn2 SSRXp2 SSTXp2...
  • Page 28: Wall Mounting (Optional)

    WALL MOUNTING (OPTIONAL) Refer to the instructions that come with the base mounting kit. To convert your display from a desk-mounted to a wall-mounted display, do the following: 1. Verify that the power button is turned Off, then disconnect the power cord. 2.
  • Page 29: Planar Support

    Planar Support Tel: 1-866-PLANAR1 (866-752-6271) or +1 503-748-5799 outside the US. Hours: 24 hours a day, 7 days a week. Toll or long distance charges may apply. European Product Database for Energy Labeling (EPREL) PZD2410 Registration number: 1124523...
  • Page 32 Planar Address: 1195 NE Compton Drive, Hillsboro, OR 97006 USA 2021 Q41G24M193506A...
