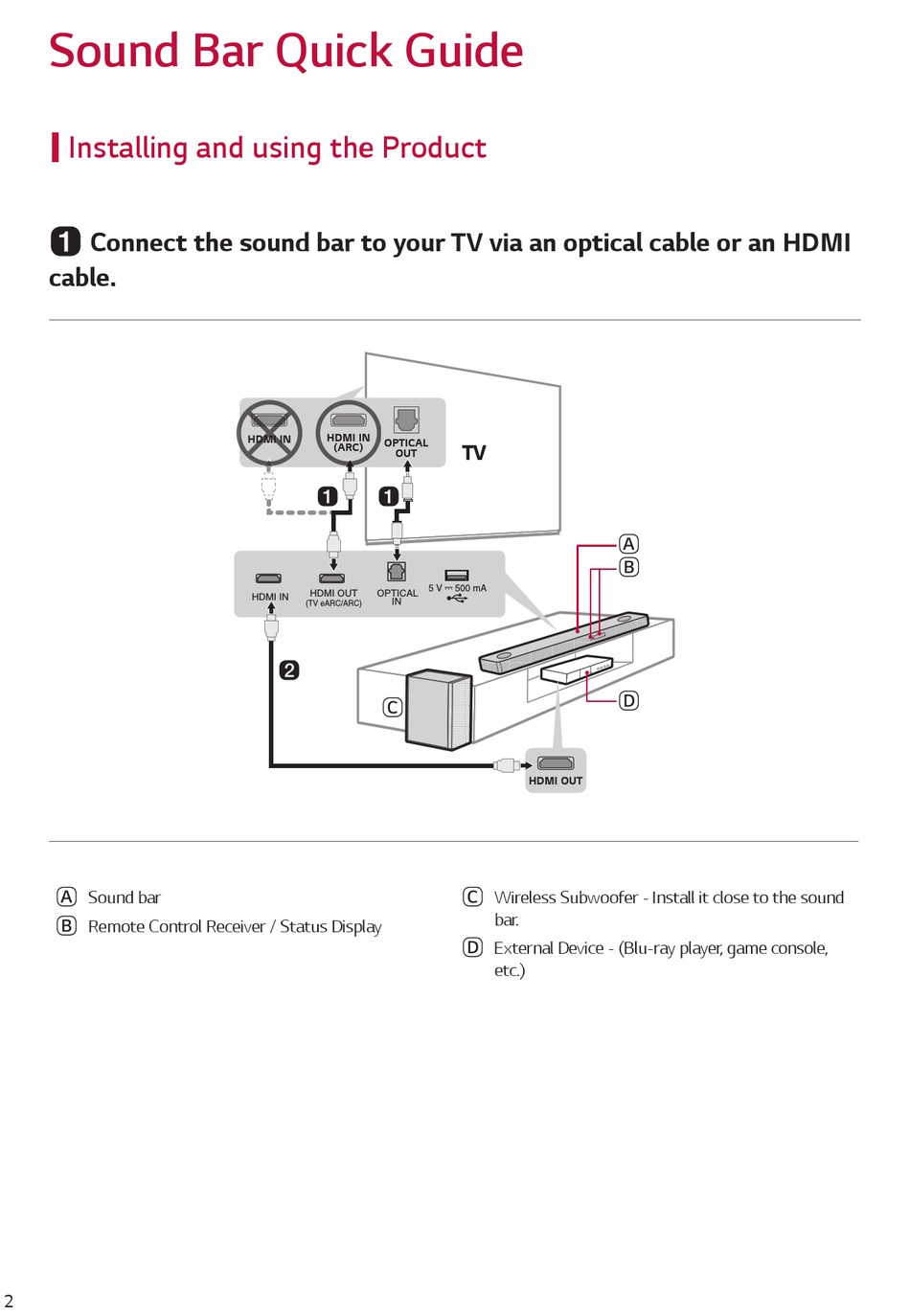

Sound Bar Quick Guide
Installing and using the Product
a Connect the sound bar to your TV via an optical cable or an HDMI
cable.
A Sound bar
B Remote Control Receiver / Status Display
2
HDMI IN
HDMI IN
OPTICAL
(ARC)
OUT
a
a
b
C
A
B
D
HDMI OUT
C Wireless Subwoofer - Install it close to the sound
bar.
D External Device - (Blu-ray player, game console,
etc.)
