OWNER'S MANUAL
V-KC701HTU

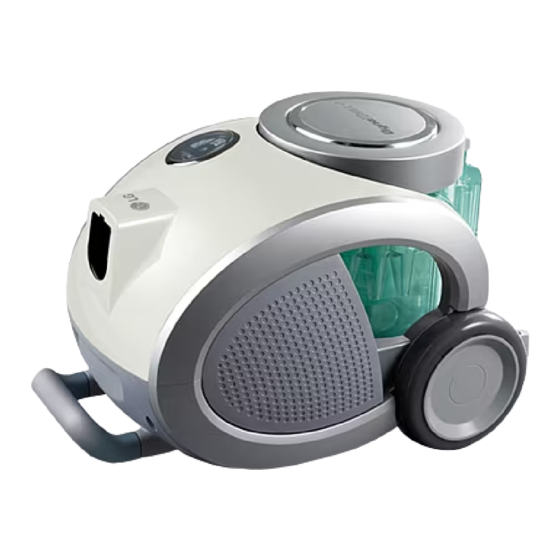

New Type Cyclone vacuum cleaner
Please read all of the information on page 3 carefully.
This information contains important instructions for the safe use and the maintenance of the appliance.
P/No.: MFL31811407
MFL31811407

Advertisement

Table of Contents
loading

Related Manuals for LG V-KC701HTU

Summary of Contents for LG V-KC701HTU

  • Page 1 OWNER'S MANUAL V-KC701HTU New Type Cyclone vacuum cleaner Please read all of the information on page 3 carefully. This information contains important instructions for the safe use and the maintenance of the appliance. P/No.: MFL31811407 MFL31811407...

  • Page 2: Table Of Contents

    Table of contents Information for Your Safety..................3 How to Use.........................4 Assembling Cleaner ......................4 Vacuum Cleaner Operation ....................6 Using the Carpet and floor nozzle ..................7 Using the Carpet master and mini turbine nozzle..............8 Using the Accessory Nozzles ....................9 Cleaning the Dust Tank .......................10 Cleaning the Dust Tank .......................11 Cleaning the Air Filter and the Motor safety filter ..............12 Cleaning the Exhaust Filter ....................13...

  • Page 3: Information For Your Safety

    Do not use the vacuum cleaner If the power cord is damaged or faulty. If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard. Do not unplug by pulling on cord.

  • Page 4: How To Use

    How to Use Assembling Cleaner Fit the nozzle onto the end of the pipe. Spring latch Telescopic pipe (depending on model) (depending on model) Carpet and floor nozzle Telescopic pipe Push the nozzle onto the • Press the spring latch to release. telescopic pipe.
  • Page 5 Fitting pipe Click! Flexible Hose Button Attachment Point Connecting the hose to the cleaner Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner. To remove the flexible hose from the vacuum cleaner, press on the button situated on the fitting pipe, then pull the pipe out of the vacuum cleaner.

  • Page 6: Vacuum Cleaner Operation

    How to Use Vacuum Cleaner Operation Suction control Slide knob POWER CONTROL FLOOR CARPET SOFT CURTAIN Plug Cord reel button Indicator How to Plug in and Use Adjusting the Suction power Park System Storage • Pull out the power cord to the •...

  • Page 7: Using The Carpet And Floor Nozzle

    How to Use Using the Carpet and floor nozzle • Cleaning carpet and floor nozzle Pedal Carpet Floor Carpet and floor nozzle • The 2 position cleaning head • Open the cover by pulling the hook. equipped with a pedal which allows you to alter its position according to the type of floor to be •...

  • Page 8: Using The Carpet Master And Mini Turbine Nozzle

    How to Use Using the Carpet master and Mini turbine nozzle.(depending on model) Air regulator Long Carpet Cleaning Carpet master Press Short Carpet Open Bottom Carpet master(depending on model) Mini turbine nozzle(depending on model) • Open the cover at the bottom by pulling the hook. •...

  • Page 9: Using The Accessory Nozzles

    How to Use Using the Accessory Nozzles Dusting brush Upholstery nozzle Crevice tool Upholstery Nozzle Dusting Brush Crevice Tool Upholstery Nozzle is for Dusting Brush is for vacuuming Crevice Tool is for vacuuming in vacuuming upholstery, picture frames, furniture frames, those normally hard-to-reach places mattresses, etc.

  • Page 10: Cleaning The Dust Tank

    How to Use Cleaning the Dust Tank Tank handle Dust Tank PUSH Pull out Dust emptying button Tank Carrier handle handle Tank Separation Lever The dust tank needs emptying when dust reaches the "MAX" CAUTION position on the dust tank or indicator is lighted on. •...

  • Page 11: Cleaning The Dust Tank

    How to Use Cleaning the Dust Tank Dust emptying button Pull out Tank Separation Lever Air guide Dust tank cap Dust separating button Push Push Check the indicator is lighted on after emptying the dust tank. Air guide assembling If the indicator is lighted on when dust tank is not filled, firstly •...

  • Page 12: Cleaning The Air Filter And The Motor Safety Filter

    How to Use Cleaning the Air filter and the Motor safety filter Air filter Motor safety filter If the indicator is lighted on after cleaning the dust tank , clean WARNING! the air filter and motor safety filter. The air filter and motor safety filter are located at the bottom of dust tank cap in above Gently rinse both parts separately under a cold running figure.

  • Page 13: Cleaning The Exhaust Filter

    How to Use Cleaning the Exhaust Filter Exhaust filter cover White side • The exhaust filter is a washable and reusable HEPA filter. WARNING! • To clean the exhaust filter, remove the Exhaust filter cover on the body by rotating it counter clockwise. The cycle of the cleaning •...

  • Page 14: What To Do If Your Vacuum Cleaner Does Not Work

    What to do if your vacuum cleaner does not work Check that the vacuum cleaner is plugged in correctly and that the electrical socket is working. What to do when suction performance decreases • Turn off the vacuum cleaner and unplug it. •...
  • Page 15 • • • • • • MFL31811407...
  • Page 16 • • • • • • • • • • • MFL31811407...
  • Page 17 • • • • • • MFL31811407...
  • Page 18 • • • • • • • • • • MFL31811407...
  • Page 19 • • • • • • • • • MFL31811407...
  • Page 20 POWER CONTROL FLOOR • • CARPET SOFT CURTAIN • MFL31811407...
  • Page 21 • • • • • MFL31811407...
  • Page 22 • • • • MFL31811407...
  • Page 23 POWER CONTROL FLOOR CARPET SOFT CURTAIN • • • • • • • • • • • MFL31811407...
  • Page 24 MFL31811407...
  • Page 25 • • • • MFL31811407...
  • Page 26 MFL31811407...
  • Page 27 MFL31811407...
  • Page 28 V-KC701HTU P/No.: MFL31811407 MFL31811407...
