NEXT-100HDC HDMI Extender
IMPORTANT SAFETY INSTRUCTIONS
1. Do not unplug the device, when it is in using; keep distance from inflammable and explosive
devices.
2. Power Supply: DC 5V, Use only the supplied power supply unit, Do not use the power supply if
it is damaged.
I.

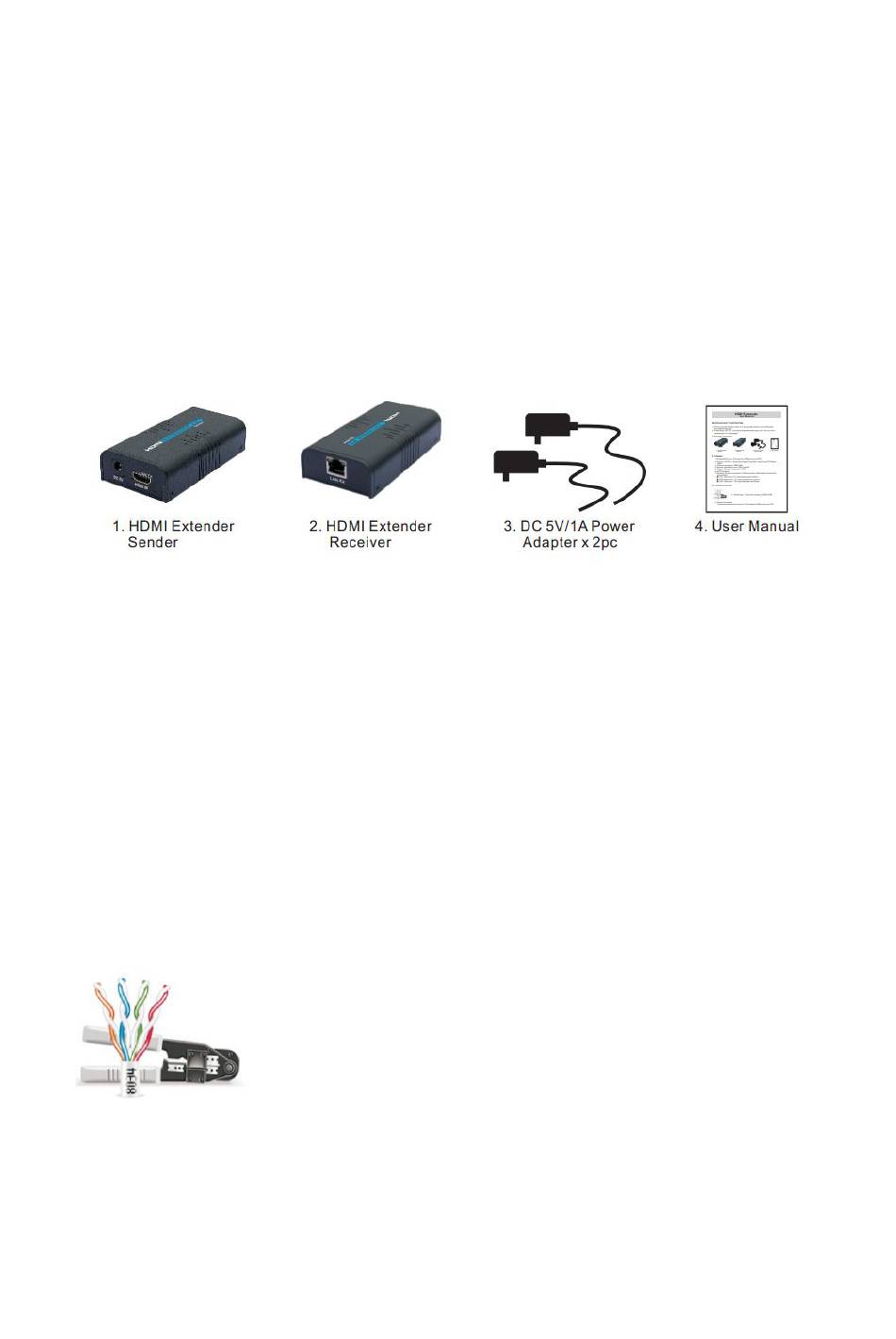

Package Contents
II. Features
1. Extends HDMI up to 100 meters for 1080p over one CAT5.
2. Follow the standard of IEEE-568B.
3. Supports resolutions up to 1080p Full HD.
4. Supports Ethernet bandwidth: 100M.
5. HDCP compliant
6. Extends by Router connection or LAN connection, Cable length requirements are as follows.
● CAT5
Maximum 80 meters between two Devices
● CAT5e Maximum 100 meters between two Devices
● CAT6
Maximum 120 meters between two Devices
III. Installation Guide
1. Cat5e/6 cable
Follow the standard of IEEE-568B
2. General Connection
Transmission distance can be up to 100 meters for 1080p over one CAT5
User Manual
Advertisement
Table of Contents
Summary of Contents for EZ-Net NEXT-100HDC
- Page 1 NEXT-100HDC HDMI Extender User Manual IMPORTANT SAFETY INSTRUCTIONS 1. Do not unplug the device, when it is in using; keep distance from inflammable and explosive devices. 2. Power Supply: DC 5V, Use only the supplied power supply unit, Do not use the power supply if it is damaged.
- Page 2 3. Router Connection 4. LAN Connection IV. FAQ Q: Yellow light of Lan port is flashing but slowly! A: 1): Check whether HDMI Extender TX and HDMI Extender RX are reversed.
- Page 3 2): Check whether HDMI source device output HDMI signal correctly. 3): Change the HDMI cable of TX. Q: Yellow light of Lan port is flashing quickly but no display? A: 1): If HDMI source is graphics card, please set the resolution to be supported by display device.
