Bosslan BOSSTX2B User Manual

Windows-based terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

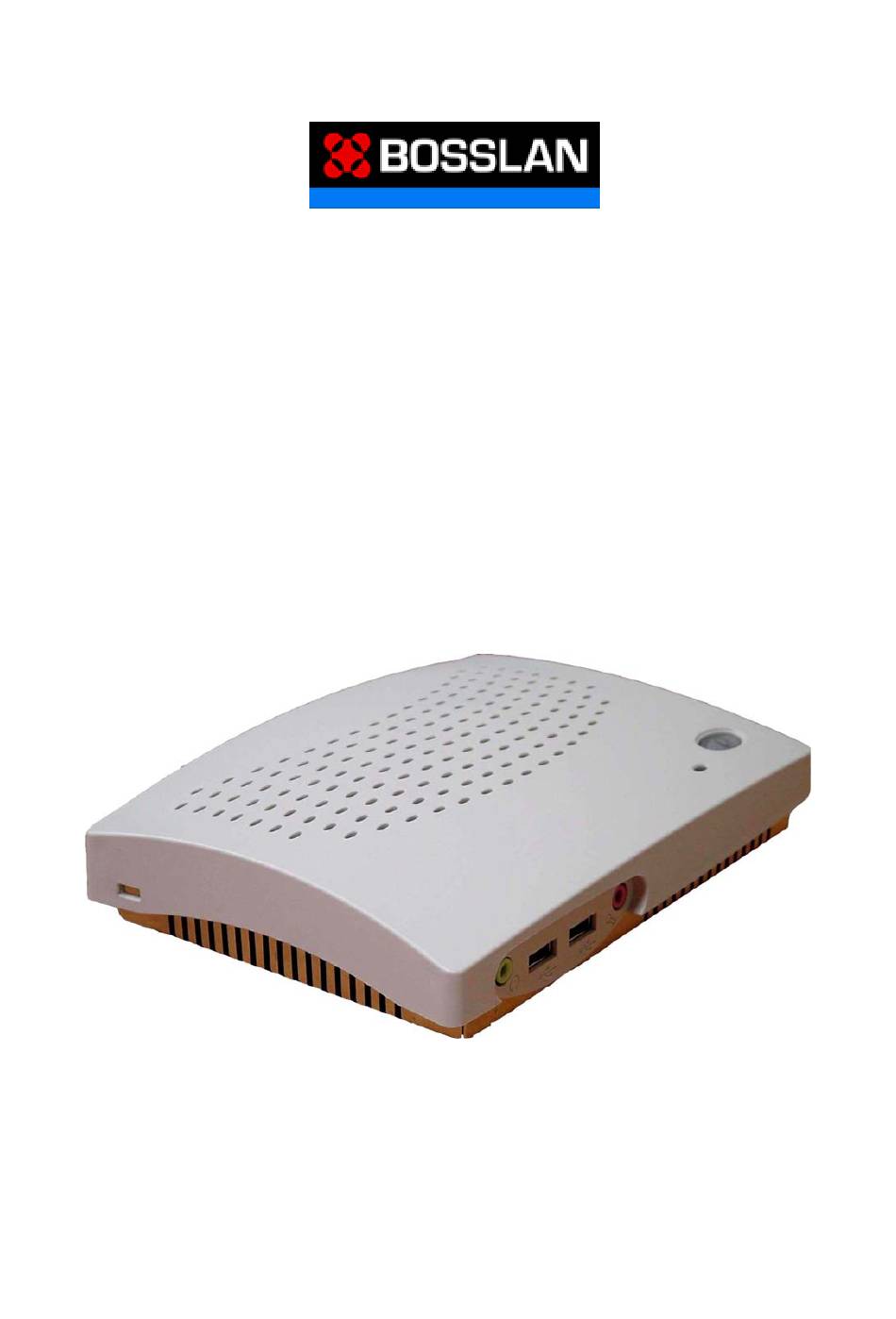

BOSSTX2B CE 5.0 User's Manual
Windows-Based Terminal
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Bosslan BOSSTX2B

Summary of Contents for Bosslan BOSSTX2B

  • Page 1 BOSSTX2B CE 5.0 User's Manual Windows-Based Terminal User’s Manual...

  • Page 2: Table Of Contents

    BOSSTX2B CE 5.0 User's Manual TABLE OF CONTENTS CHAPTER 1 License Agreement ....................2 CHAPTER 2 Product Review ......................5 WBTs........................... 5 Terminal Specifications ....................5 Terminal Features ....................... 6 Terminal Overview ...................... 6 2.4.1 Connecting the Terminal .................. 6 2.4.2...
  • Page 3 BOSSTX2B CE 5.0 User's Manual Microsoft Internet Explorer Connection ..............43 4.7.1 To Make a New Microsoft Internet Explorer Connection........43 4.7.2 To Start a Microsoft Internet Explorer Connection ..........47 Microsoft Media Player....................47 4.8.1 To Make a New Microsoft Media Player Connection ......... 47 4.8.2...
  • Page 4 BOSSTX2B CE 5.0 User's Manual CHAPTER 8 Desktop Mode Control Panel …………………………………………………………………………….….79 8.1.1 Display Properties …………………………………………………………………79 8.1.2 General Properties ……………………………………………………………..……..80 Add a Connection ………………………………………………………………………….80 Advanced Function on Desktop Mode……………………………………….…81 8.3.1 Task Manager…………………………………………………………………..……..…..81 8.3.2 Task Bar………………………………………………………………………..….……….81 8.3.3 Hot Key Functions ..…………………………………………………………………….82...
  • Page 5 BOSSTX2B CE 5.0 User's Manual Trademarks ICA 3 is a registered trademark and MetaFrame is a trademark of Citrix Systems Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other products are trademarks and/or registered trademarks of their respective companies.
  • Page 6 BOSSTX2B CE 5.0 User's Manual License Agreement YOU SHOULD CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFORE USING THIS EQUIPMENT WHICH CONTAINS SOFTWARE IN A NON-VOLATILE FORMAT AND CERTAIN OTHER INTELLECTUAL PROPERTY (HEREAFTER “FIRMWARE”). USING THIS EQUIPMENT INDICATES YOUR ACCEPTANCE OF THE FOLLOWING TERMS AND CONDITIONS.

  • Page 7: Chapter 1 License Agreement

    BOSSTX2B CE 5.0 User's Manual EULA for Microsoft® Windows® CE Operating System for Windows-based Terminal Devices Version 1.5 IMPORTANT—READ CAREFULLY This End User License Agreement (EULA) is a legal agreement between you (either an individual or a single entity) and the manufacturer (MANUFACTURER) of the special purpose computing device (SYSTEM) you acquired which includes certain Microsoft software product(s) installed on the SYSTEM and/or included in the SYSTEM package (SOFTWARE).
  • Page 8 BOSSTX2B CE 5.0 User's Manual You may not reverse engineer, de-compile, or disassemble the 1.Grant of License SYSTEM SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding SOFTWARE includes software already installed on the SYSTEM this limitation.
  • Page 9 BOSSTX2B CE 5.0 User's Manual concerning this EULA, or if you desire to contact designed, manufactured, or intended for use or resale as on-line MANUFACTURER for any other reason, please refer to the control equipment in hazardous environments requiring fail-safe address provided in the documentation for the SYSTEM.

  • Page 10: Chapter 2 Product Review

    The BOSSTX2B has no serial ports, only been supported three kinds of connections (RDP, ICA and Remote Dial-Up/ Direct Cable Connection/ VPN Operations, without locale IE, locale Media Player and Emulations), and has no smart card and PCMCIA drivers supported.

  • Page 11: Terminal Features

    BOSSTX2B CE 5.0 User's Manual 2.3 Terminal Features Physical Characteristics Height 40 mm (1.57 in) Width 188 mm (7.40 in) Depth 136 mm (5.35 in) Net Weight 1.10 kgs 2.43 lbs) Power Cord 6 ft (1.83m) Environmental Operating Temperature 5 to 40...

  • Page 12: Connector Descriptions

    BOSSTX2B CE 5.0 User's Manual SPEAKER USB1 USB2 Power LED Power Switch Connector Descriptions 2.4.2 USB Port These connectors can be used for the USB devices. Audio output Connector This connector is used to connect to an outward speaker. Micro phone input connector.
  • Page 13 BOSSTX2B CE 5.0 User's Manual LAN Active PARALLEL Keyboard Mouse LAN LED Indicators This LED indicates the link (amber), activity (amber) status of network conditions. The detailed information is explained as follows: Link Indicator (amber ) This LED lights to indicate a successful network connection.
  • Page 14 BOSSTX2B CE 5.0 User's Manual 1. Get the device and Boot loader ready For using the F/W of CE5.0, You must update the Boot loader for CE5.0 to ensure all of the devices and function normally. 2. The differences between CE4.2 and CE5.0 Two user interface styles supported a.

  • Page 15: Chapter 3 Initial Terminal Setup

    BOSSTX2B CE 5.0 User's Manual 3 Initial Terminal Setup The Setup Wizard is used for initial setup of the terminal's properties. The wizard runs when: You turn on your terminal for the first time. Your terminal has been restarted with selecting factory default setting.

  • Page 16: Network Configuration

    BOSSTX2B CE 5.0 User's Manual MAC ADDRESS 3.2.1 Network Configuration Network attached device must contain a unique network identifier. If the network is using TCP/IP as a communication protocol, these identifiers are called IP addresses. The following series of screens will allow you to choose from two different methods of assigning the IP addresses.

  • Page 17: Specify A Static Ip Address

    BOSSTX2B CE 5.0 User's Manual 3.2.1.2 Specify a static IP address If the method you selected on the prior screen was to enter a static IP address, the below screen will appear. You will be required to enter the following information onto the screen.

  • Page 18: Alternative Display Settings

    BOSSTX2B CE 5.0 User's Manual 3.2.3 Alternative Display Settings The monitor support several kinds of resolutions. If you want to test it, choose the desired resolution from the list box and click Test. Desktop Area and Refresh Frequency If the screen image tests OK, the monitor will support the selected resolution.

  • Page 19: Local Printer Setup

    BOSSTX2B CE 5.0 User's Manual 3.2.4 Local Printer Setup The terminal supports Local Print. If you want to connect this terminal with a Local Printer, then click OPEN. If not, then click NEXT. Local Printer Setup After click OPEN you can see the Add Printer page then click OPEN again you can see the Select the printer Port page.

  • Page 20: Select The Printer Model

    BOSSTX2B CE 5.0 User's Manual Select the Printer Port (For LPT1) Select the Network Printer 3.2.6 Select the Printer Model Select the manufacturer and model of your printer. If your printer name is not listed, check with your printer document and select one that is closer.
  • Page 21 BOSSTX2B CE 5.0 User's Manual Name Your Printer for COM1, COM2, LPT1 User must supply a name for this printer then click Next. Name Your Printer for Network Enter the Network path of your printer Configure Another Printer The WBT will notify that “User has successfully configured the printer”...

  • Page 22: User Defined

    BOSSTX2B CE 5.0 User's Manual Finish To apply the settings, click Finish after you have finished the Printer Setup Wizard. After the printer setup finished then the added printer model would be showed up. 3.2.6.2 User Defined If your printer name is not listed, please enable” User Defined” to setup then click Next.
  • Page 23 BOSSTX2B CE 5.0 User's Manual Enter your printer Model & Manufacture to setup then click Next.(Com1 , Com2, Lpt1) Enter your printer Model & Manufacture to setup then click Next.(For Network Printer) Note: The model name, which you type in the column, Should be identical with what you select from the name list in the server User must supply a name for this printer then click Next.
  • Page 24 BOSSTX2B CE 5.0 User's Manual Set Default Printer User can choose using this printer as the default printer or not. Click Next to process. The WBT will notify that “User has successfully configured the printer” and ask if user want to configure another printer.

  • Page 25: Finish The Setup Wizard

    BOSSTX2B CE 5.0 User's Manual After the printer setup OK then the added printer model would be showed up. 3.2.7 Finish the Setup Wizard To review or change settings made on previous pages, click Back; to apply the settings, click Finish.

  • Page 26: Chapter 4 Connections Management

    BOSSTX2B CE 5.0 User's Manual 4 Connections Management The Terminal Connection Manager dialog box is designed to help you manage your terminal's network connections. The dialog box displays after the terminal's initial splash screen, and consists of the Connections properties sheet and the Configure properties sheet.

  • Page 27: Creating New Connections

    BOSSTX2B CE 5.0 User's Manual 4.3 Creating New Connections The New Connection dialog box is used to create new network connections. This dialog box is invoked by: Clicking on the Configure tab in the Terminal Connection Manager dialog box. Clicking on Add command button on the Configure properties sheet.

  • Page 28: Rdp Connections

    BOSSTX2B CE 5.0 User's Manual 4.4 RDP Connections To create a new RDP connection, use the Terminal Connection Wizard. Make selections and enter the data in each dialog box. Click on the Next command button to move to the next dialog box. When you are finished, the new connection will be added to the Connection Name list in the Terminal Connection Manager.
  • Page 29 BOSSTX2B CE 5.0 User's Manual After finish the setup then you can see the new connection name show in the dialog box. And Click Edit if you want to edit the RDP. The screen will go back to Select the Connection Name as shown on page 21,...

  • Page 30: General Tab

    BOSSTX2B CE 5.0 User's Manual 4.4.1 General Tab Change the Name and IP Address or DNS Name for the connection. If you want to logon automatically, enable Automatic Logon and type the Username, Password and Domain. If you are connecting across a slower network, you may click on Low Speed Connection.

  • Page 31: Local Resource Tab

    BOSSTX2B CE 5.0 User's Manual 4.4.3 Local Resource Tab Functions shown in local device. Choosing “Bring to this computer”.. could bring the sounds from the server to the client device. 4.4.4 Programs Tab Click on Desktop if you want the Windows NT desktop displayed by default while connecting. Or click on Application file name and type its name when you want to start this application while connecting.

  • Page 32: Experience Tab

    BOSSTX2B CE 5.0 User's Manual 4.4.5 Experience Tab The Experience properties sheet lets you configure the connection speed. 4.5 ICA Connections Use this application to create a Citrix ICA connection. Choose the Network Connection or Dial-In Connection for the remote application.
  • Page 33 BOSSTX2B CE 5.0 User's Manual Click Network Connection to make a network connection. Make sure your WBT is connected to the network through the on-board RJ-45 connector or by a serial PPP connection to a Windows 95 or Windows NT RAS server. Click Next to continue.
  • Page 34 BOSSTX2B CE 5.0 User's Manual From the pull-down list, select your modem. In the Phone Number box, type the phone number, including area code, phone number, and country code of your Citrix server. Click Next to continue. Skip to section 4.5.1.6.
  • Page 35 BOSSTX2B CE 5.0 User's Manual Select a Citrix server you would like to connect to: If your WBT is not on the same network as the Citrix server you would like to connect to, the server name will not appear in the list (this would occur if you are on the other side of a router, across the Internet, or using RAS to connect to a remote network containing Citrix servers).

  • Page 36: Connecting To A Citrix Server

    BOSSTX2B CE 5.0 User's Manual 4.5.1.6 The Select a Title for the ICA Connection page appears: Enter a name for the connection entry. The name you choose is the name of the entry in the Current Client Connections list and appears in the title bar of the ICA session window.

  • Page 37: Changing A Connection Entry

    BOSSTX2B CE 5.0 User's Manual 4.5.3 Changing a Connection Entry This section describes how to change the properties of an existing connection entry. 4.5.3.1 To change the properties of a connection entry In the Connection Manager dialog box, click the Configure tab.

  • Page 38: Specifying An Application To Run After Connecting To A Citrix Server

    BOSSTX2B CE 5.0 User's Manual 4.5.3.2 Specifying an Application to Run after Connecting to a Citrix Server Use the Application tab to specify an application to run after connecting to a Citrix server. If you specify an application, you do not see the Windows desktop when you connect and the connection is closed when you exit the application.

  • Page 39: Changing The Window Properties

    BOSSTX2B CE 5.0 User's Manual 4.5.3.4 Changing the Window Properties Use the Window tab to change the number of colors to use for ICA connections made using the connection entry. In the Connection Manager dialog box, click Configure. Select the connection entry that you want to change and click Edit.

  • Page 40: Changing The Title Of The Connection Entry

    BOSSTX2B CE 5.0 User's Manual Low. This value offers the most efficient use of bandwidth but also decreases sound quality severely. This value is recommended for low-bandwidth connections, including most modem connections. Click OK to save your changes. 4.5.3.6 Changing the Title of the Connection Entry By click on the Title tab you can change the title of this selected connection entry.
  • Page 41 BOSSTX2B CE 5.0 User's Manual Click Connect via SOCKS proxy. In the Address of proxy to use box, enter the SOCKS proxy server’s IP address. In the Port box, enter the proxy server's port number (if different than 1080). Click OK to save your changes.

  • Page 42: Remote Dial-Up/ Direct Cable Connection/ Vpn Operations

    BOSSTX2B CE 5.0 User's Manual 4.6 Remote Dial-Up/ Direct Cable Connection/ VPN Operations 4.6.1 Remote Dial-Up Connection 4.6.1.1 Make New Connection 1. In the Connection Manager dialog box, click the Configure tab. 2. Click Add. 3. Scroll through the list and choose Remote Dial-up/ Direct Cable Connect/ VPN, click OK to make a new connection.
  • Page 43 BOSSTX2B CE 5.0 User's Manual 4.6.1.4 Device Properties Port Setting The Device Properties dialog should now display. Select the Port Settings tab and set the connection preferences (Baud Rate, Data Bits, Parity, Stop Bits, Flow Control) to match the host.
  • Page 44 BOSSTX2B CE 5.0 User's Manual Name Servers Now select the Name Servers tab. Select Use server assigned addresses. When finished, click OK. Set Primary and Second DNS, Primary and Second WINS if you decline to use Server-assigned address. You will be back in the Make New Dial-Up Connection dialog when finish setup.
  • Page 45 BOSSTX2B CE 5.0 User's Manual 4.6.1.7 Country, Area code and Telephone Below the Country, Area code and Telephone number must be entered correctly in the blank area for Dial-Up Connection. Click “Finish” to end this dialog. Dial-Up Connection 4.6.1.8 To start PPP Dial-Up Connection In Connection Manager dialog box click Connections tag and select the RAS connection you would like to connect to.

  • Page 46: Direct Connection

    BOSSTX2B CE 5.0 User's Manual You can click on “New…” to add a new location you would like to dial from. The figure shows as below. To delete the newly added location, simply click on “Remove”. The “Dialing Patterns…” dialog lets you configure the settings shown as below.

  • Page 47: Virtual Private Network Connection

    BOSSTX2B CE 5.0 User's Manual The Make New Direct Connection dialog should now appear. Select the serial connection for the current COM port being used for the connection. Then click on “Configure” and click on “TCP /IP Setting” .The setting of “Configure” and “TCP/IP Setting”...

  • Page 48: Microsoft Internet Explorer Connection

    BOSSTX2B CE 5.0 User's Manual The Make New Virtual Private Network Connection dialog should now appear. Type in the Host name or IP address you wish to connect to. Then click on “TCP /IP Setting” .The TCP/IP Setting is the same as stated in the Make New Dial-Up Connection above.
  • Page 49 BOSSTX2B CE 5.0 User's Manual The following figure shall now appear. Type a name and your desired Start Page for this connection, click on OK to complete this connection. This Web connection will now show on the Connection Manager. You could choose to connect by LAN on “dial up”.
  • Page 50 BOSSTX2B CE 5.0 User's Manual This column is the security settings for Internet. You can customize the security level in this dialog box.
  • Page 51 BOSSTX2B CE 5.0 User's Manual The privacy Internet setting can be set up in this dialog box. In this dialog box, you can setup the advanced Internet setting. You can block the popup windows in the Popups dialog box. .

  • Page 52: To Start A Microsoft Internet Explorer Connection

    BOSSTX2B CE 5.0 User's Manual Set the web sites that you allow to popup. You can also select the events you want to block their popups 4.7.2 To Start a Microsoft Internet Explorer Connection To start this connection simply press F2 to enter the Connection Manger, then click on Connections tab, double click this...

  • Page 53: Microsoft Media Player

    BOSSTX2B CE 5.0 User's Manual Microsoft Media Player 4.8.1 To Make a New Microsoft Media Player Connection To make a new connection follow the below steps: In Connection Manager dialog box click on Configure tab, click on Add to add a new connection, scroll through the list in the box, Microsoft Media Player. Then click on OK to continue.

  • Page 54: Chapter 5 Advanced Function For Connections

    BOSSTX2B CE 5.0 User's Manual 5 Advanced Function for Connections This WBT provides some advanced function for all connections such as Multiple Auto Start-Up and Multiple Auto Reconnect. Multiple Auto Start-Up In Configure tab of Terminal Properties dialog you can choose the connection entry you wish to configure, then click on “Startup”, the following figure will appear:...

  • Page 55: Chapter 6 Terminal Properties

    BOSSTX2B CE 5.0 User's Manual Multiple Auto Reconnect In the same figure above you will also find an icon of “Reconnect”. This is to set this WBT to immediately and automatically reconnect the same session that you have just logged off. This special function can be widely optimized when the WBT is placed in a public area.

  • Page 56: Reset The Terminal To Factory Default Property Settings

    BOSSTX2B CE 5.0 User's Manual 6.1.1 Reset the terminal to factory default property settings Tick the “Reset the terminal to factory default property settings” and click on “OK”, this WBT will ask for rebooting this system to take effect the setting change.

  • Page 57: Control Panel Tab

    BOSSTX2B CE 5.0 User's Manual 6.3 Control Panel Tab The Control Panel properties sheet lets you configure your terminal’s function. In this dialog box it describes all the information of the terminal function about this WBT. 6.3.1 Printers Properties The Printers properties sheet lets you setup this terminal’s Local Print.

  • Page 58: Select The Printer Model

    BOSSTX2B CE 5.0 User's Manual Select one of the ports, LPT1, COM1 or COM2 that you want to use to communicate with your local printer. Or you can select Network to set a network printer. When you select the COM1 or COM2 .You can also select the baud rate of COM1 or COM2 port.

  • Page 59: Keyboard Input

    BOSSTX2B CE 5.0 User's Manual The detail has been described in section 3.2.4 to 3.2.6.2. After the printer setup OK, the added printer model appears in the list of the printer. 6.3.2 Keyboard Input The Keyboard properties sheet lets you configure your terminal's keyboard. Invoke this properties sheet by clicking on the Keyboard icon.
  • Page 60 BOSSTX2B CE 5.0 User's Manual 6.3.3.2 Notes User could key in any sentences or words in the column. It will show up if you enable ”Display owner notes at power on”. 6.3.3.3 Network ID Enter User name and Password when access to the Network.

  • Page 61: System Properties

    BOSSTX2B CE 5.0 User's Manual 6.3.4 System Properties 6.3.4.1General By clicking on the “General” icon, all the system information will be displayed. 6.3.4.2 Memory By clicking on the “Memory” icon, you can adjust the memory, as you want to run the programs.

  • Page 62: Mouse Properties

    BOSSTX2B CE 5.0 User's Manual 6.3.4.4 Copyrights Sheet By clicking on the “Copyrights” icon, the agreement information will be displayed. 6.3.4.5 Network Information By clicking on the “Network Information” icon, all the existing network information will be displayed. 6.3.5 Mouse Properties Click Mouse Properties if you want to configure your mouse setting to Right-Handed or Left-Handed, and the Pointer Speed.

  • Page 63: Volume & Sound Properties

    BOSSTX2B CE 5.0 User's Manual 6.3.6 Volume & Sound Properties 6.3.6.1 Volume 1. Adjust the Volume of the sounds of the client machine. 2. Enable sounds for the events, application and notifications. 6.3.6.2 Sound The sounds of events, application and notifications could be set up as default sound or there are several choices.

  • Page 64: Date/Time Properties

    BOSSTX2B CE 5.0 User's Manual Save the sound scheme as the event which you choice. 6.3.7 Date/Time Properties User can set up your local time for this device. 6.3.8 Storage Manager Properties If the machine is connected with any floppy or Hard drivers, it will show the storage information.
  • Page 65 BOSSTX2B CE 5.0 User's Manual 6.3.9.2 Number Press the Customize the Number; Currency, Time and Date pages will appear. There are different types to display the numbers in the settings, however, it will be shown according to what keyboard locale you have set up.
  • Page 66 BOSSTX2B CE 5.0 User's Manual 6.3.9.4 Time Time could be arranged by turns of hours, minutes and sounds. 6.3.9.5 Date How you would like to show the date at the client side could be arranged here. 6.3.9.6 Input Language Set up the Input Language for the local device, and you can also select the input language you plan to use.

  • Page 67: Network Status Properties

    BOSSTX2B CE 5.0 User's Manual 6.3.10 Network Status Properties properties sheet lets you set up a method for SNMP upgrades. Invoke this properties sheet by Network clicking on the tab in the dialog box. The following figure shows the Network...
  • Page 68 BOSSTX2B CE 5.0 User's Manual When you enable the Hide Terminal Connection configure Tab function .Your Connection configure Tab will be hided. When you disable the Terminal Connection Manager function .Your Connection Manager will be hided.

  • Page 69: Ping Properties

    BOSSTX2B CE 5.0 User's Manual 6.3.12 Ping Properties The Ping Test Settings sheet lets you ping the IP address to make sure it’s on the network. Invoke this setting by clicking on the Ping icon of Terminal Properties dialog box. The following figure shows the Ping function tag, just type in the IP address you want to ping and click OK.

  • Page 70: Line Printer Daemon Setup

    BOSSTX2B CE 5.0 User's Manual 6.3.14 Line Printer Daemon Setup This WBT with WIN CE.NET offers another way of through LPD protocol to send the print job. LPD is a built-in printing protocol in the BSD type of UNIX. However, it is also available in most UNIX system.
  • Page 71 BOSSTX2B CE 5.0 User's Manual 5.Click “OK” to process Test procedure and the WBT will notify user that “the test data has been sent to the printer”. 6.Checking the printer then user can find the default characters printed as below.

  • Page 72: Add A Remote Printer

    BOSSTX2B CE 5.0 User's Manual 8.If the test is fail, the WBT will notify user to check the printer device. Then user has to repeat the printer device setting in section 6.5.14.1 6.3.14.2 Add a remote printer To add a remote printer, insert a block similar to the following in the /etc/printcap file.
  • Page 73 BOSSTX2B CE 5.0 User's Manual 2.On the following screen user will be ask to provide information for adding a new Printer Queue. Click “Next” to process. 3.In this “Set the Printer Queue Name and Type” page. Please select the “Unix Printer” which supports LPD service.

  • Page 74: Lpd Printing

    BOSSTX2B CE 5.0 User's Manual 5.Please select a printer driver for user’s printer. Then click “Next”. For example here is using the EPSON Stylus Photo 1270 printer. 6.After complete the setting, the detail of the Queue which user created will be list.

  • Page 75: Global Ica Client Settings

    BOSSTX2B CE 5.0 User's Manual For BSD system: lpr -P <printer_name><filename> For System V version: lp -d <printer_name><filename> This command is to print selected file to the selected printer. e.g. lpr -MyPrinter /etc/hosts (BSD version) or lp –d MyPrinter /etc/hosts (System V version) This example is to print the /etc/hosts file to the Terminal printer.
  • Page 76 BOSSTX2B CE 5.0 User's Manual Default Name Value Description Close Session CTRL+2 Disconnects the ICA Windows-based Terminal Client from the Citrix server and closes the client window on the local desktop. Using this hotkey leaves the ICA session running in a disconnected state on the Citrix server.

  • Page 77: Configuring Global Preferences

    BOSSTX2B CE 5.0 User's Manual 6.3.15.2 Configuring Global Preferences The following settings are configured in the global Preferences tab: Default Window Colors: In the Window Colors box, select 16,256, Thousands or Millions colors by clicking the appropriate radio button. When using a low-bandwidth connection, 16-color mode may provide better performance. This WBT can support up to Millions colors that is superior to other WBTs in the market.

  • Page 78: Firewall Settings

    BOSSTX2B CE 5.0 User's Manual SSL + HTTPS – The client uses the HTTPS protocol to search for a list of Citrix servers. The client communicates with the Citrix server using ICA with SSL. SSL+HTTPS provides strong encryption of ICA traffic and Citrix server authentication.

  • Page 79: Pnlite Settings

    BOSSTX2B CE 5.0 User's Manual Note If you configure a default SOCKS proxy server, you must specify at least one server in the Server Location tab for server and published application browsing to work. Configuring Alternate Address Translation If the ICA Client is outside a firewall that uses address re-mapping, you must configure the ICA Client to use the alternate address returned by the master ICA Browser.

  • Page 80: Ftp Update

    BOSSTX2B CE 5.0 User's Manual 6.3.16 FTP Update Update Configuration The Update Configuration sheet lets you update new firmware. Key in Server Name, File Name, User ID and Password which your new firmware loaded, select Save Password, then above data will be saved in the sheet.

  • Page 81: Terminal Service Client License

    BOSSTX2B CE 5.0 User's Manual 6.3.18 Terminal Service Client License In this Apps tab you can check and set TSCAL (Microsoft Terminal Service Client Access License). When you receive a license from a server, the license info will be appeared in this dialog.

  • Page 82: Touch Panel Settings

    BOSSTX2B CE 5.0 User's Manual 6.3.19 Touch Panel Settings The user can use the touch panel that has been supported in the Apps. Press OK to Enable touch panel, and press Calibrate to alignment. 6.3.20 Desktop Style Desktop Style is an App, which can switch Desktop Mode and WBT Mode to each other.

  • Page 83: Chapter 7 Using Ica Local Printer

    BOSSTX2B CE 5.0 User's Manual Enable the Desktop Mode and press OK to restart the thin client, and then the thin client will be appears with Desktop Mode, Please refer to chapter 8 Desktop Mode for all details. Using ICA Local Printer You can access printers attached to your client computer from an ICA session.

  • Page 84: Chapter 8 Desktop Mode

    BOSSTX2B CE 5.0 User's Manual 8. Desktop Mode When you switch to the Desktop mode, you will see the figure as below. All connections that you have created in WBT mode will also appear in Desktop mode. 8.1 Control Panel By clicking Start Settings, and you will see the “Control Panel”.

  • Page 85: General Properties

    BOSSTX2B CE 5.0 User's Manual 8.1.2 General Properties In the Control Panel, you can find the option “General Properties”. You can click it to view the system and device info and You can reset the default value in this dialog box.

  • Page 86: Advanced Function On Desktop Mode

    BOSSTX2B CE 5.0 User's Manual 8.3 Advanced Function on Desktop Mode 8.3.1 Task Manager Task Manager is a utility, which provides a quick overview of what applications is currently executing. You can press the “Ctrl + Alt + Del” to use this function.

  • Page 87: Hot Key Functions

    BOSSTX2B CE 5.0 User's Manual 8.3.3 Hot Key Functions Ctrl+Alt+End: Use this function to go back to the Desktop. Alt+Tab: Use this function to use Task Manager.
