- Page 1 Balluff Co., Ltd. Aqua Hakusan Bldg. 9F 1-13-7 Hakusan, Bunkyo-ku, Tokyo 113-0001 Mexico Balluff de México S.A. de C.V. Anillo Vial II Fray Junipero Serra No. 4416; Colonia La Vista Residencial CP 76232 Delegación Epigmenio González, Querétaro Balluff Inc. 8125 Holton Drive, Florence...
- Page 2 Model: BF-IDM18 Operating Guide RFID Reader Regulatory Information This device complies with part 15 of the FCC Rules and with Industry Canada’s licence- exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

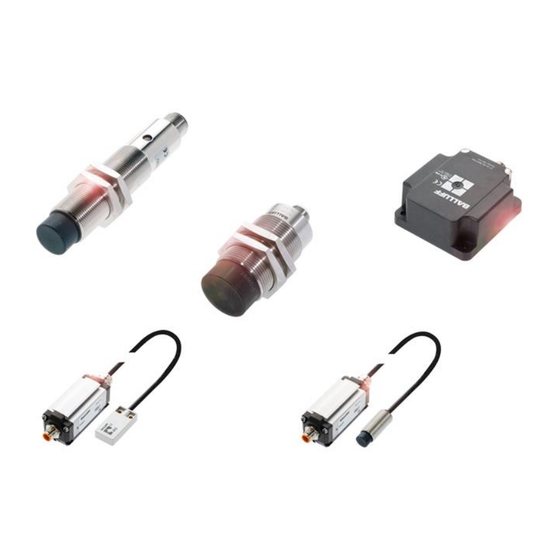

- Page 3 BF-IDM18 Operating Guide RFID Reader Purpose of the Device The BF-IDM18 RFID Reader is intended to read and write ISO15693 / ISO14443 compliant data carriers via magnetic field communication. Variability BF-IDM18 RFID Readers are available in different housings and shapes.
- Page 4 Model: BF-IDM18 Operating Guide RFID Reader Connecting the Device BF-IDM18 devices communicate via RS-232 with the controlling unit. Power + RS-232 RS-232 BIS M BIS M Power Supply To ensure reliable operation in strong EMC environments it is recommended to connect metal housings or dedicated functional ground pins directly to installations ground.
- Page 5 RFID Reader. Precise information concerning clear zones and distances are available on request. For BF-IDM18 Readers are available in different housings respectively shapes different types of installation may be considered.
- Page 6 Model: BF-IDM18 Operating Guide RFID Reader c) Indirect On-Wall mounting using metal holder (Example): Picture 3: Indirect On-Wall mounting using metal holder (Example):...
- Page 7 Operating Guide RFID Reader Setup and Operation For operation of BF-IDM18 Readers a controlling unit is needed. The BF-IDM18 Readers communicate directly with the controlling unit if it is connected. Status Indicators The device will show its status using the 2 LEDs at the corners of the housing. In normal operation state the meaning of these lights are as follows: ►...
