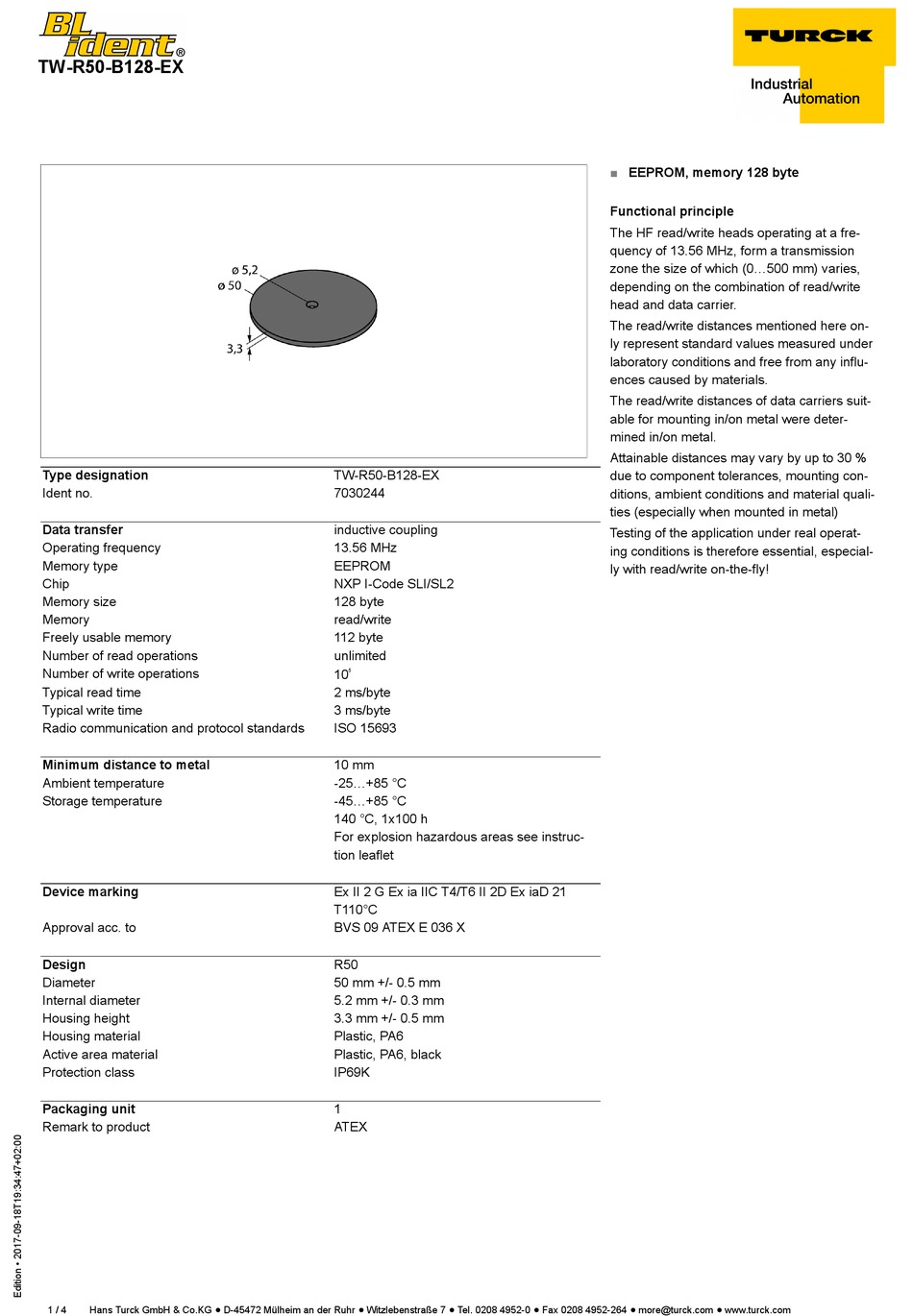

turck TW-R50-B128-EX Operating Manual

TW-R50-B128-EX
Type designation
Ident no.
Data transfer
Operating frequency
Memory type
Chip
Memory size
Memory
Freely usable memory
Number of read operations
Number of write operations
Typical read time
Typical write time
Radio communication and protocol standards
Minimum distance to metal
Ambient temperature
Storage temperature
Device marking
Approval acc. to
Design
Diameter
Internal diameter
Housing height
Housing material
Active area material
Protection class
Packaging unit
Remark to product
1 / 4 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
TW-R50-B128-EX
7030244
inductive coupling
13.56 MHz
EEPROM
NXP I-Code SLI/SL2
128 byte
read/write
112 byte
unlimited
10
5
2 ms/byte
3 ms/byte
ISO 15693
10 mm
-25...+85 °C
-45...+85 °C
140 °C, 1x100 h
For explosion hazardous areas see instruc-
tion leaflet
Ex II 2 G Ex ia IIC T4/T6 II 2D Ex iaD 21
T110°C
BVS 09 ATEX E 036 X
R50
50 mm +/- 0.5 mm
5.2 mm +/- 0.3 mm
3.3 mm +/- 0.5 mm
Plastic, PA6
Plastic, PA6, black
IP69K
1
ATEX
■ EEPROM, memory 128 byte
Functional principle
The HF read/write heads operating at a fre-
quency of 13.56 MHz, form a transmission
zone the size of which (0...500 mm) varies,
depending on the combination of read/write
head and data carrier.
The read/write distances mentioned here on-
ly represent standard values measured under
laboratory conditions and free from any influ-
ences caused by materials.
The read/write distances of data carriers suit-
able for mounting in/on metal were deter-
mined in/on metal.
Attainable distances may vary by up to 30 %
due to component tolerances, mounting con-
ditions, ambient conditions and material quali-
ties (especially when mounted in metal)
Testing of the application under real operat-
ing conditions is therefore essential, especial-
ly with read/write on-the-fly!
